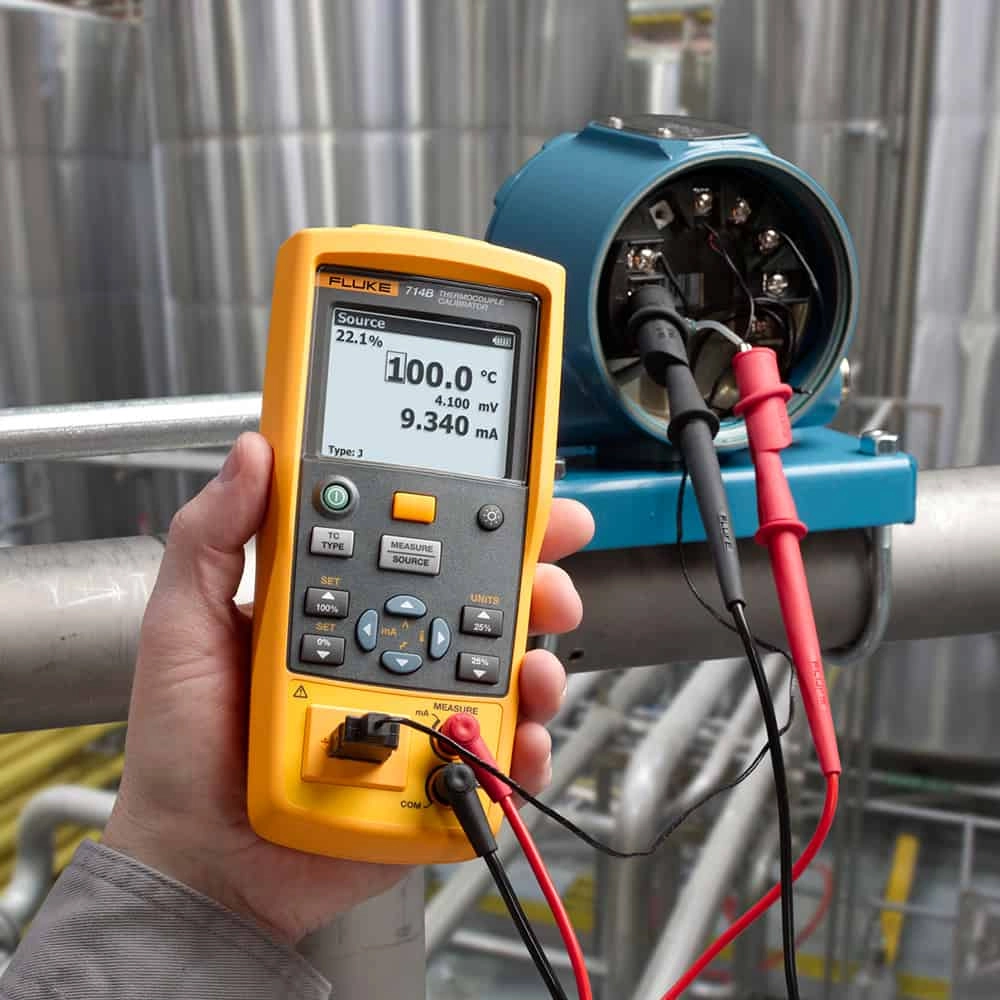

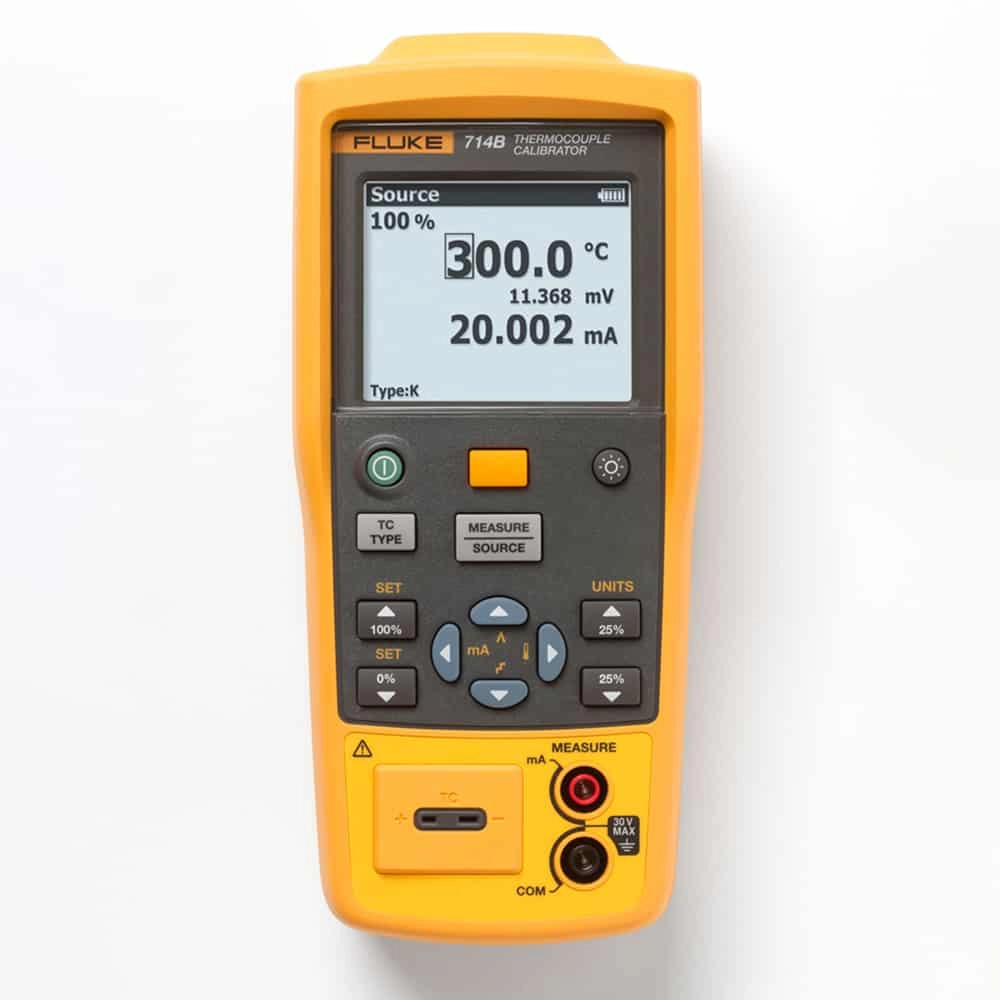

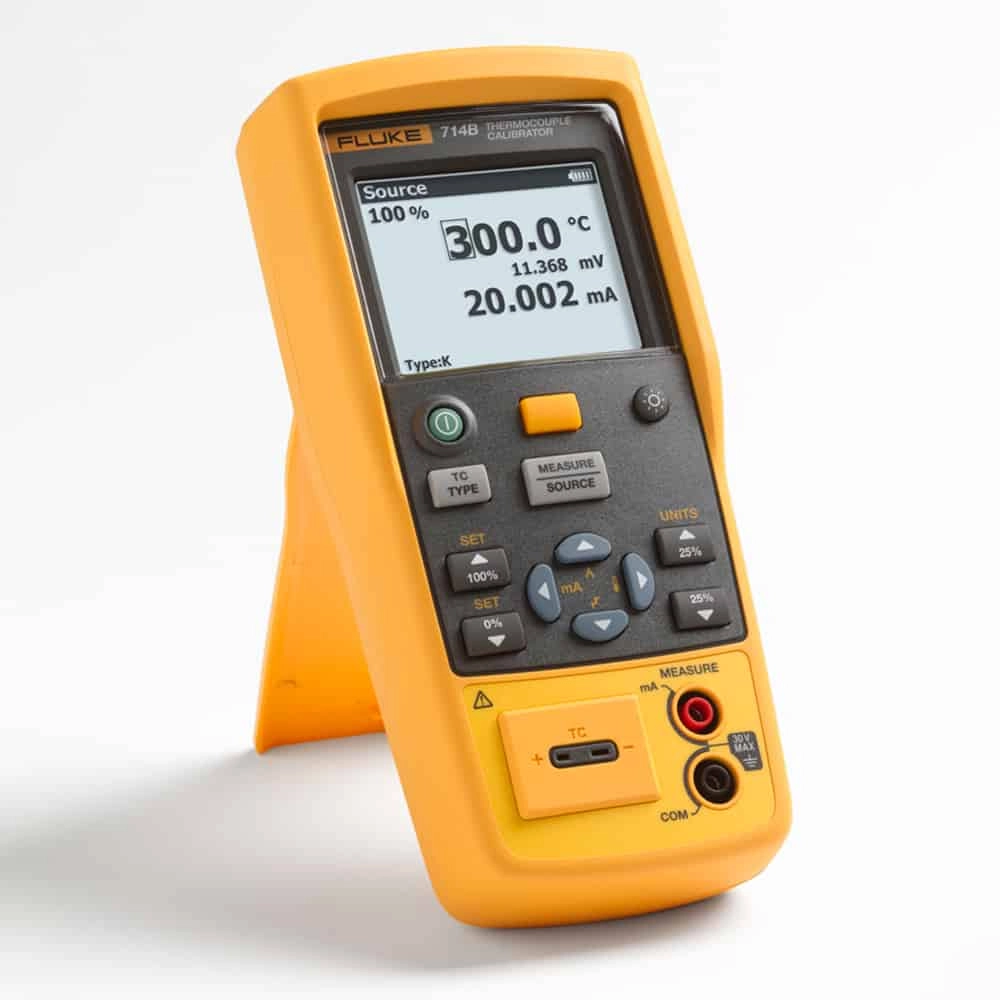

Fluke 714B Thermocouple Calibrator, 17 Thermocouple Types

Model #   714B

Discontinued

?

Question about this product?

Speak to an expert

Features

  • Capable of measuring and simulating 17 different RTD types and resistances.
  • Measures 4 to 20 mA signals while simultaneously sourcing a temperature signal.
  • The 714B can measure and simulate (17) different thermocouple types and millivolts
  • Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
  • Comes with a magnetic hanger for convenient hands-free operation
  • Features configurable source settings for quick linearity checks

Technical Information

  • Current Measurement0 to 24mA
  • Resistance Measurement0 to 4000Ω
  • Maximum voltage applied between any terminal and earth ground or between any two terminals30 V
  • Operating temperature-10°C to 50°C
  • Storage temperature-30°C to 60°C
  • Relative humidity (% RH operating without condensation)Non condensing 90% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) (Without condensation)
  • Vibration requirementsMIL-T-28800E, Class 2
  • Electromagnetic EnvironmentIEC 61326-1, Portable
  • Power supply4 x AA NEDA 1.5A IEC LR6 Batteries
  • Dimensions52.5 x 84 x 188.5mm

Items Included

  • Magnetic hanging tool Batteries Manual Traceable calibration certificate Test Leads
