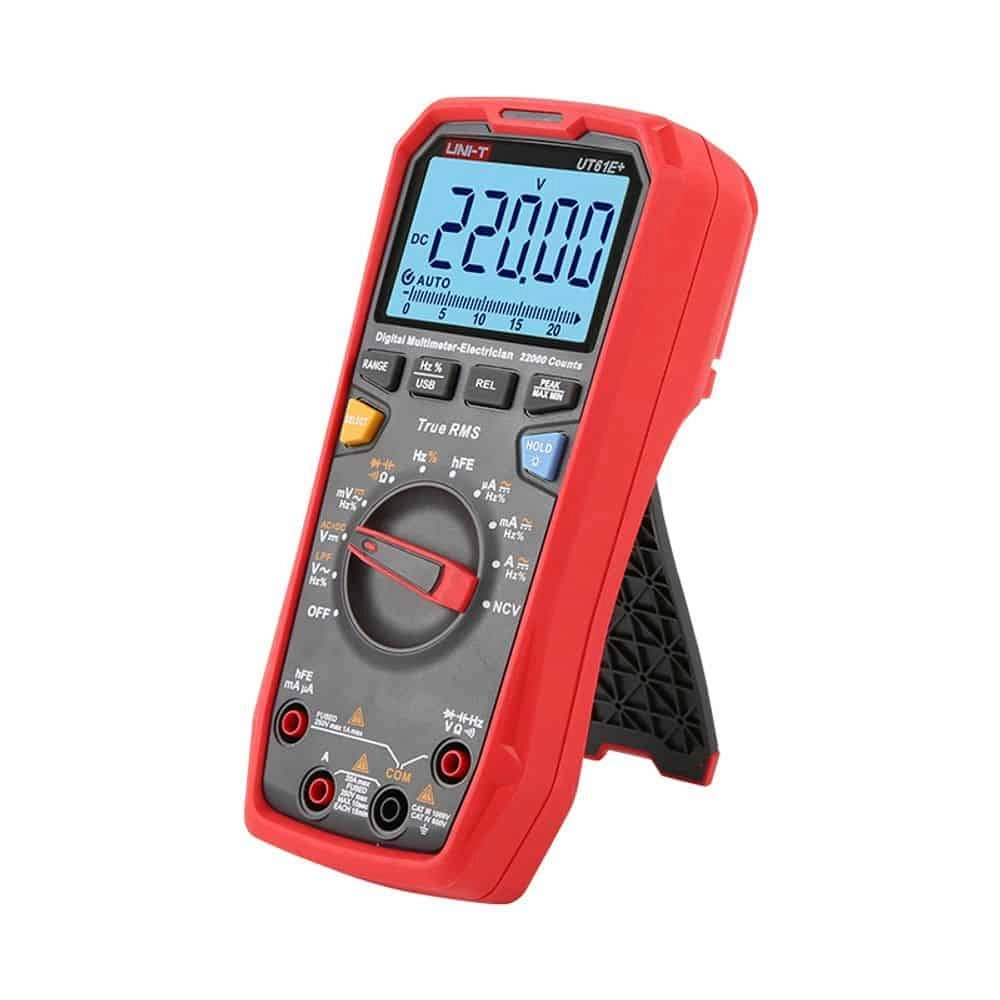

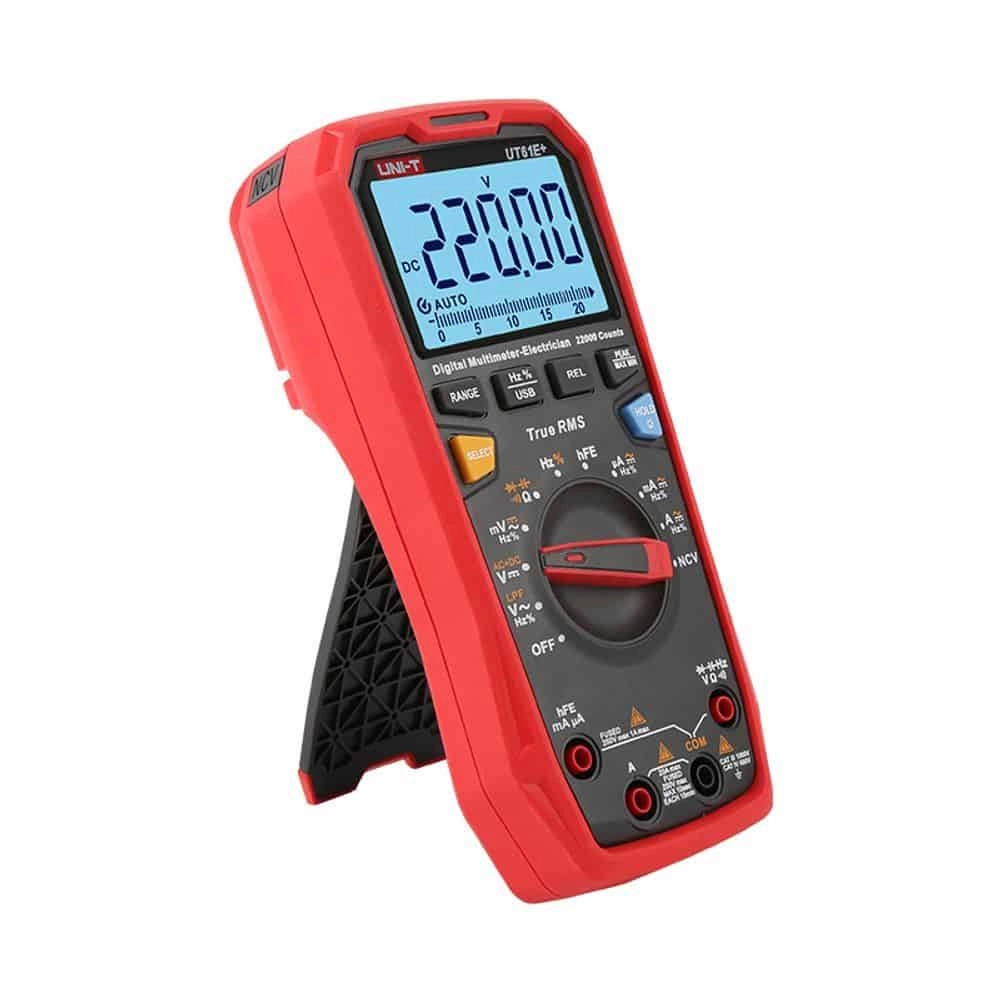

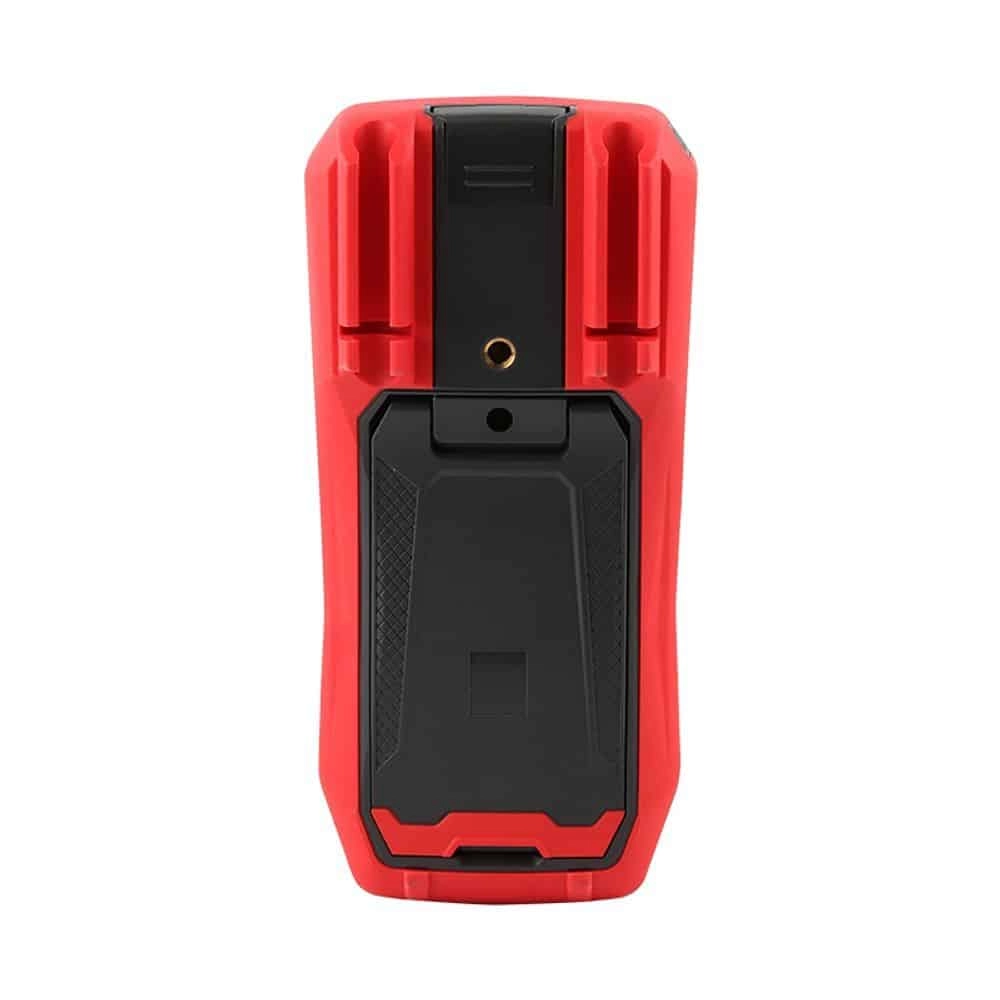

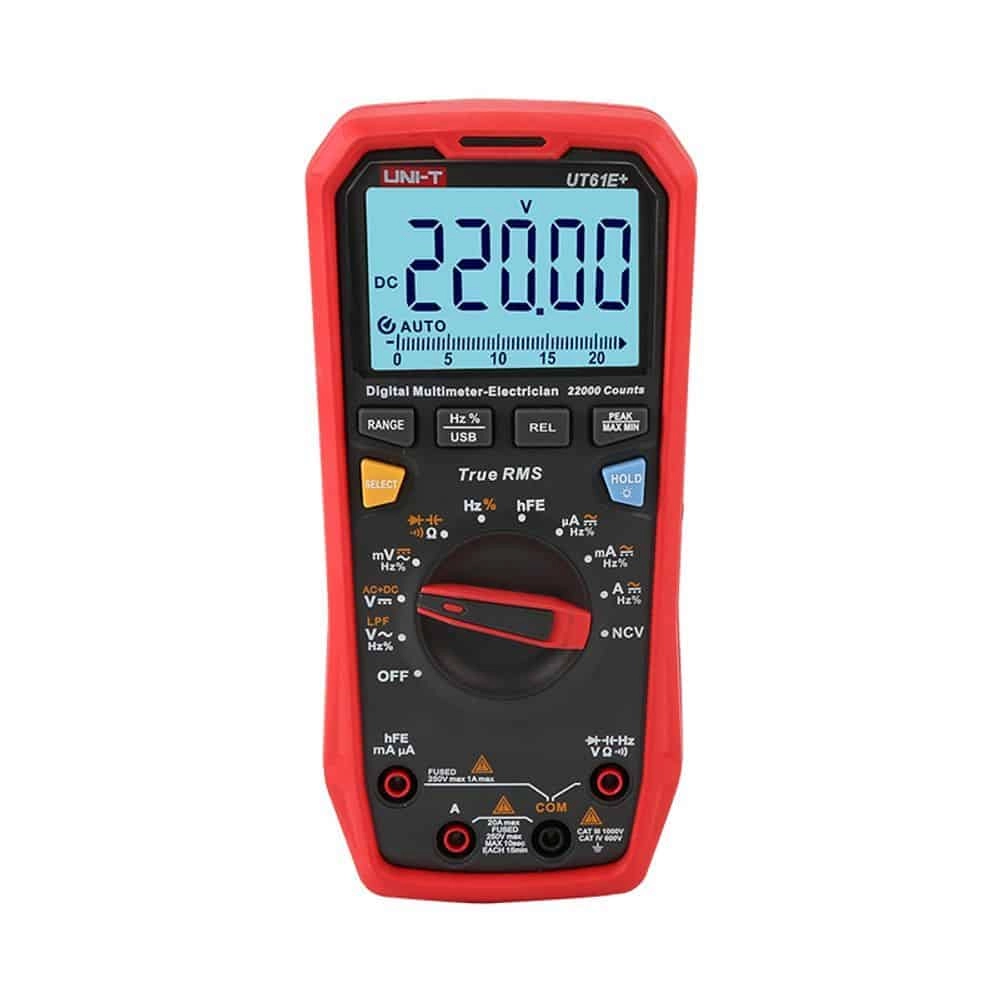

Uni-T UT61E+ True RMS Digital Multimeter HVAC 1000V

Model # UT61E+

Key Features

Brand: Uni-T
Model: UT61E+
DC Voltage:1000V
AC Voltage:1000V
Current (AC/DC):20A
Resistance (Ω):220MΩ ±(0.5%＋10)
Capacitance (F):220mF ±(3%＋5)
Warranty: 1 year

Qty:

Qty:

Add ISO/ IED 17025 accredited calibration to this quote.Learn more.

?

Question about this product?

Speak to an expert

Features

UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+).
It can measure up to 1000V AC/DC.
Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
Max/Min/Relative mode
USB communication

Technical Information

AC voltage (V)1000V ±(0.8%＋10)
DC voltage (V)1000V ±(0.05%＋5)
AC current (A)20A ±(0.8%＋10)
DC current (A)20A ± (0.5%＋10)
Resistance (Ω)220MΩ ±(0.5%＋10)
Capacitance (F)220mF ±(3%＋5)
Frequency (Hz)220MHz ±(0.01%＋5)
Duty cycle (%)0.1%~99.9% ±(2%＋5)
Display count22000
Bandwidth (Hz)40~10kHz
Power1.5V battery (R03) x 4
Product net weight350g
Product size190mm x 90mm x 50mm
