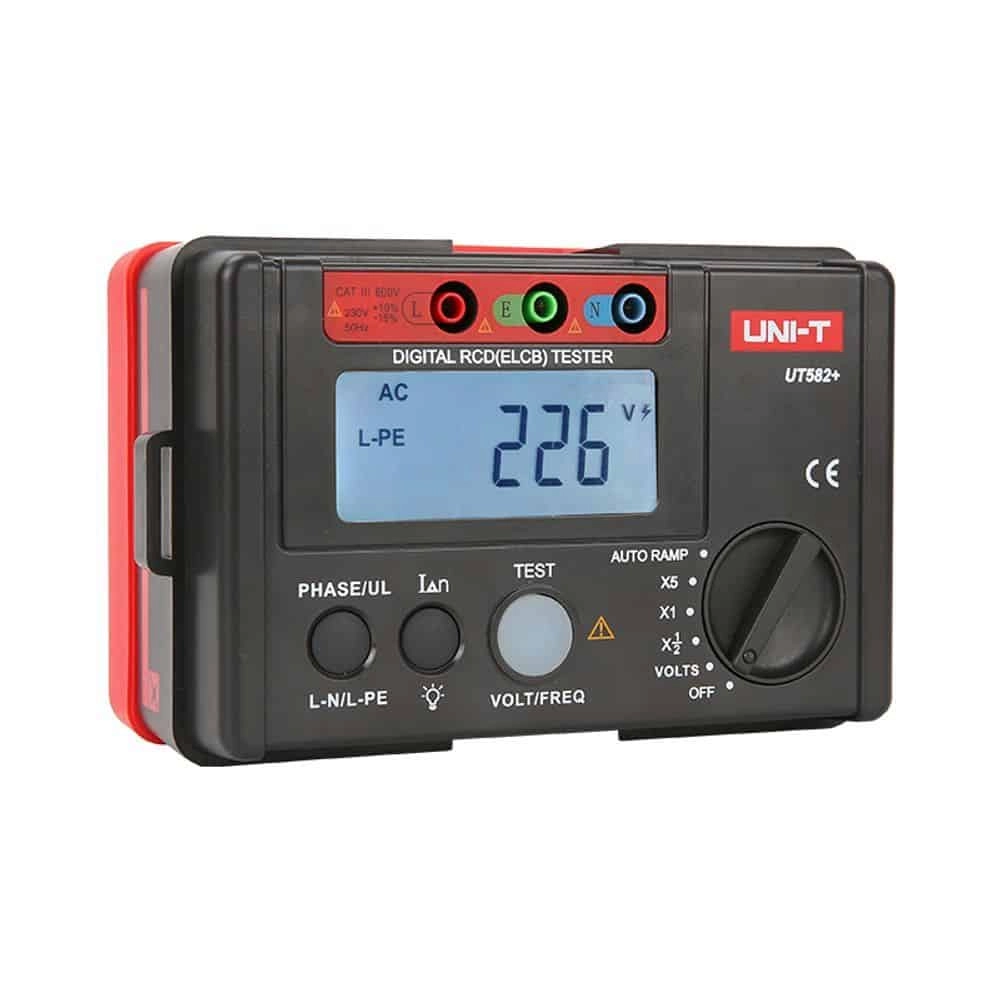

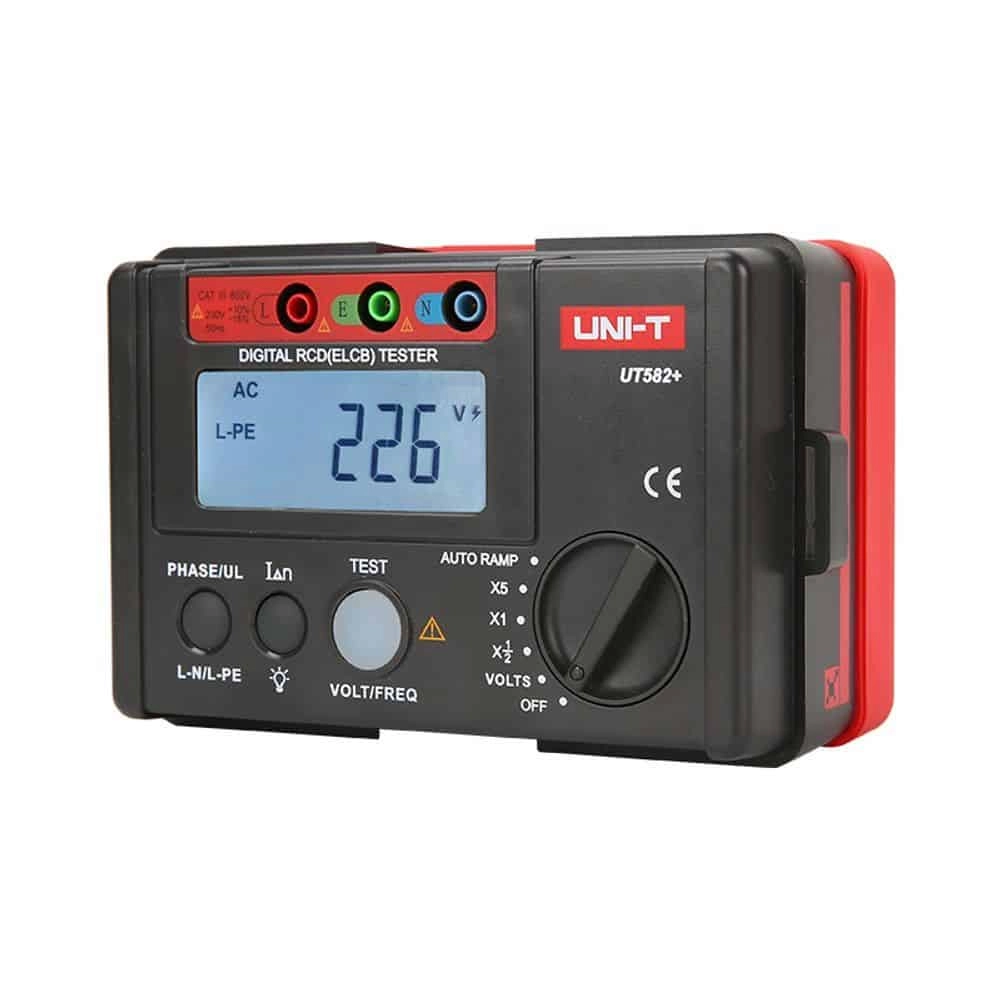

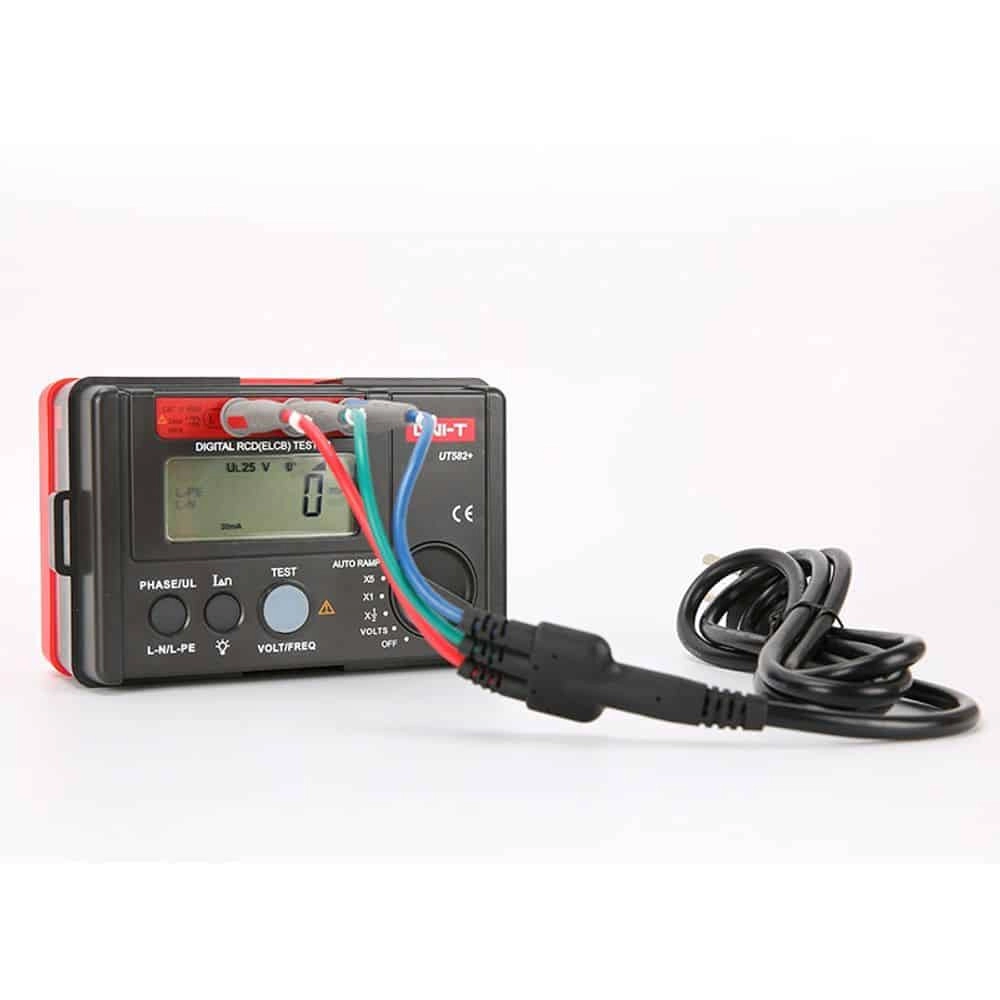

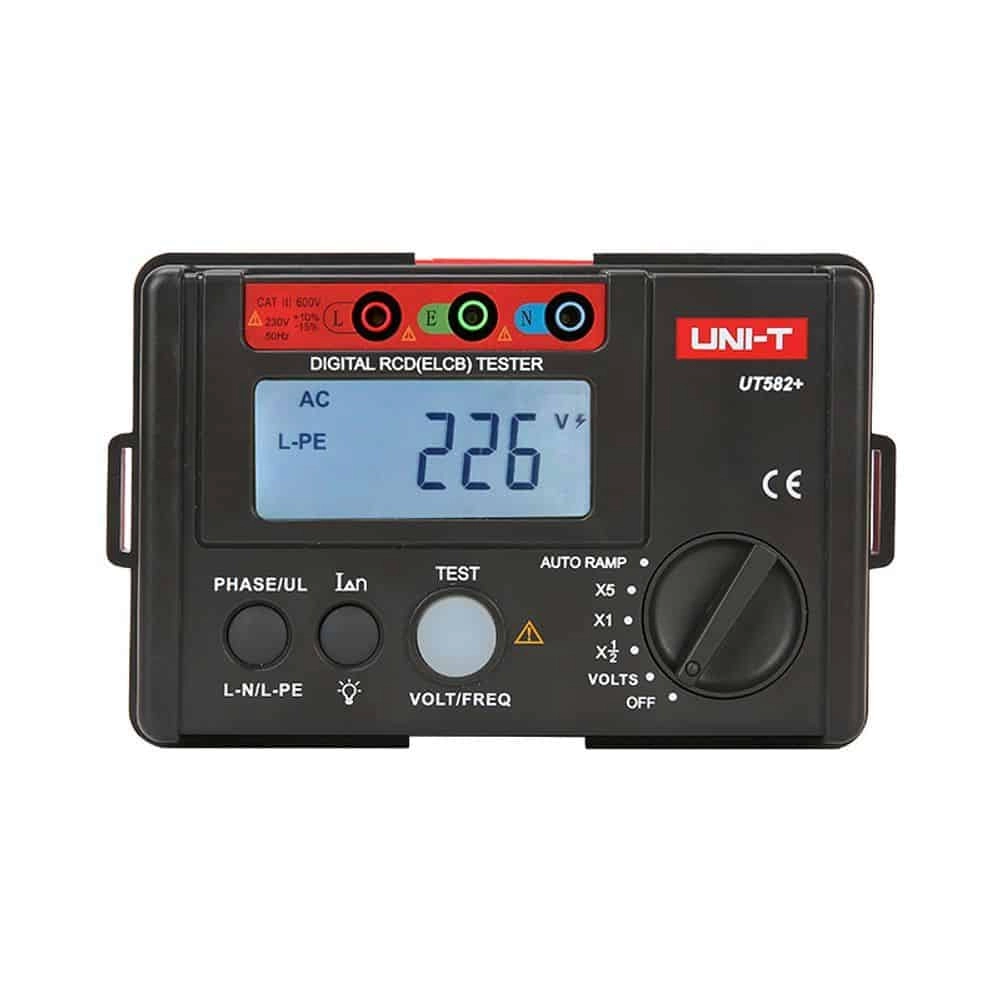

Uni-T UT582+ Digital RCD (ELCB) Tester, 10mA to 500mA, 30 to 600V

Features

• Lock measurement
• 1000-count LCD display of all measurement indicators
• Lead sequence check with 3 LED indication lights
• Phase angle selection (0°and 180°), can detect the fastest trigger time

Technical Information

• X 1/210mA/20mA/30mA/100mA/300mA/500mA - 2000ms
• X 110mA/20mA/30mA/100mA/300mA - 1000ms
• X 510mA/20mA/30mA - 40ms
• Trip time accuracy±(2%+2)
• Voltage range30~600V
• Frequency45Hz~65Hz
• PowerNo battery is required
• Display71mm x 34mm
• Product net weight400g
• Product size160mm x 100mm x 71mm
• Data hold0° and 180°

Items Included

• Test line
• carrying bag
• gallus

Downloads

Datasheet
