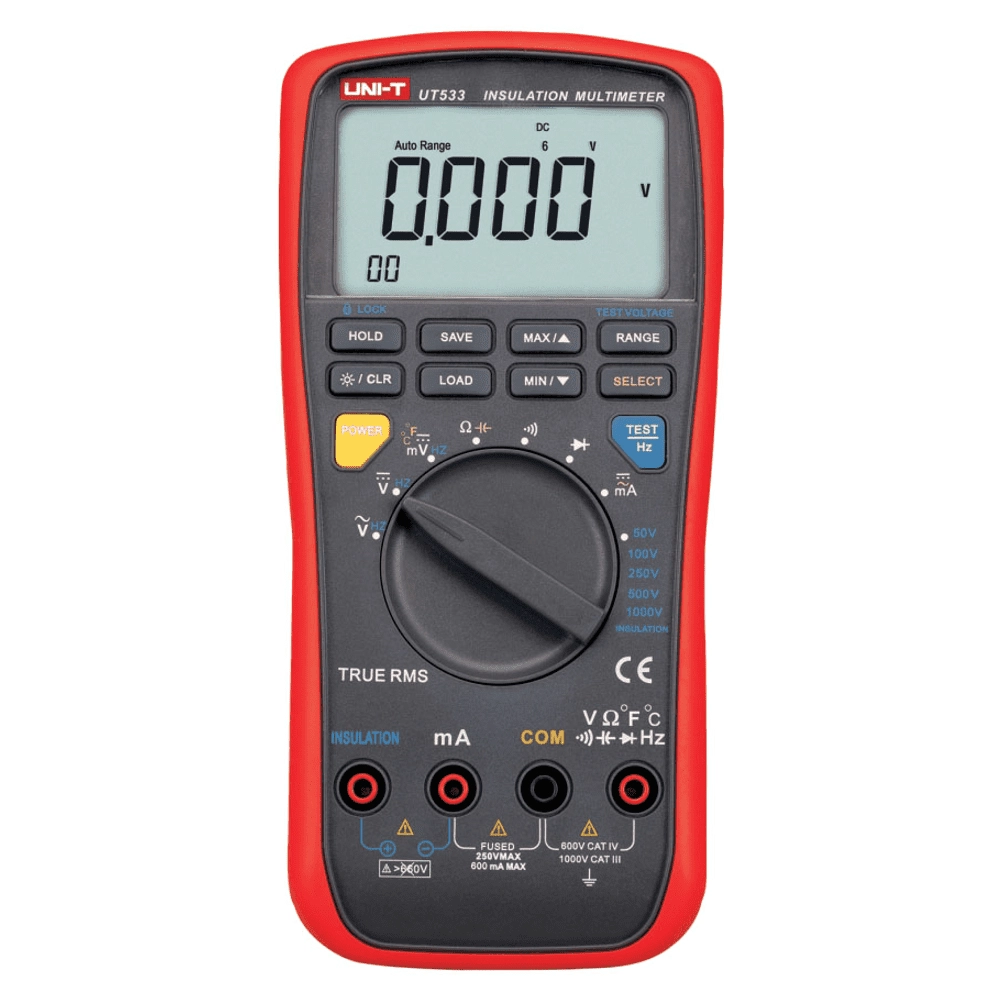

Uni-T UT533 Insulation Resistance Tester, CAT IV 600V, 50V-1000V
Model # UT533Key Features
?
Question about this product?
Features
- Measurement functions: insulation resistance; resistance; capacitance; frequency; DC voltage; AC voltage; DC current; AC current
- Auto ranging
- Data hold
- Low battery indication
- Diode; Continuity Buzzer
- Data Logging: 99
- Max / Min Mode
- Memory Zeroing
Technical Information
- DC Voltage60mV - 1000V
- AC Voltage6V - 1000V
- DC Current600mA
- AC Current600mA
- Resistance600Ω to 40 MΩ
- Frequency60Hz/600Hz/6KHz/60KHz/600KHz/1MHz +/- (0.1%+3)
- Capacitance10nF/100nF/1uF/10uF/100uF +/- (3%+5)
- Temperature-40°C ~ 537°C +/- (1%+10), -40°F ~ 998 °F +/- (1%+10)
- Insulation Resistance0.1MΩ - 2GΩ
- ProductNet Weight 505g
- Product Size97 × 203 × 46mm
- Power1.5V Battery× 6
- LCD Size81 × 46mm
Items Included
- Test Lead
- English Manual
- Alligator Clip
- Point Contact Temperature Probe
- Carrying Bag
