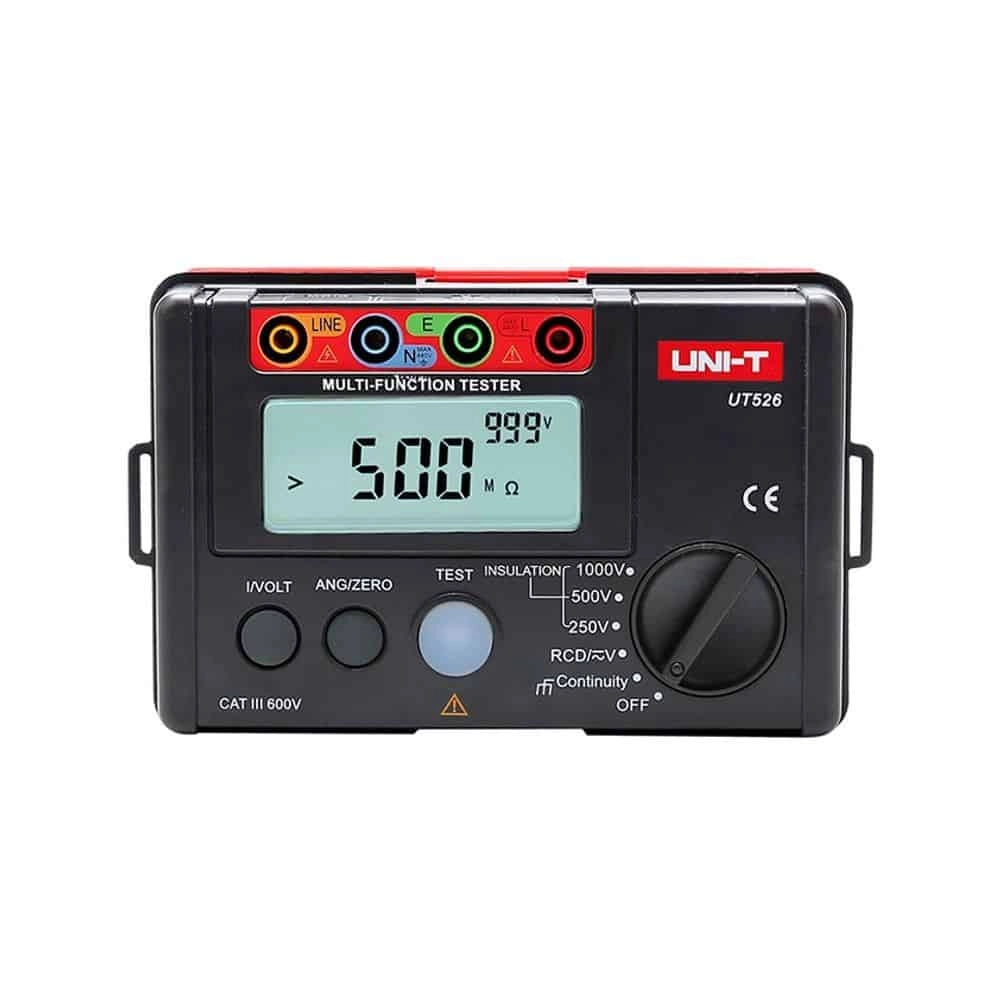

Uni-T UT526 Multifunction Electrical Meter, 10000 Display Count

Model # UT526

Key Features

Brand: Uni-T
Model: UT526
Warranty: 1 year

Qty:

Qty:

Add ISO/ IED 17025 accredited calibration to this quote.Learn more.

?

Question about this product?

Speak to an expert

Features

AC or DC Judgment: Voltage Measurement
Test Light
Phase Switch (RCD): 0° and 180°
Low Battery Display

Technical Information

Test Voltage 250V/500V/1000V +/-(10%+0)
Test Current 100V (R=100kOhm),1mA +/- (10%+0)
Test Current Short Circuit <2mA 250V: 0.05MOhm ~ 200MOhm +/- (5%+5)
RCD Operational Voltage 220V+/-10% / 45Hz ~ 65Hz
Test Current 10mA/30mA/100mA/300mA 0~10%
Trip Time 0ms--2000ms, 1 n General (10mA) +/-(5%+2)
Test Voltage Around 5.0V
Test Current >200mA (R<2W)
Continuity Resistance Range 0.00W ~ 2000W (UT526) +/- (2%+5)
AC/DC Voltage 0~440V +/- (2%+3)
