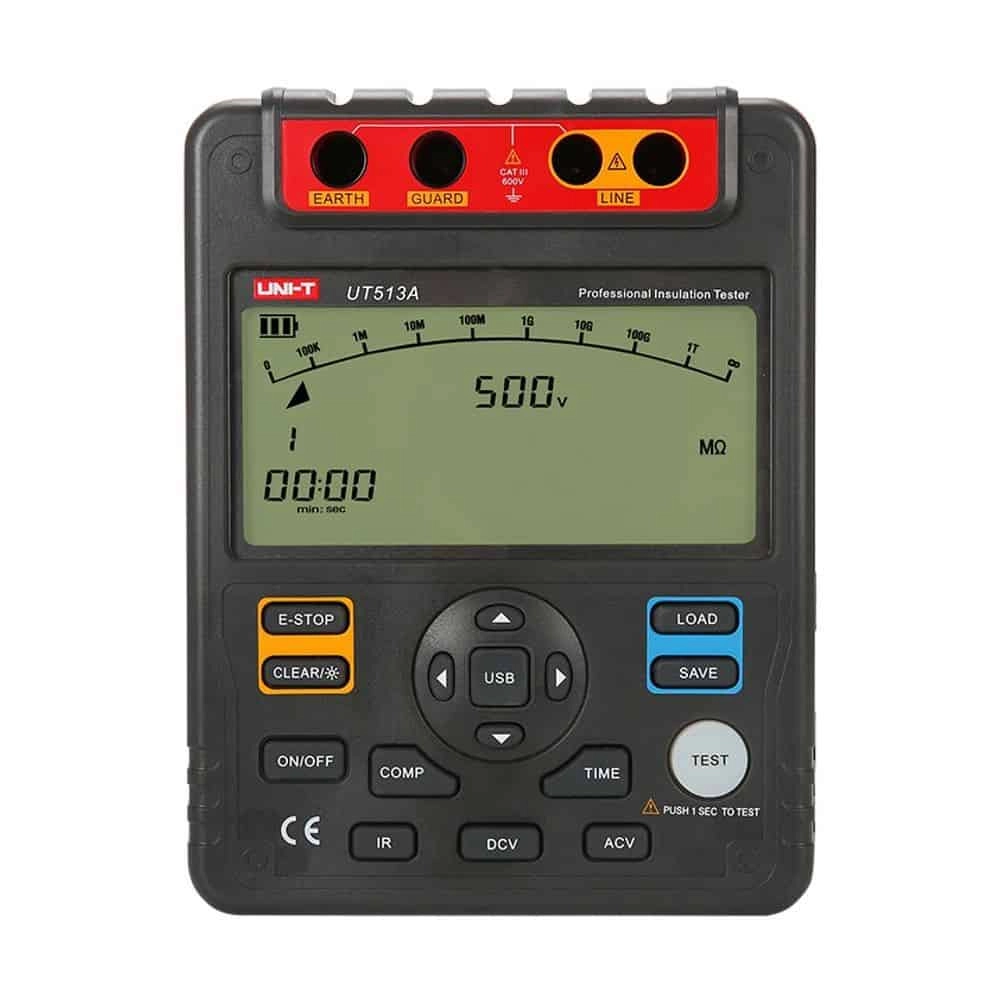

Uni-T UT513A Insulation Resistance Tester, CAT III 600V, 500V - 5000V

Features

• Large 9999 display with 30-segment analog bar graph
• PI/DAR measurements
• Comparison, upper and lower limit functions
• Continuous measurement mode
• Auto power off
• 18-group data storage
• Auto current discharge and high-voltage output alarm
• Time measurement mode, auto measure within 15 minutes
• Low battery and over range indications

Technical Information

• DC Voltage600V - best accuracy: +/- (2%+5)
• AC Voltage600V - best accuracy: +/- (2%+5)
• Insulation Test Voltages500V, 1000V, 2500V, 5000V
• Insulation Resistance0.5MΩ - 1000GΩ
• Power1.5V battery (LR14) x 8
• Display123mm x 58mm

Items Included

• 2pcs of one plug test lead to one alligator clip (black and green)
• 1pcs of two plugs test lead to one alligator clip (red)
• batteries
• USB cable
• PC software CD
• power adaptor

Downloads

Datasheet
