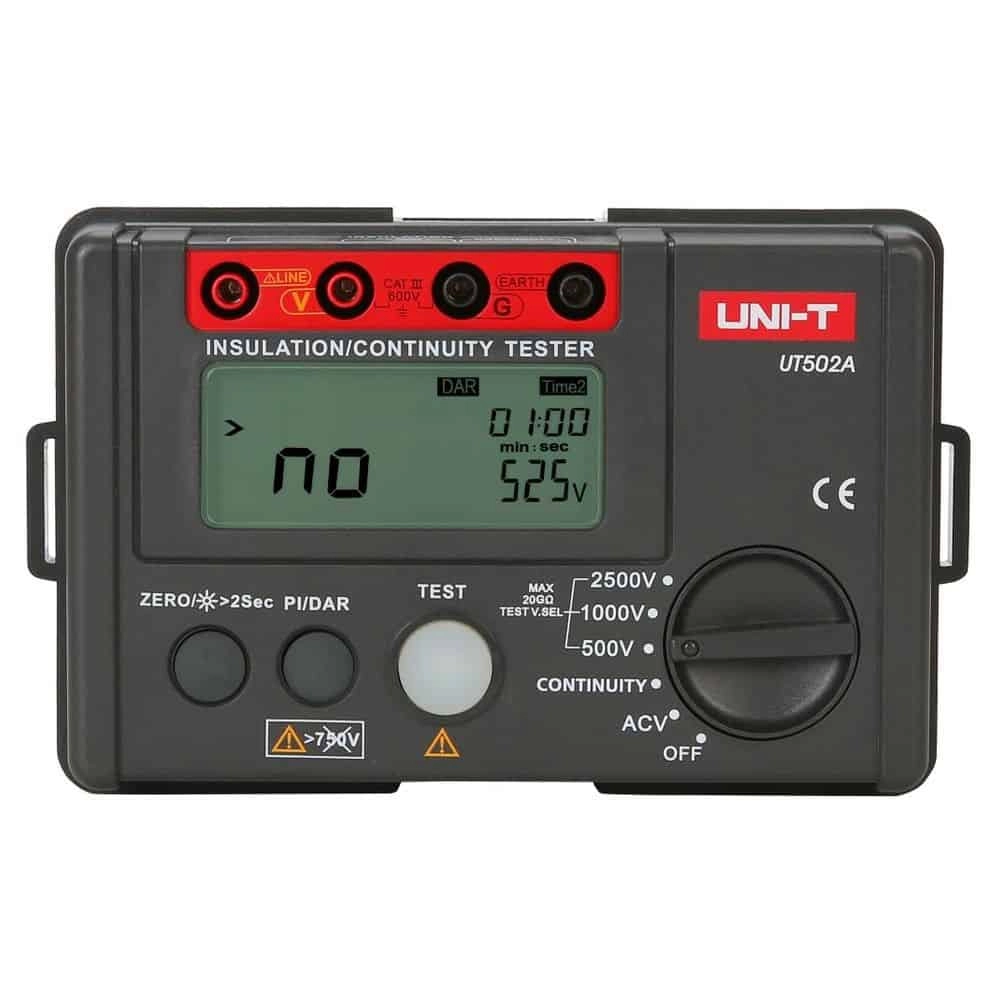

Uni-T UT502A Insulation Resistance Tester, CAT III 600V, 500-2500V

Features

• Auto discharge
• Low resistance returning to zero function to improve accuracy
• LCD backlight
• Continuous low resistance measurement
• Continuous measurements mode, red warning light and buzzer function
• 2000 count LCD display, overload indication, backlight
• AC voltage measurement, auto power off
• PI and DAR measurement, auto resistivity calculation

Technical Information

• AC Voltage30V~600V
• Resistance0.01Ω - 200Ω
• Load Current1mA
• Insulation Test Voltages500V, 1000V, 2500V
• Insulation Resistance0.01MΩ - 5GΩ
• Display Count2000
• DAR60s/15s and 60s/30s
• Power1.5V battery (LR6) x 6
• Display70.6mm x 34mm
• Product size150mm x 100mm x 71mm

Items Included

• Batteries
• test leads
• alligator clips
• gallus
• test probes

Downloads

Datasheet
