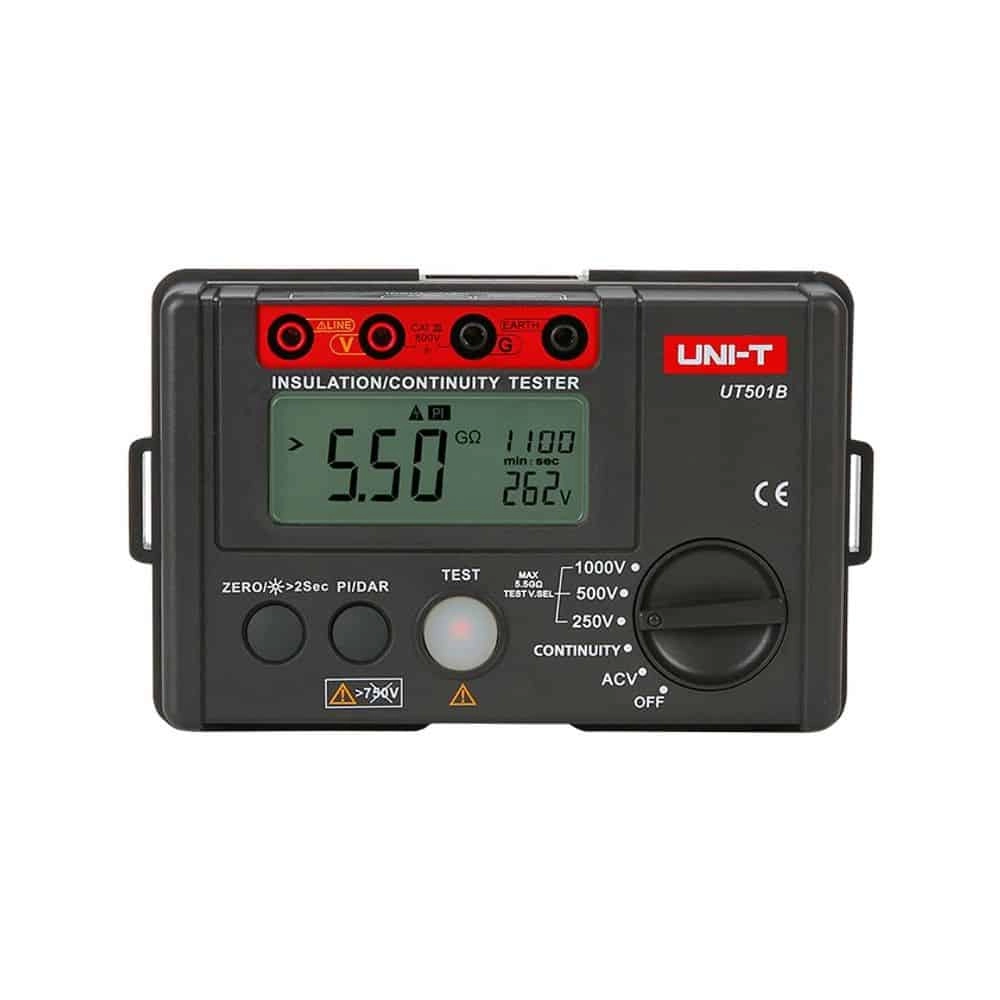

Uni-T UT501B Insulation Tester, CAT III 600V, 250V-1000V

Features

• 2000 count LCD display, overload indication, backlight
• AC voltage measurement, auto power off
• Auto discharge
• Continuous measurements mode, red warning light and buzzer function
• Continuous low resistance measurement
• PI and DAR measurement, auto resistivity calculation
• Low resistance returning to zero function to improve accuracy

Technical Information

• AC Voltage30V - 600V
• Resistance0.01Ω - 200Ω
• Load Current1mA
• Insulation Test Voltages250V, 500V, 1000V
• Insulation Resistance0.01MΩ - 5GΩ
• Display Count2000
• Product net weight500g
• Low resistance0.01Ω~200Ω (about 5.0V/>200mA)
• Display count2000
• DAR60s/15s and 60s/30s
• Power1.5V battery (LR6) x 6
• Display70.6mm x 34mm
• Product size150mm x 100mm x 71mm

Items Included

• Batteries
• test leads
• alligator clips, gallus
