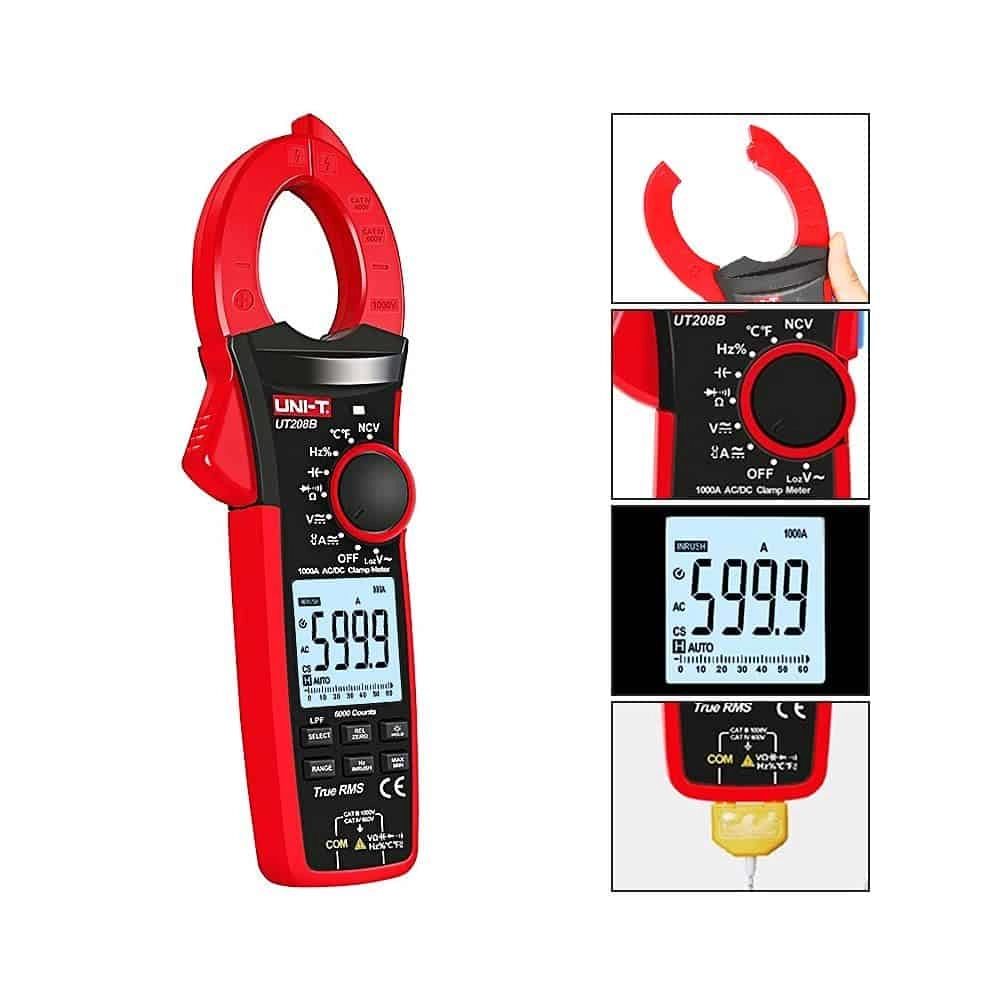

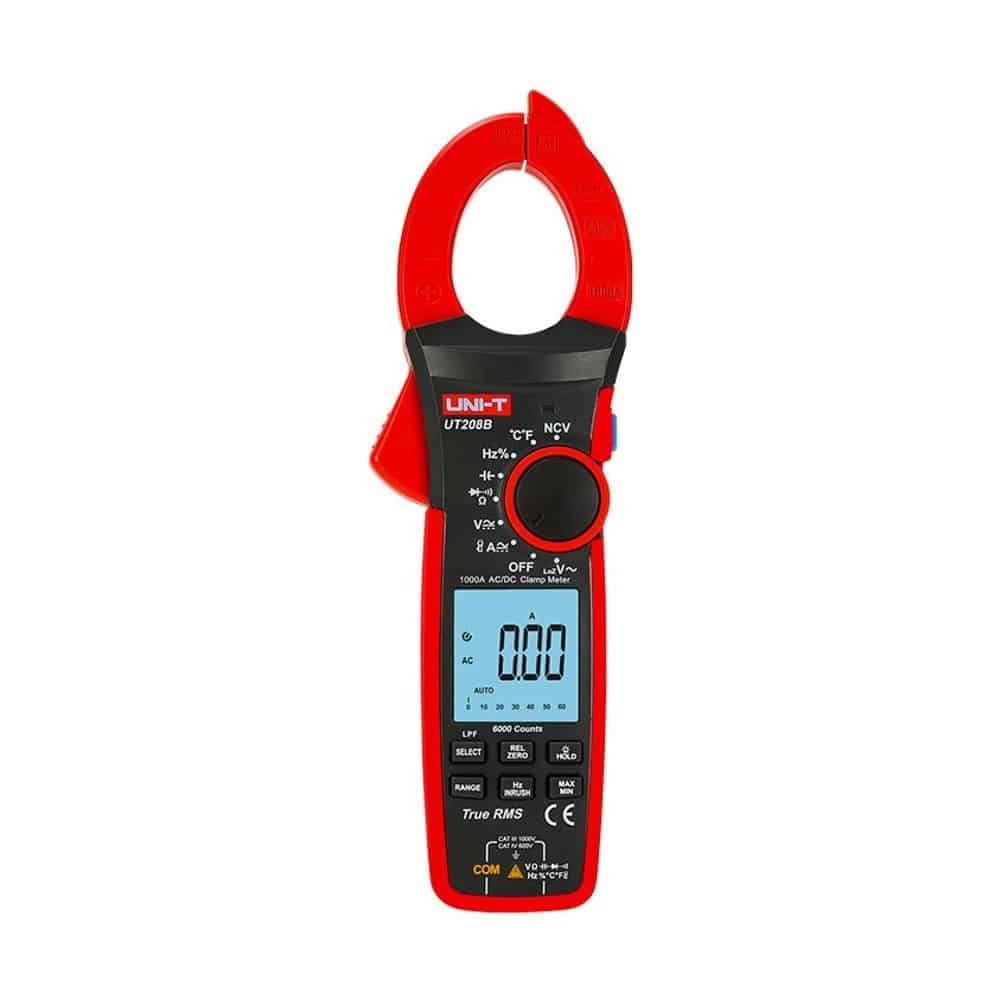

Uni-T UT208B True RMS Digital Clamp Meter 1000A
Model # UT208BKey Features
?
Question about this product?
Features
- UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions.

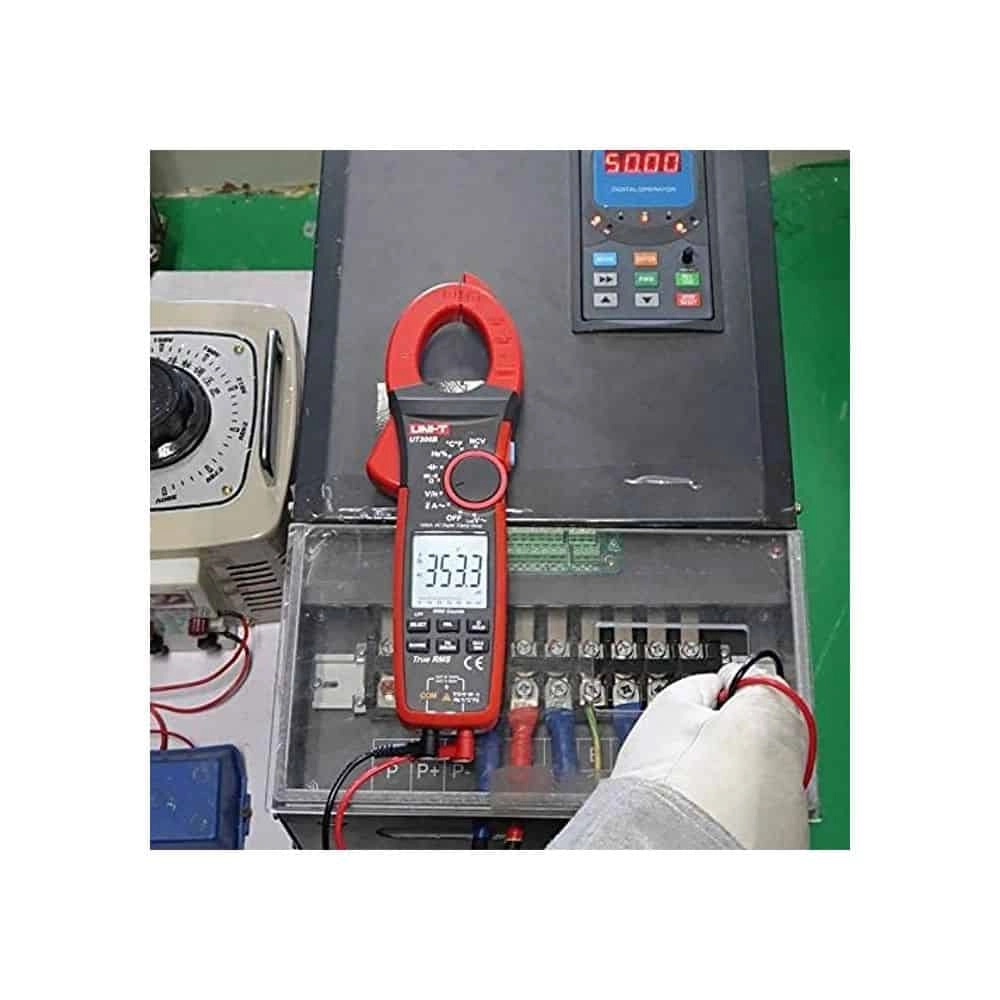

- They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current.
- The UT206B and UT208B also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.

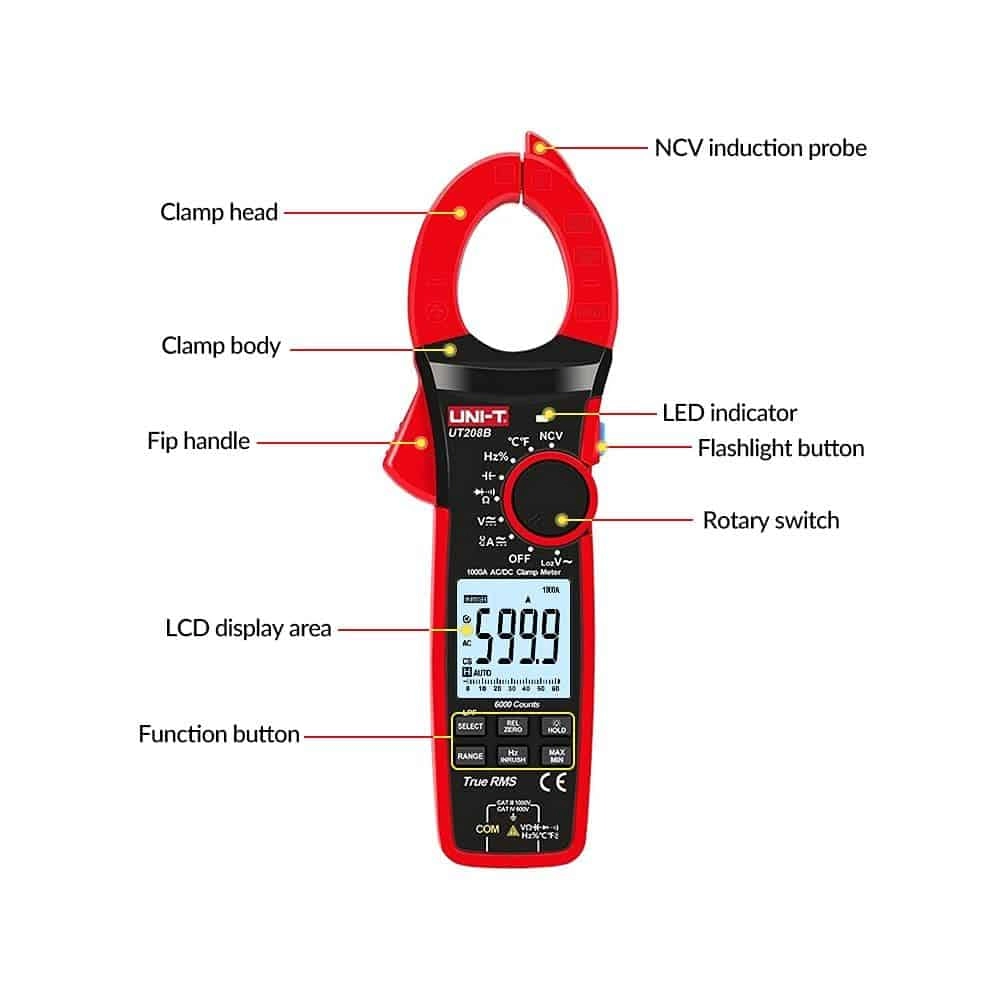

- Flashlight button: Short press thisbutton to turn on/off the flashlight
- Flexible current probe (optional) to extend the AC current measurement range to 3000A
- Inrush current capture

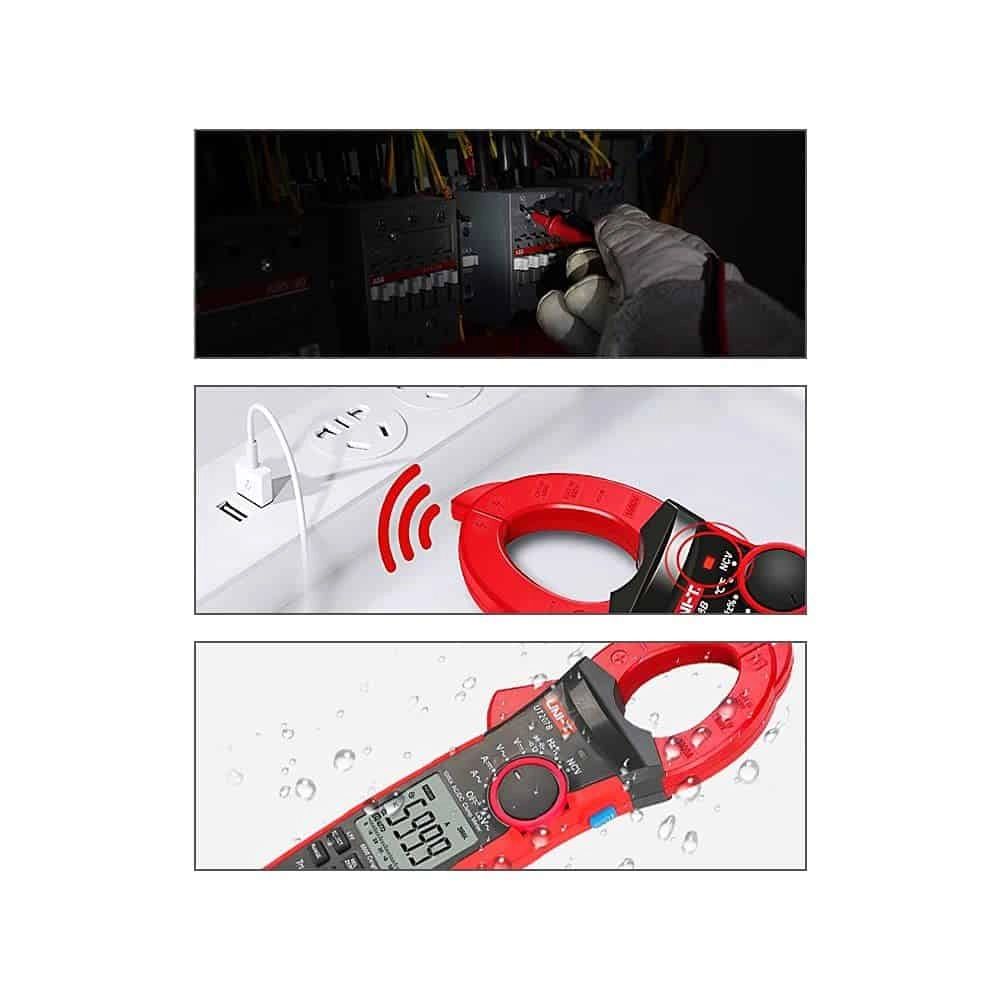

- NCV Multi-Segment Display and audio/visual alarm
- True RMS/Auto backlight
- NCV/Function retention
Technical Information
- AC Current (A) Range1000A / ±(2%+5)
- AC Voltage1000V

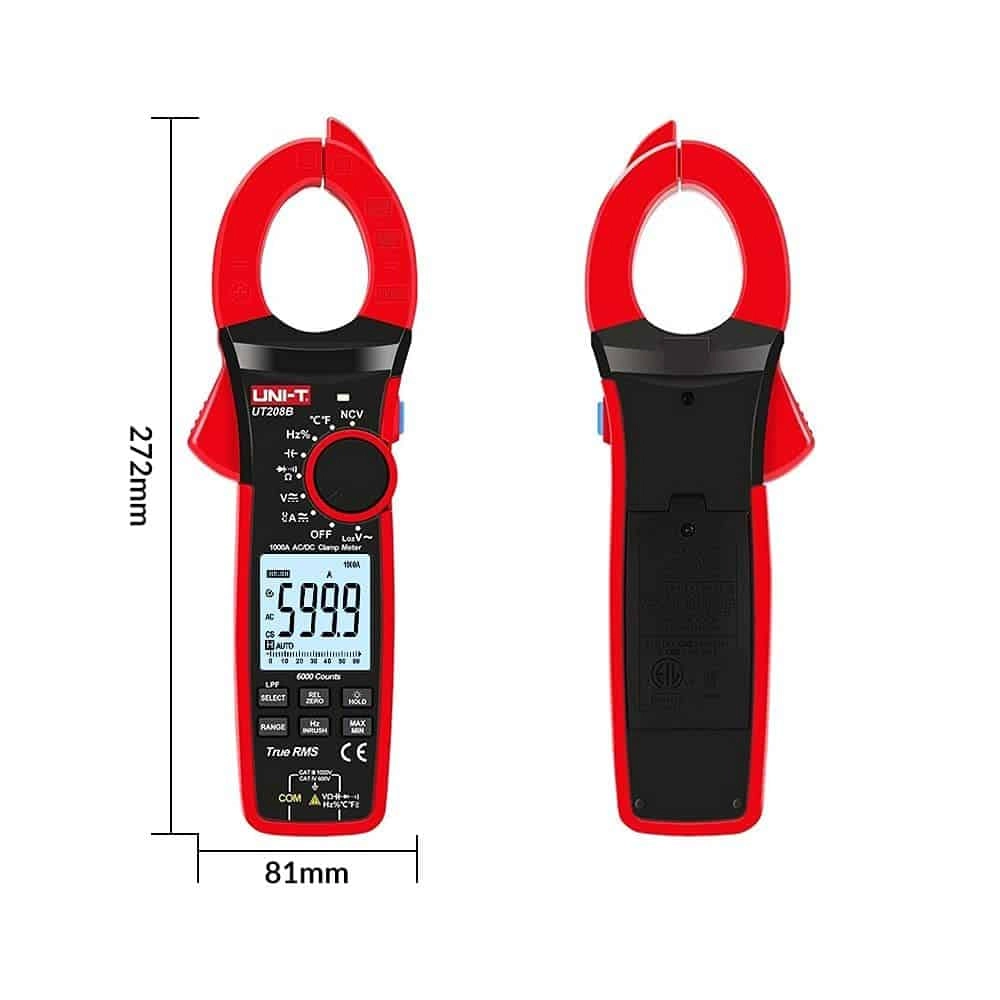

- Jaw Size42 mm
- Safety RatingCAT III 1000V, CAT IV 600V
- AC voltage frequency response40Hz:400Hz
- DC current (A) Range1000A / ±(2%+5)
- AC current frequency response40Hz : 400Hz
- DC voltage (V) Range6V, 60V/600V/1000V ; ±(1.2%+3), ±(1%+8)
- DC voltage (V) Range600mV, 6V/60V, 600V, 1000V; ±(0.8%+3), ±(0.5%+5), ±(0.5%+5), ±(0.5%+5)
- Low pas filter (LPF ACV)600V/1000V; ±(2%+5)
- Resistance (Ω)600Ω, 6KΩ/60KΩ/600KΩ, 6MΩ/60MΩ ; ±(1%+3), ±(1%+2), ±(2%+8)
- Capacitance (F)60nF, 600nF/6μF/60μF/600μF, 6mF/60mF ; ±(4%+25), ±(4%+5), ±(10%+9)
- Temperature (°C)-40:300, 300:1000 ; ±(1%+20), ±(1%+2)
- Low voltage frequency (Hz)10Hz:1MHz ; ±(0.1%+3)
- Duty cycle (%)10%:90% ; ±(2.6%+7)
