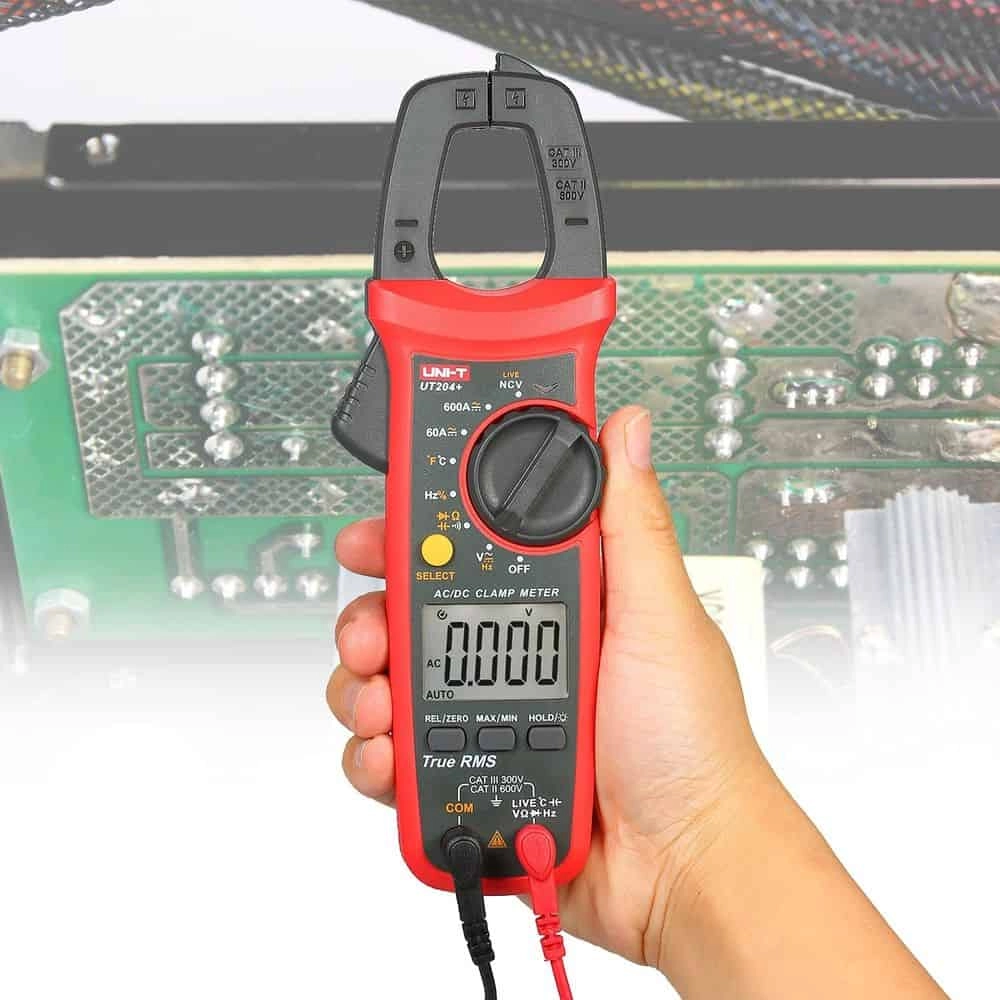

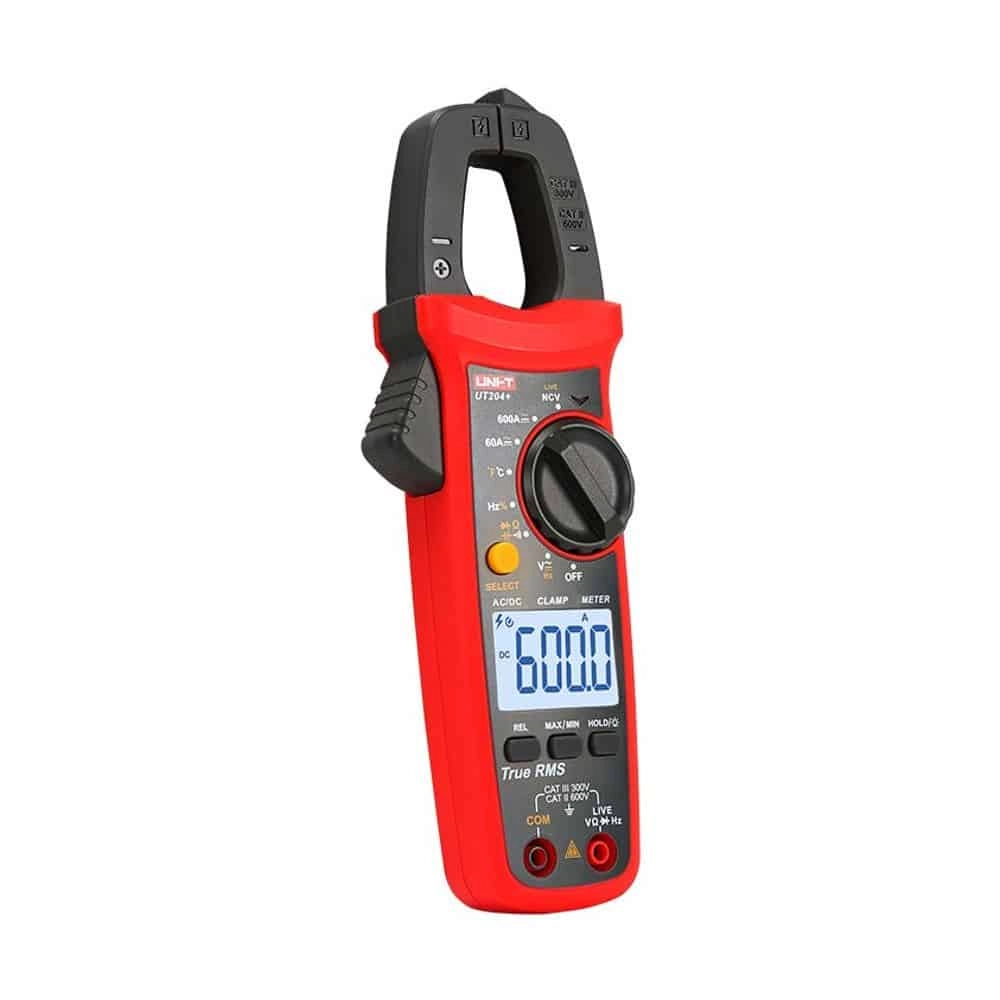

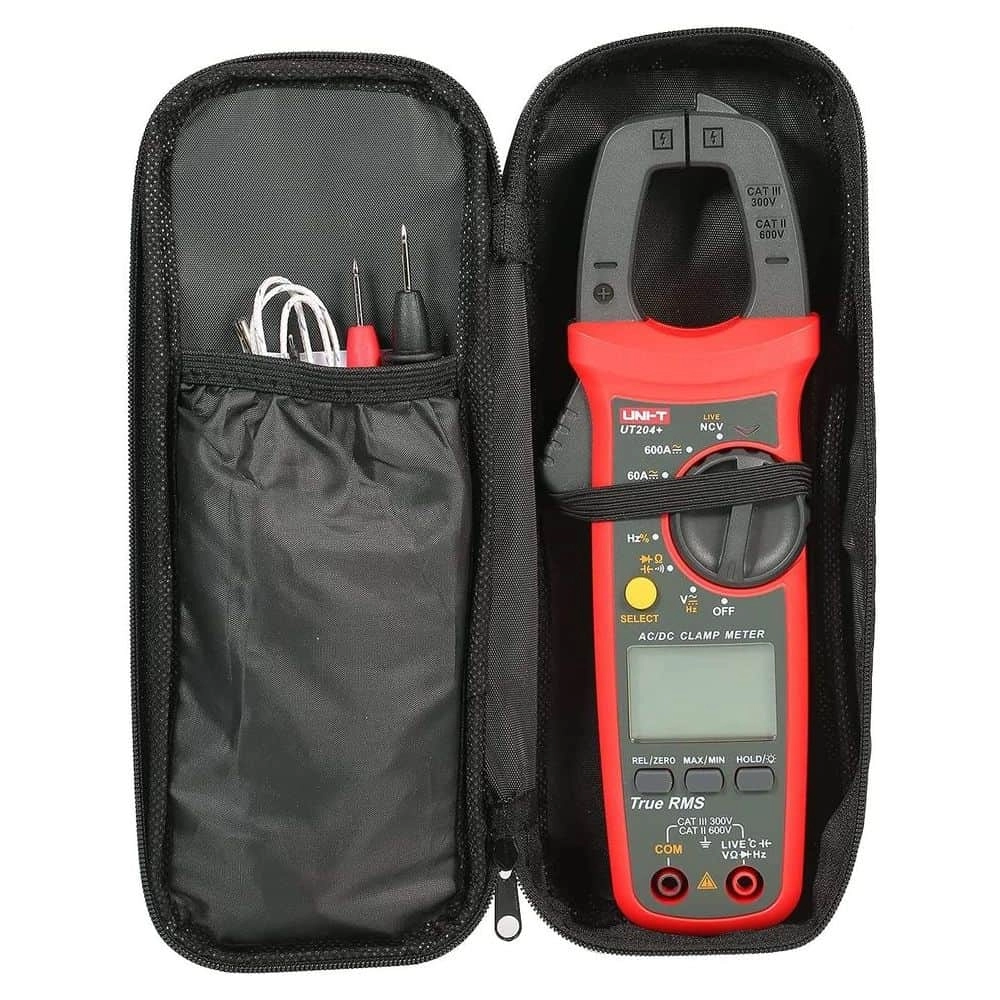

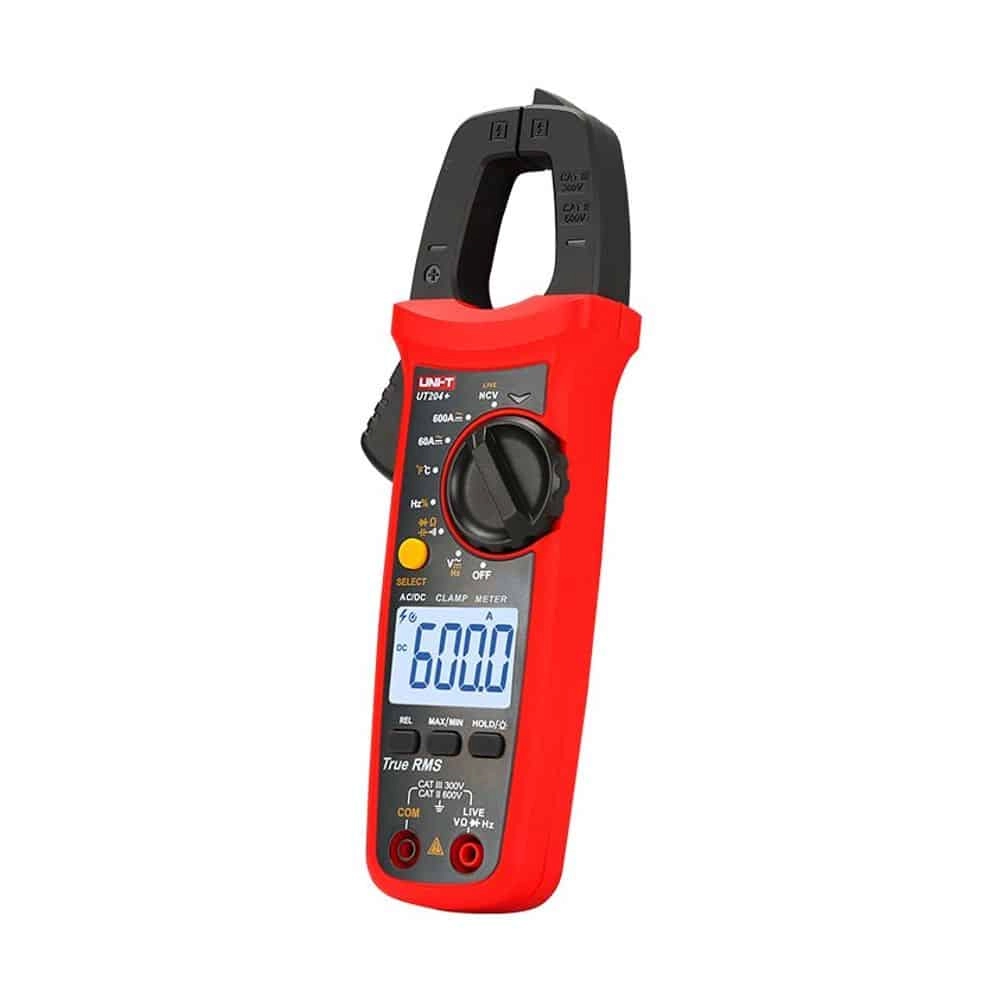

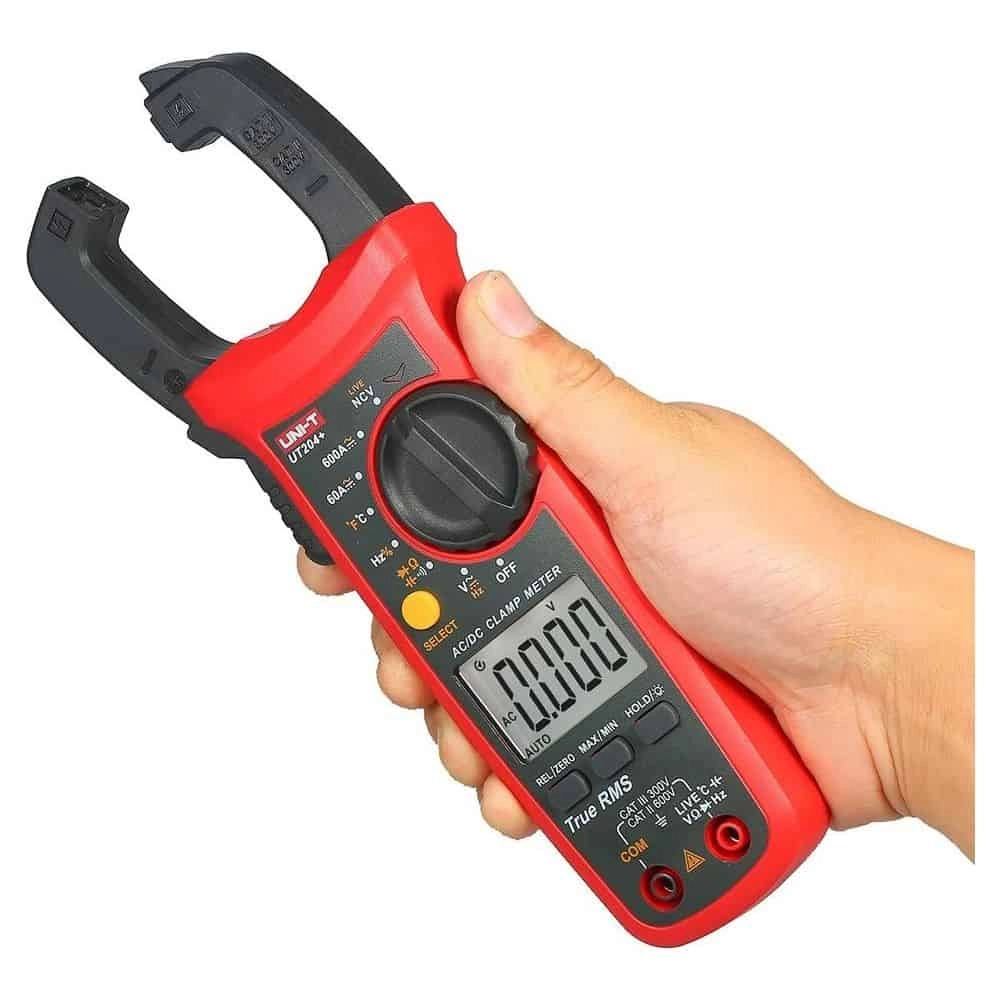

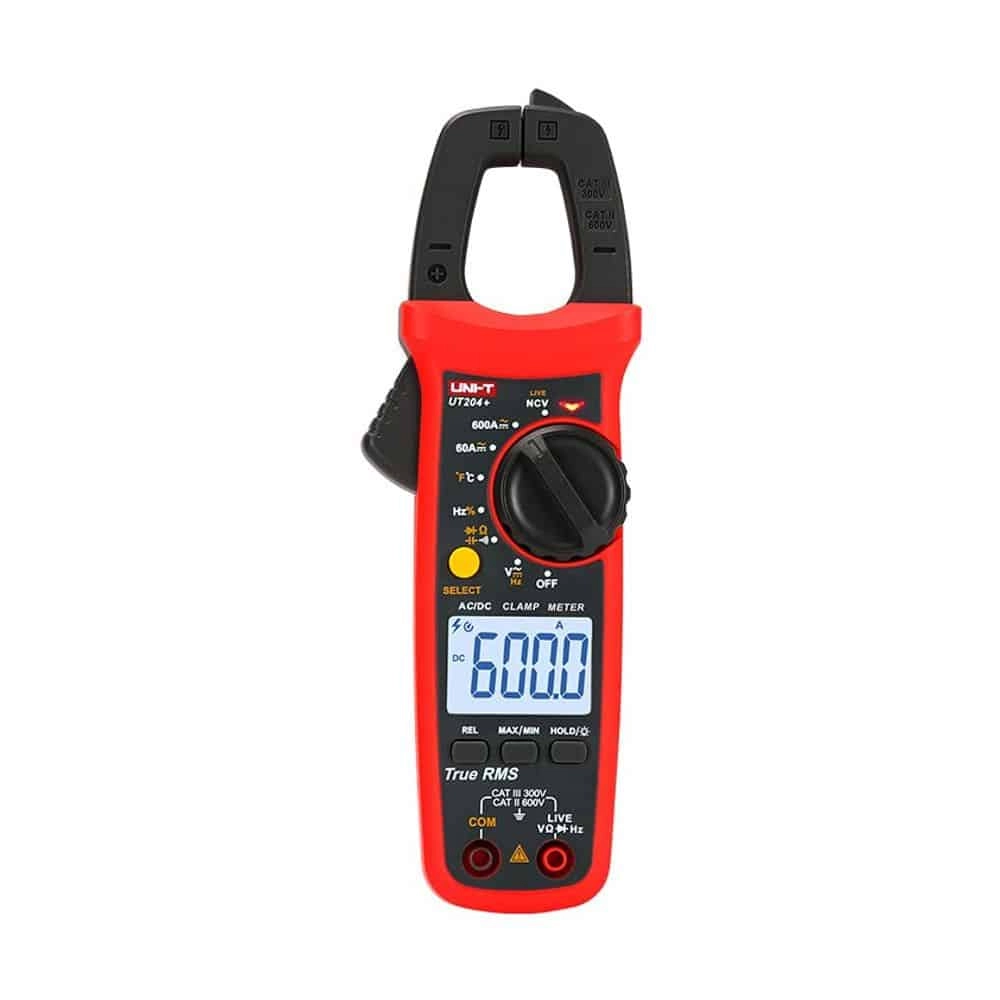

Uni-T UT204+ Digital Clamp Meter AC/DC 600A
Model # UT204+Key Features
?
Question about this product?
Features
- Is a True RMS digital clamp meter designed to measure AC/DC current, AC/DC voltage, AC voltage frequency, resistance, capacitance, temperature, and frequency.
- It may also be used to test live wires, diodes, and continuity.
Technical Information
- AC Current (A)600 A ; ±(2%+5)
- AC Voltage600 V ; ±(0.8%+5)
- Jaw Size28 mm
- Safety RatingCAT II 600V, CAT III 300V
- DC Current (A)600 A ; ±(2%+5)
- DC Voltage (V)600 V ; ±(0.5%+2)
- AC voltage frequency (kHz)10 Hz:60 kHz ; ±(0.5%+2)
- Resistance40 Ω, 6 kΩ : 600 kΩ, 60 MΩ ; ±(1.0%+2), ±(0.8%+2), ±(2.5%+5)
- Capacitance60 nF : 600 µF, 60 mF ; ±(4%+5), ±(10%)
- Temperature-40°C:1000°C ; ±(1.5%+5)
- Frequency10 Hz:10 MHz ; ±(0.1%+4)
- Display6000 count, 37 mm × 25 mm
- Power2 x 1.5V battery (R03)
- Dimensions215 mm × 63 mm × 36 mm
- Weight235 g
