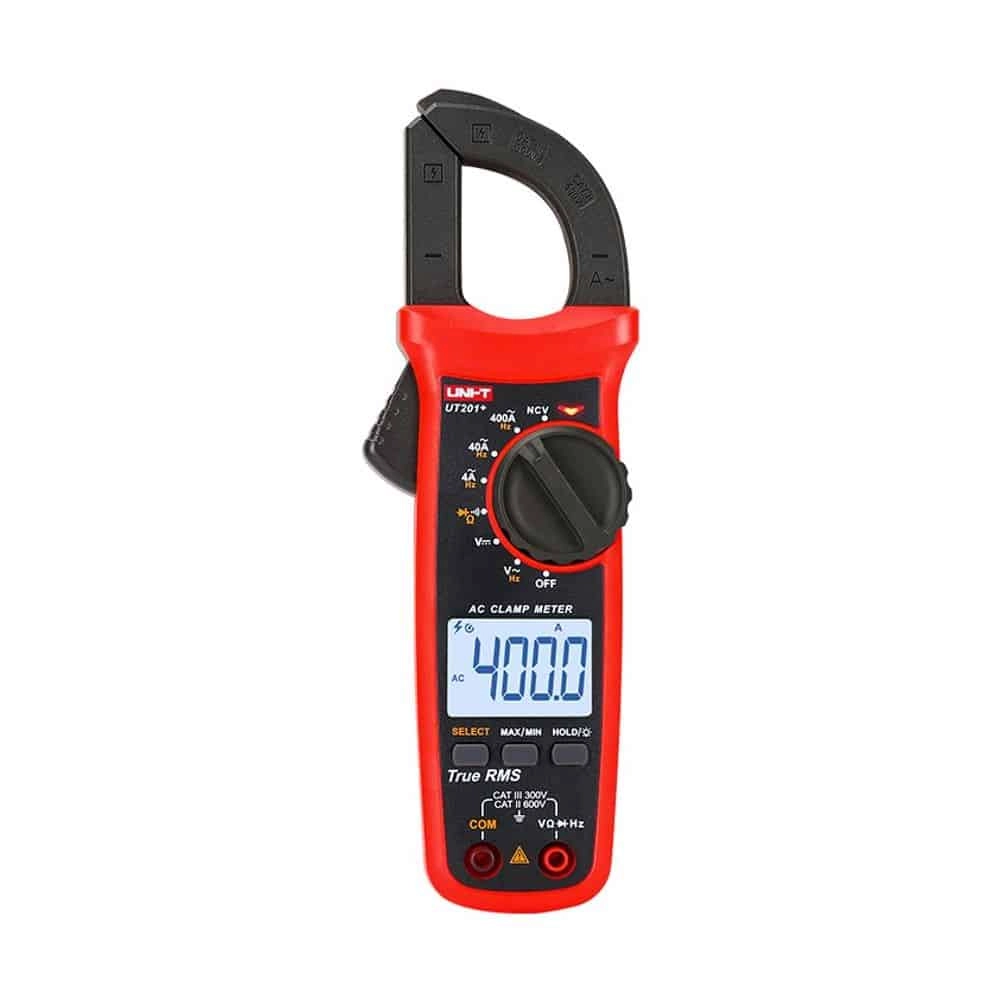

Uni-T UT201+ True RMS Digital Clamp Meter 400A

Model # UT201+

Key Features

Brand: Uni-T
Model: UT201+
AC Current:2A / 20A / 200A / 400A
AC Voltage:2V / 20V / 200V / 600V
Jaw Capacity:28mm
Safety Rating:CAT II 600V, CAT III 300V
Warranty: 1 year

Qty:

Qty:

Add ISO/ IED 17025 accredited calibration to this quote.Learn more.

?

Question about this product?

Speak to an expert

Features

Multifunctional Clamp Meter: can be used to measure AC current, AC/DC voltage, resistance, Max/Min value, continuity test, and diode test.
Measuring Range: 400A AC current, 600V AC/DC voltage, and 40MΩ resistance
Data Hold & Max/Min: hold the measured data for conveniently checking or observing data
Backlight Function: 1.6-inch LCD screen with backlight ON/OFF switchable for display data clearly.
28mm Jaw Opening: jaw opening of 28mm to measure current without touching or interrupting the circuit.

Technical Information

AC Current2A / 20A / 200A / 400A
AC Voltage2V / 20V / 200V / 600V
Jaw Capacity28mm
Safety RatingCAT II 600V, CAT III 300V
DC Voltage200mV / 2V / 20V / 200V / 600V
DC Accuracy+/- (0.8%+1)
AC Accuracy+/- (1.2%+5)
AC Current Accuracy+/- (1.5%+5)
Resistance200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 Mohm
Resistance Accuracy+/- (1%+2)
Package Dimensions‎ 23 x 9.2 x 5.6 cm
Package Weight390 g
