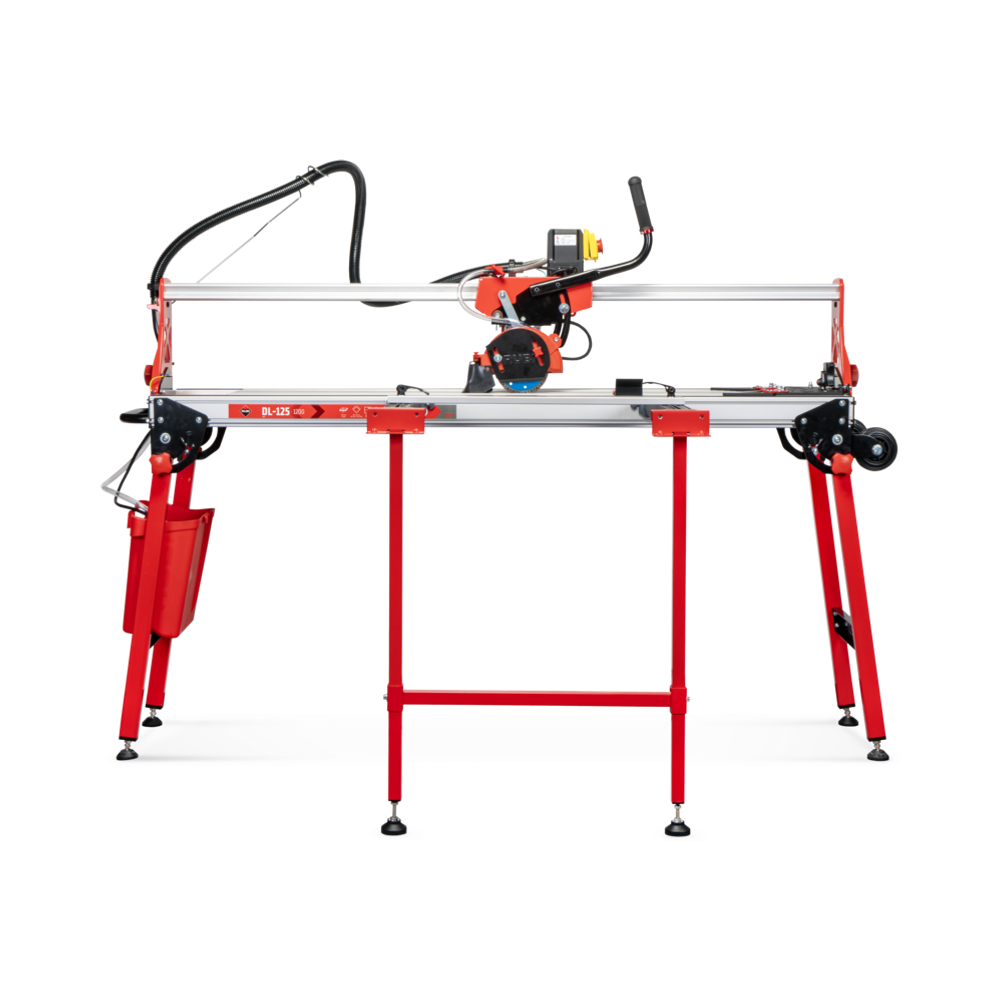

Rubi 56924 DL-125 1200 220-240V Mobile Head Cutter, 124cm Cutting Length, with Removable Water Tank

Features

• Electric machine with cutting effect
• Motor set mounted on bearings for maximum precision and reliability
• 1800W (2.3CV) universal motor
• 125mm diamond blade TVR included (cutter compatible with 115-130mm blades)
• Reinforced Aluminium chassis (double beam system)
• Improves the stability and rigidity of the chassis
• Safety protection system for Blades
• Equipped with ZERO DUST system
• Removable water tank for easy cleaning (8L)
• Ergonomic transport and adjustment improvements (motor adjustment, support adjustment, carriage wheel adjustment)
• Accessories included: Double lateral extension, repetitive cuts, laser and lateral stop for repetitive cuts included (adjustable from 8mm to 20mm tiles), the machine is supplied without cable

Technical Information

• Power supply 220-240V 50/60Hz
• Revolutions per minute 12000 max
• Cutting length 124cm
• Cut length with saw effect 133cm
• Diagonal cutting length 90x90cm
• Maximum cutting thickness - 1 stroke or 2 strokes 30 / 50mm
• Mitre Thickness cut 20mm
• With blade Yes
• Inside diameter 22.2mm
• Outside diameter 115-130mm
• Length Width Height (machine overall dimensions) 177x47x131cm
• Net weight without packaging 43kg

Items Included

• Double Lateral Extension
• Repetitive Cuts
• Laser and Lateral Stop for Repetitive Cuts Included (adjustable from 8mm to 20mm tiles)

Downloads

Datasheet
