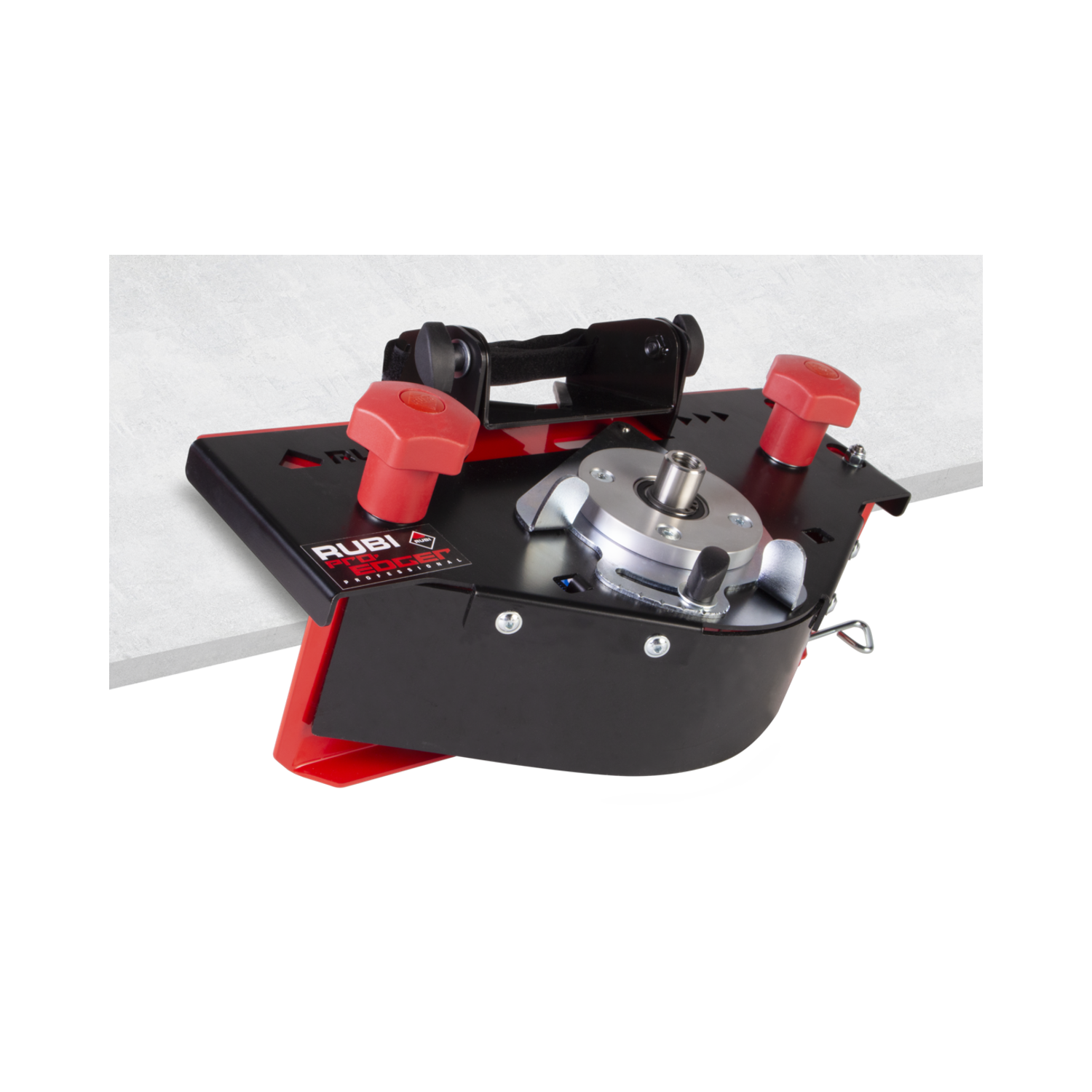

Rubi 16956 Pro-Edger Portable Tile Beveling Machine & Mitring Accessory

Features

• The RUBI PRO-EDGER is a PROFESSIONAL accessory, for INTENSIVE use, specially designed for beveling and mitering ceramic tiles and natural stone using a mini angle grinder and RUBI PRO-EDGER diamond wheels
• The RUBI PRO-EDGER accessory is compatible with practically all mini-grinders on the market (115 or 125), both corded and battery powered
• Models with bodies that do not exceed 100 mm in diameter are recommended to guarantee correct fixation of the mini-grinder to the RUBI PRO-EDGER accessory by attaching it to the threaded shaft (M14) and fixing the quick-release belt
• Additionally, to obtain the best results and greater control of vibrations during the roughing process, a power of 850W is recommended
• Thanks to the variety of RUBI PRO-EDGER diamond wheels, we can perform blunt bevels with radii of 5 and 10 mm as well as 45º miters on pieces up to 15 and 20 mm (depending on the wheel model selected) on all types of tiles - ceramics and natural or sintered stone
• The RUBI PRO-EDGER accessory includes, as standard, a RUBI PRO-EDGER diamond grinding wheel to make miters in materials up to 20 mm thick (Ref. 16946 - RUBI PRO-EDGER diamond grinding wheel 45º x 20 mm)
• To obtain the best finishes and extract the maximum performance from the RUBI PRO-EDGER diamond wheels, it is recommended to carry out progressive grinding at different depths
• The RUBI PRO-EDGER accessory incorporates a high-speed sealed bearing system that protects them from the dust generated during roughing and, together with the highly wear-resistant Polyethylene skids, facilitates smooth movement along the edge of the piece
• To facilitate the work environment and improve the user's well-being, the RUBI PRO-EDGER is part of RUBI's ZERO-DUST products and can be easily adapted to a vacuum cleaner

Technical Information

• With carrying case Yes
• Mitre cutting length ∞cm
• Mitre Thickness cut 20mm
• Inside diameter M14mm
• Dimensions 38 x 21 x 17 cm
• Weight 9 lb (4.1 kg)
• Gross Weight 9.9 lb (4.5 kg)

Items Included

• Carrying case

Downloads

Datasheet
