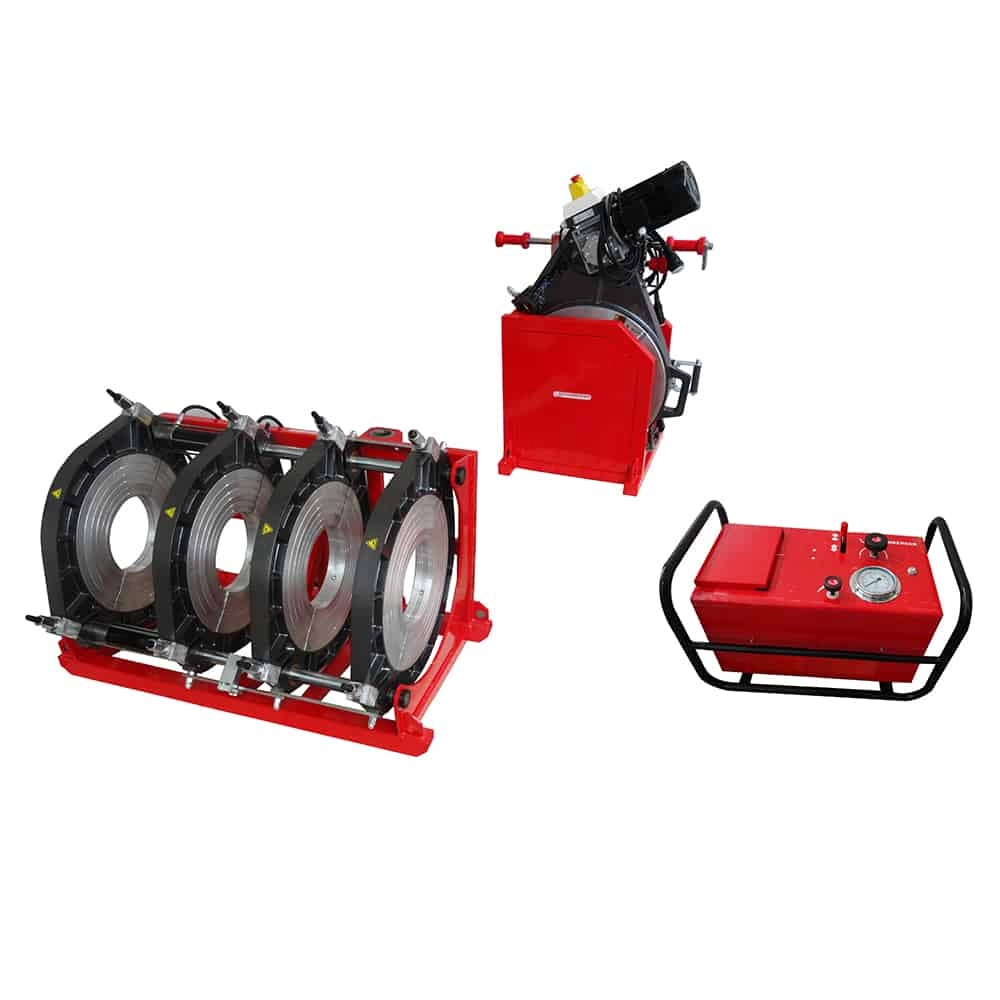

Rothenberger SHD500.W09 Roweld SHD500 - 380V Hydraulic Butt Fusion Welding Machine, 500mm - with 3+1 Inserts

Features

• The robust and economic machine with easy-to-use elements ensure a reliable operation.
• Heating element for butt welding of PE, PP and PVDF pipes and molded bodies.
• For use on constructions sites, trenches and workshops.
• The ROWELD hydraulic type Standard with a simple design, robust components & easy-to-use elements works in every environment.
• 1 year warranty against manufacturing defect, consumable items are to be replaced against manufacturing defect within 6 months.

Technical Information

• Working Area (Diameter)200-500mm
• Voltage380V
• Total power9.5kW
• Mains frequency50Hz
• Plug Type3P+N+PE
• Pressure range0-8MPa
• Dimensions (Gross) (3 boxes)1650x1050x1140mm / 770x480x560mm / 100x880x1350mm
• Weight682kg

Items Included

• 1 Hydraulic Unit
• 1 Basic Unit with 500 clamp set
• 1 heating plate
• 1 trimmer unit
• sets(4upper/4lower clamp) of each 200,225,250,280,315,355,400,450mm clamps
• 1 tool box with spanner and screws for clamps.

Downloads

Datasheet
