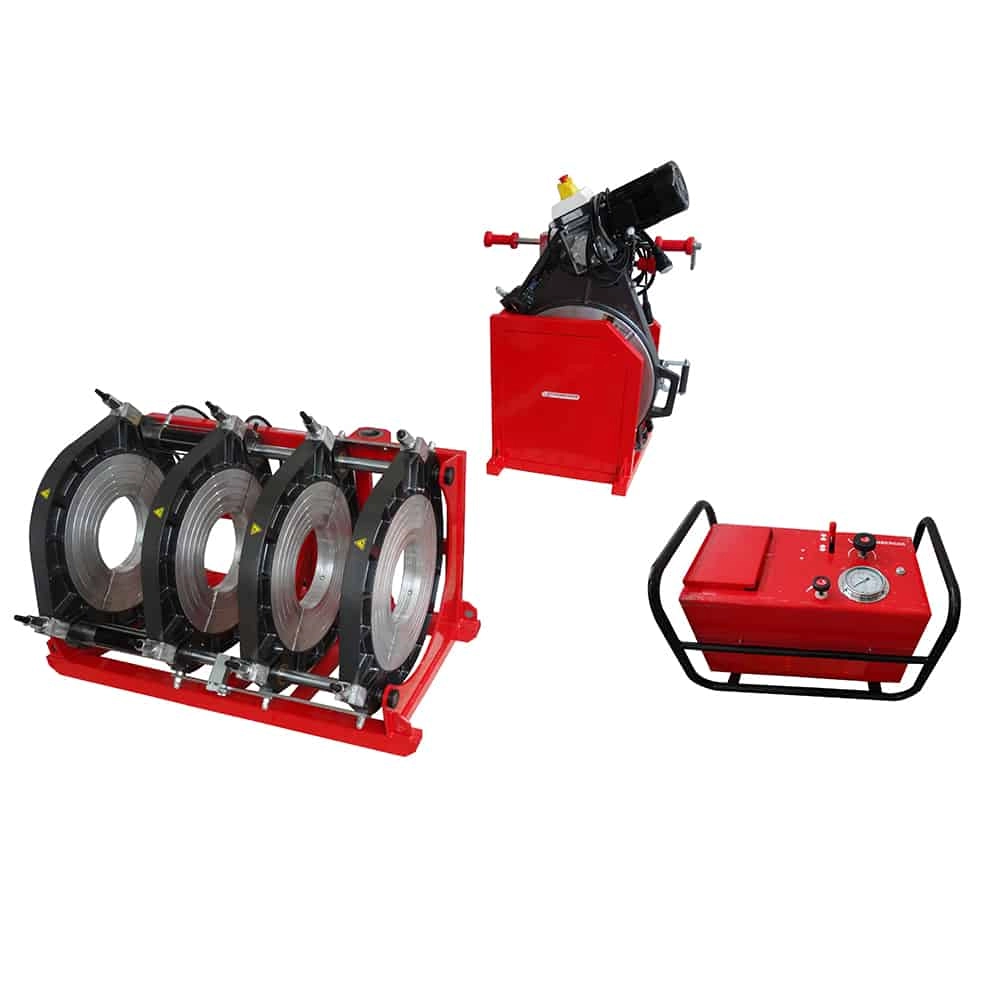

Rothenberger SHD450.W15 Roweld SHD450B - 380V Hydraulic Butt Fusion Welding Machine, 450mm - with 3+1 Inserts

Features

• The robust and economic machine with easy-to-use elements ensure a reliable operation.
• Heating element for butt welding of PE, PP and PVDF pipes and molded bodies.
• For use on constructions sites, trenches and workshops.
• The ROWELD hydraulic type Standard with a simple design, robust components & easy-to-use elements works in every environment.
• 1 year warranty against manufacturing defect, consumable items are to be replaced against manufacturing defect within 6 months.

Technical Information

• Working Area (Diameter)200-450mm
• Voltage380V
• Total power8.38kW
• Mains frequency50Hz
• Plug Type3P+N+PE
• Pressure range0-8MPa
• Dimensions (Gross) (3 boxes)1470x1050x107mm / 770x480x560mm / 1000x850x1350mm
• Weight521kg

Items Included

• 1 Hydraulic Unit
• 1 Basic Unit with 450 clamp set
• 1 heating plate
• 1 trimmer unit
• sets(4upper/4lower clamp) of each 200,225,250,280,315,355,400mm clamps
• 1 tool box with spanner and screws for clamps.

Downloads

Datasheet
