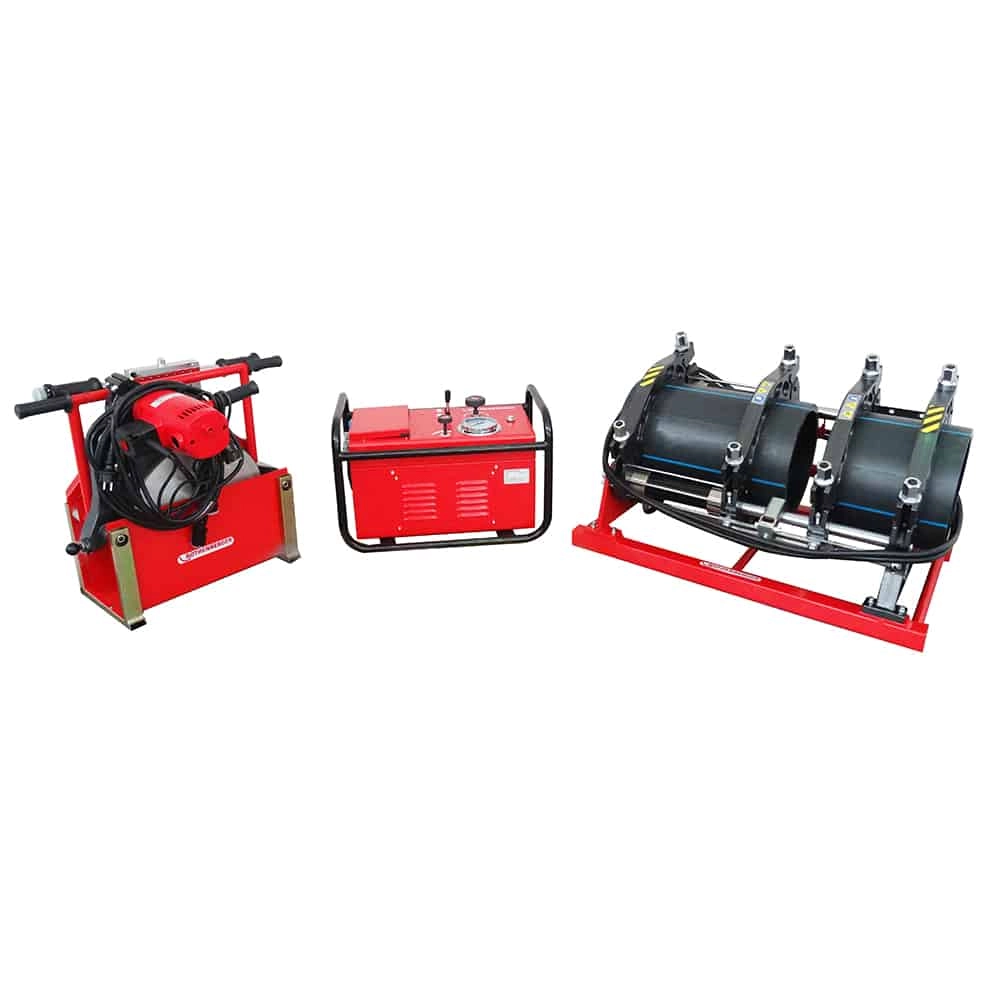

Rothenberger SHD160.W12 Roweld SHD160B - 220V Hydraulic Butt Fusion Welding Machine, 160mm - with Sandwich Inserts

Features

• The robust and economic machine with easy-to-use elements ensure a reliable operation.
• Heating element for butt welding of PE, PP and PVDF pipes and molded bodies.
• For use on constructions sites, trenches and workshops.
• The ROWELD hydraulic type Standard with a simple design, robust components & easy-to-use elements works in every environment.
• 1 year warranty against manufacturing defect, consumable items are to be replaced against manufacturing defect within 6 months.

Technical Information

• Working Area (Diameter)40-160mm
• Voltage220V
• Total power2.45kW
• Mains frequency50Hz
• Pressure range0-6.3MPa
• Dimensions (Gross)1020x920x690mm
• Weight111kg

Items Included

• 1 Hydraulic Unit
• 1 Basic Unit with 160mm clamp set
• 1 heating plate
• 1 trimmer unit
• sets(4upper/4lower clamp) of each 40,50,63,5,90,110,125,140mm clamps
• 1 tool box with spanner and screws for clamps.

Downloads

Datasheet
