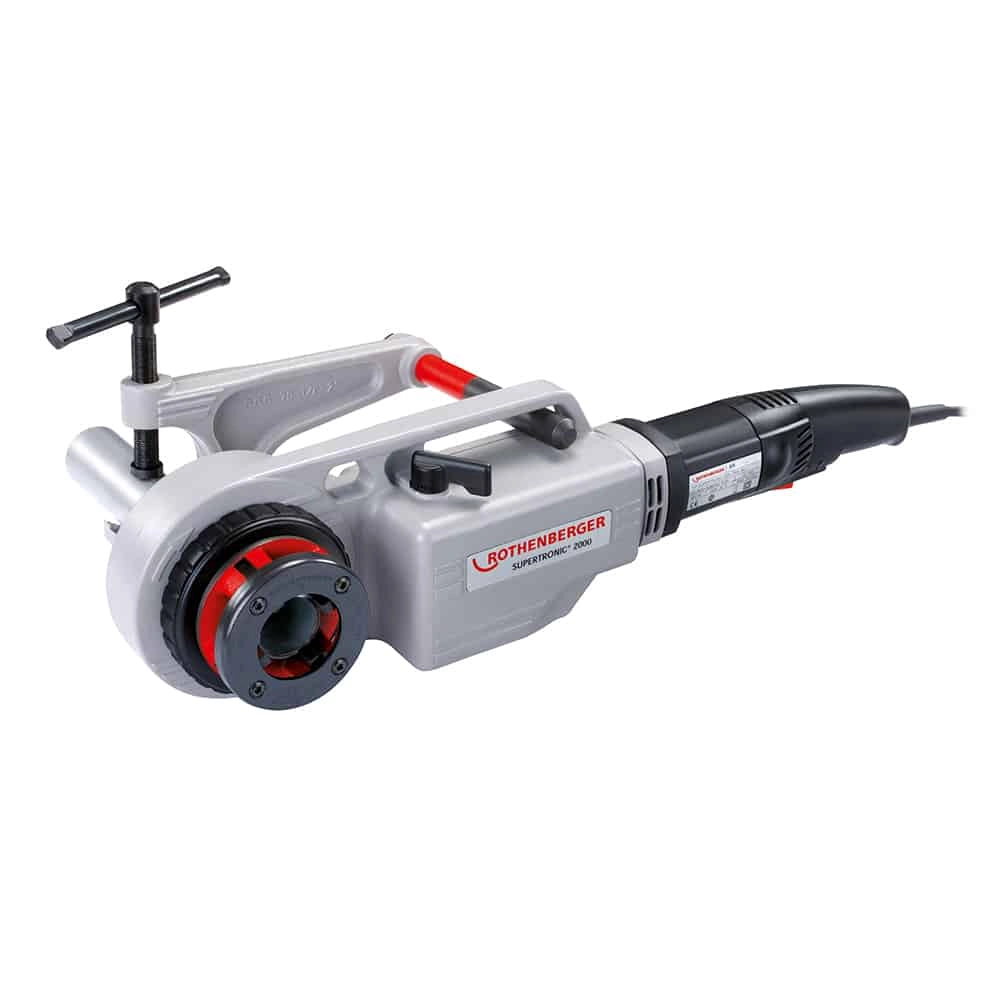

Rothenberger 7.1256 Supertronic 2000 Set - 230V Portable Electric Pipe Threader, 1/2-2 In. BSPT

Features

• Secure grip in both turning directions with the hardened, interlocking prism pipe clamp

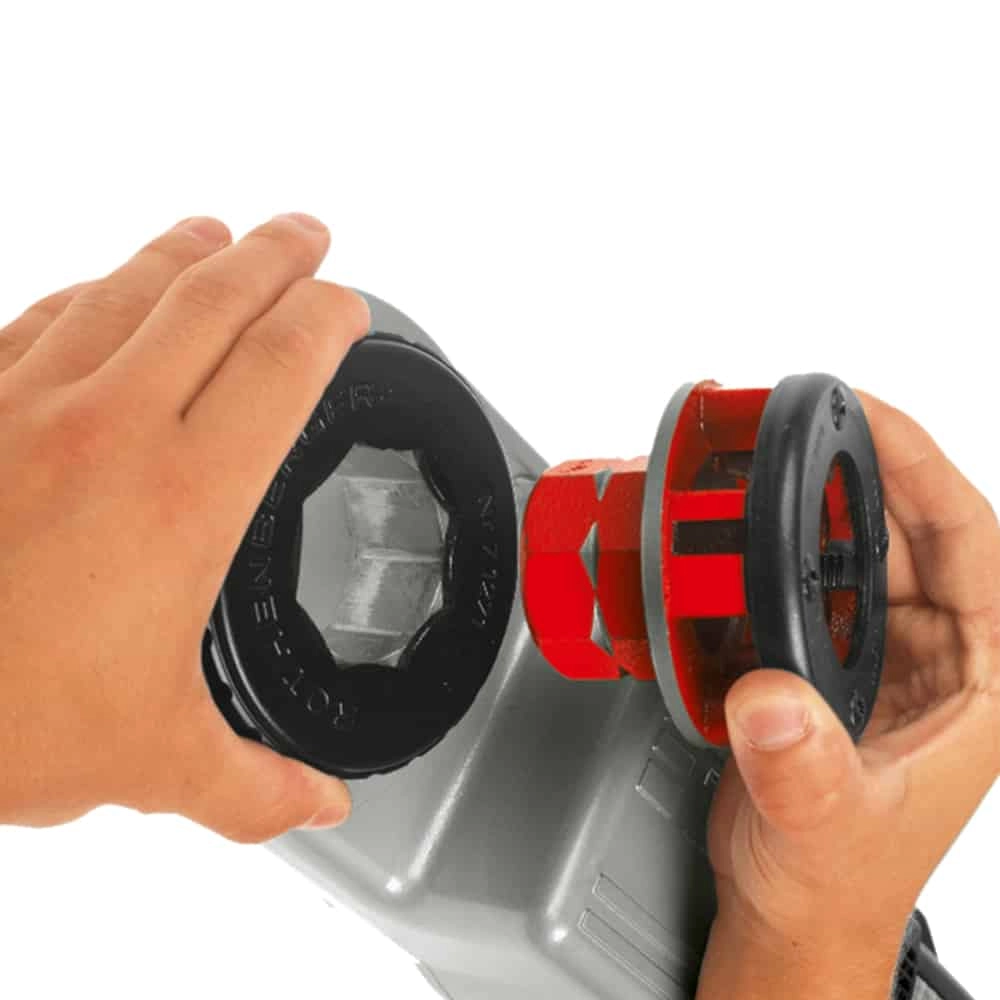

• Die heads are held firmly in place through direct seating with tension ring locking
• Off-set die head mounting allows for threading even close to walls
• Ideal for confined spaces (corners and shafts)
• User-friendly work with the large mechanism for switching directions
• Reliable motor for long-term use
• 1 year warranty against manufacturing defect for the electrical machine only.

Technical Information

• Dimensions (Gross)610x400x140mm
• ApplicationBonding
• Weight17.77kg
• Working Area (Diameter)1/2-2 In
• Thread TypeBSPT
• Thread cutting speed (min-max)15-25m/s
• Voltage230V

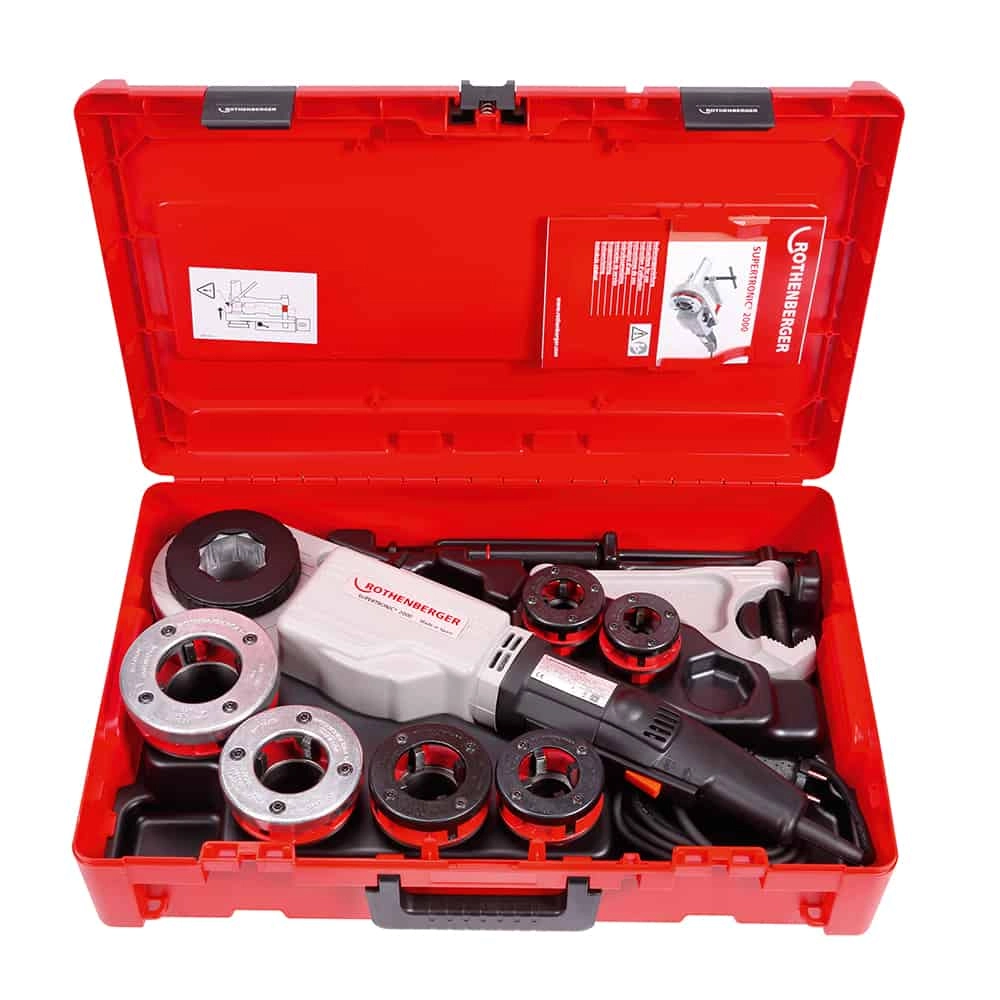

Items Included

• 71280 (SUPERTRONIC 2000)
• Pipe clamp
• 70823X (1/2" BSPT die head)
• 70824X (3/4" BSPT die head)
• 70825X (1" BSPT die head)
• 70826X (1.1/4" BSPT die head)
• 70842X (1.1/2" BSPT die head)
• 70843X (2" BSPT die head)
• 71271 (ROFIX adaptor)
• 1000001953 (ROCASE 6414 with inlay)

Downloads

Datasheet
