Rothenberger 55035 ROCUT 110 Set - Plastic Pipe Cutting and Chamfering Tool with Accessories, 50-110mm

Features

• The ROCUT 110 Set for plastic pipes 50, 75 and 110mm can be used for cutting and chamfering plastic pipes in one step. Simple and safe handling.
• The ROCUT 110 a single tool system for cutting, chamfering and deburring required and optimized cutting geometry.
• Removable pipe deburrer integrated in the handle Pipe cutting without chamfering possible as cutter blade shaft can be mounted with 180° offset.
• Uniform chamfering of the entire pipe circumference and continuously adjustable pipe clamping pressure
• Optional accessory for PE, PP, PEX and sound-insulated pipes
• Replacement against manufacturing defect (6 Months)

Technical Information

• Working Area (Diameter)50-110mm
• Working area in inches2-4.1/4 inches
• Dimensions (Gross)420x115x200mm
• Weight3.62kg

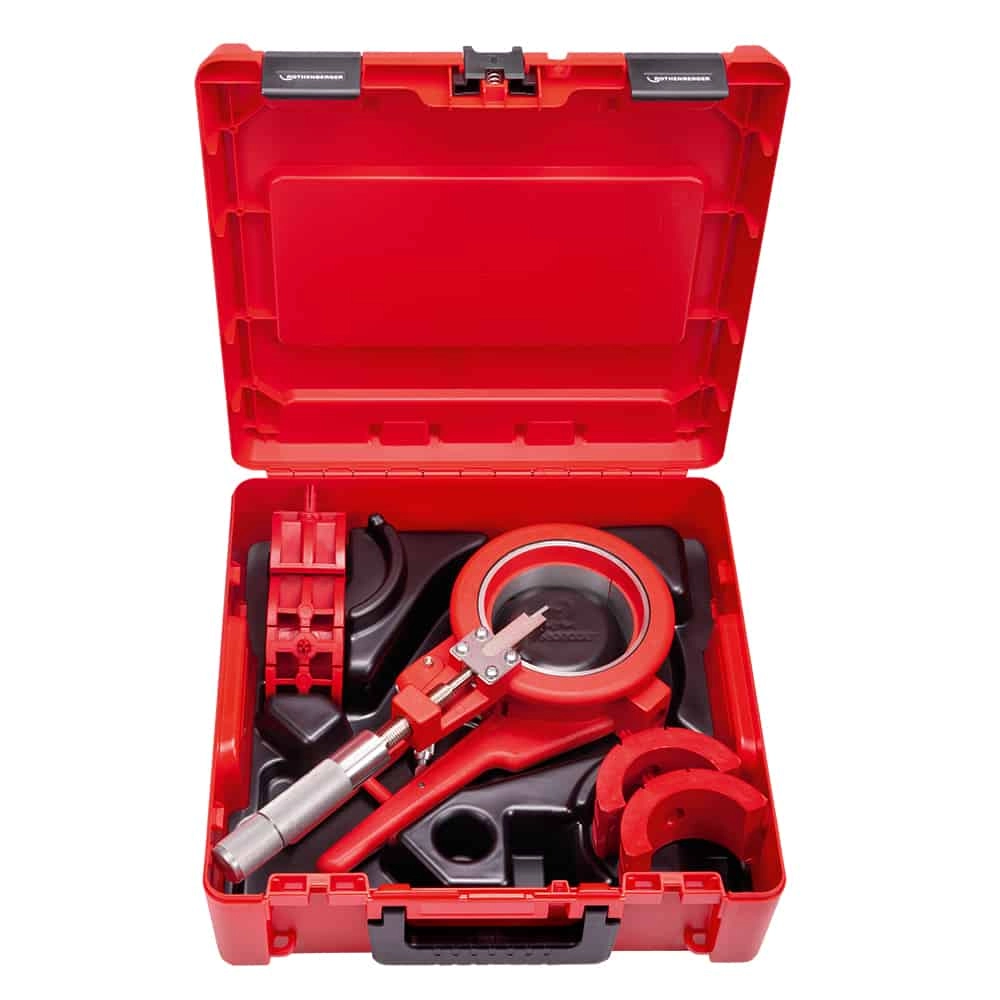

Items Included

• ROCUT 110 (No. 55020)
• internal deburrer (No. 55018)
• 2 clamping set 50 and 75mm
• cutter blade shaft with automatic copying and HM cutter blade inserts 7,5mm (No. 54960)
• ROCASE inlay (No. 1300005864)
• ROCASE 4414 red w/o inlay (No. 1300003541)

Downloads

Datasheet
