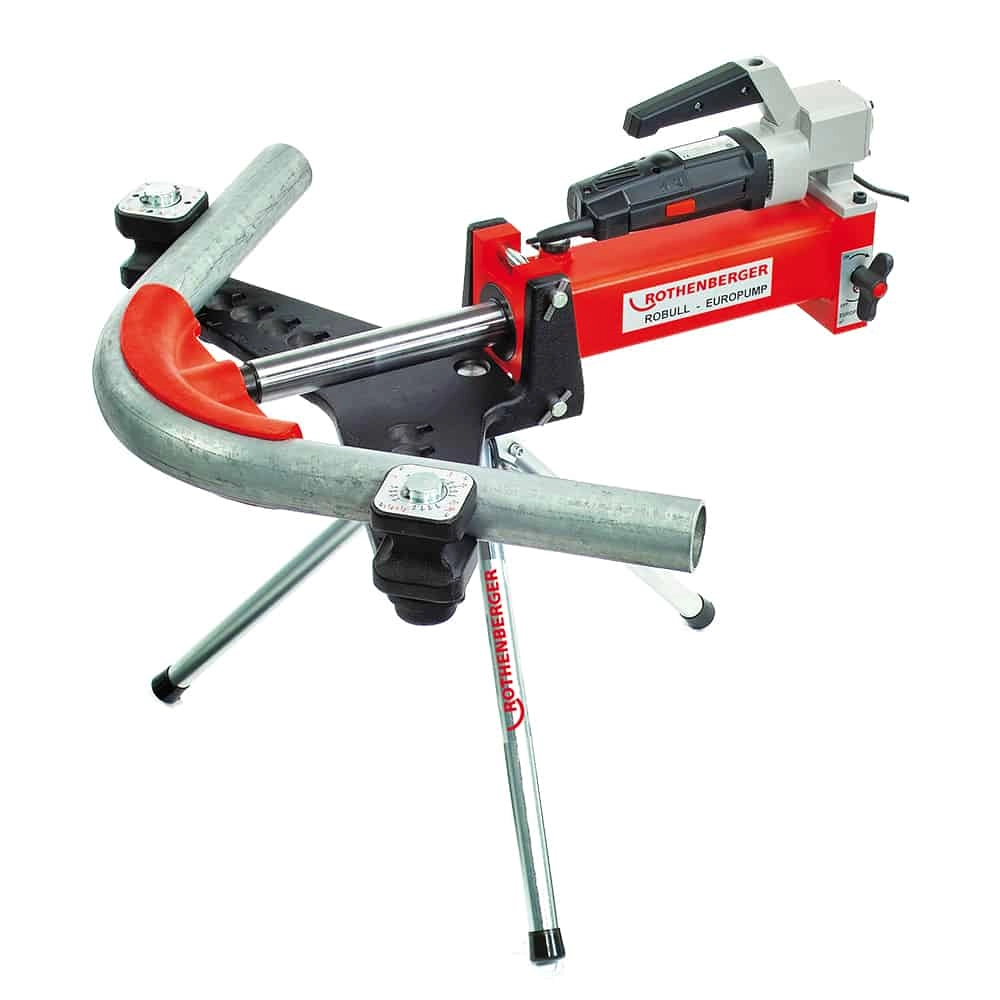

Rothenberger 5.7973X ROBULL Type ME - Electric Hydraulic Pipe Bender 3/8-2 In. (open frame)

Features

• Precise bending with the angle scale on the support brackets
• Reduces welded joints
• Pre-warming of the pipe no longer necessary
• No bending forms are necessary
• Effective use with the 150kN piston strength
• Easy and simple operation
• Closed, low-maintenance hydraulic system with a mono-block design and with quick, automatic piston retraction
• 1 year warranty against manufacturing defect. Segments have 6 months warranty against manufacturing defect.

Technical Information

• ApplicationBending
• TypeElectric
• Bending Capacity3/8-2 In
• Max. Bending Angle0-90°
• Pipe MaterialCarbon Steel / Steel
• Weight72.6kg

Items Included

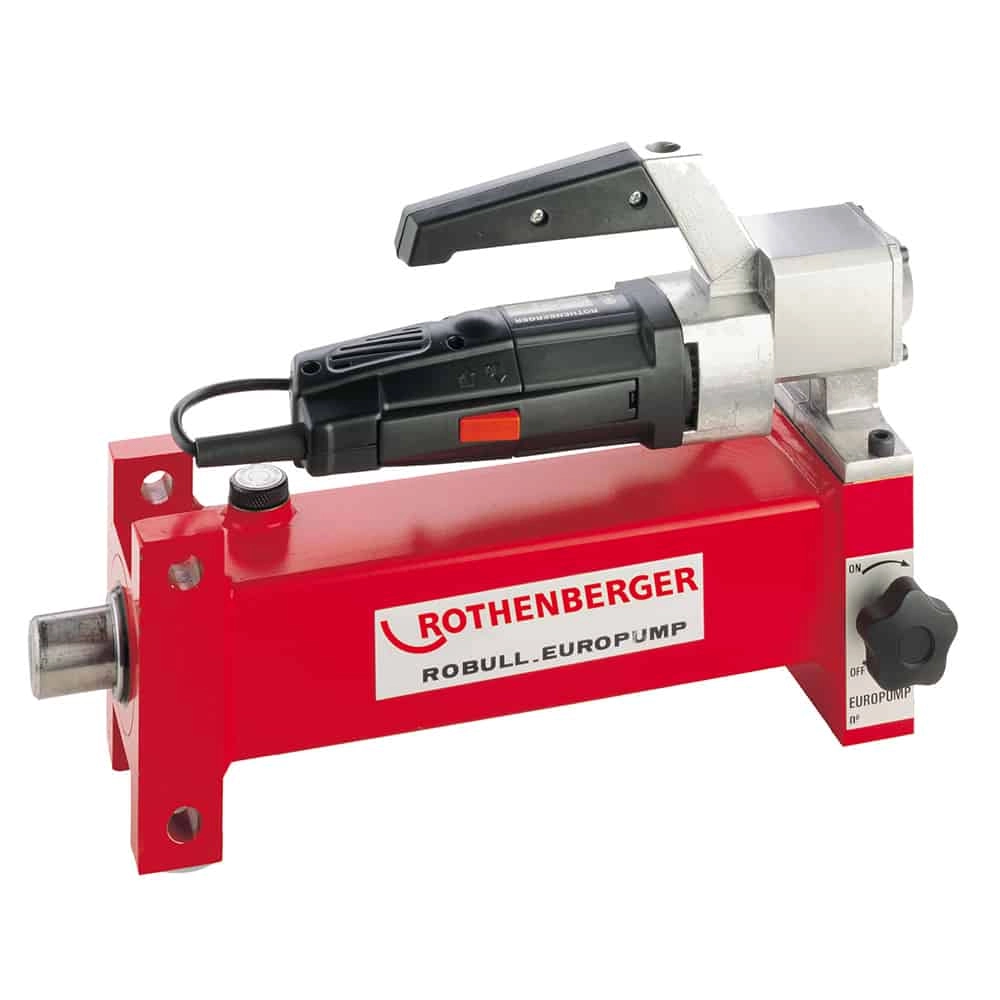

• ROBULL hydraulic bending machine 230V
• adjustable bending frame (No. 57981)
• 2 locking pins (No. 57979)
• support segments (No. 57983)
• support segments with degree gradation (No. 57982)
• bending segments standard 90° in 3/8” (No. 57985), 1/2” (No. 57986), 3/4” (No. 57987), 1” (No. 57988), 1.1/4” (No. 57989), 1.1/2” (No. 57990), 2” (No. 57991)
• hydraulic oil 1 l (No. 58185)
• steel carrying case (No. 58206)

Downloads

Datasheet
