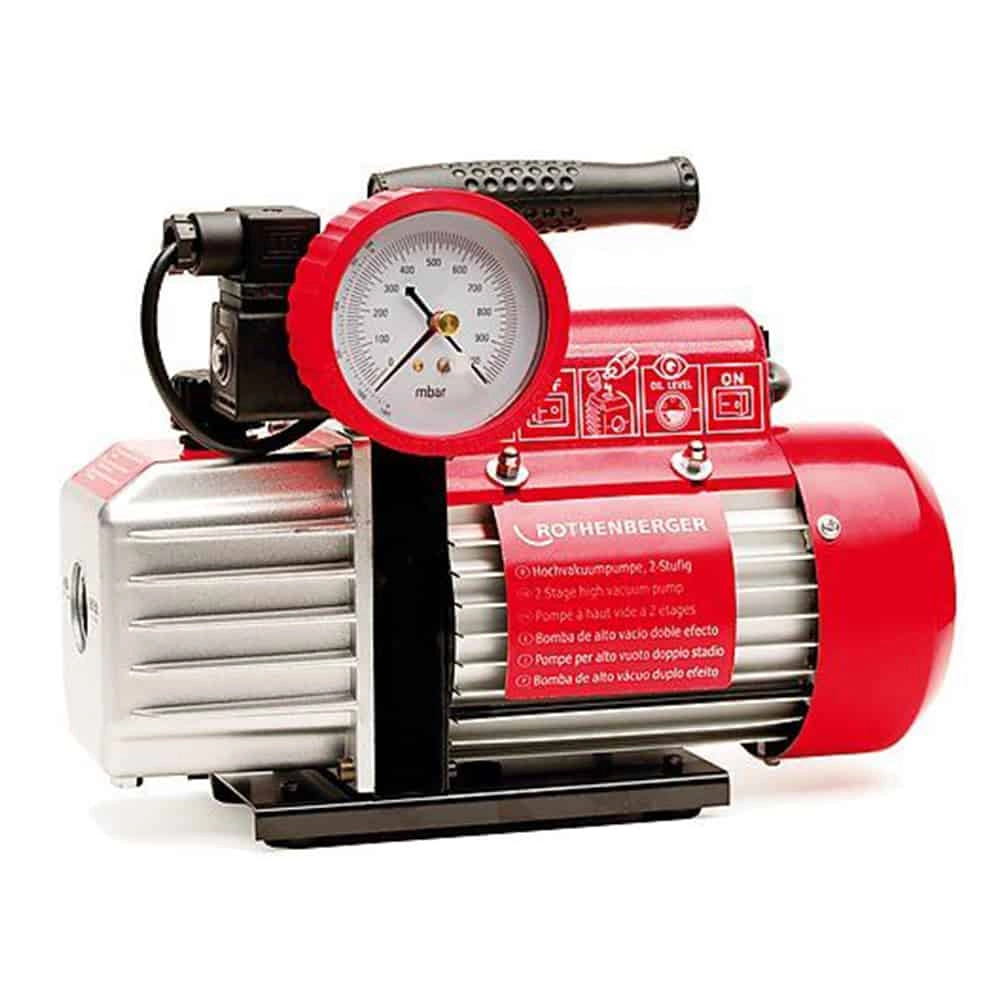

Rothenberger 1700.62 ROAIRVAC 3.0 CFM, Dual Stage Vacuum Pump
Model # 1700.62Key Features
?
Question about this product?
Features
- ROAIRVAC,Two-stage vacuum pump For evacuation in accordance with DIN 8975 with vacuum gauge and solenoid valve.
- The solenoid check valve to protect the refrigeration system from oil contamination during power outage and Vacuum gauge with integrated drag indicator enables simple and quick control of the evacuation process
- Protects the integrated components with the light and high quality casing , with Gas ballast valve for reduction of water vapour in the oil container and Special filter reduces oil mist on exhaust vent.
- It has gauge-glass enables easy oil-stand monitoring and fast filling of oil without spilling, no special funnel is necessary
- Easy access to the oil drain plug makes emptying quick and thermal switch protects the unit from the motor overheating
Technical Information
- Voltage230V
- Pump Rating3.0 CFM (85 l/min) (5.1 m3/h)
- Vacuum Stages2
- Final Vacuum15 micron (0.02 mbar)
- Motor Rating250W, 1720 r/m
- Connection1/4”, with adaptor 5/16” SAE M / 3/8” SAE M
- Oil Capacity330ml
- Manifold Diameter50mm
- Weight10.7kg
Items Included
- 1/4“ SAE connection
- 5/16“ SAE connection
- 3/8“ SAE adaptor
