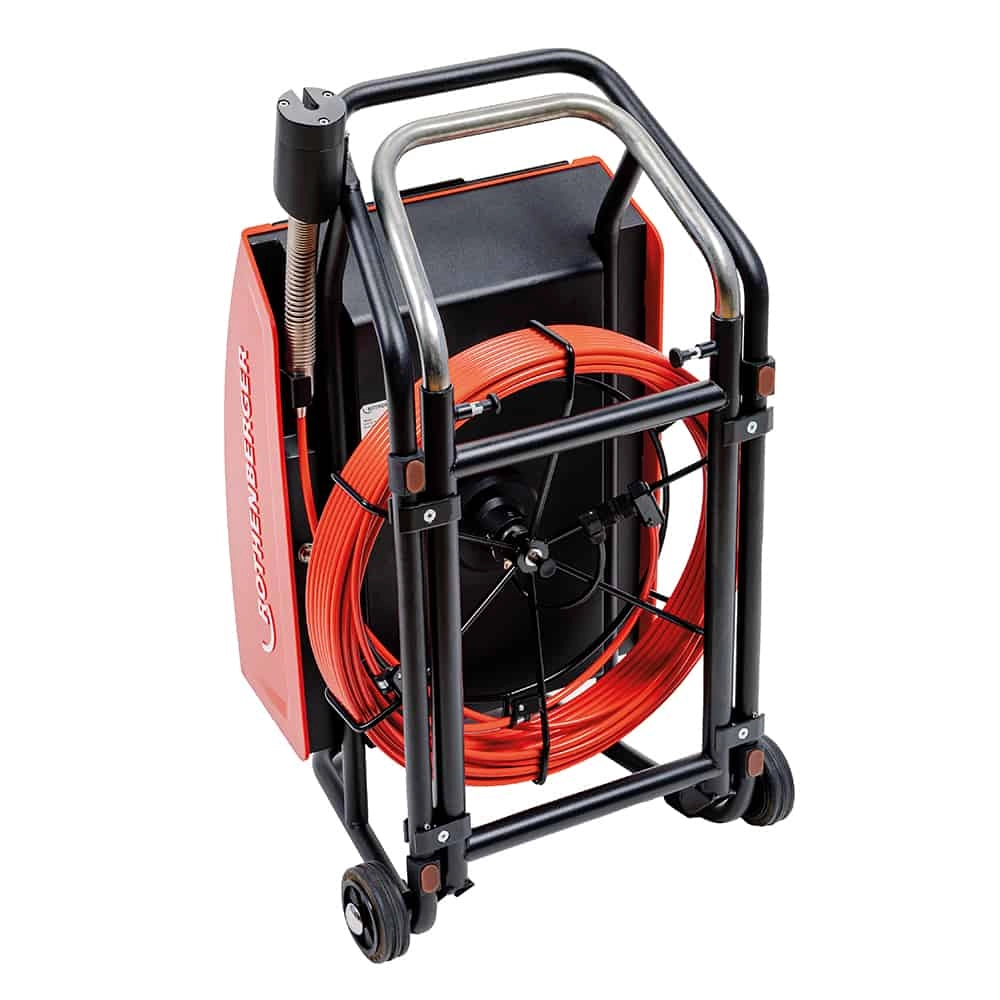

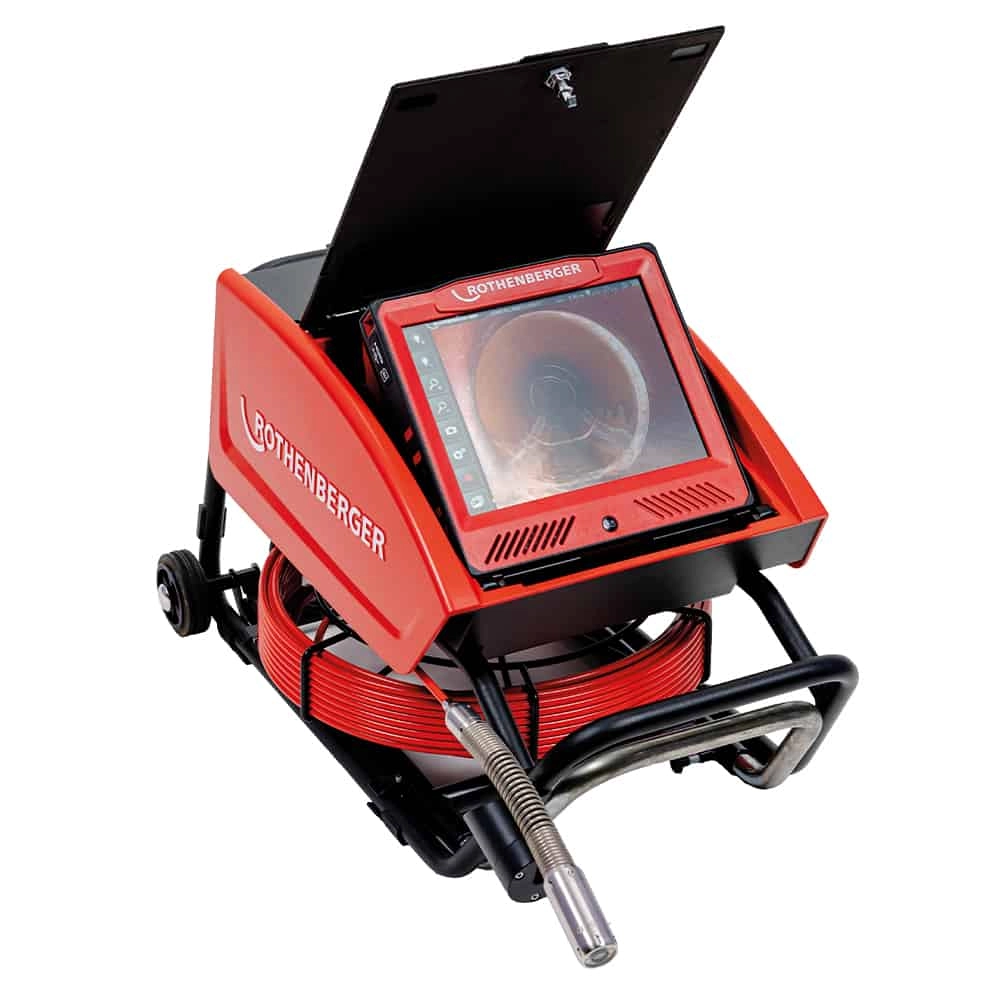

Rothenberger 1500002613 ROCAM 4 Plus - Drain Pipe Inspection System, 10.4 In. - (30m Cable | 30mm Head)

Features

• Picture editing, change of camera settings and menu guidance via the 10.4“ color-touchscreen
• Direct recording of pictures (JPG) or video (AVI, resolution 720x600) as well as editing options (e.g. documentation of damage)
• Fast data recording with integrated keyboard to mark, highlight and name damages
• Picture and video transmission via WiFi, Micro-HDMI, Mini-USB, SD-Card
• Livestream of picture and data via WiFi to the ROCAM 4 app
• Self-levelling and exchangeable camera heads

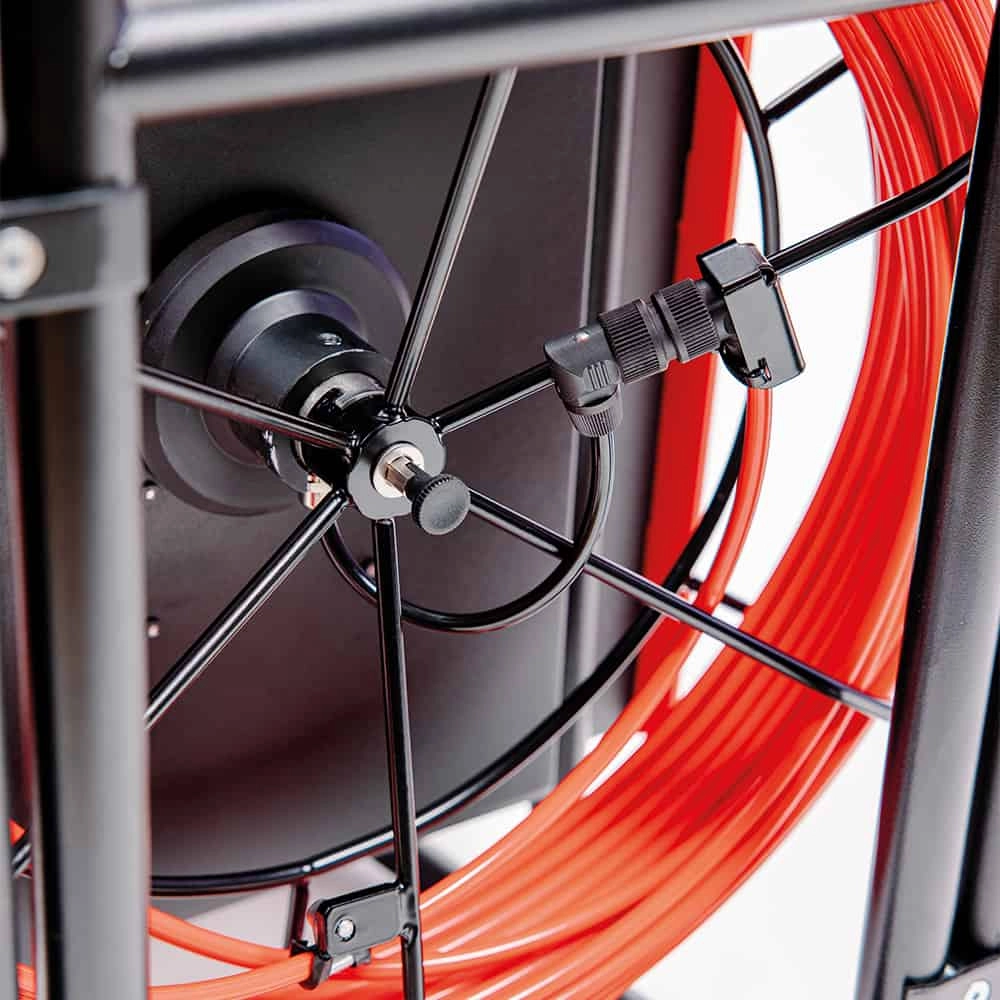

• Exchangeable reels for various working ranges
• New platform based battery technology
• 1 year warranty against manufacturing defect, consumable items not included

Technical Information

• ApplicationFacility Management
• Display Size10.4 In
• Battery Voltage18V
• Battery systemRechargeable Li-Ion battery
• Working Area (Diameter)150mm
• Protection RatingIP 68
• Display resolution720x600 pixels
• Display typeLCD Touchscreen
• Storage temperature-30 to 50°C
• Water Resistance0-30m
• Image formatJPG
• Video formatAVI
• Video/Image resolution720x600 pixels
• Storage typeSD-Card
• Location transmitters37kHz active
• Video outputMicro-HDMI
• Camera head diameter30mm
• Sliding cable diameter7mm
• Storage capacity4GB
• Brightness175 Lux
• Operating ambient humidity0-100%

Items Included

• ROCAM 4 Plus - 30mcable
• Ø 30mm camera head
• guidance ball
• accessory bag including location transmitter
• USB-cable
• pencil
• RO BC14/36 battery charger
• RO BP18/4
• 4.0 Ah 18V Li-Power battery

Downloads

Datasheet
