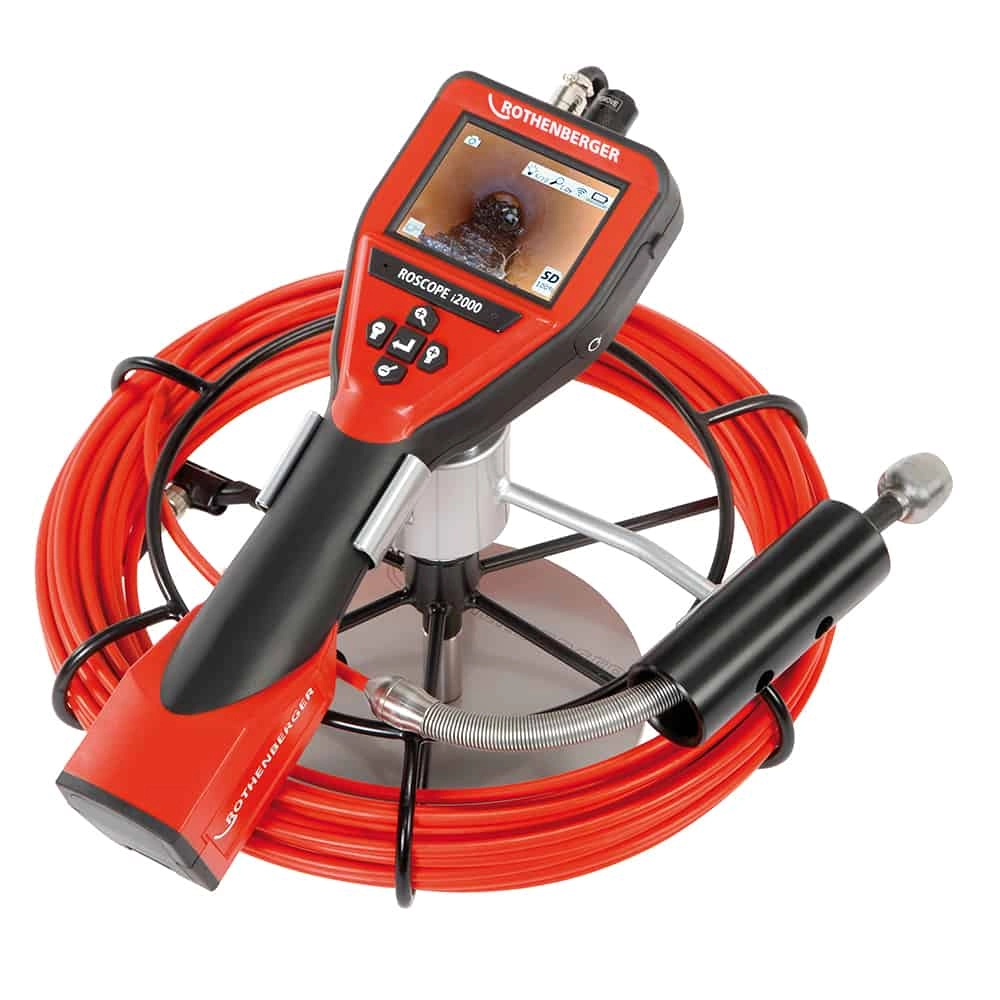

Rothenberger 1000000860 ROSCOPE i2000 - Handheld Drain Pipe Inspection System, 3.5 In. with Camera Modules (25/22, TEC)

Features

• User-friendly touchscreen monitor and simple menu guidance
• Easy data transfer for subsequent processing
• Audio recording and playback possible without further equipment
• With USB charging function
• Recording and playback of the inspection on video (AVI) or photo (JPEG)
• Extremely flexible camera head for 90° bends
• Can be used with guidance ball up to Ø 100mm
• Self-leveling camera for the inspection of hollow spaces and hard to reach areas
• Integrated transmitter for the precise locating of the camera head
• ROSCOPE i2000 basic unit can also be used as control unit for the ROLOC PLUS locating module
• Picture and video transmission via USB, SD-Card
• 1 year warranty against manufacturing defect, consumable items not included

Technical Information

• ApplicationFacility Management
• Display Size3.5 In
• Battery Voltage18V
• Battery systemRechargeable Li-Ion battery
• Working Area (Diameter)40-100mm
• Protection RatingIP 68
• Display resolution320x240 pixels
• Display typeTFT Touchscreen
• Storage temperature-20 to 60°C
• Reel Length22m
• Image formatJPG
• Video formatAVI
• Video/Image resolution320x240 pixels
• Storage typeSD-Card
• Location transmitters516Hz
• Video outputMicro-HDMI
• Camera head diameter25mm
• Sliding cable diameter5.5mm
• Storage capacity512MB
• Brightness100 Lux
• Operating ambient humidity0-95%

Items Included

• ROSCOPE i2000 basic unit
• module 25 / 22
• module TEC
• charger
• plastic carrying case

Downloads

Datasheet
