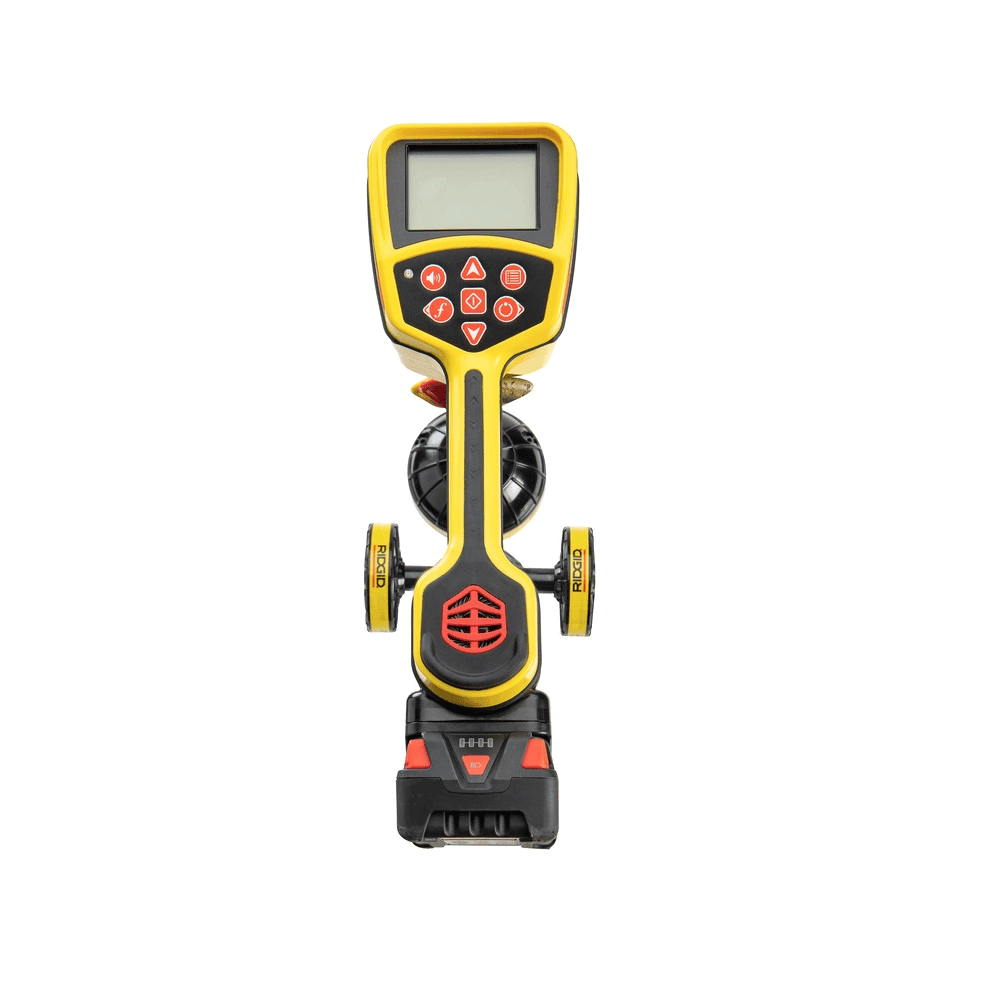

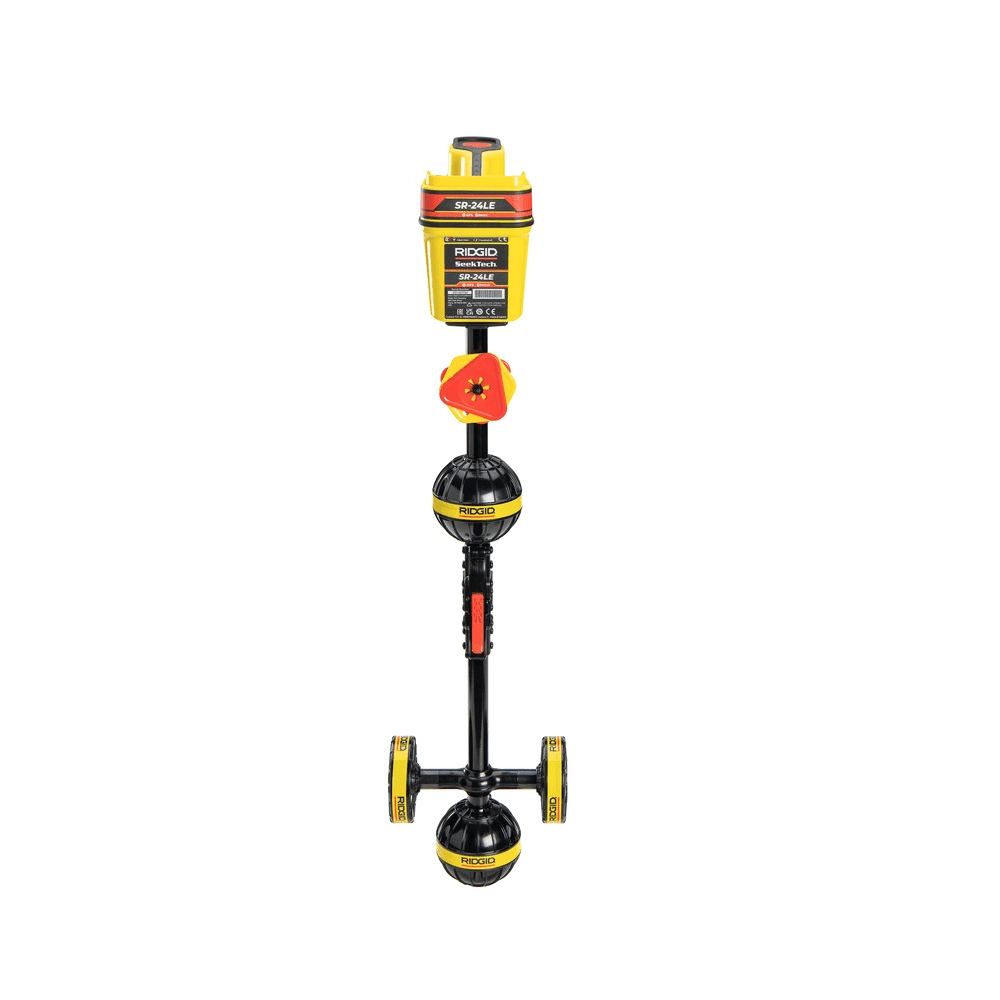

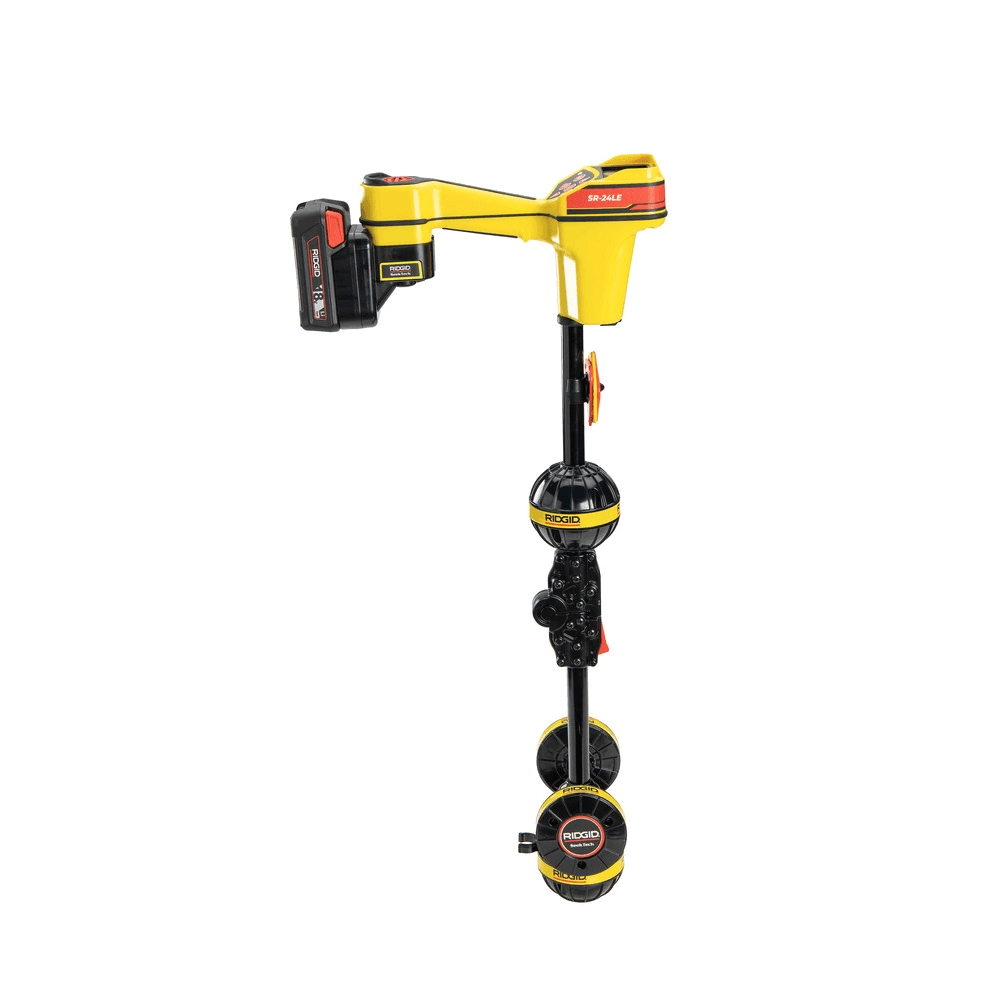

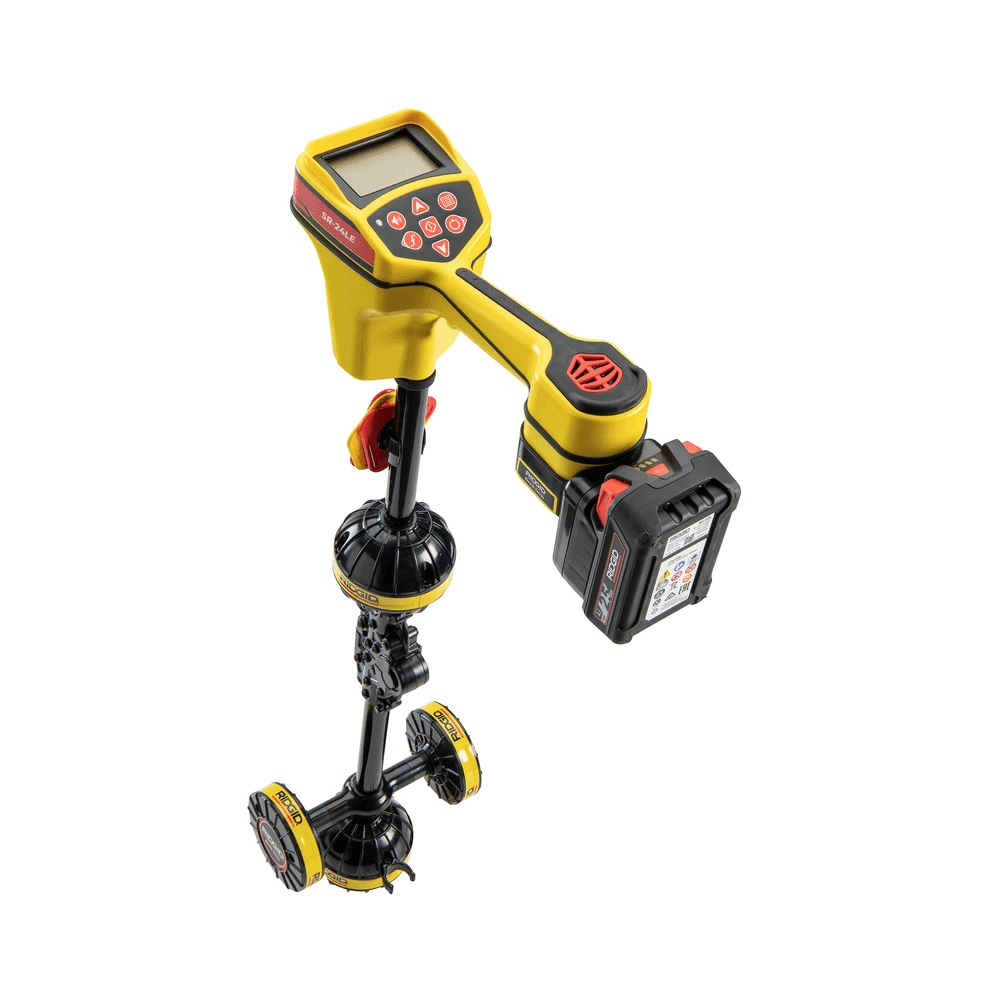

Ridgid 76813 SeekTech SR-24LE Line Locator with Bluetooth and GPS

Features

• Bluetooth® Compatibility - Bluetooth® Low Energy technology streams data to smartphones, tablets or high-precision GPS instruments.
• Integrated Battery Adaptor - Equipped with a SeekTech Battery Adaptor for your RIDGID 18V Lithium Ion battery (battery purchased separately).
• Delineation - Intuitive mapping display shows concealed utilities estimated position, direction, and depth.
• Omnidirectional Antennas - Capture the complete signal for greater speed and accuracy.
• Built-In GPS - Track location coordinates for mapping and GIS applications.
• Wireless Streaming - Transmit real-time line location coordinates using RIDGIDtrax App.
• Increased confidence - Audio and visual warnings alert signal field distortion.
• Portability - Foldable mast for easy transport and storage.

Technical Information

• Programmable Line & Sound FrequenciesAny from 10Hz to 35kHz
• Default Active Line Trace Frequencies128Hz, 1kHz, 8kHz, 33kHz
• Passive Power Frequencies50Hz, 60Hz
• Passive Frequency Ranges<4kHz, 4kHz - 15kHz, 15kHz - 30kHz
• Programmable Line Trace FrequenciesUp to 35kHz
• Sonde Frequencies16Hz, 512Hz, 33kHz
• Wireless TechnologyBluetooth Class 1 Low Energy
• Wireless Range1093 yds (1000 m)
• GPS Average AccuracyLess than 8.2 ft (2.5 m)
• Weight (without batteries)3.3 lb (1.5 kg)
• Length11.2" (28.4 cm)
• Width4.3" (10.9 cm)
• Height31" (79 cm)
• Battery Type18V Advanced Lithium, Battery
• Operating Temperature-4°F to 122°F (-20°C to 50°C)
• Storage Tempearature-4°F to 140°F (-20°C to 60°C)
