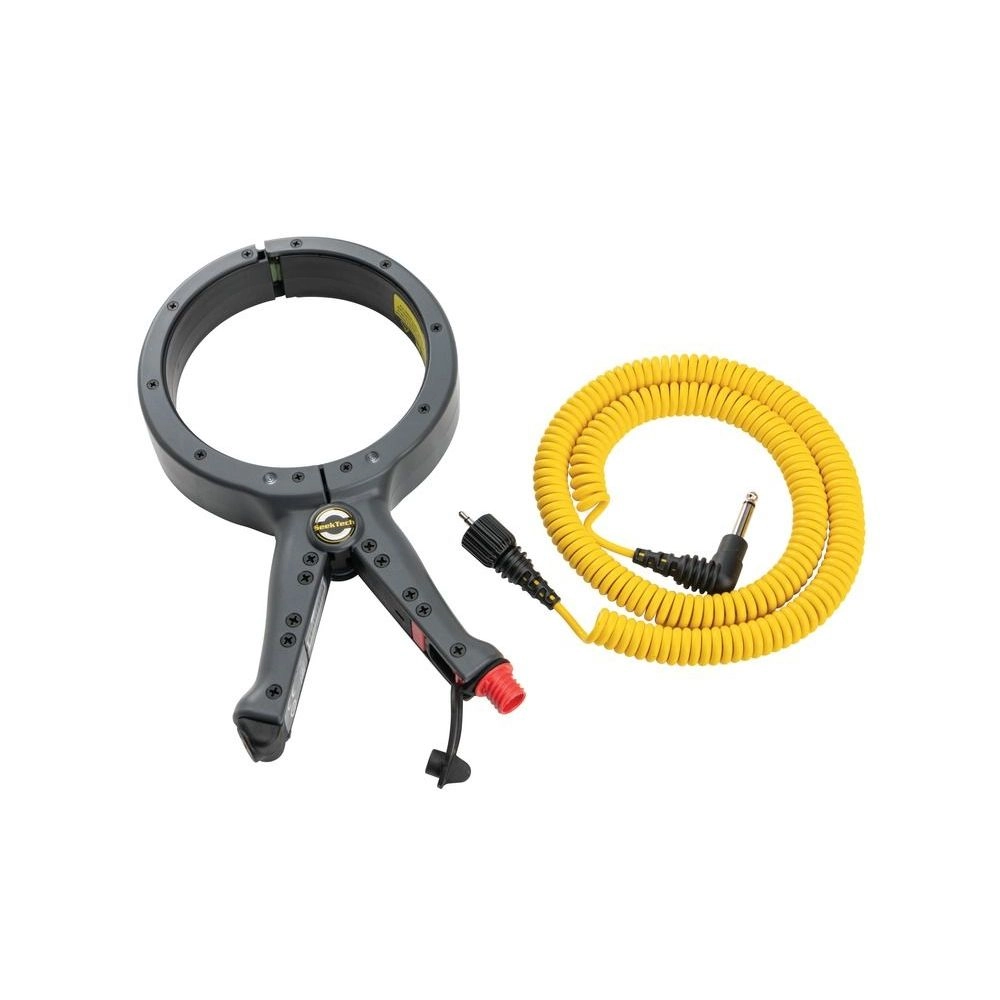

Ridgid 72963 SeekTech Inductive Signal Clamp, 119mm - for Line Transmitters
Model # 72963Key Features
?
Question about this product?
Features

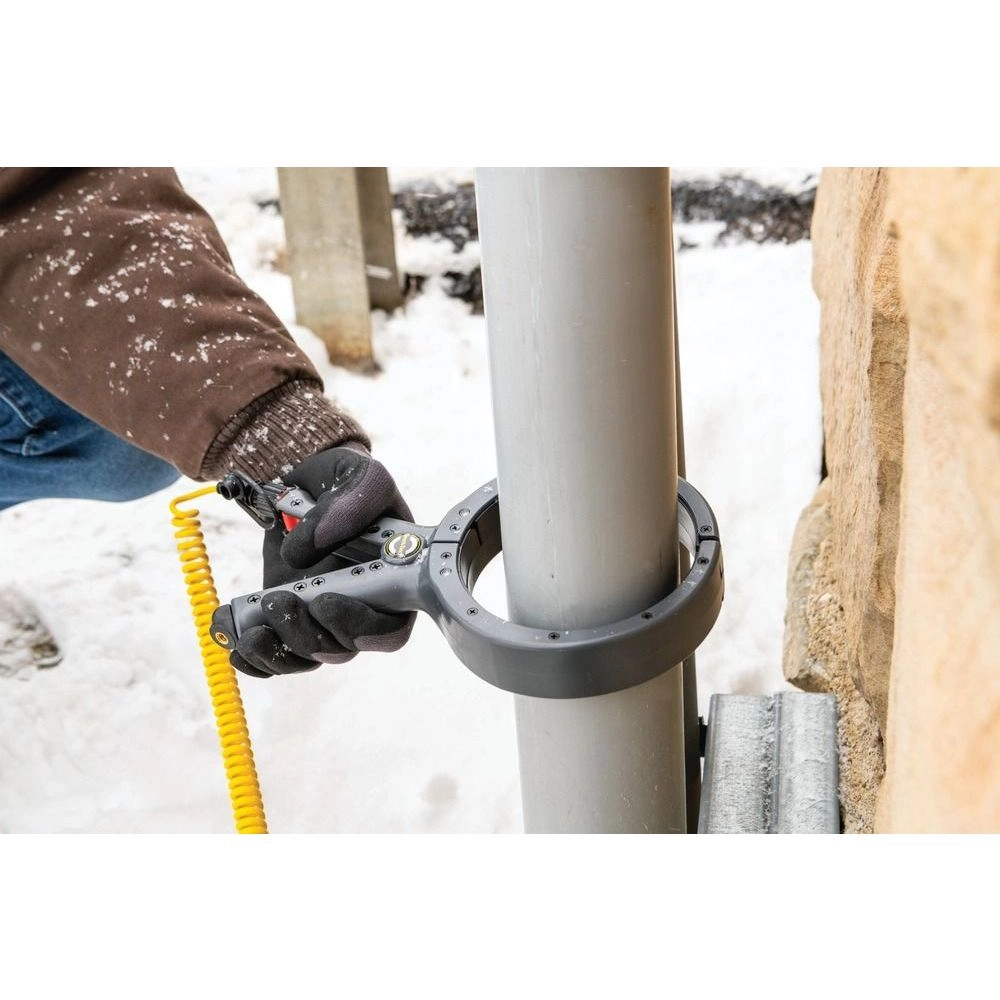

- Induces a signal onto a cable or pipe less than 119 mm (4.7 in) in diameter
- Compatible with all RIDGID SeekTech line transmitters, including the ST-305, ST-305R, ST-33Q+, and ST-510
- Additionally compatible with any comparable line transmitter which has a 10 watt or less maximum output power if frequency is under 45 kHz, and a 1 watt maximum if above 45 kHz
- Can be used with frequencies from 8 kHz to 262 kHz
- Removable and easy to store coiled cord

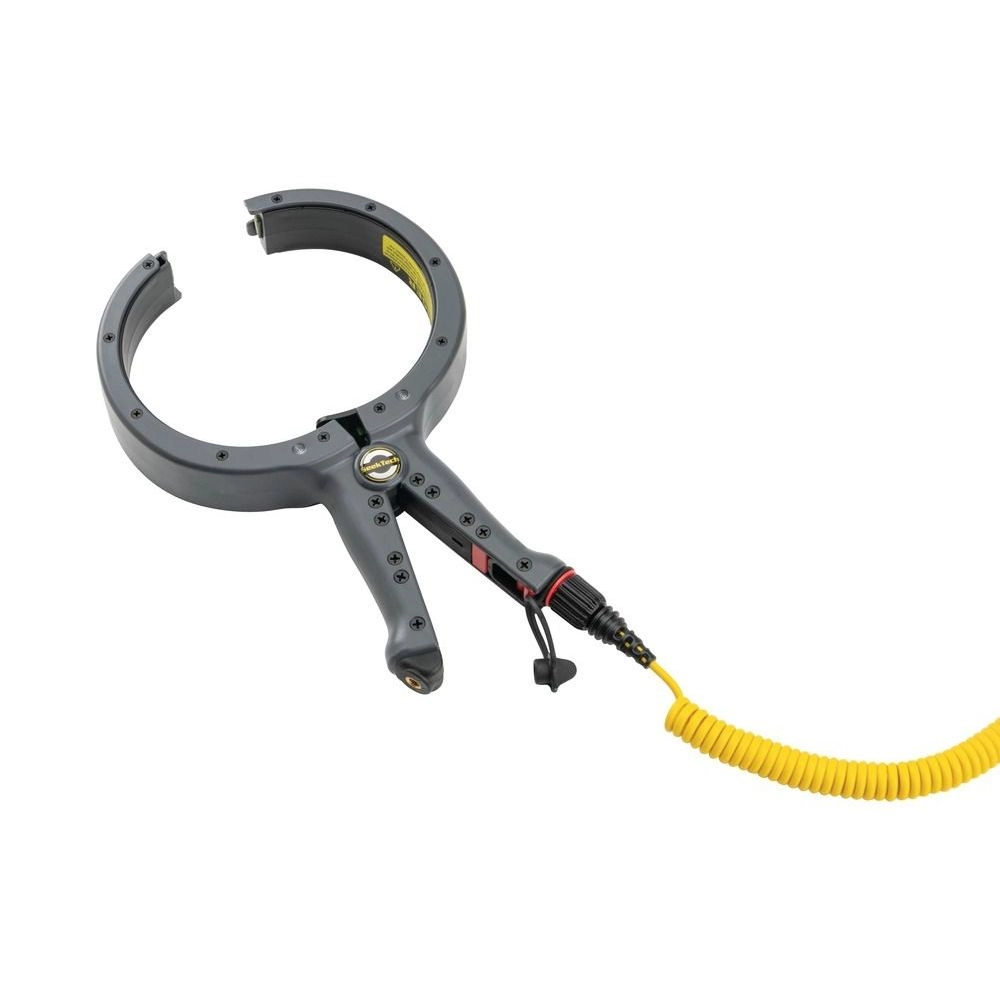

- Ergonomic handle for easy opening and closing
- Convenient pull tab for opening and closing in tight spaces
Technical Information
- Weight0.5 kg (1.1 lb)
- Height264 mm (10.4 in)
- Width148 mm (5.8 in)
- Depth36.8 mm (1.5 in)
- Inside Diameter119 mm (4.7 in)
- Cord Length0.75 m (2.5 ft)
- Power SourceLine transmitter with 10 watt or less max output power with frequency < 45 kHz, or 1 watt max if > 45 kHz
- Frequencies8 kHz to 262 kHz
