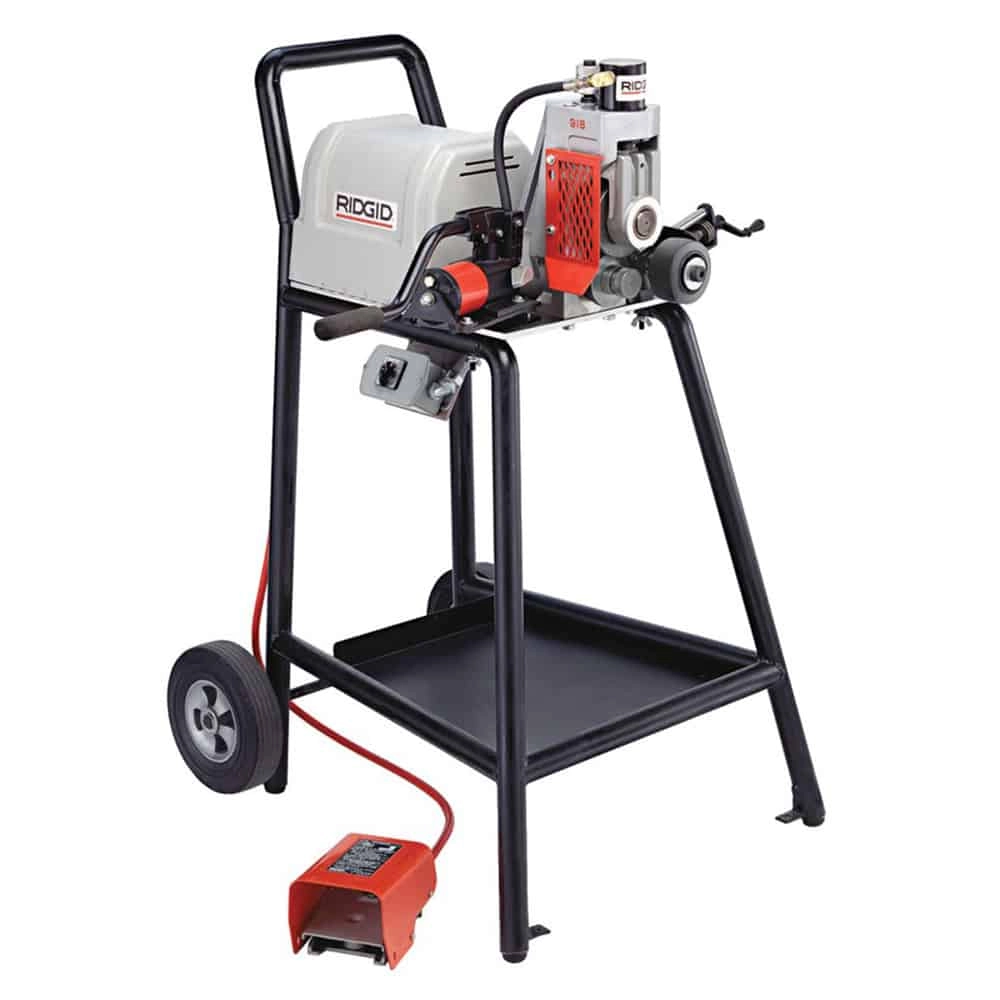

Ridgid 65902 918-I - 230V Roll Groover with Stand, 1-12 In.

Features

• Powered by 1/2 HP universal motor and heavy-duty transmission
• Produces high quality grooves consistently and effortlessly
• Suitable for steel, stainless steel, aluminum, PVC pipe and copper tubing
• Two-stage hydraulic pump minimizes pipe flare, operator fatigue and hydraulic fluid leaks
• Rugged, durable housing enables unit to withstand harsh use
• Wheel stand built for easy mobility and excellent stability

Technical Information

• Roll Grooving Capacity# 1″ – 12″ Sch. 10 Steel, Stainless Steel# 1″ – 8″ Sch. 40 Steel, PVC# 2″ – 6″ Copper (Type K, L, M, & DWV)#1 1/2″, 2 1/2″ to 4″ Sch. 80 PVC
• Depth AdjustmentIndexed Adjustment Knob
• ActuationHydraulic Hand Pump
• Motor TypeUniversal
• Power1/2 HP
• Voltage230V
• ControlsRotary Type ON/OFF Switch; ON/OFF Foot Switch
• Operating Speed45 RPM (no load)
• Weight185 lbs. (84.1 kg)

Items Included

• 1 – 918-I Roll Grooving Machine
• 1 – B-294 Footswitch Assembly (36642)
• 1 – Roll Set for 8″ – 12″ Sch 10 (8″ Sch 40), with Carrying Case (48405)
• 1 – 2″ – 6″ Groove Roll for Sch. 10/40 (49217)
• 1 – 2″ – 6″ Drive Roll for Sch. 10/40 (51432)
• 1 – 2 1/2” to 12” Stabilizer for Grooving Nipples (59992)
• 1 – 9181 Stand Assembly (64192)
• 1 – T-Handle Hex Key, 1/8″ (49087)
• 1 – Box Wrench (54317)
• 1 – Spanner Wrench (67192)
• 1 – Hex Key, 3/8″ (67197)
• 1 – Roll Storage Case (53987)

Downloads

Datasheet
