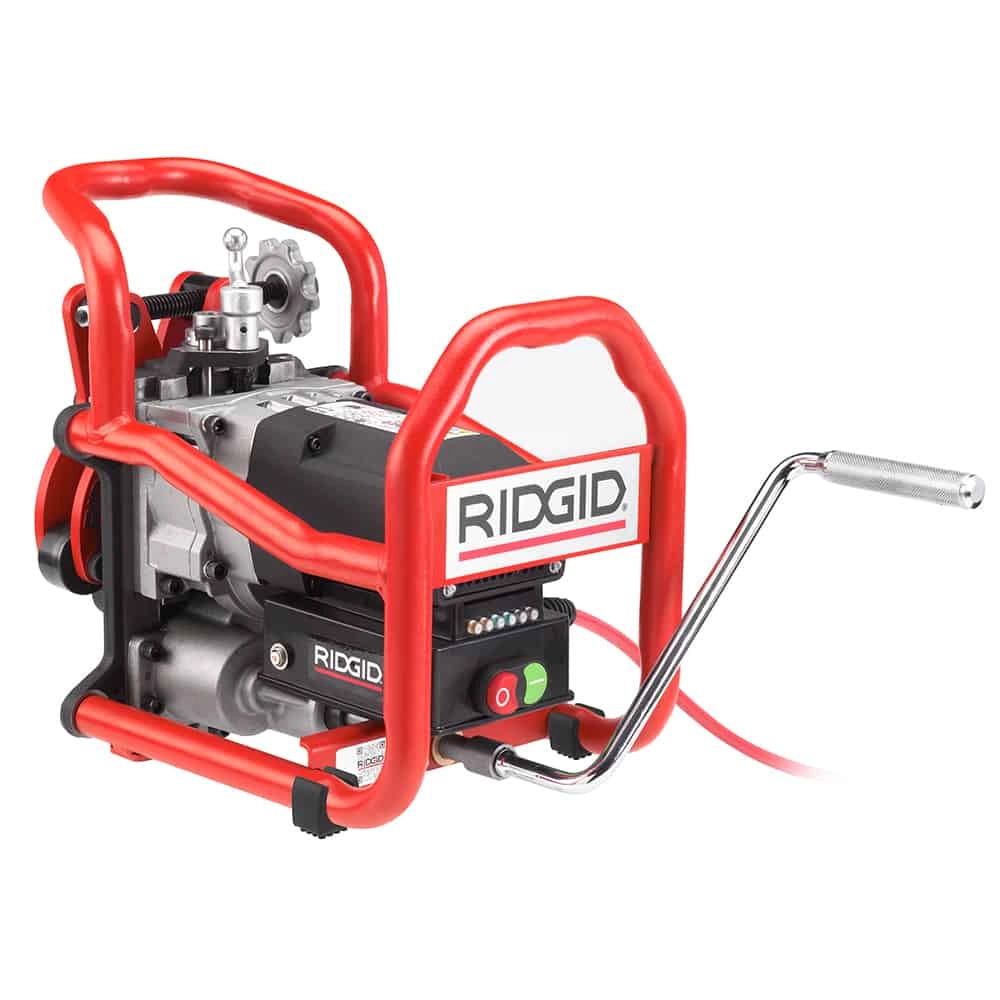

Ridgid 49303 B-500 - Transportable Pipe Beveller With 371/2° Cutter Head 220V
Model # 49303Key Features
?
Question about this product?
Features
- Speed: #Set-up and bevel 10″ diameter schedule 40 pipe in 45 seconds.#Pipe is cool to touch immediately following beveling.
- Consistency: #Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes.#Adjustable land width from 0″ to 3/16″ to fit welders’ requirements.#Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.
- Simplicity: #Fast to set-up and operate.#Patent-pending clamp system firmly secures tool to the pipe.#Speed monitoring with led indicators for optimal cutter performance.#Grinding spark free operation.
Technical Information
- Capacity4” pipe and larger, flat plate.
- Pipe Wall/ Plate ThicknessMin 0.188″ (4.8 mm)/Max 0.50″ (12.7 mm).
- Models Equipped with –37.5°; 30° or 45° (with Optional Cutter Heads).
- Cutter HeadRated for most steel & stainless steel*.
- Size15.8 in. (401 mm) L x 11.5 in. (292 mm) W x 13.3 in. (338 mm) H.
- Land Width0″ – 3/16″ (4.8 mm) in approximately 1/32″ (0.8 mm) increments.
- Motor TypeUniversal single-phase.
- Motor RPM950 (no load).
- BodySteel frame
