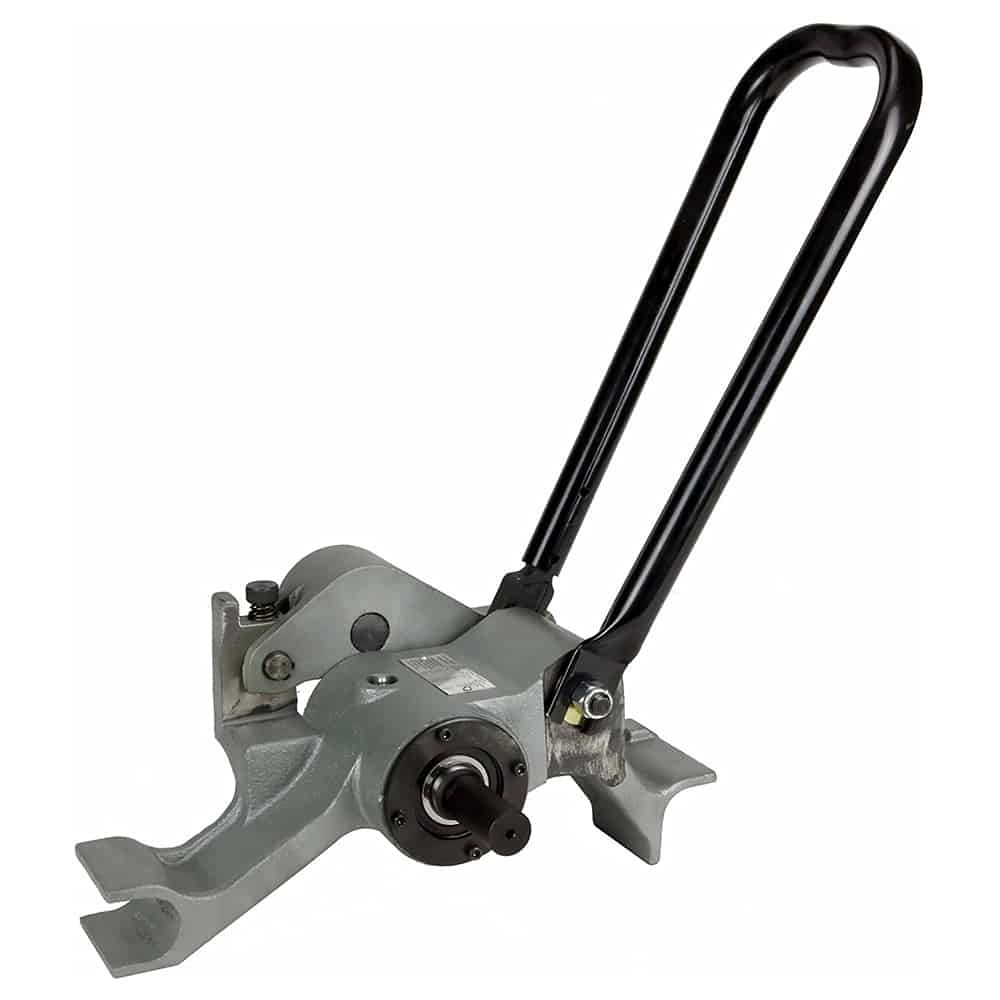

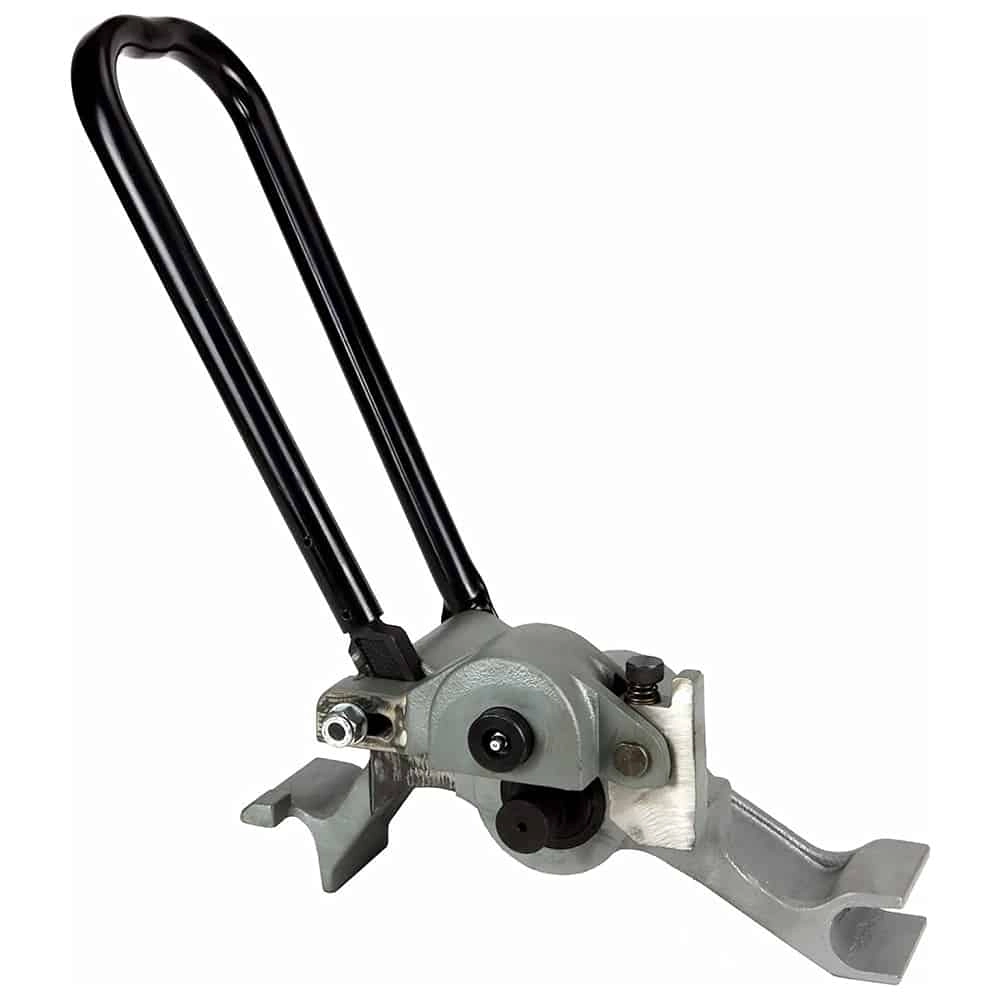

Ridgid 45007 916 - Power Driven Roll Groover, 1 1/4-6 In.

Features

• Specifically designed for field service roll grooving applications.

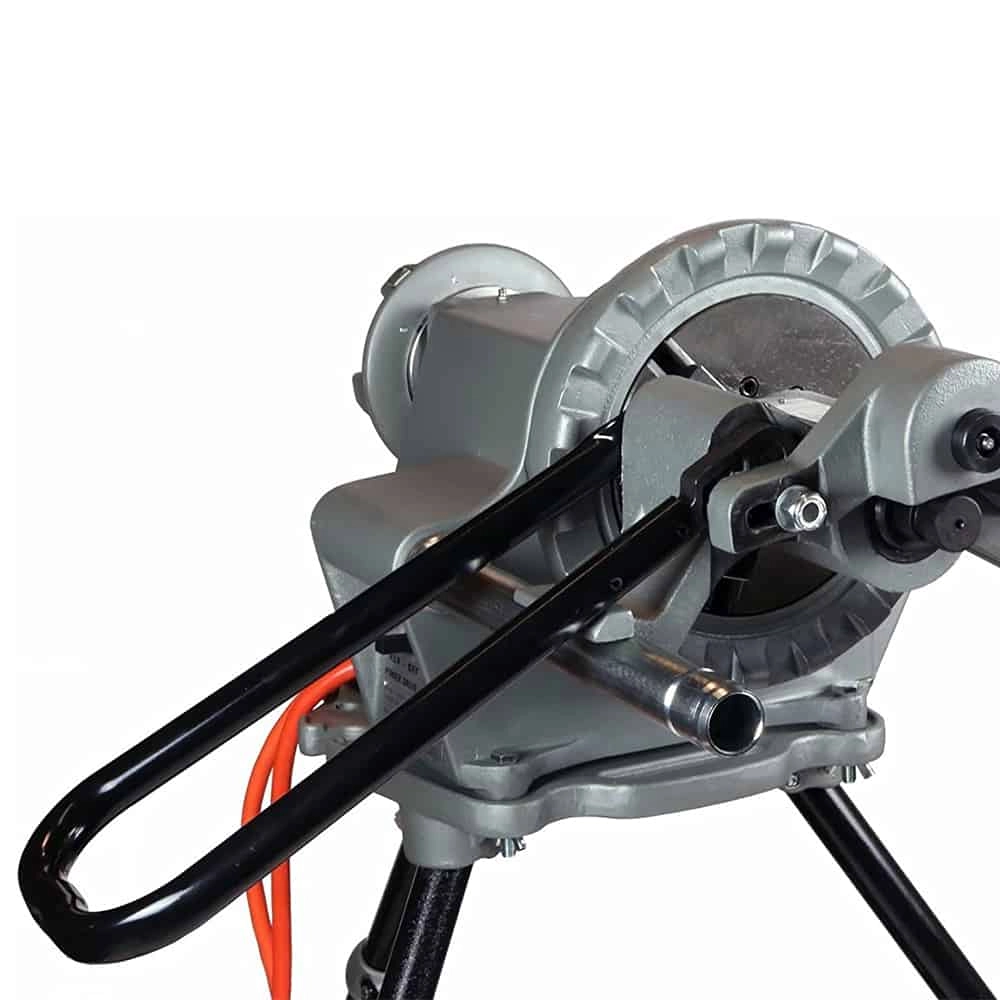

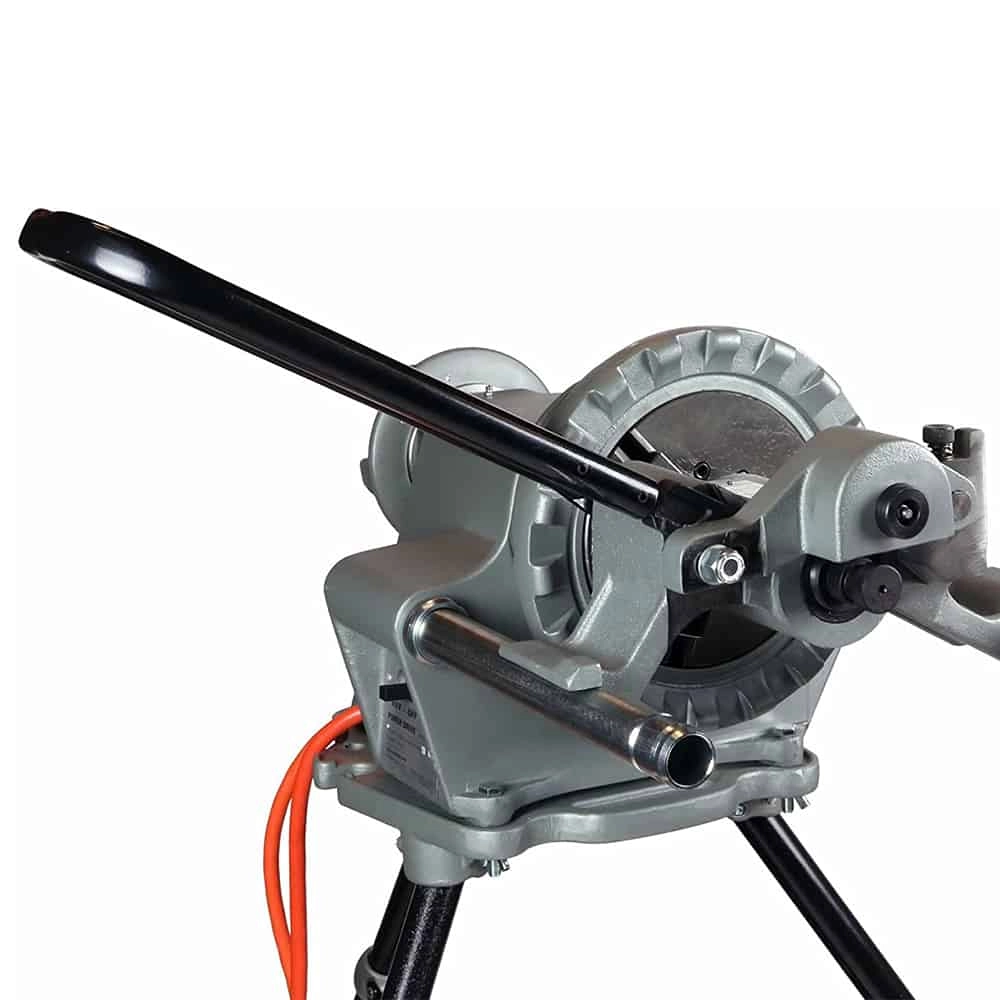

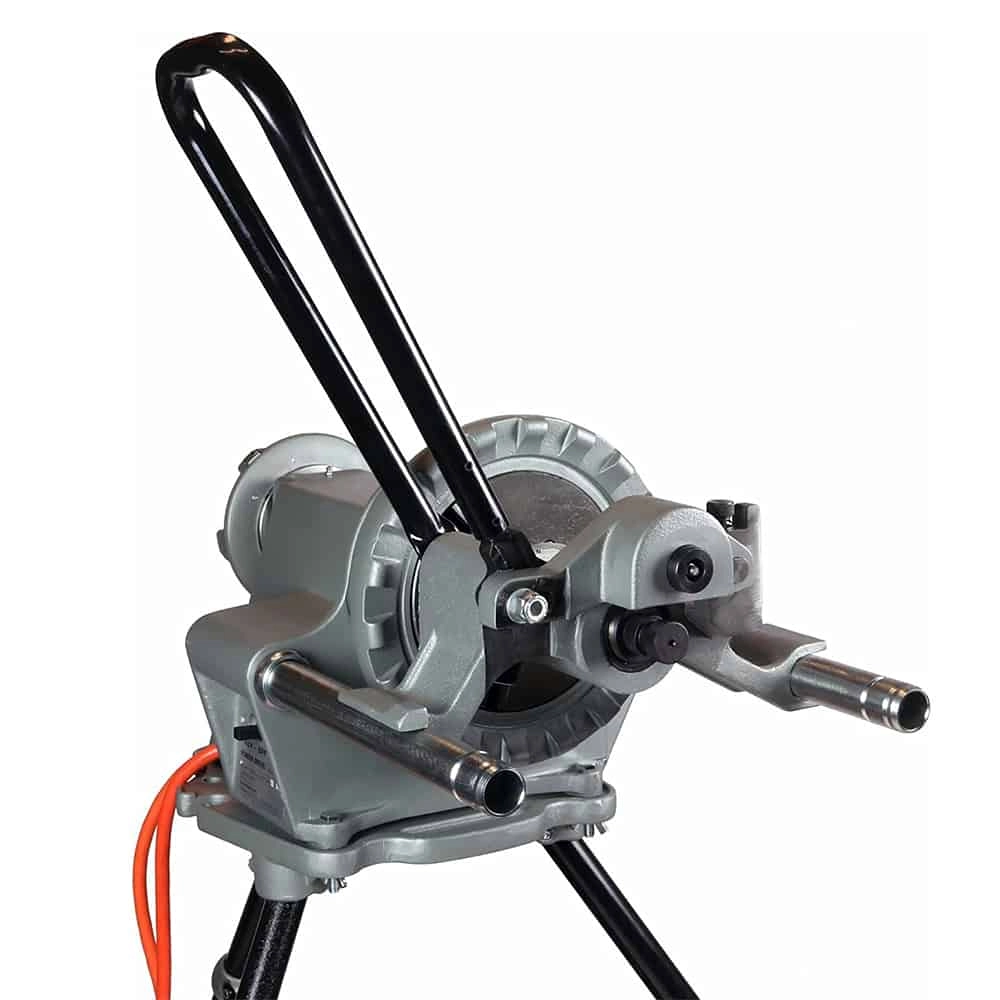

• Quick and easy mount to RIDGID 300 Power Drive, 535 or 300 Compact Threading Machines.
• Cam-type feed actuation – translates into minimum operator effort to form roll grooves.
• Depth adjustment screw separate from feed mechanism allows for consistent groove depth.
• Lightweight for easy transport and storage.
• Integral feed handle is part of overall unit. No extra tools required.
• Easy serviceability – drive and groove rolls are easy to change.

Technical Information

• Capacity1¼ to 6″ Thin Wall (Schedule 10)# 1¼ to 3″ Standard Wall (Schedule 40)# Optional 2 to 6″ copper (Type K, L, M, DWV)# Optional 1″ Steel Pipe (Schedule 10, 40)# 1¼ to 1½” and 2 to 6″ AWWA Roll Sets
• Depth AdjustmentAdjustment Screw
• ActuationIntegral Single Stroke Handle Mechanism
• Power Drive Mounting300 Power Drive, 1822 -I# Threading Machine, 535M# 535A Threading Machines# 300 Compact Threading Machine
• Weight33 lbs
