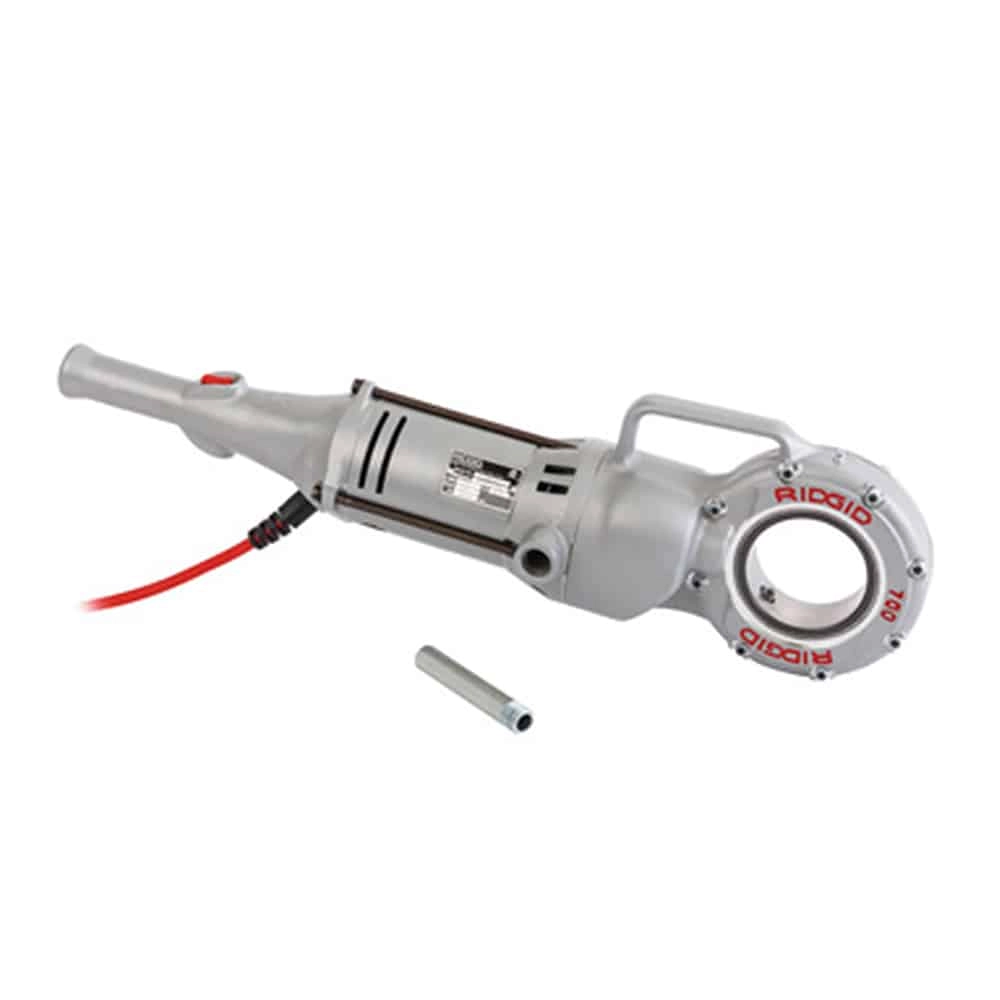

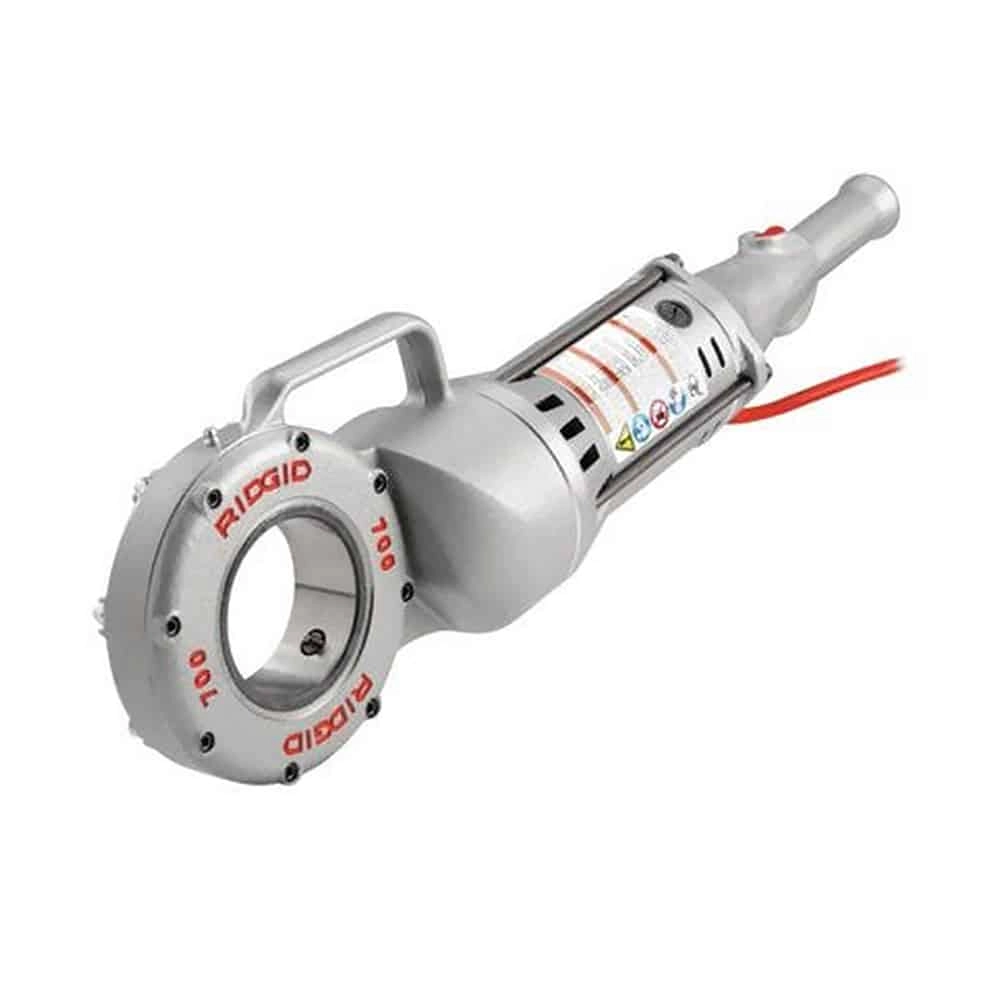

Ridgid 41940 700 - Power Drive Cap 1/2-2 Inches 230V

Model # 41940

Key Features

Brand: Ridgid
Model: 41940
Warranty: No warranty

Qty:

Qty:

?

Question about this product?

Speak to an expert

Features

Heavy-duty hand-held power drive.
Features reversible 115V or 230V universal motor.
Capacity 1/8″-2″ (3mm-50mm) pipe, 1/4″-1″ bolt with OO-RB die heads.
Designed for RIDGID No. 12-R die heads.
Also used with 258/258XL pipe cutters. Die heads not included
Approved by CSA to CSA and UL standards (115V only).

Technical Information

MotorUniversal, 1/2 HP, 115V or 230V 50/60 Hz.
SwitchDouble-throw reversible.
Gear HeadAll-spur gear reduction. Spring-loaded adapter pawl. Hardened steel spindle gear.
BodyCast aluminum.
Spindle Speed26-30 RPM (no load).
Capacity1/8″-2″ Pipe (3mm-50mm). 1/4″-1″ (6mm-25mm) Bolt (using 00-RB).
Weight25 lbs. (11 kg) Power Drive only.
Length28 1/4″ (71.7 cm).
