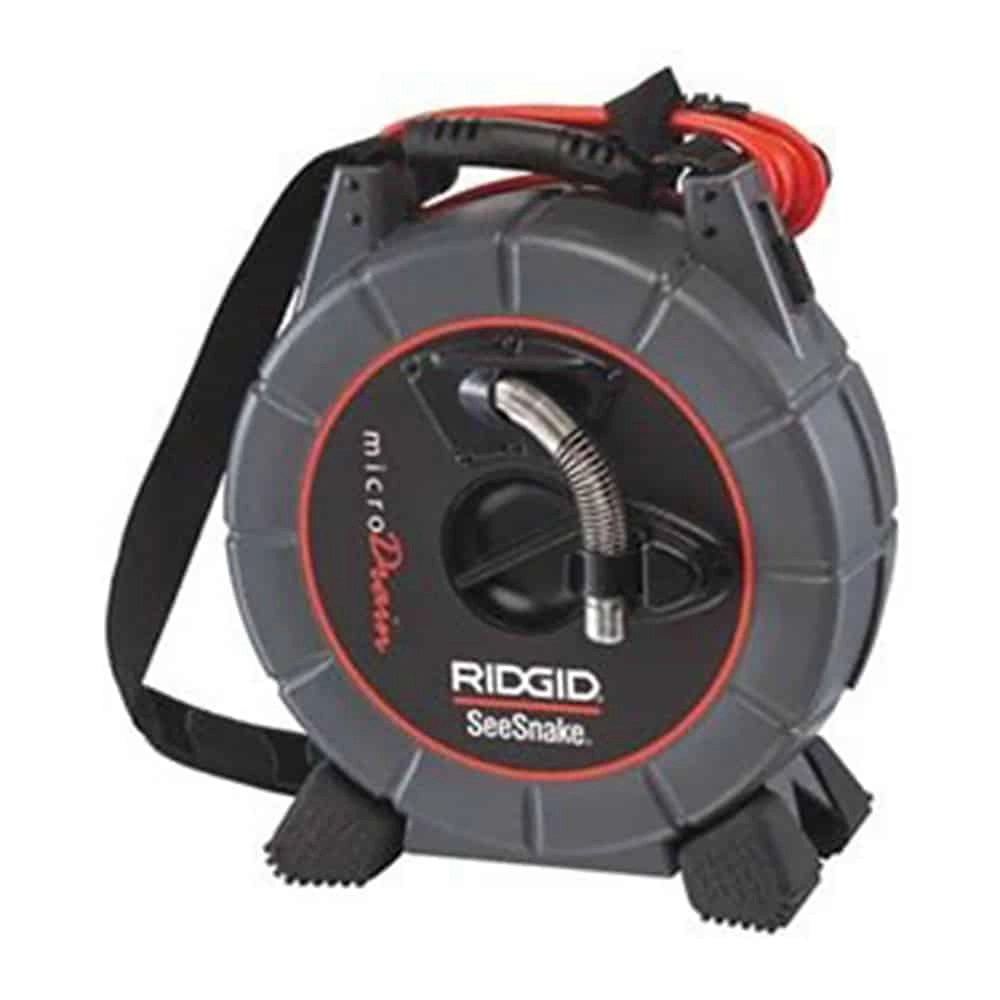

Ridgid 35148 L100 Microreel Inspection System 1.5-4Inches Pipe - 100Ft
Model # 35148Key Features
?
Question about this product?
Features
- For Inspecting 1 1/2 Inches. to 4 or 5 Inches. Lines up to 100 ft
- Push cable is stiff enough to enable Line Inspections up to 100 ft
- Small camera size allows users to maneuver through narrow Lines
- Lightweight, compact design is half the size of common Inspection systems, allowing for easy transport and storage
- Durable and reliable construction with hardened stainless steel camera head spring assembly
- Long-lastInchesg high-Intensity lights provide exceptional Viewing
- Removable drum design allows for convenient Cleaning or replacement of push cable
- Built-Inches 512 Hz sonde makes it easy to locate problems Inches the pipe
- Equipped with Interconnect cable and display cradle for micro CA-350 Camera (sold separately)
Technical Information
- Line Capacity1 1/2 Inches to 4 or 5 Inches
- Maximum Run100 ft
- Sonde512 Hz
- Weight10.3 lbs.
- Reel Size (L x W x H)13.25 Inch x 6.6 Inch x 14.2 Inch
- Camera Diameter0.98 Inch
- Camera Length1.48 Inches.
- Push Cable Diameter0.27 Inches
- Push Cable Length100 ft
- Operating Temperature32˚ to 115˚F
- Video Resolution768 x 576 PAL
- Lighting6 LEDs
- Voltage230V
Items Included
- 1 – L100 Reel with Push Cable, Camera Head, and Sonde
- 1 – Connection Cable for micro CA-350
- 1 – Set of Ball Guides
- 1 – User Manual
