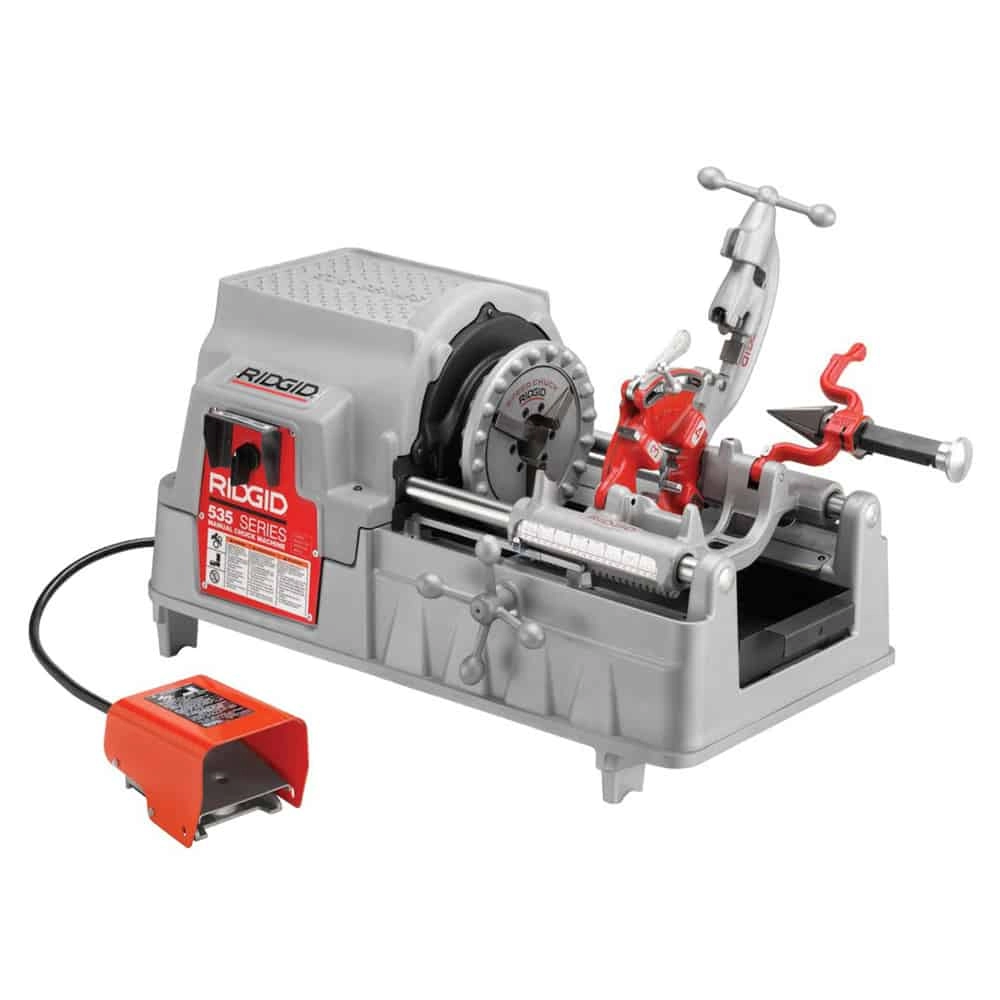

Ridgid 29943 535A - 230V Automatic Pipe Threading Maching, BSPT
Model # 29943Key Features
?
Question about this product?
Features
- Automatic chuck.
- Large 6.6 l (1.75 gallon) oil reservoir.
- Large chip tray.
- Generous top cover area for keeping tools and fittings handy.
- High clearance carriage.
- Can be used with geared threader Model 141.
- Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads.
- Length gauge for quick, accurate cut-off.
Technical Information
- TypePipe Threading Machines
- Pipe Capacity1/8″-2″ (3 mm-50 mm) 2 1/2″-4″ (62 mm-100 mm) with 141 geared threader.
- Bolt Capacity1/4″-2″ (6mm-50mm).
- SwitchesForward/off/reverse and integral safety foot switch.
- ChuckAutomatic with four reversible forged jaws.
- Rear Centering DeviceAutomatic, centering only.
- CuttersSelf-centering, full-floating. Two models available
- Reamer5-flute cone, RH, 1/8″-2″ (3 mm-50 mm).
- Oil PumpSelf-priming gerotor oil pump.# RH/LH combination reamer available.
