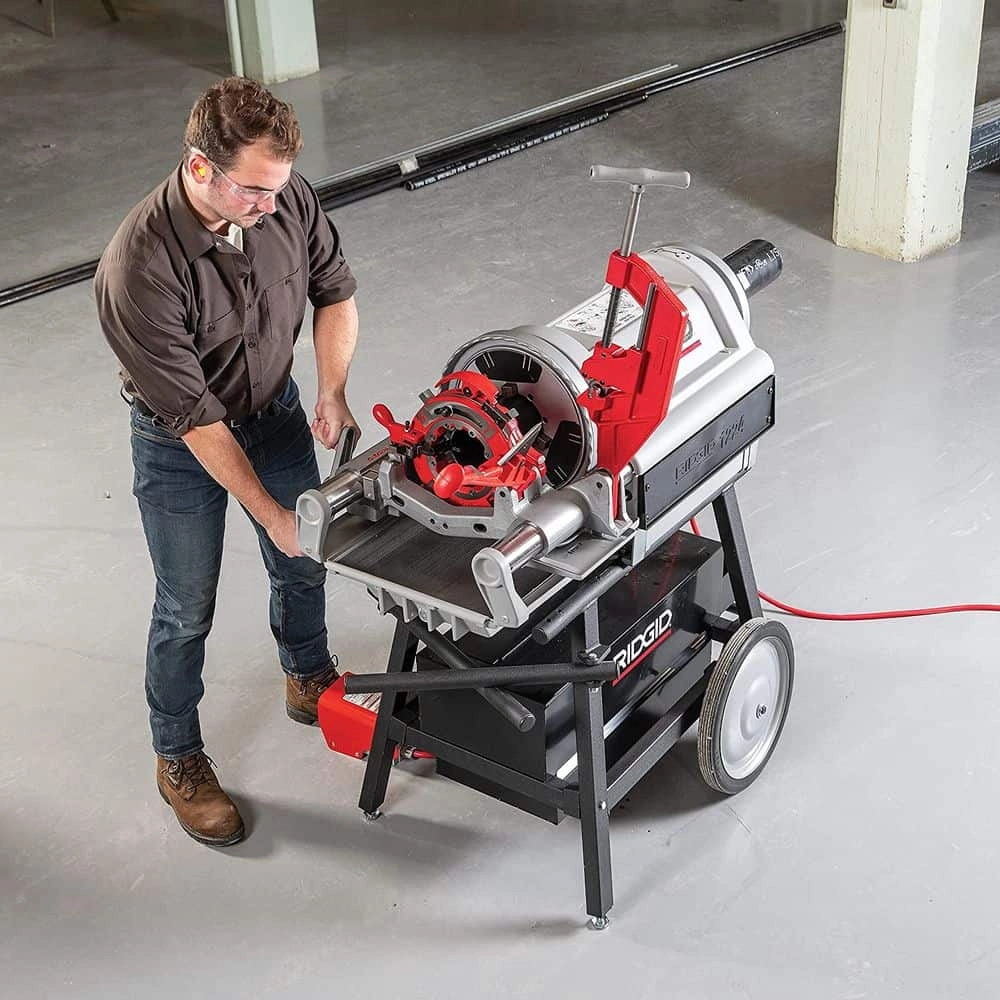

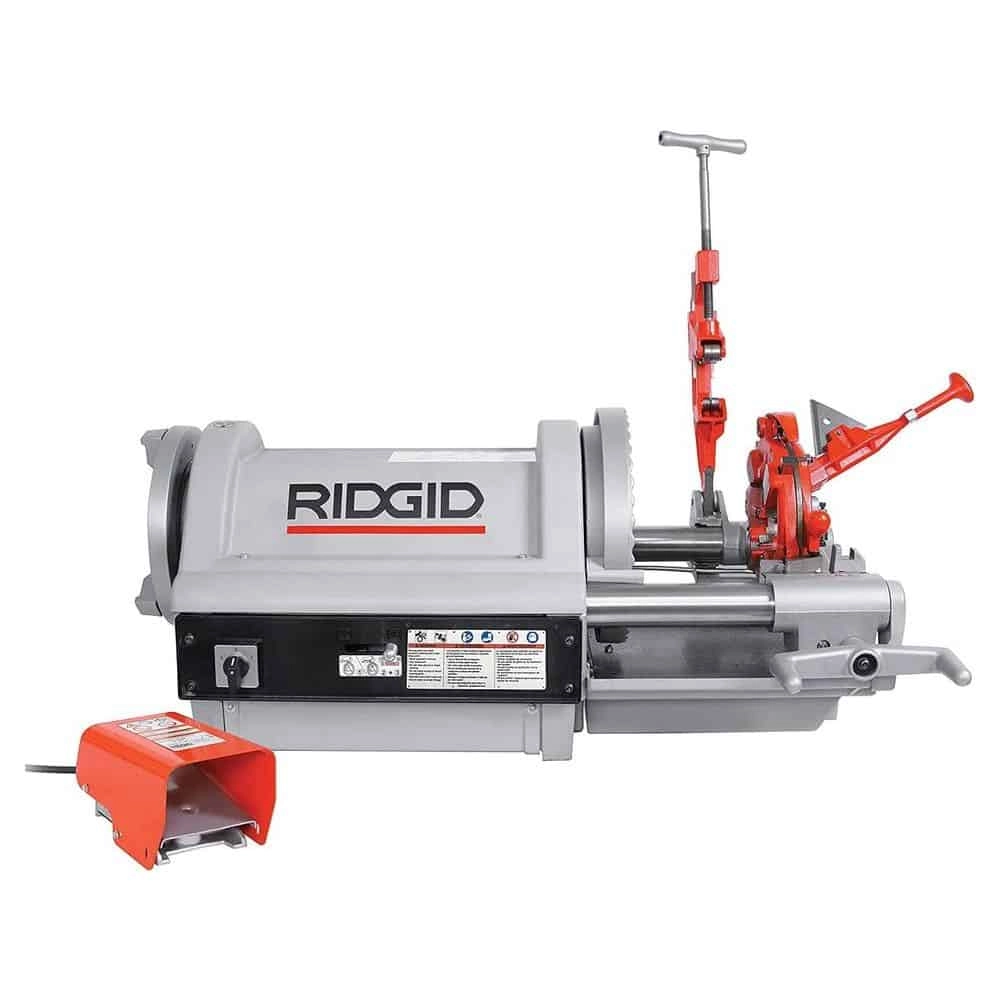

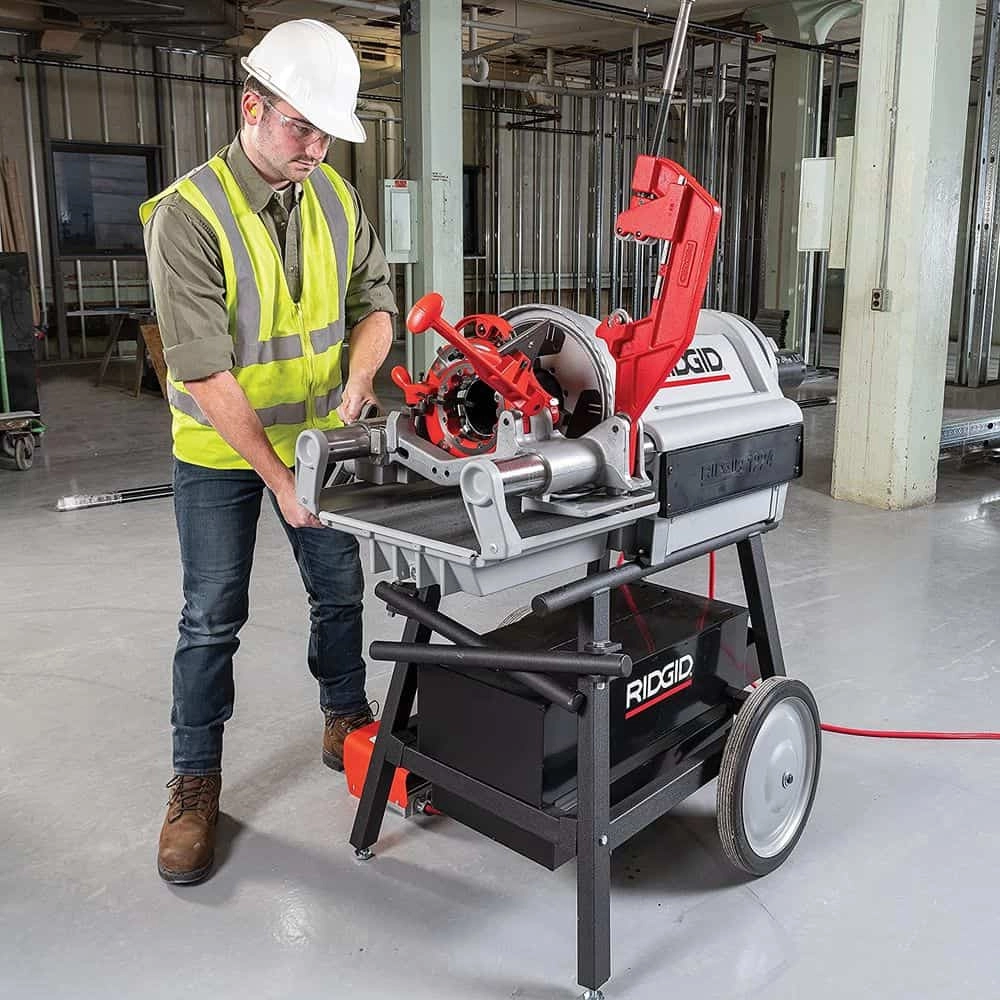

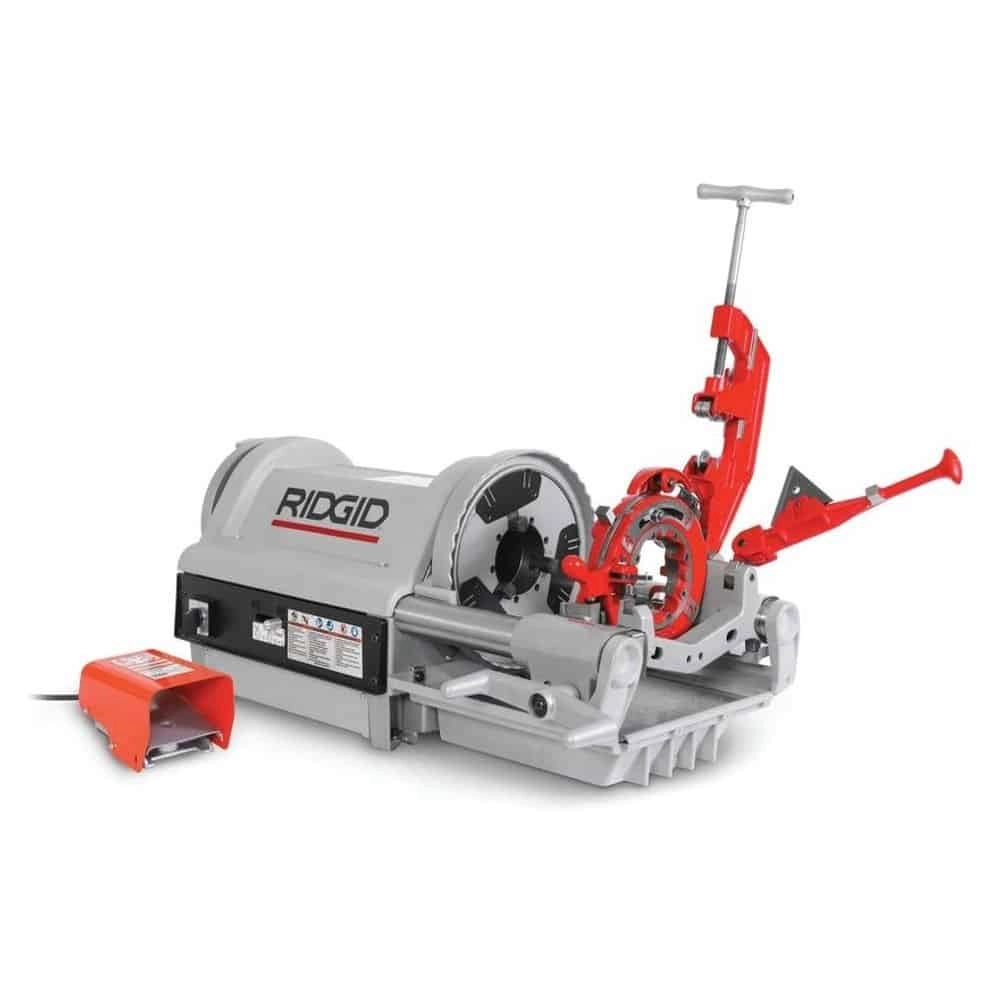

Ridgid 26097 1224 - 230V Pipe Threading Machine, 1/2-4 In. NPT, 36/12 RPM, 1.5HP Single Phase Induction Motor, Hammer-Type Chuck, 2-Speed

Model #   26097

Discontinued

?

Question about this product?

Speak to an expert

Features

  • Wide range of pipe including black; galvanized and plastic-coated pipe; together with stainless steel; IMC and heavy-wall conduit; as well as rod up to 30 Rockwell C
  • Special capacitor-start / capacitor-run motor allows to thread a full range of material where voltage drop is experienced.
  • Induction motor helps minimize noise.
  • Constant and proper lubrication of dies and workpiece with through-head oiling.

Technical Information

  • TypePipe Threading Machines
  • Max. Pipe Capacity4 In
  • Voltage230V
  • Nominal Pipe Capacity1/4″-2″ (6mm-100mm) @ 36 RPM, 2-1/2″-4″ (65mm-100mm) @ 12 RPM, 4″-6″ (100mm-150mm) with 161 Geared Threade
  • Bolt Capacity1/4″-2″ (6mm-50mm).
  • Motor ControlReverse/off/forward, heavy-duty rotary-type and integral foot switch.
  • Gear BoxTwo-speed gear box with a 3:1 ratio.
  • ChuckHammer-type with replaceable rocker-action jaw inserts.
  • Rear Centering DeviceCam action.
  • Oiling PumpSelf-priming, gerotor-type, automatic-reversing, constant-flow.
  • OilingThrough die head

Items Included

  • 1-Gallon Nu-Clear Oil
  • 1-No. 714 (914) 2 1/2 – 4 in Receding Self-Opening Die Head
  • 1-No. 711 (911) 1/4 – 2 in Universal Self-Opening Die Head
  • 1-Set 1/2 – 3/4 in Universal Alloy Dies
  • 1-Set 1 – 2 in Universal Alloy Dies
  • 1-Set 2 1/2 – 4 in 1224 High Speed Dies
  • 3-Hex Keys; 1-spare F-229 Cutter Wheel
  • 1-3/4 in Combination Wrench
  • 1-Tool Box; 1-No. 744 Reamer
  • 1-No. 764 Cutter
