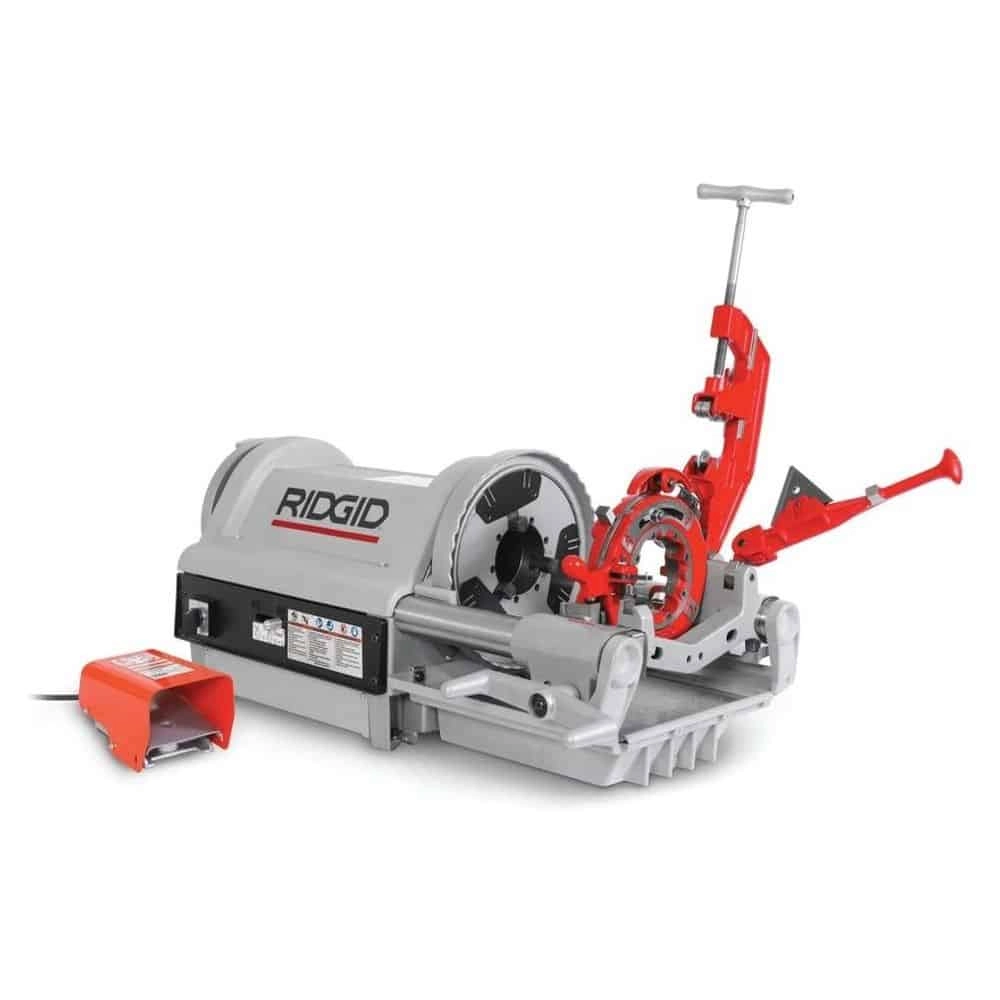

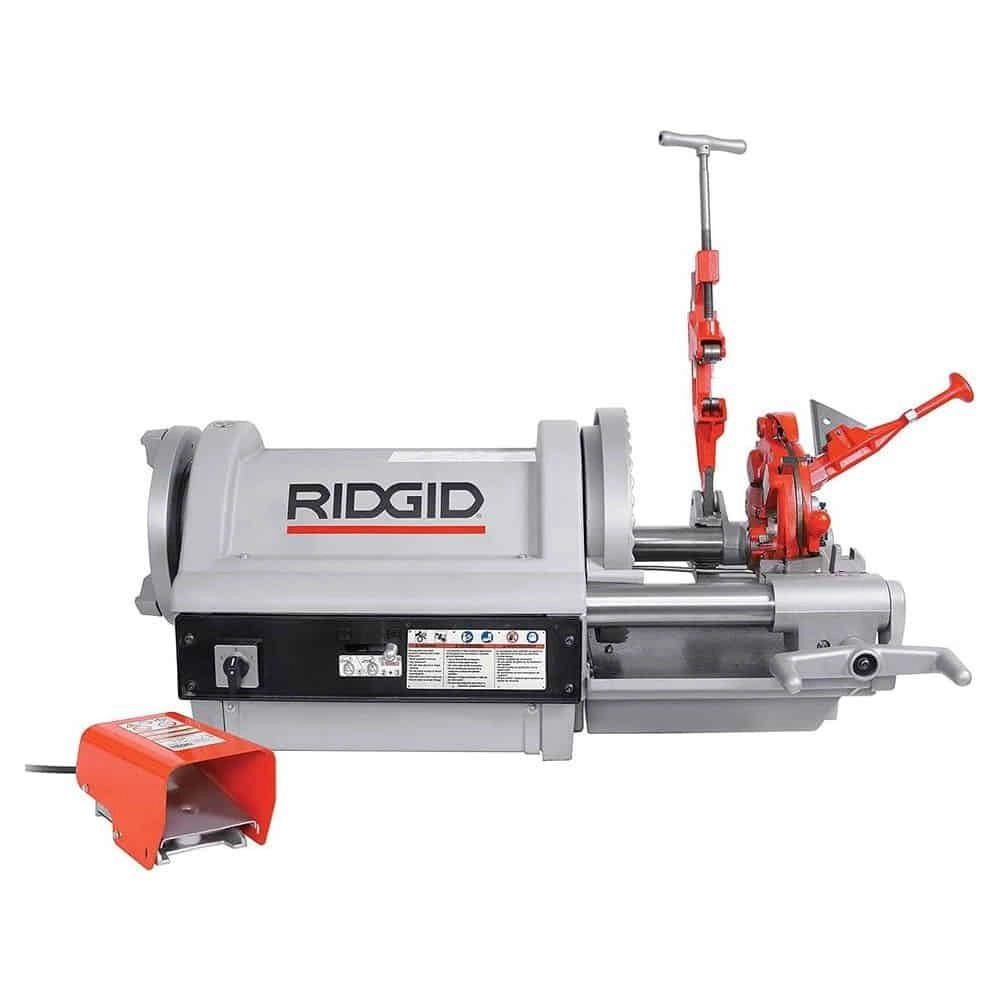

Ridgid 26092 1224 - 120VPipe Threading Machine, 1/2-4 In. NPT, 36/12 RPM, 1.5HP Single Phase Induction Motor, Hammer-Type Chuck, 2-Speed

Model #   26092

?

Question about this product?

Speak to an expert

Features

  • An induction motor helps minimize noise.
  • A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
  • 1/4″-2″ Universal Die Head; 2 1/2″-4″ receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
  • Constant and proper lubrication of dies and workpiece with through-head oiling.

Technical Information

  • TypePipe Threading Machines
  • Max. Pipe Capacity4 In
  • Voltage120V
  • Nominal Pipe Capacity1/4″-2″ (6mm-100mm) @ 36 RPM, 2-1/2″-4″ (65mm-100mm) @ 12 RPM, 4″-6″ (100mm-150mm) with 161 Geared Threade
  • Bolt Capacity1/4″-2″ (6mm-50mm).
  • Motor ControlReverse/off/forward, heavy-duty rotary-type and integral foot switch.
  • Gear BoxTwo-speed gear box with a 3:1 ratio.
  • ChuckHammer-type with replaceable rocker-action jaw inserts.
  • Rear Centering DeviceCam action.
  • Oiling PumpSelf-priming, gerotor-type, automatic-reversing, constant-flow.
  • OilingThrough die head

Items Included

  • No. 714 (914) 2 1/2″- 4″ receding self-opening die head.
  • No. 711 (911) 1/4″- 2″ universal self-opening die head.
  • set 1/2″- 3/4″ universal alloy dies.
  • set 1″ – 2″ universal alloy dies.
  • set 2 1/2″- 4″ 1224 high-speed dies
  • hex keys
  • spare F-229 cutter wheel.
  • 3/4″ combination wrench.
  • No. 744 reamer.
  • No. 764 cutter.
