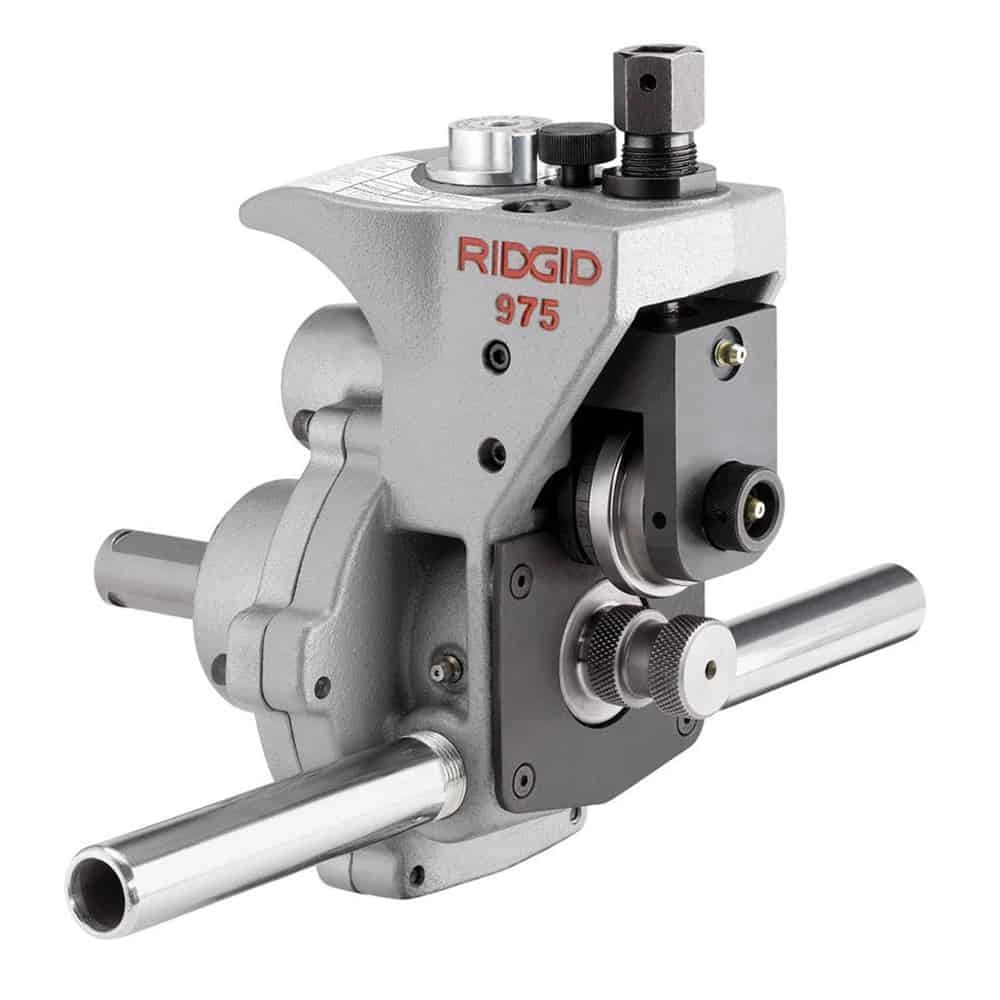

Ridgid 25638 975 - Combo Roll Groover, 1 1/4-6 In.
Model # 25638Key Features
?
Question about this product?
Features
- Auto Tracking & Depth Setting Gauge Means Easier Use – The 975 Combo Groover includes new, patented auto tracking technology for significantly easier grooving. Whether you’re doing machine-powered or manual grooving
- The Auto Tracking gauge keeps the pipe automatically engaged to the groover throughout the grooving process.
- The 975 also includes a permanently depth setting gauge for quicker, repeatable set-up.
- Less Hand Force Required – When manually roll grooving, the 975’s 55% higher gear reduction means less hand force required versus competitive manual roll groovers. This is especially helpful for over-head roll grooving.
- Durability And Portability – A tough, ductile iron construction means the 975 can absorb job site abuse and provide accurate grooves time after time.
- A cast-in handle makes the 975 easily portable to and from the job site.
Technical Information
- Capacity1 ¼” – 6” Schedule 10 and Schedule 40 steel, aluminum, and PVC pipe.# 1 1/4″ – 6″ Schedule 10, 1 1/4″ – 2″ Schedule 40 stainless steel pipe, 11/2″ – 3″ Schedule 80 PVC pipe# With roll change, 2″ – 8″ copper tube (Type K, L, M, and DWV).
- Depth AdjustmentAdjusting screw and integral, index depth gauge.
- ActuationFeed screw with 1/2″ ratchet wrench (included), or any 15/16″ hex wrench.
- Power Drive MountingRIDGID 300 Power Drive 38/57 RPM (reverse direction only).
Items Included
- Combo Roll Groover
- Shaft, Drive
- Roll Groove
- ½” Drive With 90° Bend Ratchet
- ½” Drive Locking Extension
- Support Bar
