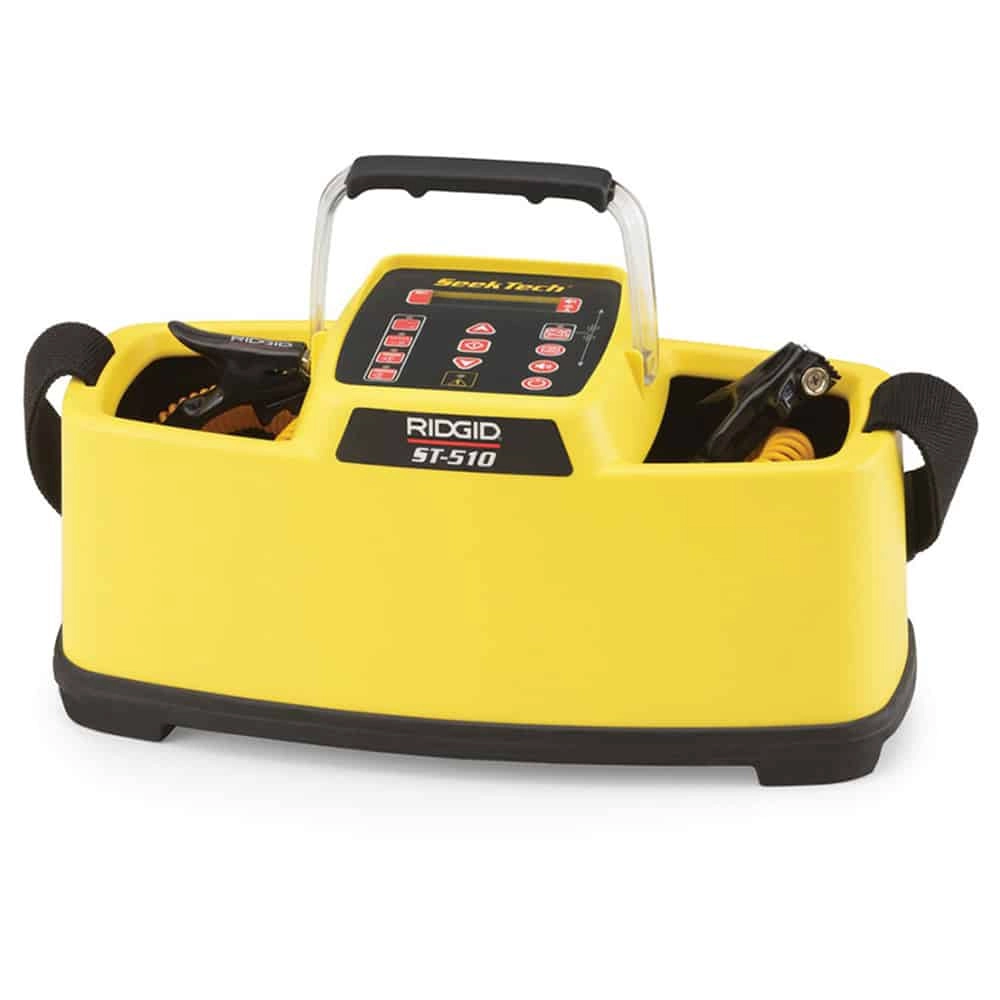

Ridgid 21903 SeekTech ST-510 - Line Transmitter, 10W
Model # 21903Key Features
?
Question about this product?
Features
- LCD display provides instant visual feedback about line resistance, impedance, and current flow keeping circuit information easy to read while underground wire locating
- Extended range 25-foot (7,62 meter) terminal leads can attach using the heavy duty clips or built-in magnets and have built-in edge to scrape paint for optimal connection to pipe, ground or connection point
- Generates frequencies: Direct Connect – 128 Hz, 1 kHz, 8 kHz, 33 kHz, 93 kHz; Induction – 1 kHz, 8 kHz, 33 kHz, 262 kHz* – Competitor frequencies available in both direct connect and induction
- Two 25' (7,62 m) lead wires with heavy duty clips
- Audio feedback confirms a good circuit before beginning a trace
- Ten watts of fully variable power output
Technical Information
- Direct Connect128 Hz, 1 kHz, 8 kHz, 33 kHz and 93 kHz.
- Induction1 kHz, 8 kHz, 33 kHz, 262 kHz
- Power Source8 Alkaline or rechargeable batteries
- WeightWithout batteries: 4.75 lbs (2.15 kg), With batteries: 7.5 lbs (3.4 kg)
- DimensionsLength: 7 x 15 x 6.5 In (17.8 x 38.1 x 16.5 cm)
- Cable Length48′ Extended (14m); 46″ contracted (1.1m)
Items Included
- Seek Tech Transmitter
- Direct Connect Leads and Clips
- Operator’s Manual
- 8 x D-Cell Batteries (Alkaline)
- Grounding Stake
