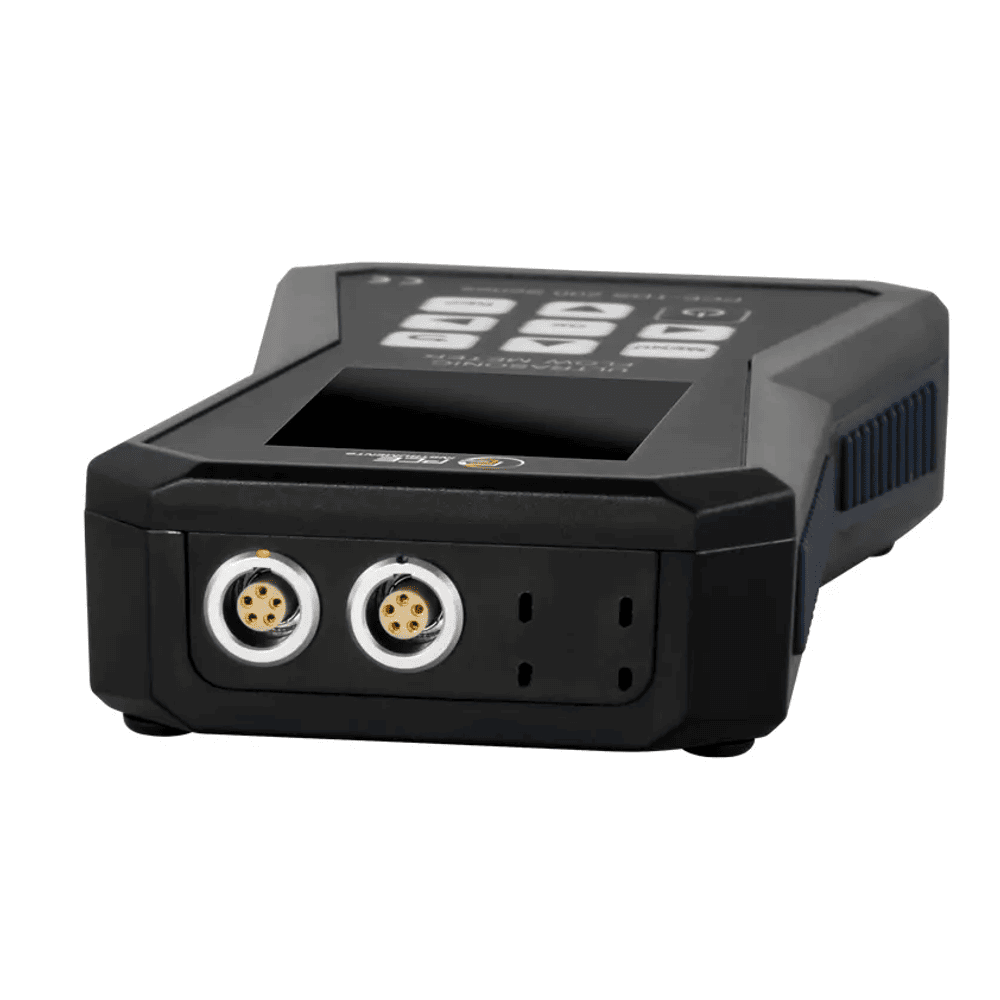

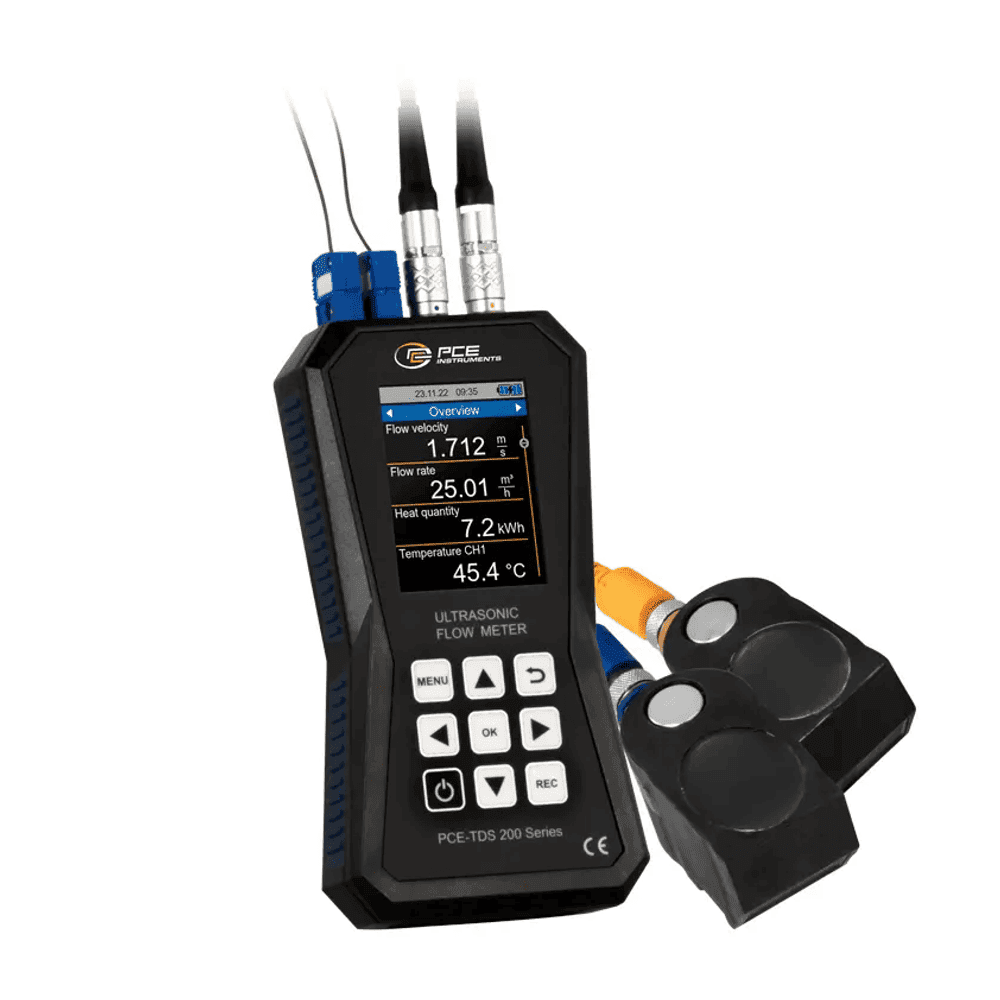

PCE Instruments TDS 200+ M Advanced Ultrasonic Flow Meter, with Heat Quantity Measurement - includes M Sensor, for 57-720mm Pipes

Features

• Measuring range ±32 m/s
• USB-C interface for data transfer
• Reproducibility ±0.5 % of measured value
• Heat quantity measurement
• Data memory for 10 million measuring points
• Individually adjustable alarm limits

Technical Information

• Flow Measurement±32 m/s
• Accuracy0.001 m/s
• Reproducibility±0.5% of measured value
• Display2.8" LCD
• Protection classIP52
• Dimensions165 x 85 x 32 mm
• Weight255 g
• S Sensor, RangeDN 15-100 / 20-108 mm
• Sensor Temperature Resistance-30 to 160 °C
• Total Temperature Range-100 to 1800 °C (with 8 different thermocouples combined)
• Connectable thermocouplesB, E ,J ,K ,N ,R ,S ,T
• Measuring parametersFlow rate, volume flow, volume, temperature, Heat output and heat quantity

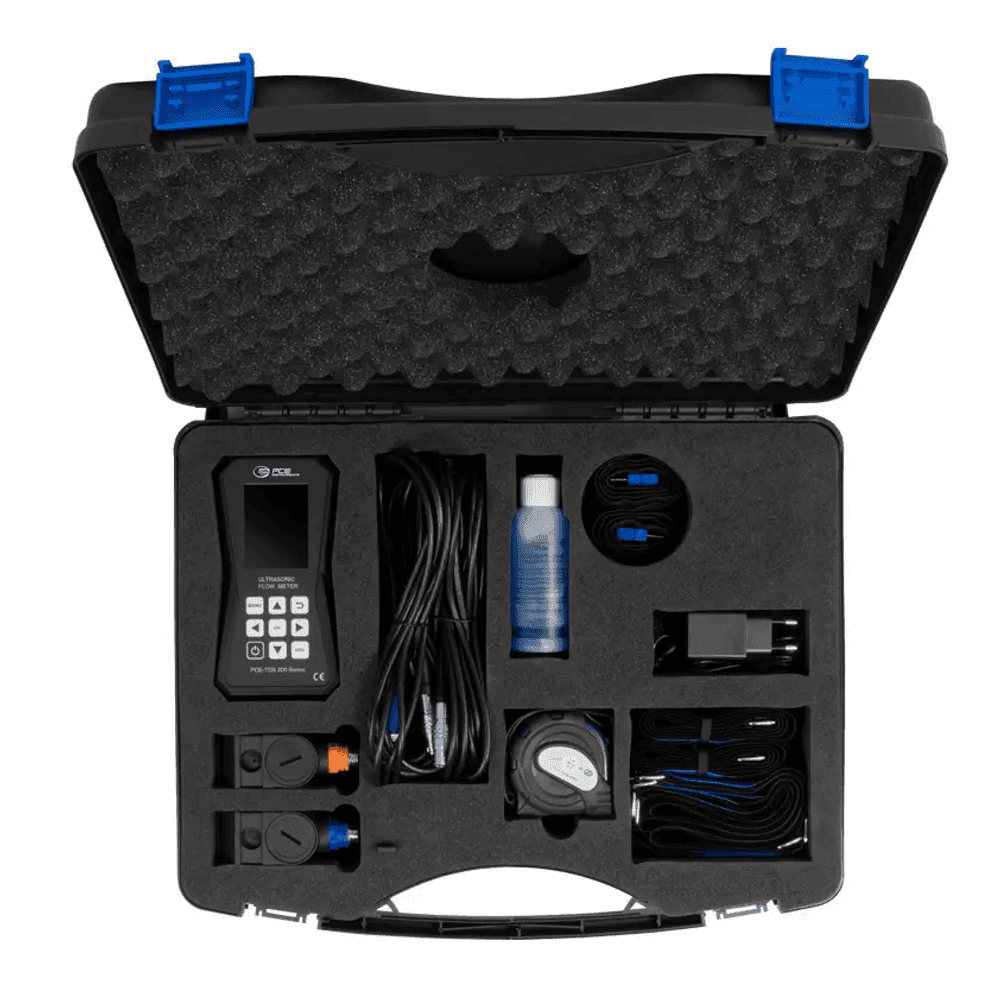

Items Included

• 1 x Ultrasonic flow meter PCE-TDS 200+ M

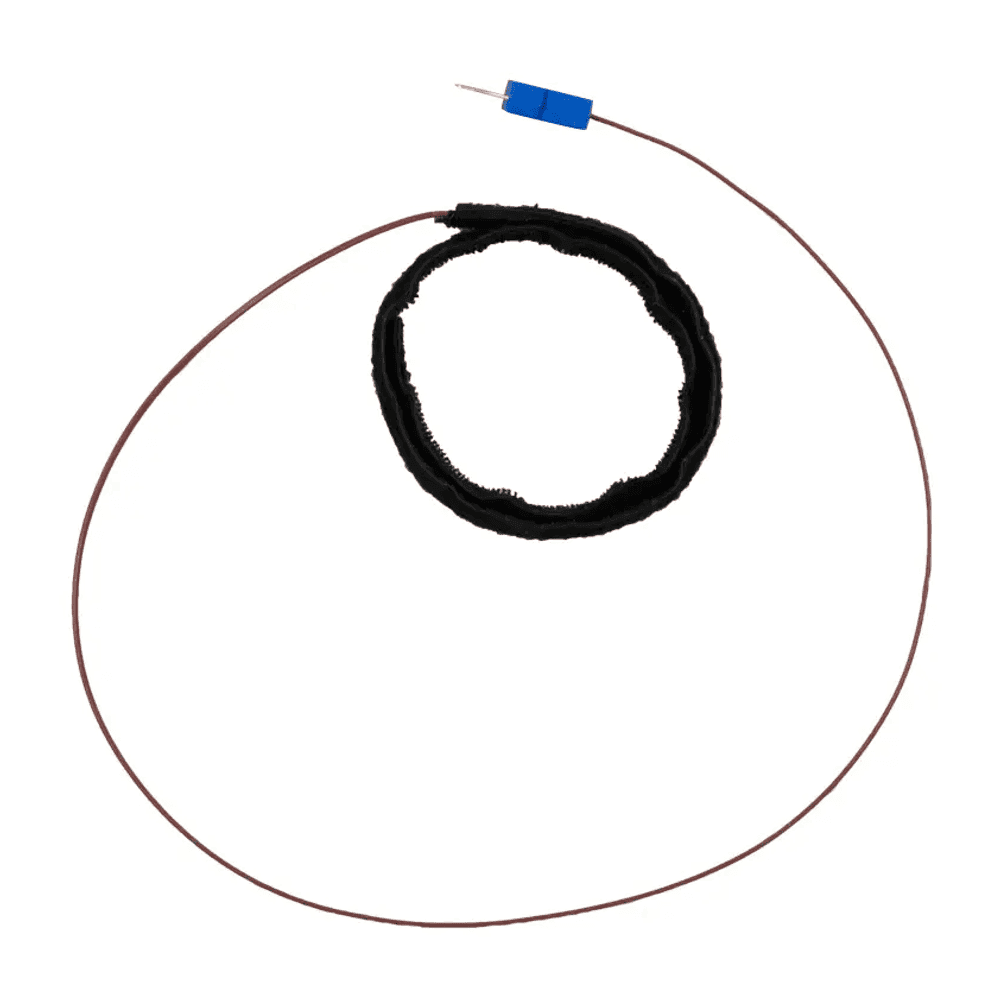

• 2 x Temperature sensor TF-RA330

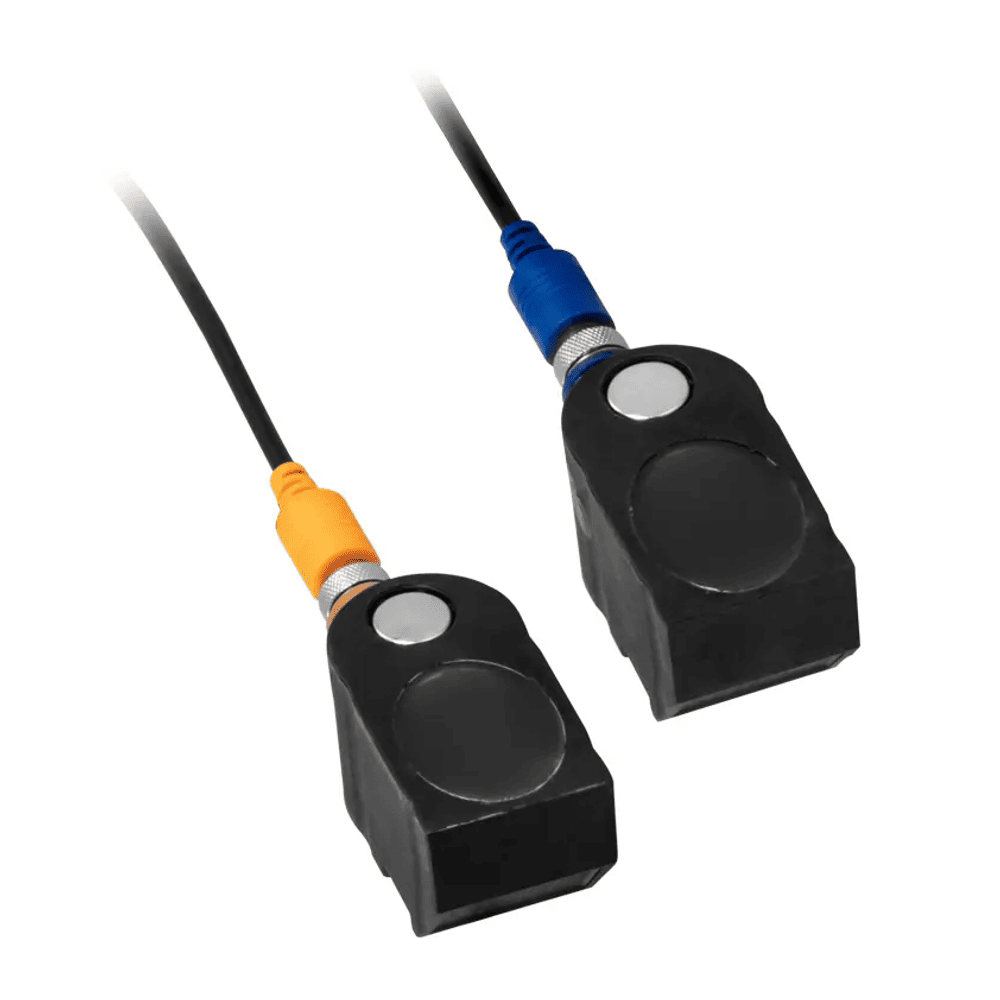

• 1 x Flow sensor PCE-TDS 200 M SENSOR (pair)
• 2 x 5 m connection cable
• 2 x detachable cable ties
• 1 x power supply unit
• 1 x USB-C cable
• 1 x ultrasonic contact gel
• 1 x PCE measuring tape
• 1 x plastic case
• 1 x instruction manual

Downloads

DatasheetDatasheet
