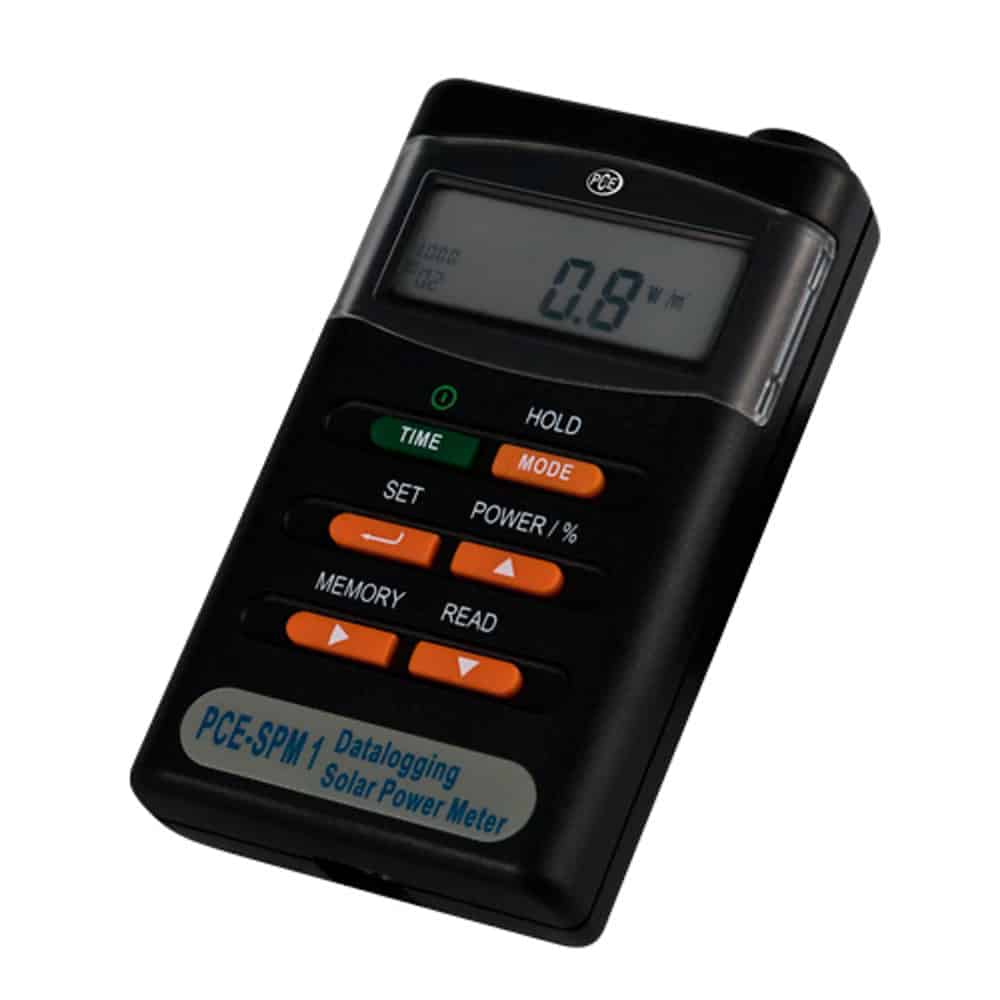

PCE Instruments SPM 1 Photovoltaic Light Meter, 2000W/sq m

Model # SPM 1

Key Features

Brand: PCE Instruments
Model: SPM 1
Warranty: No warranty

Qty:

Qty:

?

Question about this product?

Speak to an expert

Features

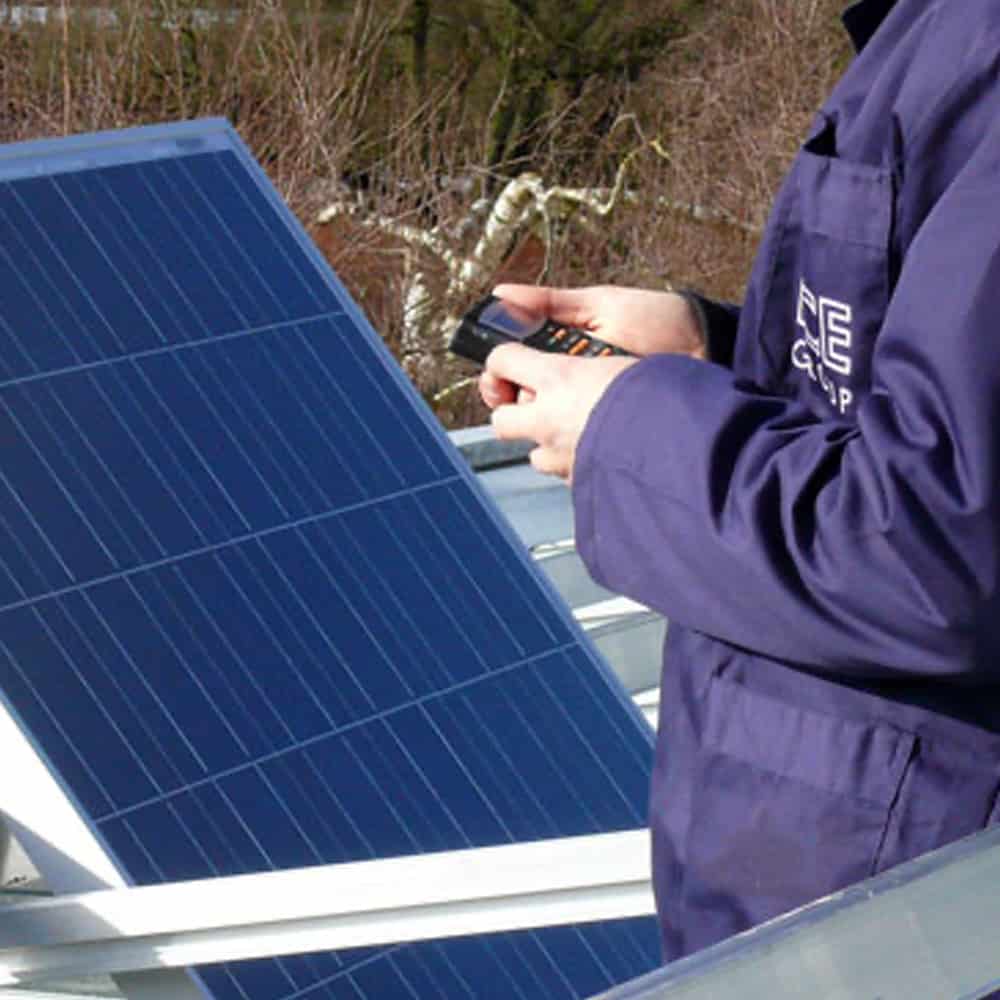

PCE-SPM 1 is a photovoltaic (PV) light meter used to measure solar radiation, solar energy or solar power.
The meter's easy-to-read 4-digit LCD screen clearly displays Ptot in W/m² or BTU/(ft² x h)
Auto data memory stores up to 43,000 data sets
Minimum, maximum and data hold functions
RS-232 data port for downloading measurement data to PC

Technical Information

Measurement range0 ... 2000 W/m² or 0 ... 634 BTU/(ft² x h)
Drift<± 2% per year
Sampling rate4 times per second
Detector1 x silicon photovoltaic sensor
Internal memoryAuto data memory capacity - 43,000 sets
Operating conditions0 ... 50ºC / 32 ... 122ºF; < 80% RH
Power supply4 x AAA Li-ion batteries
Dimensions;111 x 64 x 34 mm or 4.37 x 2.52 x 1.34 infalse
Weight158 g / < 1 lb
