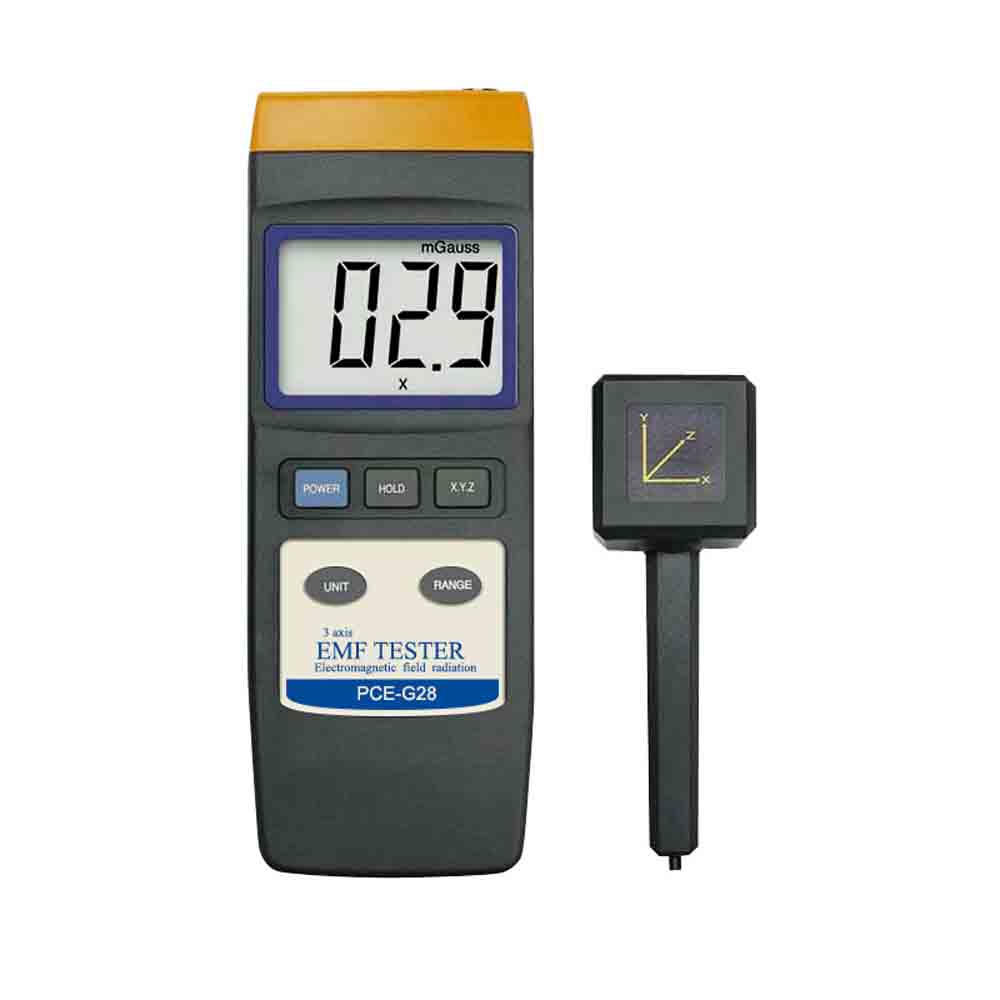

PCE Instruments G28 Gauss Meter PCE-G28
Model # G28Key Features
?
Question about this product?
Features

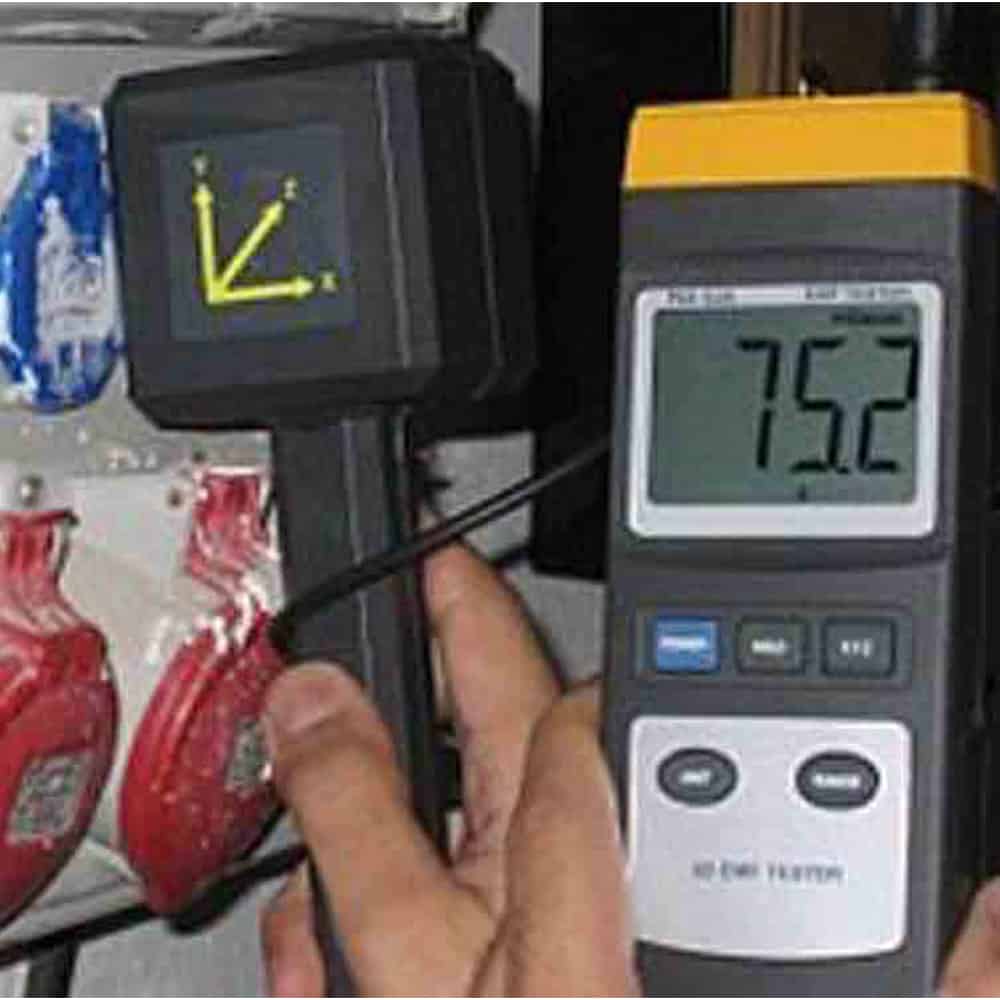

- PCE-G28 is a portable, handheld gauss meter that detects electromagnetic fields (EMFs) and displays measurement results in milliGauss (mG) or microTesla (µT). This EMF radiation detector comes with an external 3-axis electromagnetic sensor (X, Y, Z direction).<br>- Measurement range: 0 to 20000 mG / 0 to 2000 µT<br />- Accuracy: ± 4% + 3 digits /± 5% + 3 digits / ± 10% + 5 digits<br />- Resolution: 0.1 mG / 0.01 µT<br />- Detects electromagnetic fields (EMFs) on three axes (X, Y, Z direction)<br />- Displays measurement results in milliGauss (mG) or microTesla (µT)<br />- Comes with an external 3-axis electromagnetic sensor<br />- Data hold functionality<br />- Ideal tool for checking transformers and measuring EMFs generated by power lines, computer monitors, electric motors and installations<br />- Meets IEC 801-1 (EN 50081-1) / IEC 204 (EN 60204) standards<br />- Measures EMFs through casings, coverings and housings, eliminating the need to dismantle parts for inspection<br class="clear"><br><br>
Technical Information
- Measurement range (microTesla)0 to 20 µT / 0 to 200 µT / 0 to 2000 µT
- Measurement range (milliGauss)0 to 200 mG / 0 to 2000 mG / 0 to 20000 mG
- Resolution (per range)0.01 µT / 0.1 µT / 1 µT, 0.1 mG / 1 mG / 10 mG
- Accuracy±4 % + 3 digits (in range 20 µT and 200 mG), ±5 % + 3 digits (in range 200 µT and 2000 mG), ±10 % + 5 digits (in range 2000 µT and 20000 mG)**Refers to 50 - 60 Hz y < 3 V/m (RF)
- Power supply1 x 9V battery
