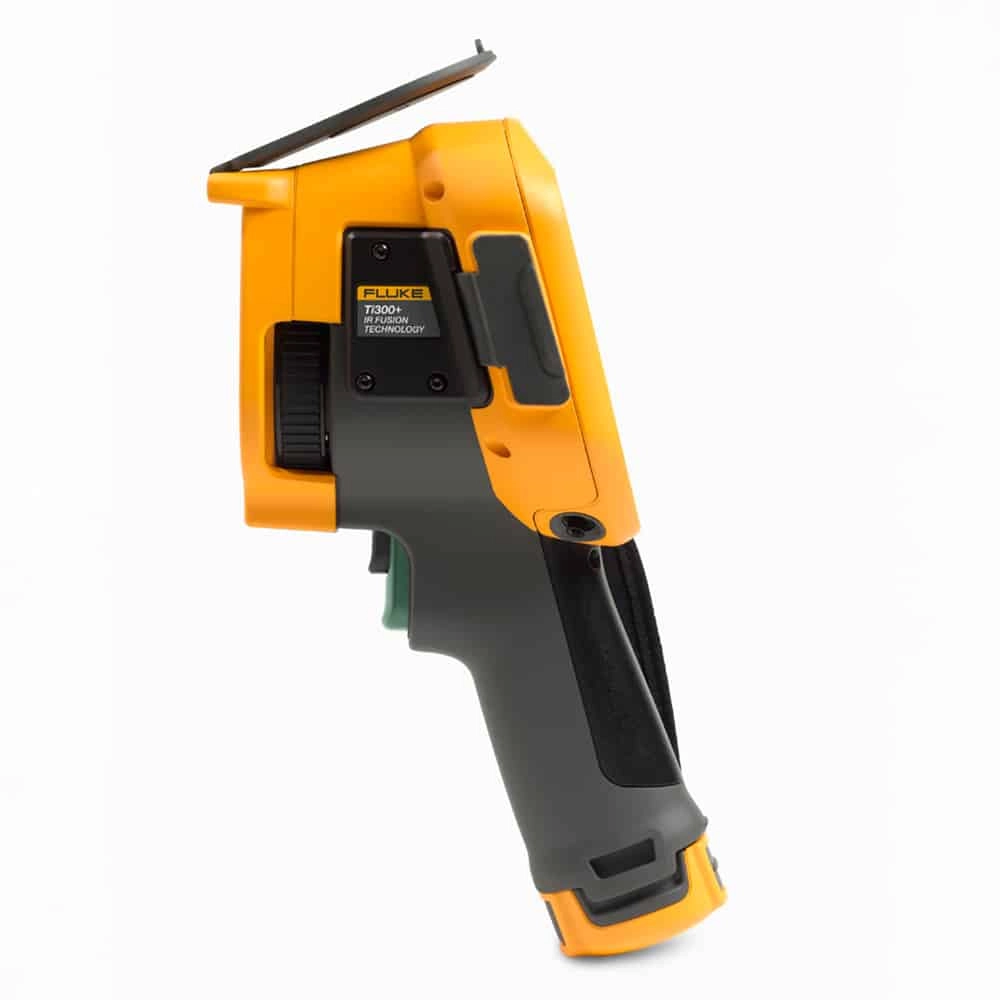

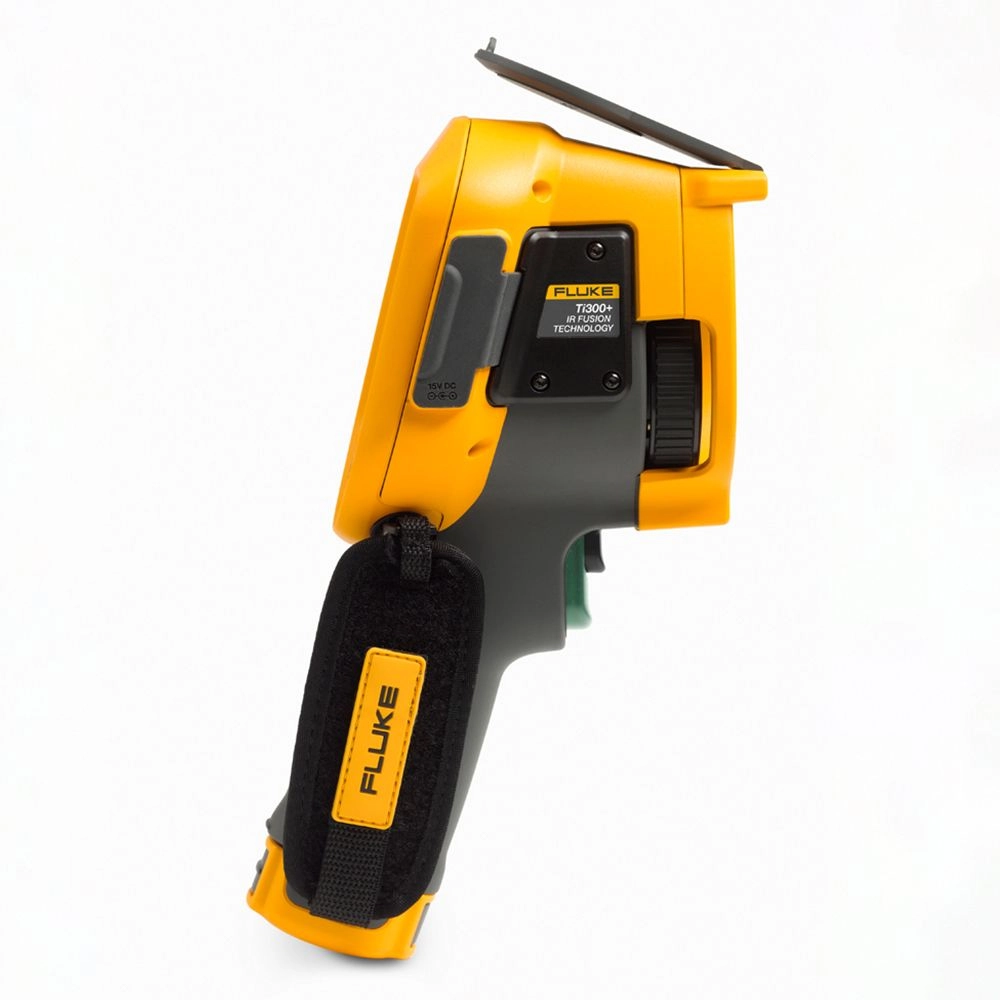

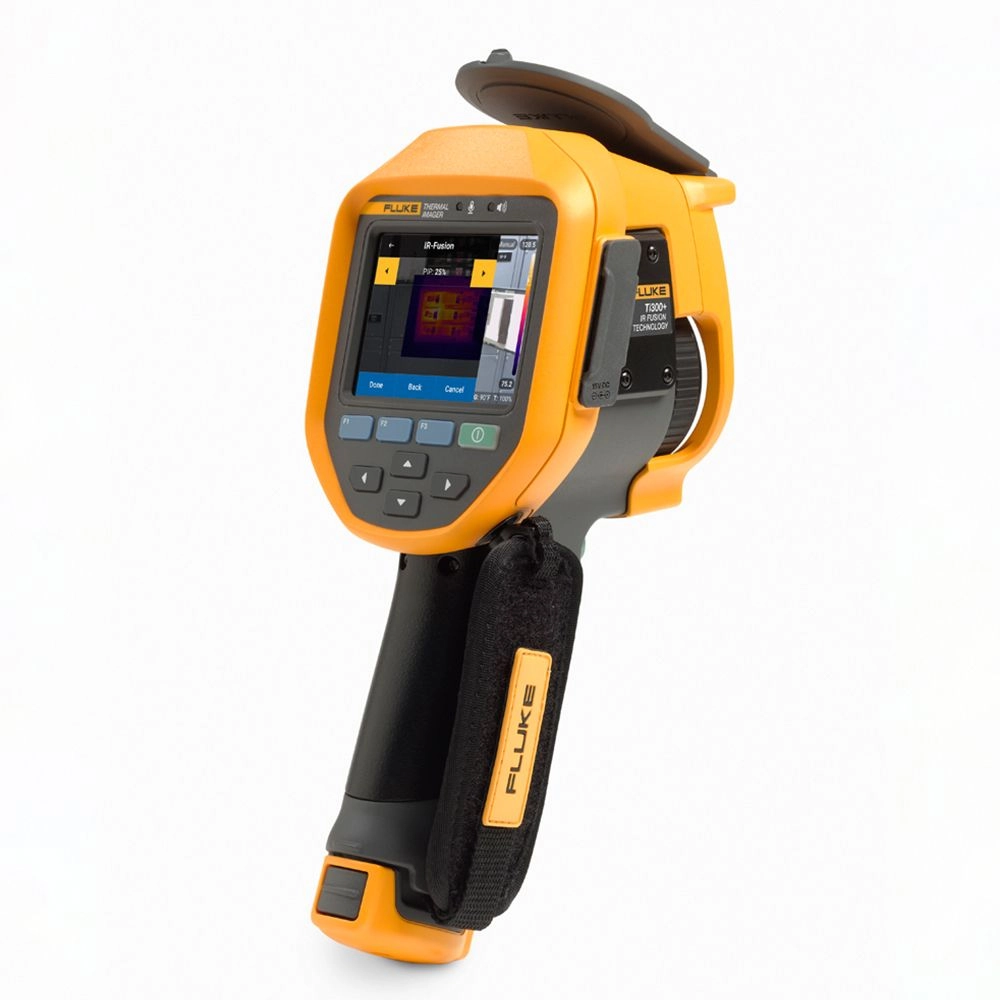

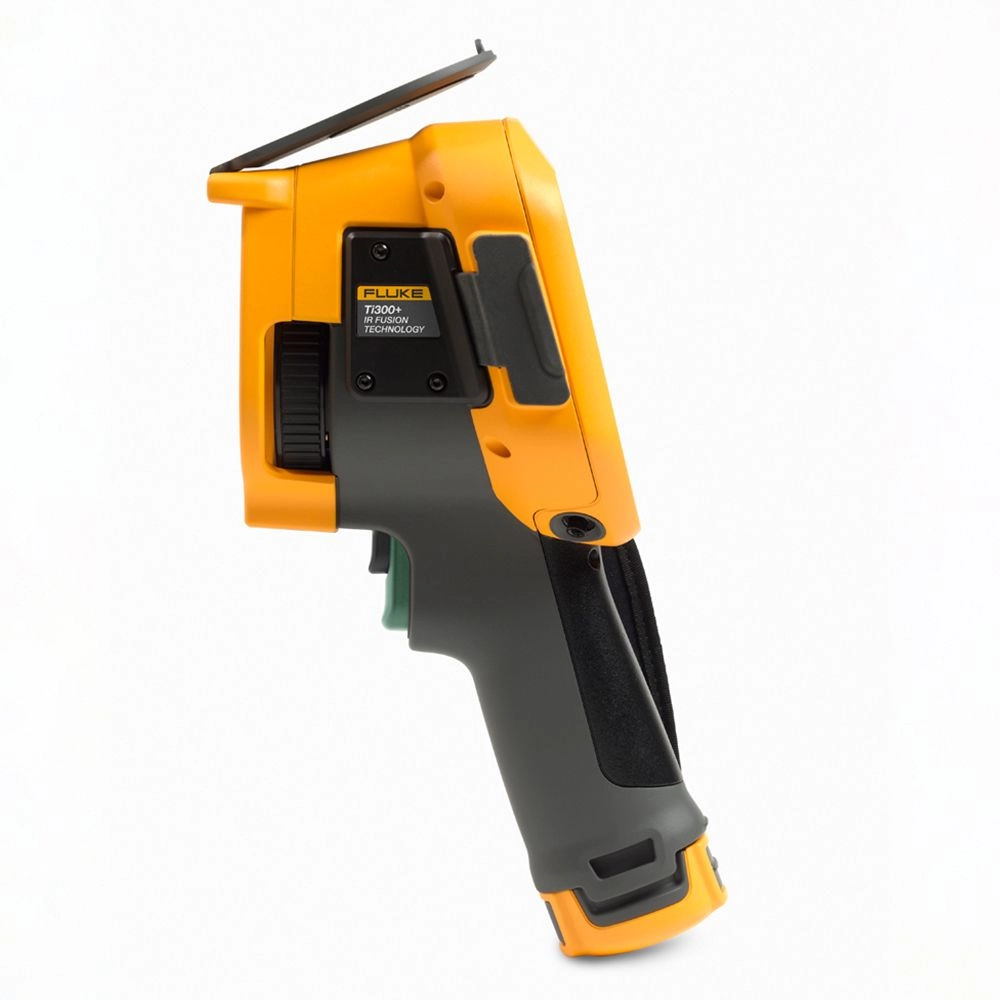

Fluke Ti300+ 9Hz Thermal Imaging Camera, 320x240 Pixels, 9Hz, -20°C to 650°C

Features

• 320 x 240 resolution
• 2 meter drop test
• LaserSharp™ Auto Focus
• Manual or automatic focus
• Measure up to 650 °C
• Subject to Export Control

Technical Information

• IFOV with standard lens (spatial resolution)1.85 mRad, D:S 532:1
• Detector resolution320 x 240
• Infrared Resolution76,800 pixels
• Temperature Range-20 °C to 650 °C (-4 °F to 1202 °F)
• Accuracy±2 °C or 2% (at 25 °C nominal, whichever is greater)
• Thermal sensitivity (NETD)≤ 0.075 °C at 30 °C target temp (75 mK)
• Field of view34 °H x 24 °V
• Minimum focus distance15 cm (approx. 6 in)
• Infrared spectral band7.5 μm to 14 μm (long wave)
• Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
• Storage temperature-20 °C to +50 °C (-4 °F to 122 °F)
• Relative humidity10% to 95% non-condensing

Items Included

• 1x Thermal imager with standard infrared lens
• 1x AC power supply and battery pack charger
• 2x Rugged lithium ion smart battery packs
• 1x USB cable
• 1x HDMI video cable
• 1x 4 GB micro SD card
• 1x Rugged, hard carrying case
• 1x Soft transport bag
• 1x Adjustable hand strap
