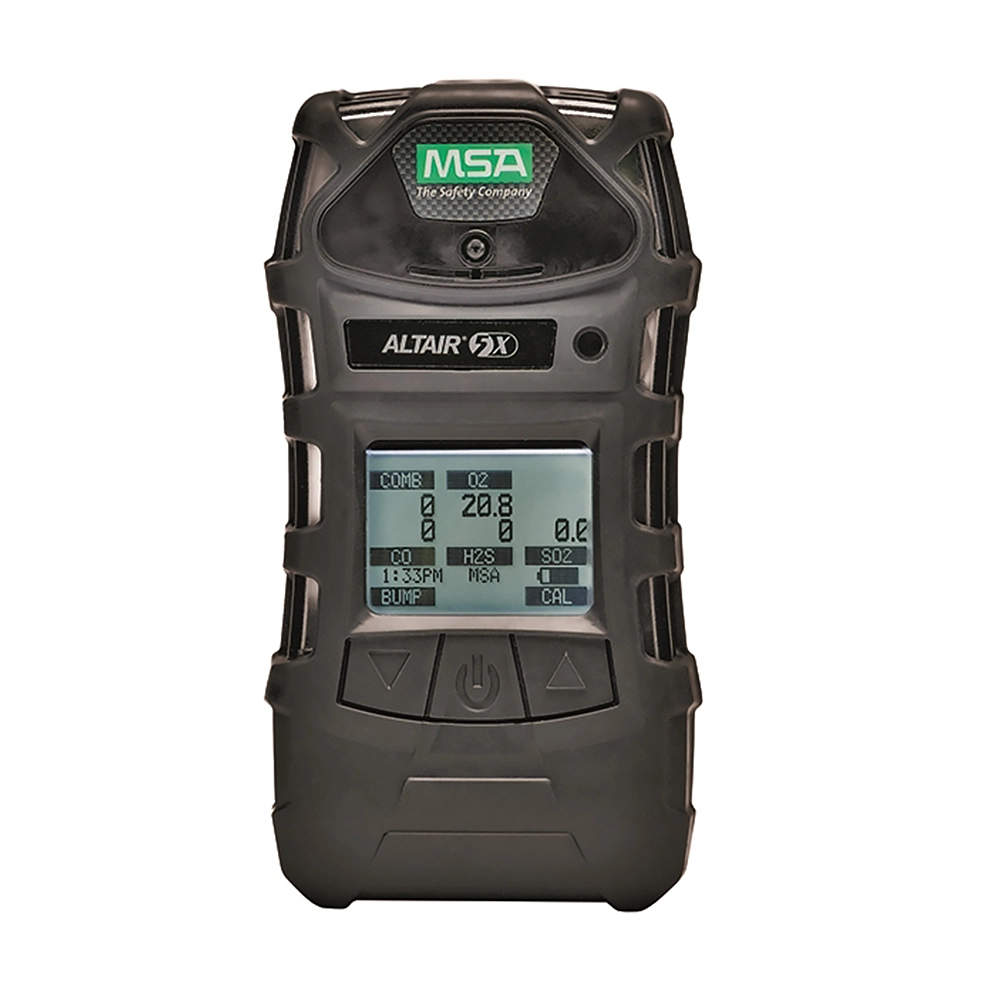

MSA 10116927 Altair 5x Detector, Monochrome Display, (LEL, O2, CO, H2S, SO2), 10' Line, 1' Probe
Model # 10116927Discontinued
Key Features
?
Question about this product?
Features
- Detects combustible gases in LEL and/or volume percentage range, oxygen, carbon monoxide, carbon dioxide, hydrogen sulfide, sulfur dioxide, ammonia, chlorine, VOCs, and many others depending upon sensor configuration.
- Rugged overmolded polycarbonate housing provides unsurpassed durability, including ability to survive 10-ft. (3m) drop; IP65-certified.
- Field-proven integral pump provides consistent gas flow, eliminating concerns of externally-attached components.
- Typical life greater than 4 years for combustible, O2, CO/H2S, SO2, CO/NO2 and CO (high concentration) sensors.
- Typical life greater than 3 years for NH3 and Cl2 sensors.
- Most sensor response and clear times <15 seconds.
- Requires about half of test gas typically used for calibration and bump tests.
- Rapid bump test gives results in less than 10 seconds for most common sensor configurations.
- Span calibration time of 60 seconds for most common sensor configurations.
Technical Information
- Drop Test10 feet
- HousingRugged rubberized armor
- Weight1 lb (without IR sensor)
- Dimensions6.69'' H x 3.49'' W x 1.79'' D
- Audible alarm>95 dB typical
- Visual alarm2 ultra-bright LEDs on top
- BatteryRechargeable li-ion or AA alkaline
- Run time20 hrs @ roomtemperature
- DataloggingAdjustable 200 hrs minimum
- Ingress protectionIP65
Items Included
- Monitor with Monochrome Display
- Integral pump
- Datalogging
- Rechargeable Li-ion battery pack
- Charger
- Calibration cap
- CD Manual
- 10′ Sampling Line
- 1′ Probe
