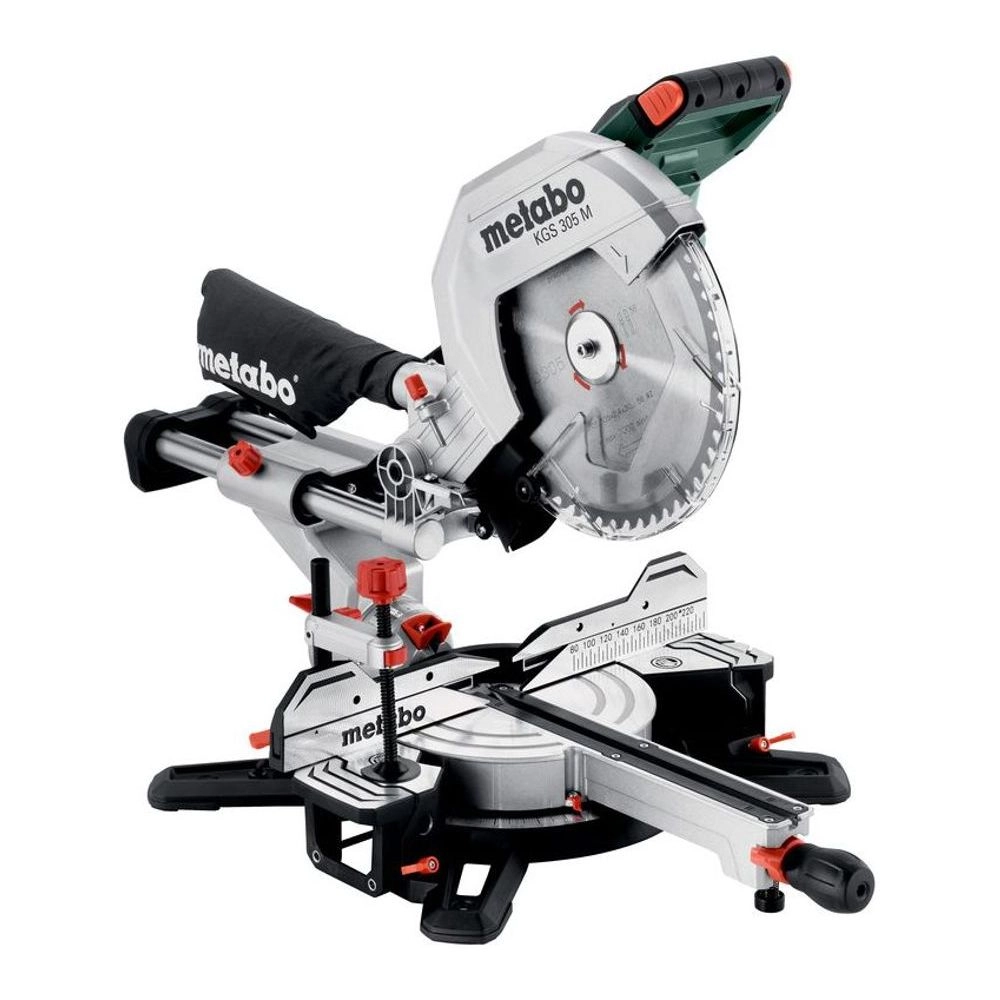

Metabo 613305000 KGS 305 M 220V 12 In. Sliding Mitre Saw (305mm), 1600W

Features

• Largest crosscut and mitre saw of mobile M-class - light, precise, user-friendly

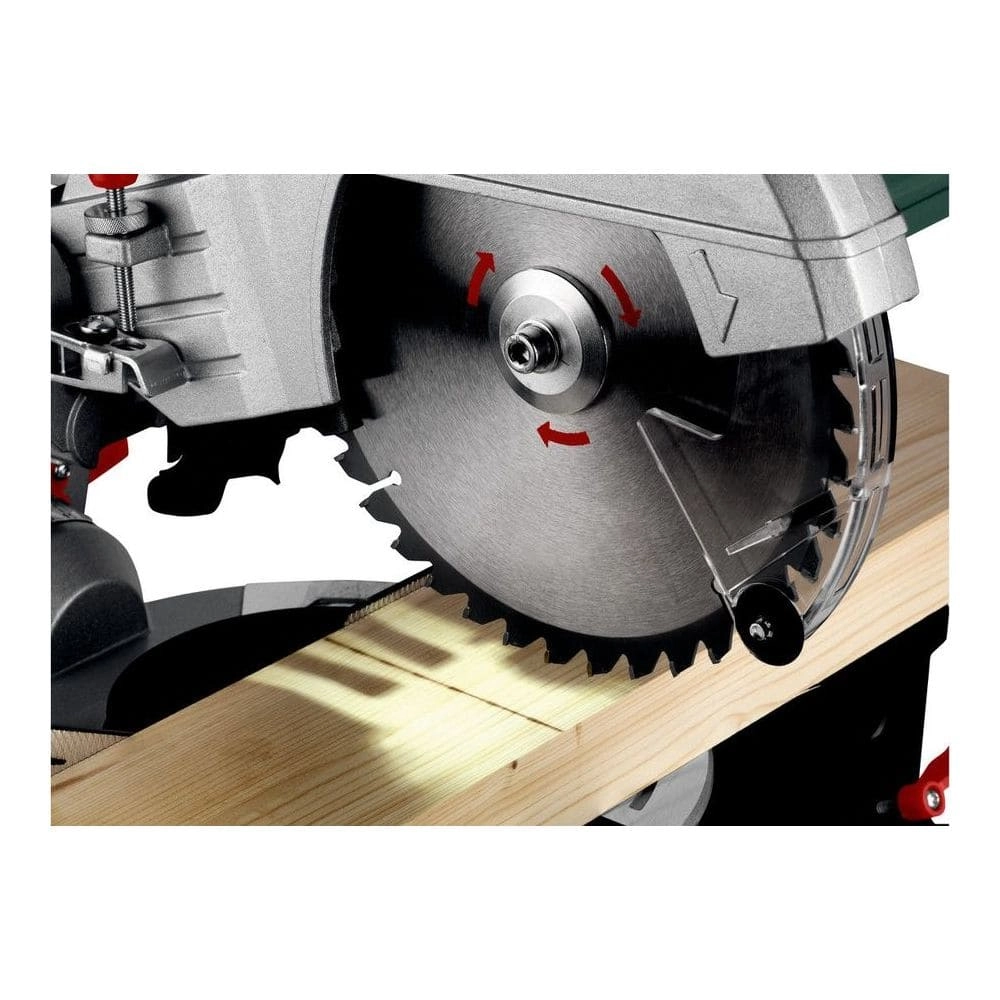

• Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
• Enormous cutting performance due to extremely powerful universal motor and large saw blade
• Turntable with fast, precise setting of common angles using stop points

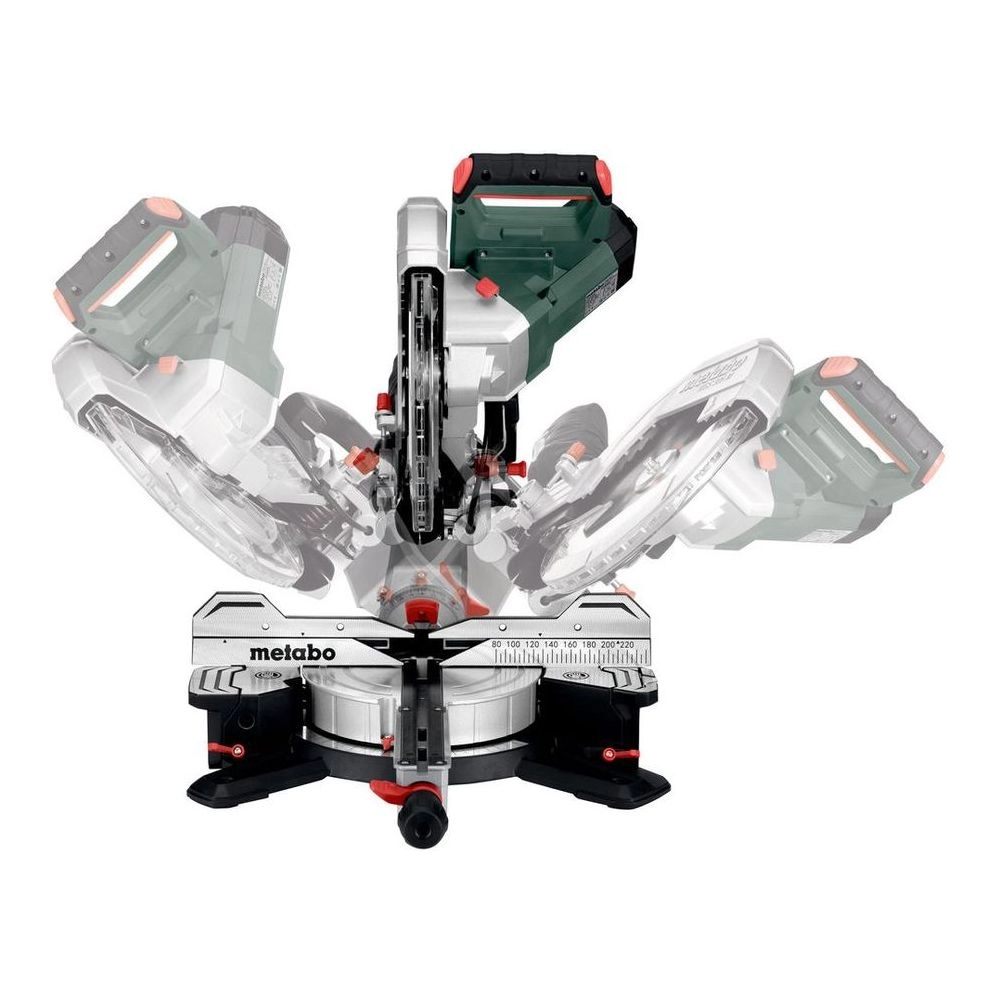

• Saw blade inclination on both sides up to 47° for maximum flexibility
• Robust die-cast aluminium design for the highest demands

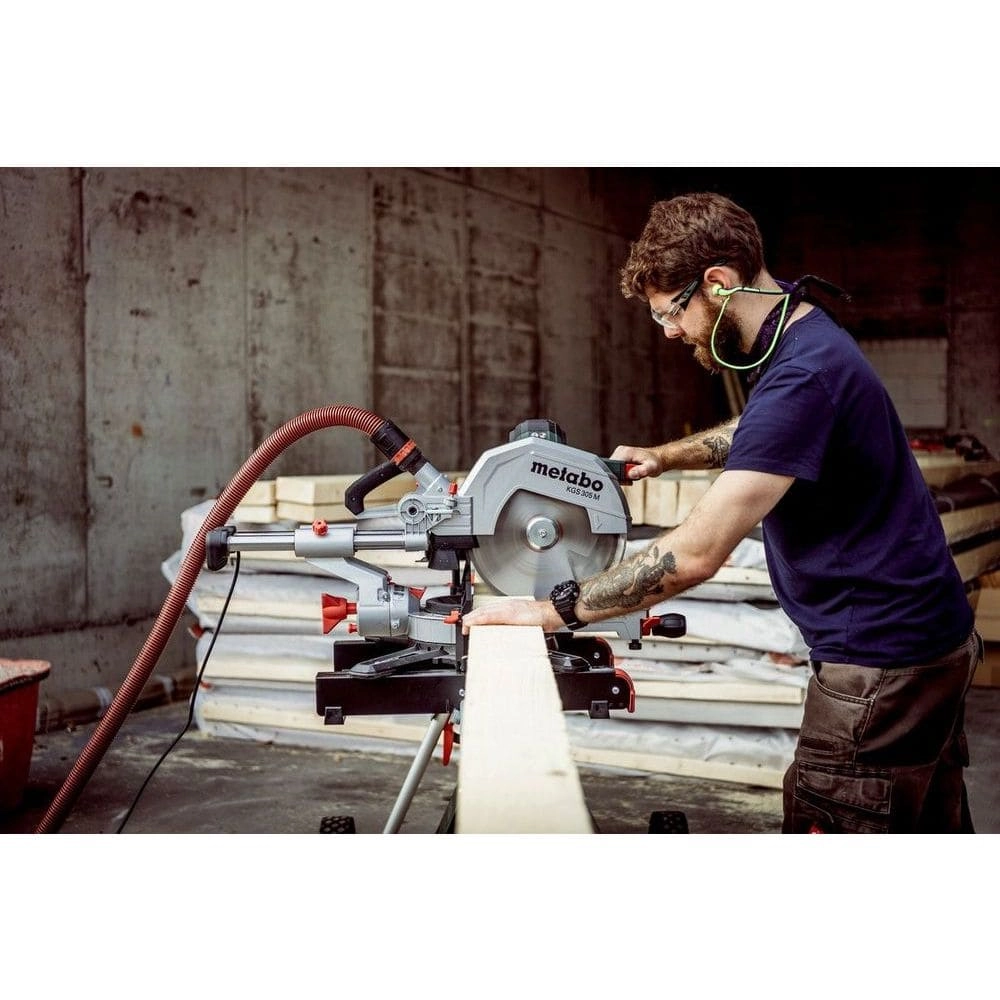

• Effective dust extraction via integrated dust scoop
• Soft start for long service life of motor and drive

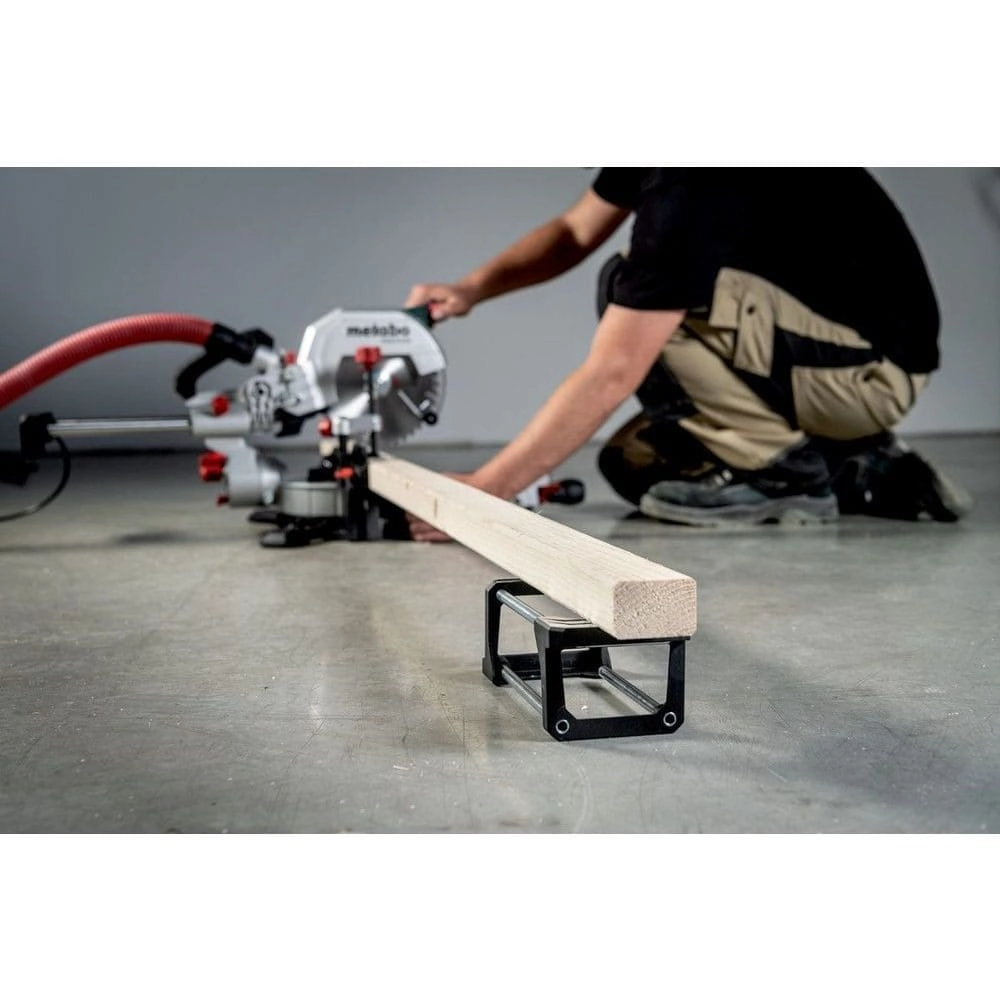

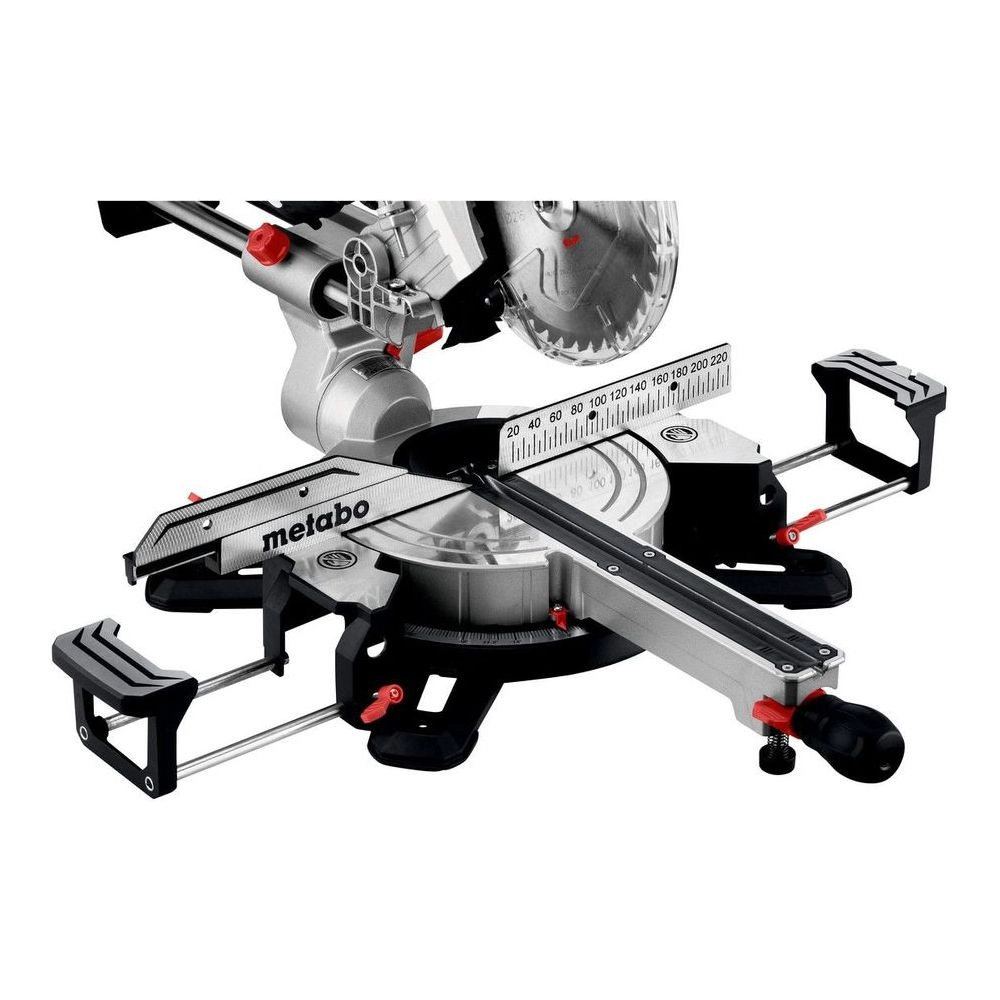

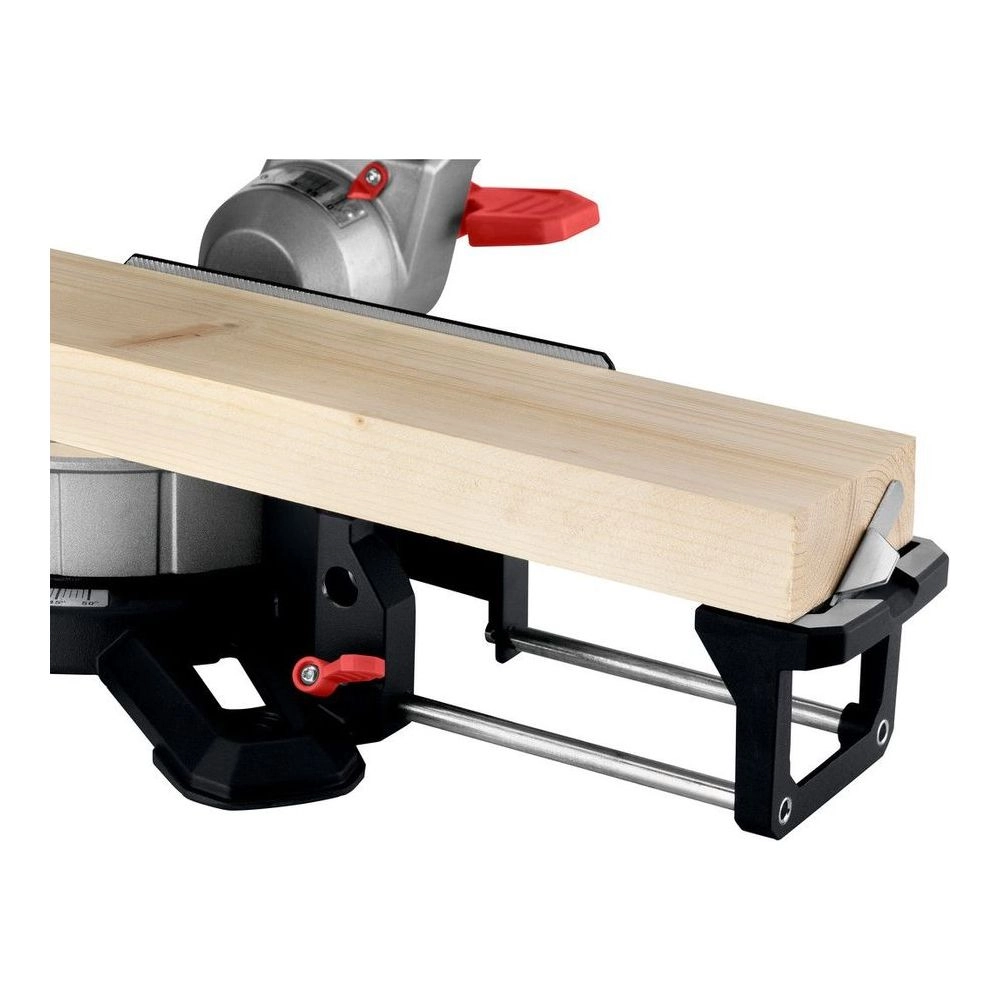

• Extendable table width extensions, also removable to put underneath extremely long work pieces

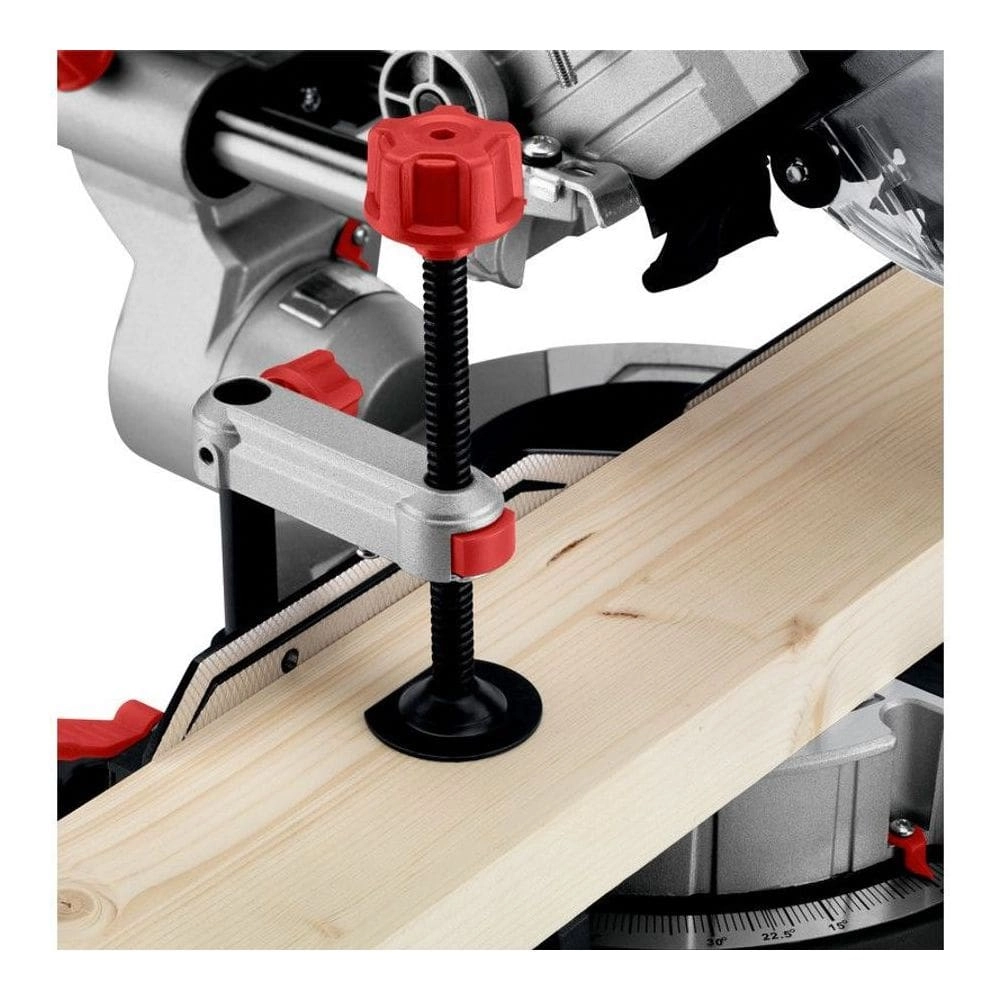

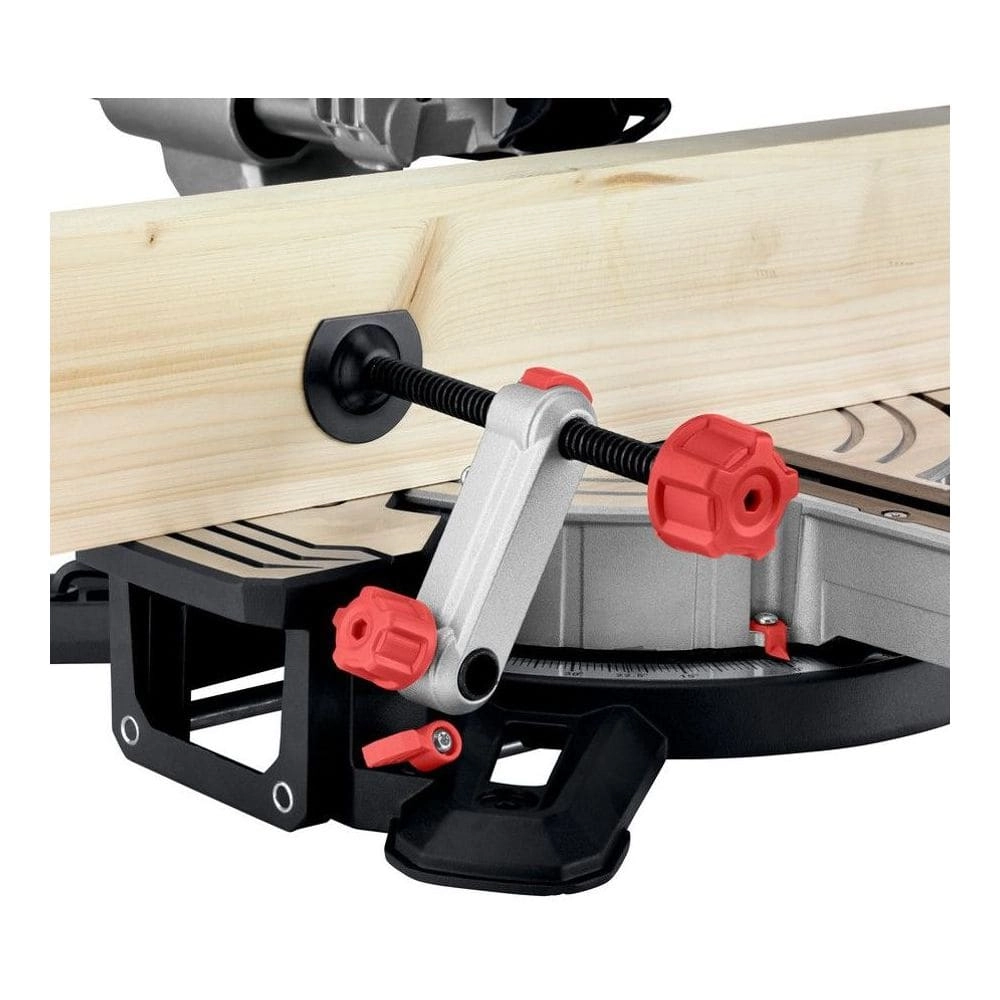

• Quick-action clamp for secure fixing of the work piece from the top or front
• Depth guide for easy creation of grooves
• All scales and operating elements are visible from the working position and can be operated intuitively

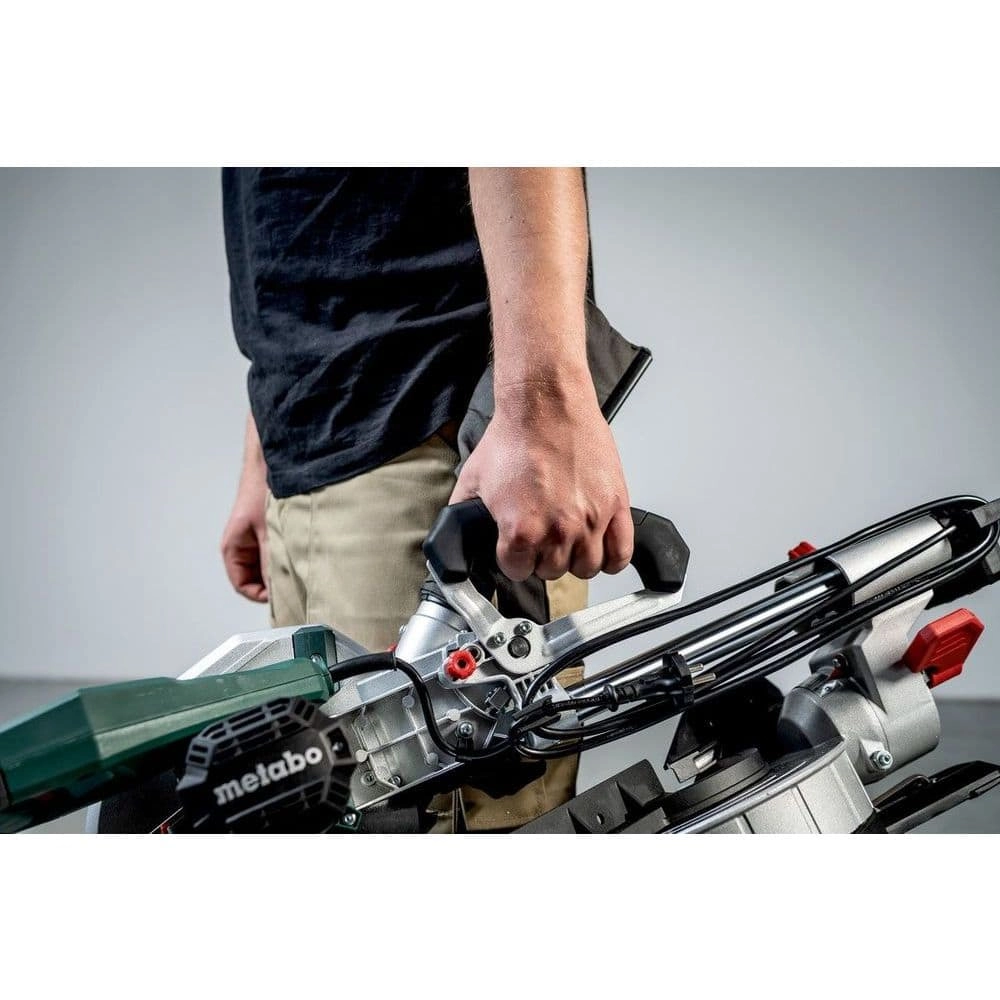

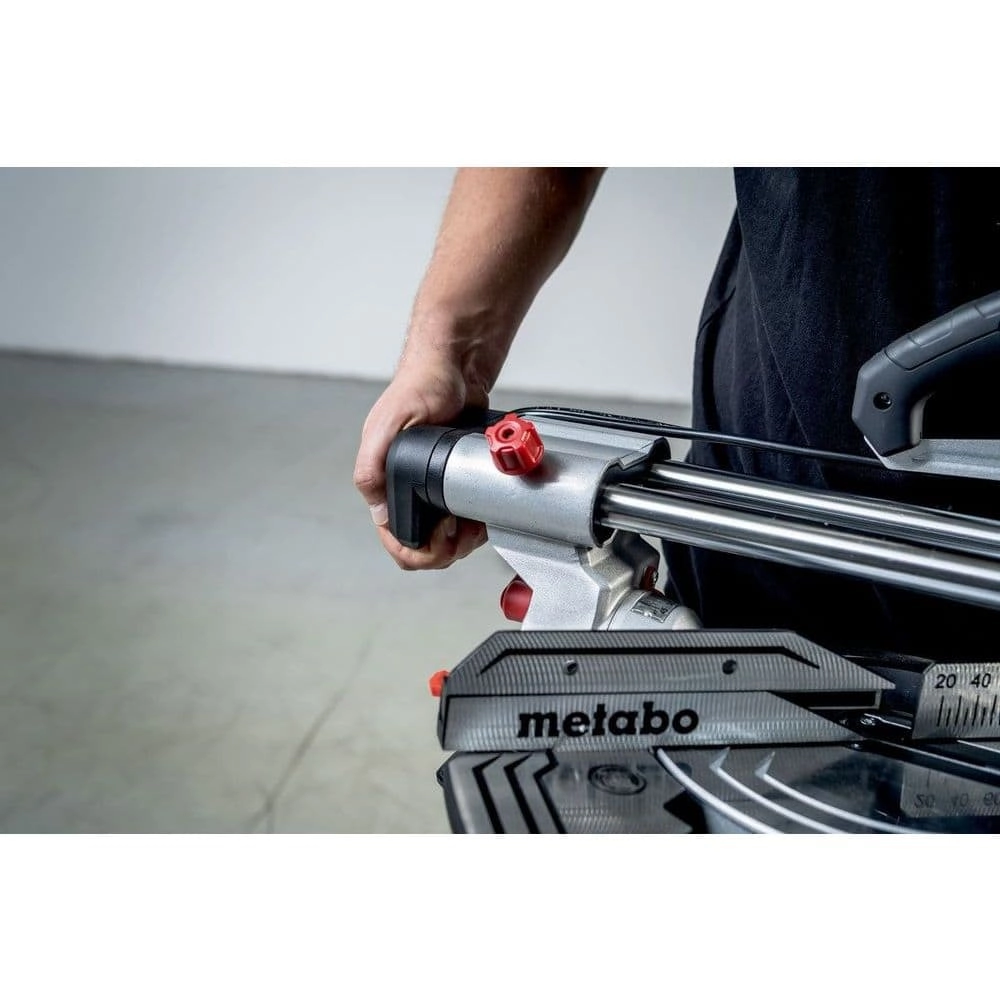

• Ergonomic handle areas for carrying with one or two hands

Technical Information

• Power SourceCorded
• Voltage220V
• Saw blade305 x 30 mm (12 x 1.181")
• Maximum cutting width 90°/45°305 / 215 mm
• Maximum cutting depth at 90°/45°110 / 67 mm

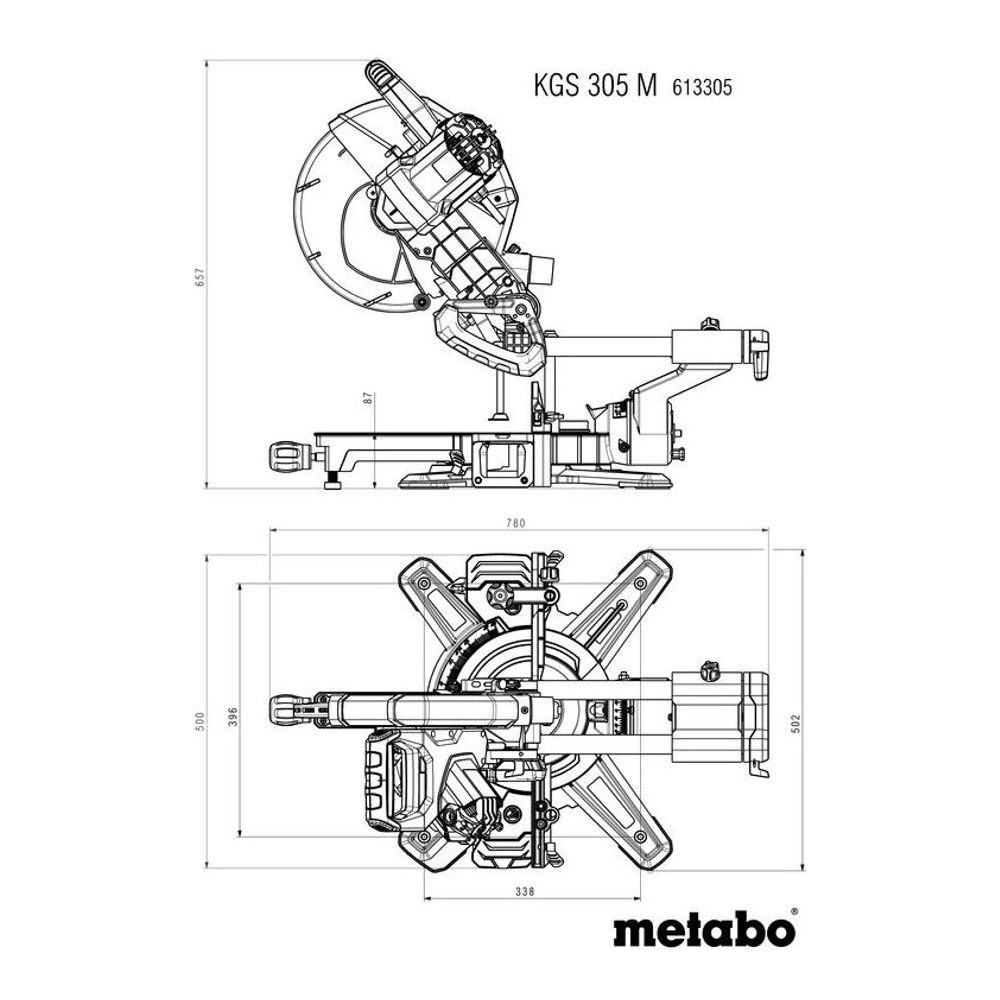

• Dimensions780 x 500 x 657 mm
• Support surface345 x 770 mm
• Cutting capacity 90°/90°305 x 110 mm
• Turntable setting left/right50 / 60 °
• Saw blade tilt left/right47 / 47 °
• Cutting capacity 45°/45°215 x 67 mm
• Rated input power1600W
• Rated input power S1 100%1600W
• Rated input power S6 20%2000W
• No-load speed3700 rpm
• Speed at rated load3000 rpm
• Cutting speed59
• Weight18.6 kg
• Cable length2 m
• Sound pressure level87 dB(A)
• Sound power level (LwA)100 dB(A)
• Uncertainty of measurement K3 dB(A)

Items Included

• Saw blade "precision cut wood - classic", 305x30 Z56
• Material clamp
• Tool for saw blade change
• Cable winder
• Chip Collection Bag
• 2 Table length extensions
• Length Guide

Downloads

DatasheetDatasheet
