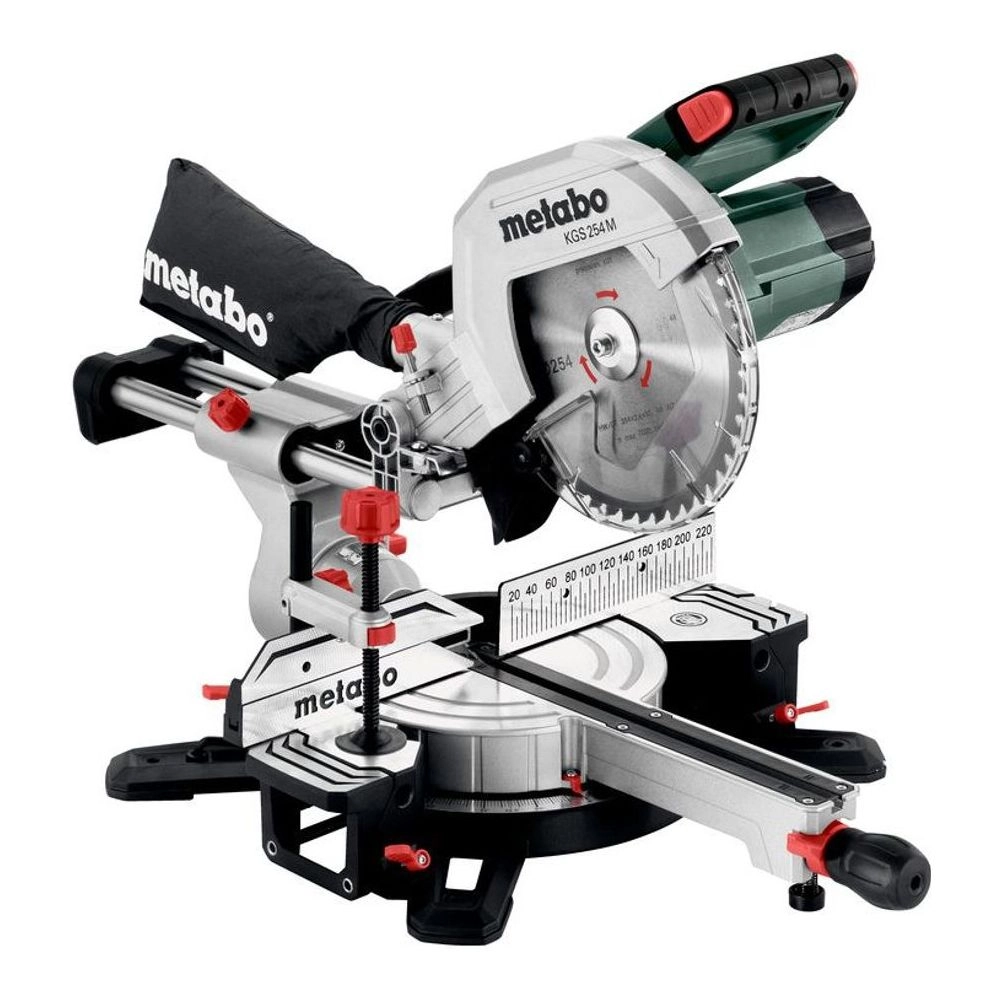

Metabo 613254000 KGS 254 M 220V 10 In. Sliding Mitre Saw (254mm), 1450W

Features

• Crosscut and mitre saw of the mobile M-class with sliding function - light, precise, user-friendly

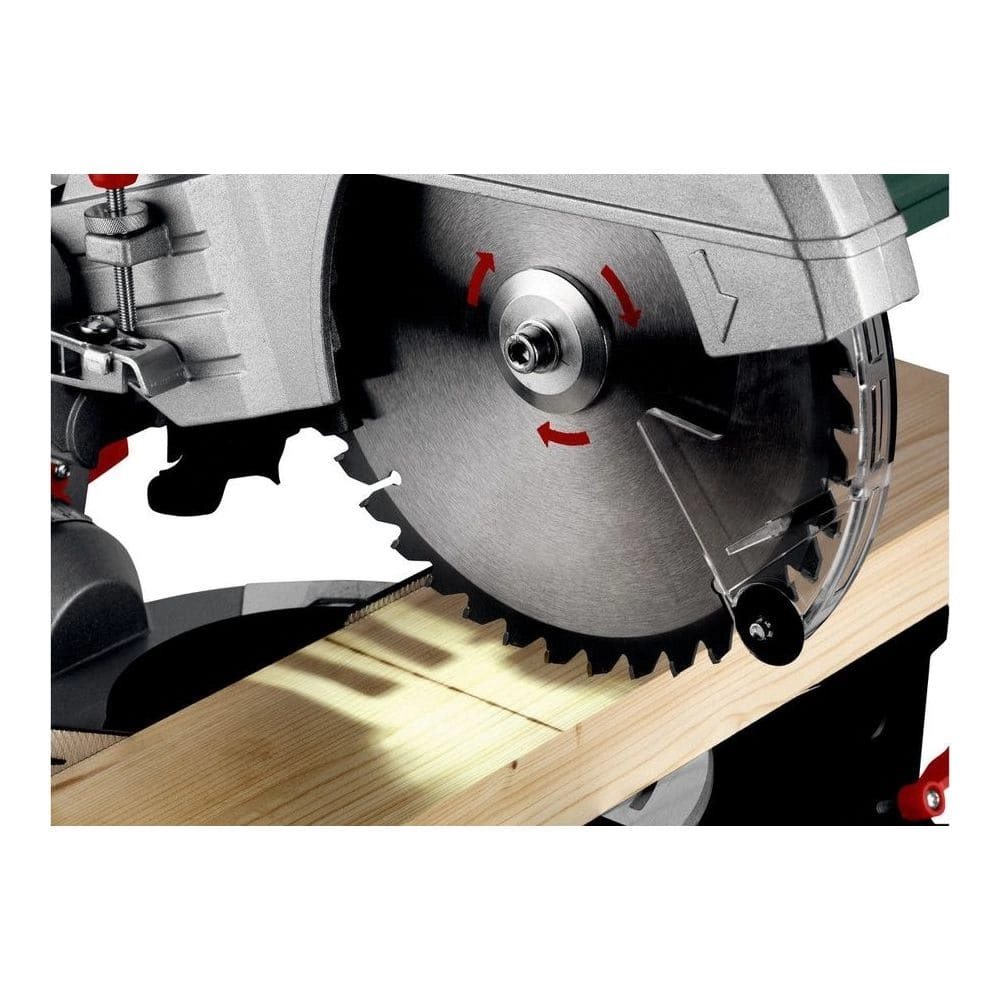

• Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
• Large cutting capacity thanks to sliding function for wide work pieces
• Turntable with fast, precise setting of common angles using stop points
• Saw blade inclination from -2 to 47°, therefore also suited for undercuts
• Robust die-cast aluminium design for the highest demands

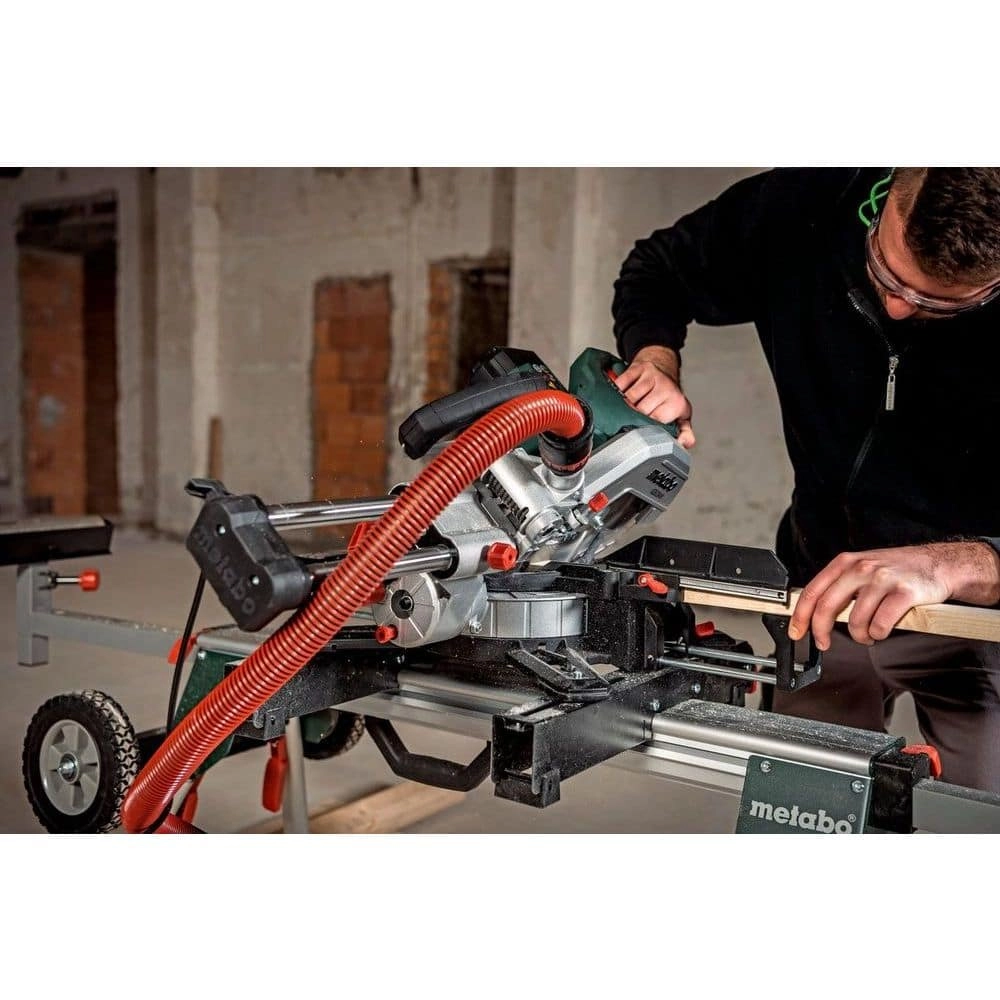

• Effective dust extraction via integrated dust scoop
• Soft start for long service life of motor and drive

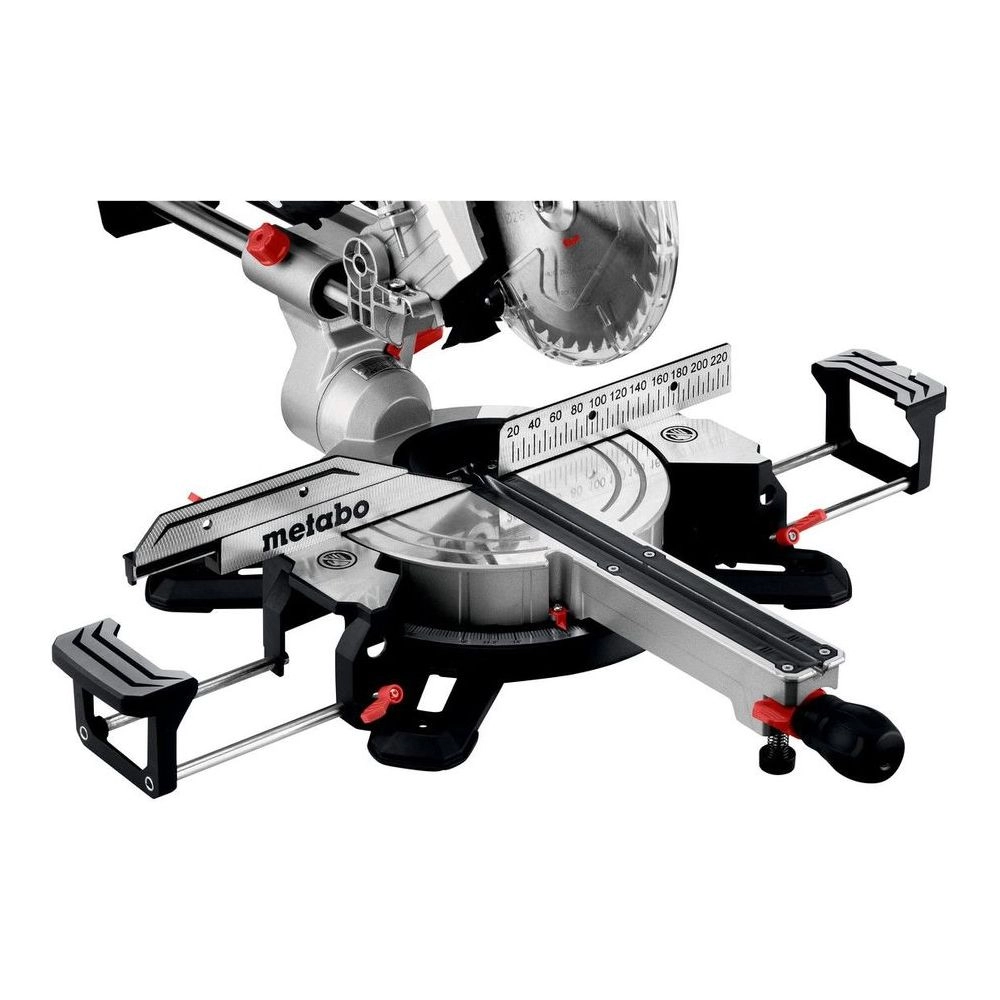

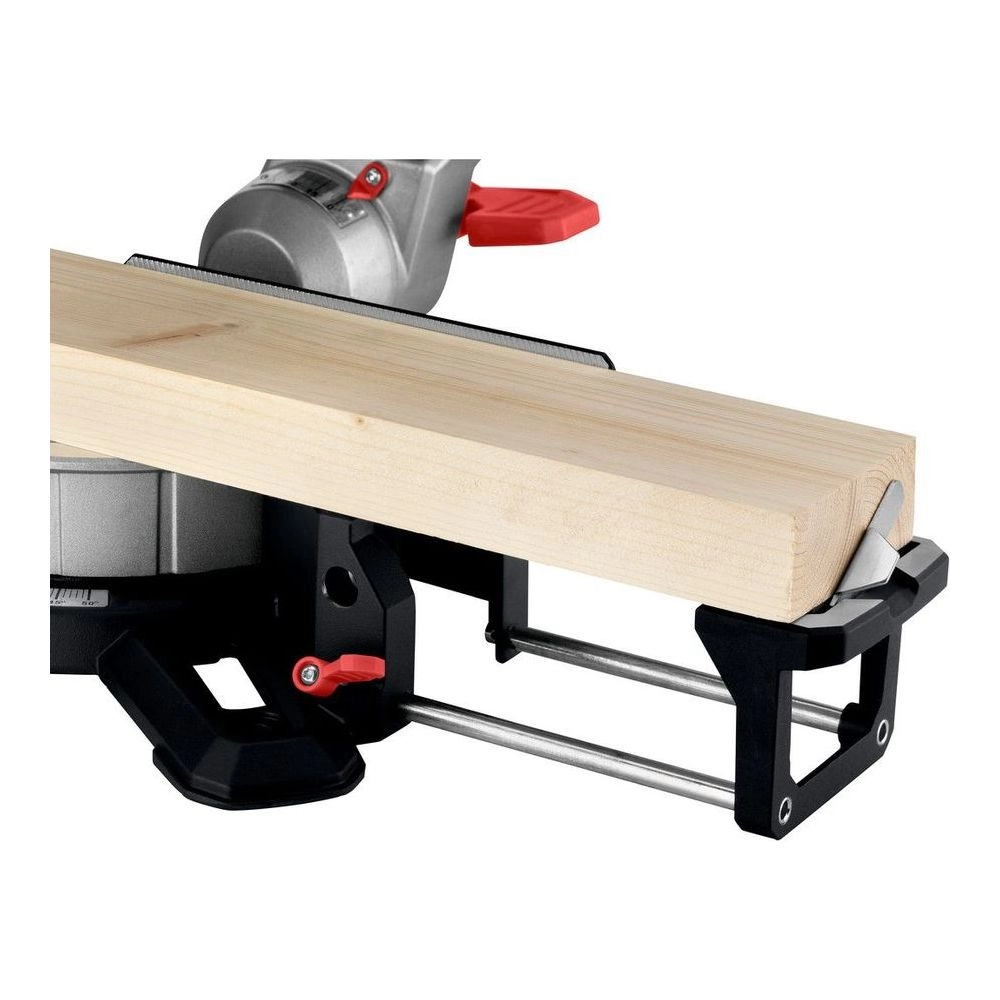

• Extendable table width extensions, also removable to put underneath extremely long work pieces

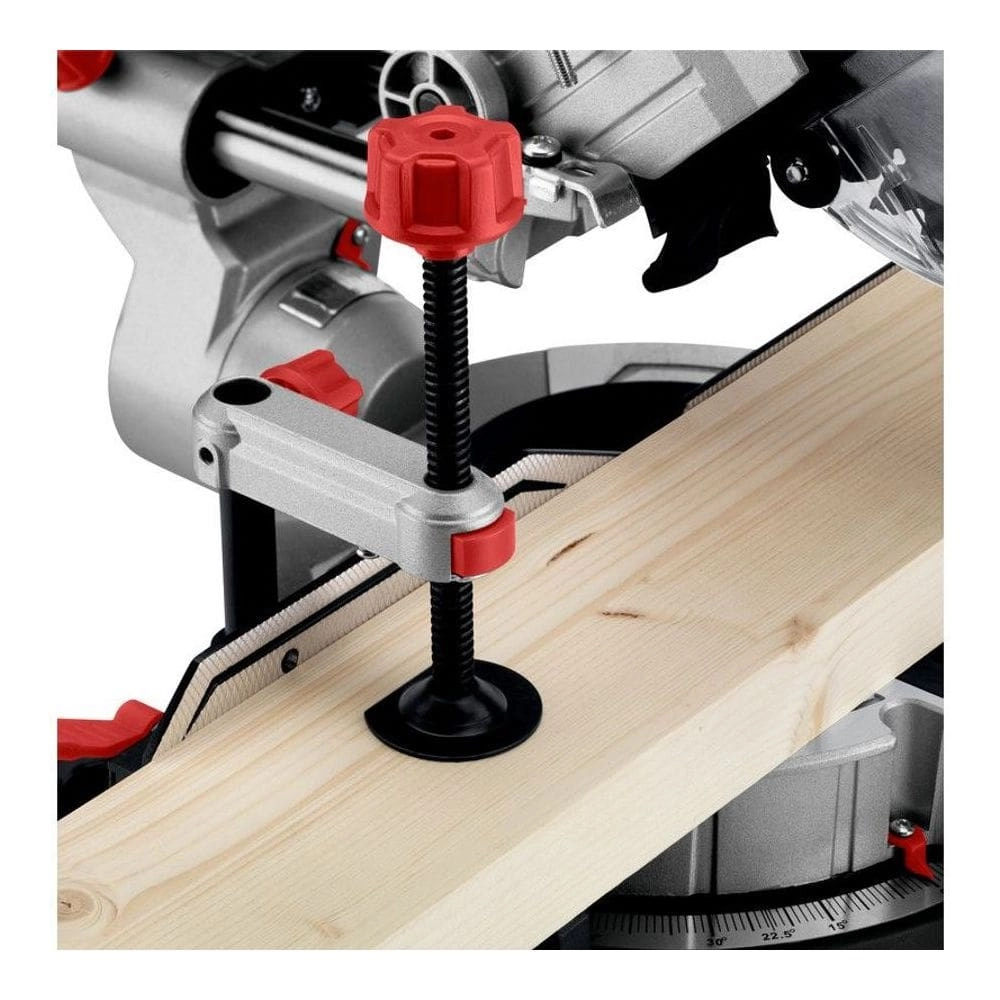

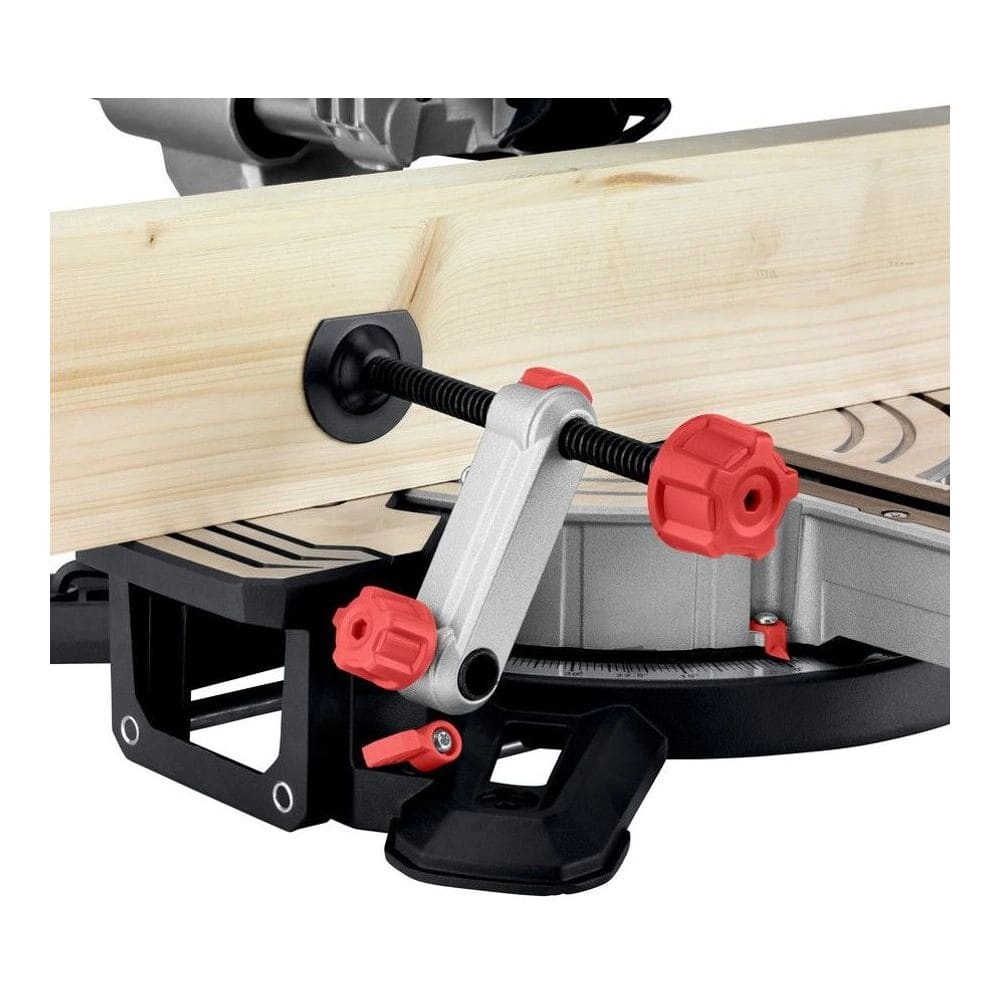

• Quick-action clamp for secure fixing of the work piece from the top or front
• Depth guide for easy creation of grooves
• All scales and operating elements are visible from the working position and can be operated intuitively

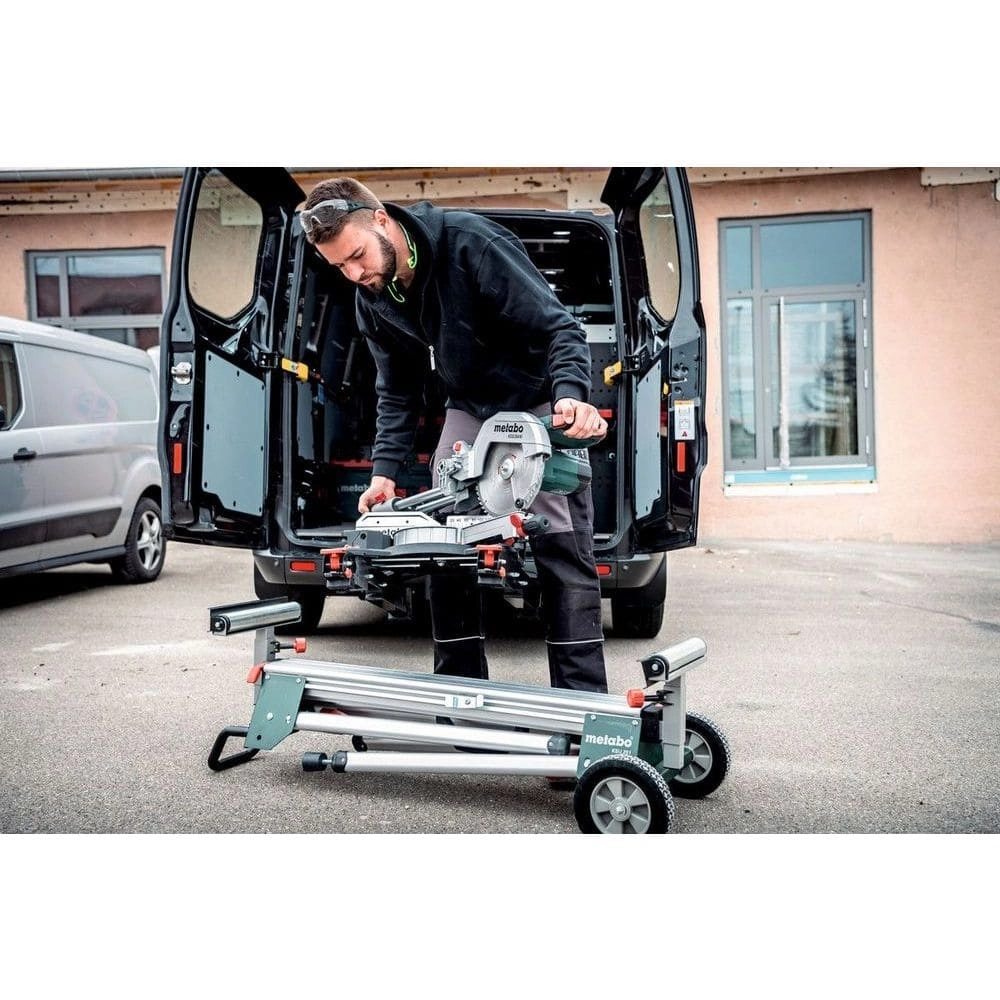

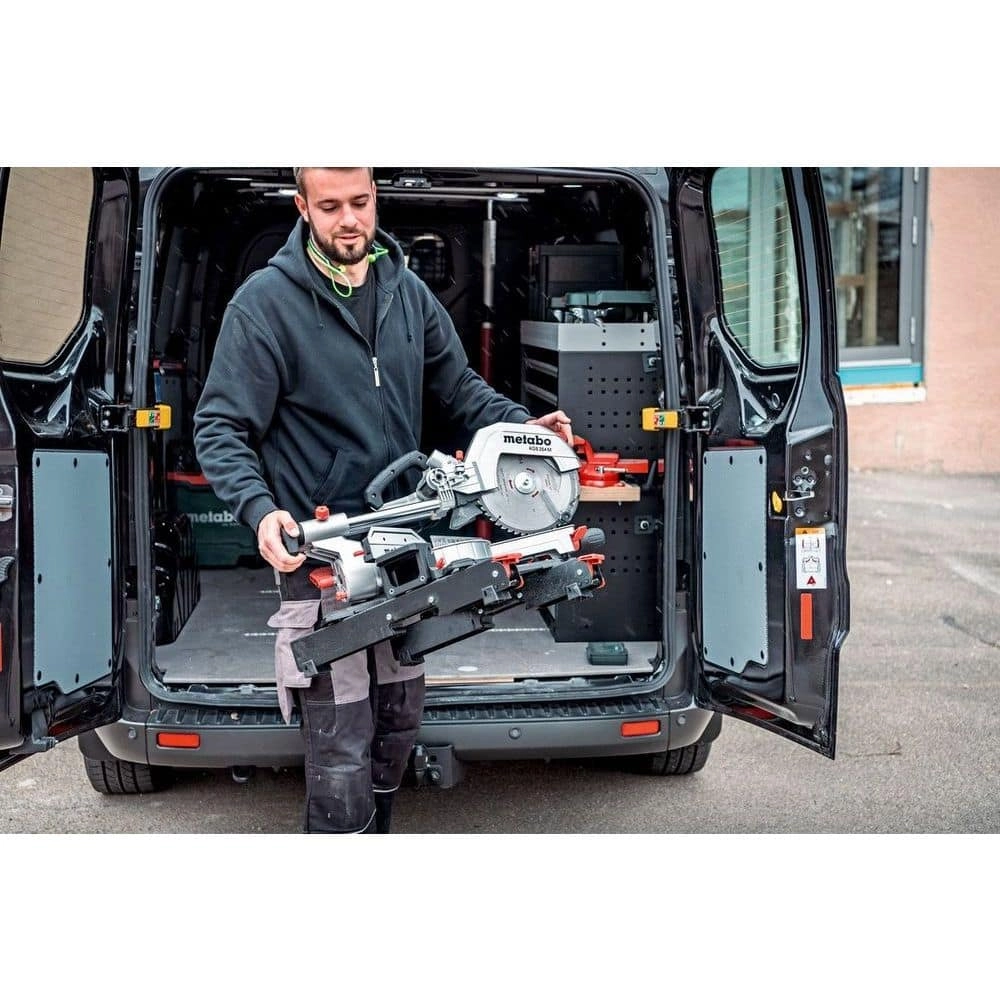

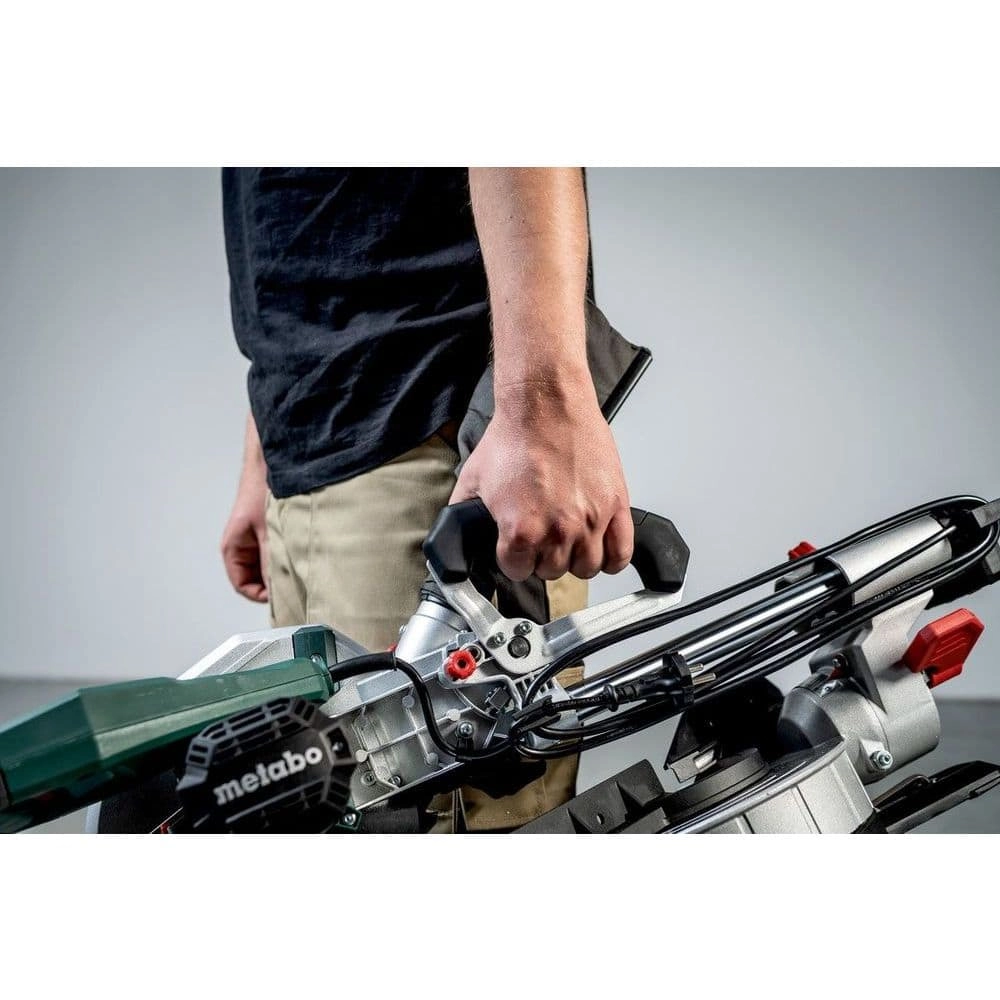

• Ergonomic handle areas for carrying with one or two hands

Technical Information

• Power SourceCorded
• Voltage220V
• Support surface345 x 760 mm (13.58 x 29.92")
• Saw blade254 x 30 mm (10 x 1.818")
• Maximum cutting width 90°/45°305 / 215 mm
• Maximum cutting depth at 90°/45°92 / 47 mm
• Turntable setting left/right50 / 50 °
• Saw blade tilt left/right47 / 2 °
• Rated input power1450W
• Rated input power S1 100%1450W
• Rated input power S6 20%1800W
• No-load speed4500 rpm
• Speed at rated load3200 rpm

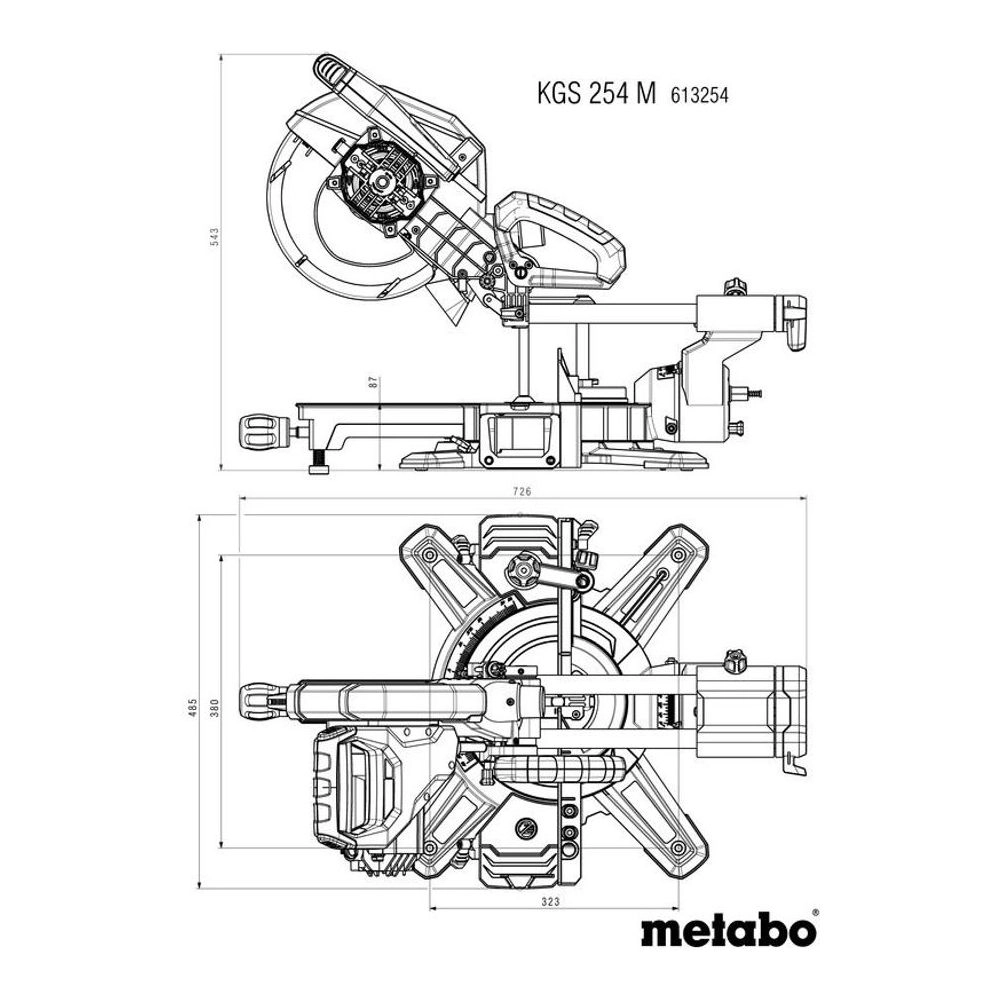

• Dimensions726 x 485 x 543 mm
• Weight16.1 kg
• Cable length2 m
• Sound pressure level86 dB(A)
• Sound power level (LwA)99 dB(A)
• Uncertainty of measurement K3 dB(A)
• Cutting speed60 m/s
• Cutting capacity 90°/90°305 x 92 mm
• Cutting capacity 45°/45°215 x 47 mm

Items Included

• Saw blade "precision cut wood - classic"", 254x30 Z48
• Material clamp
• Tool for saw blade change

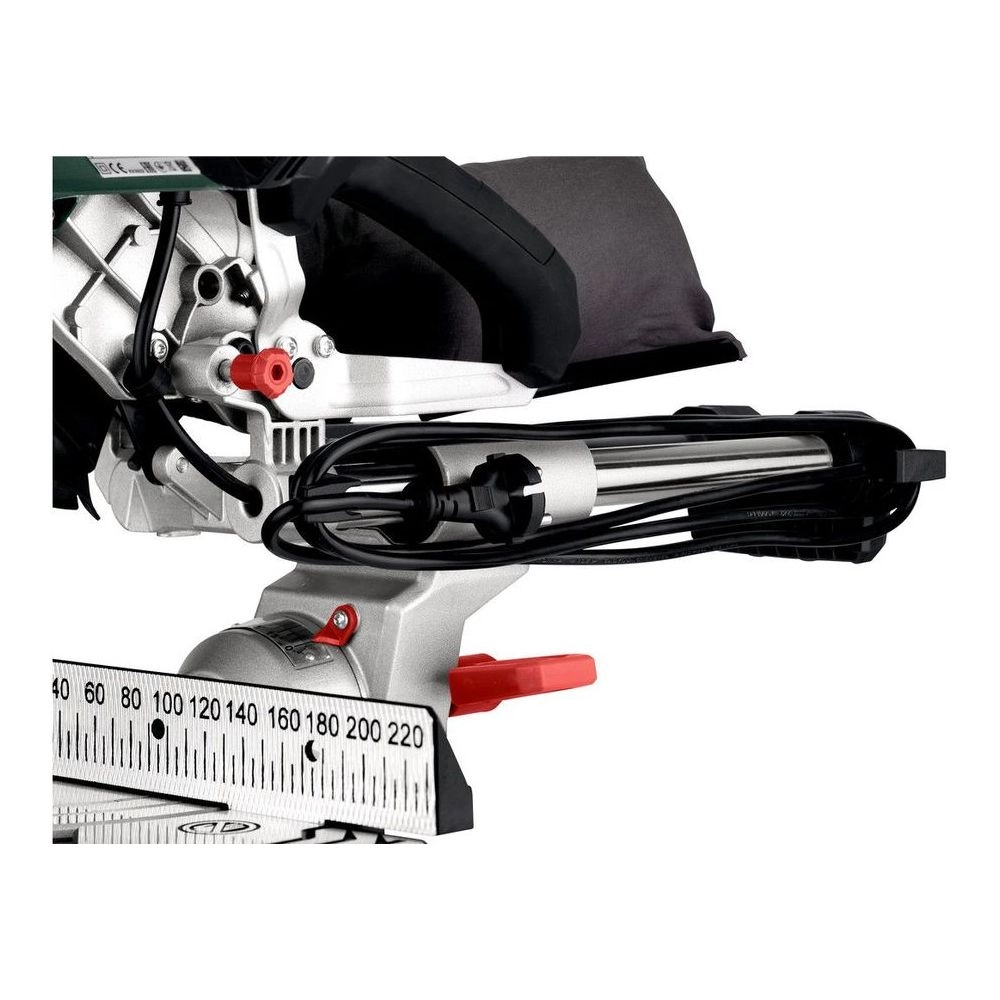

• Cable winder
• Chip Collection Bag
• 2 Table length extensions
• Length Guide
