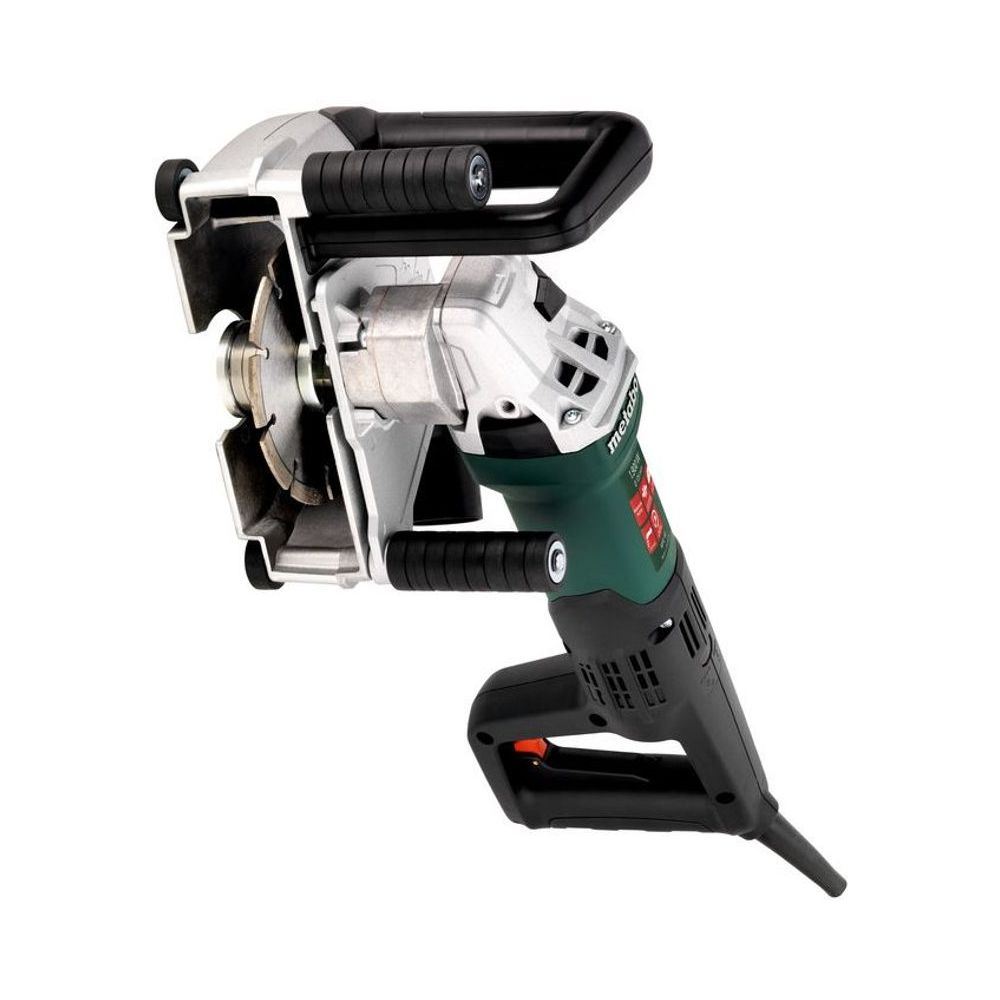

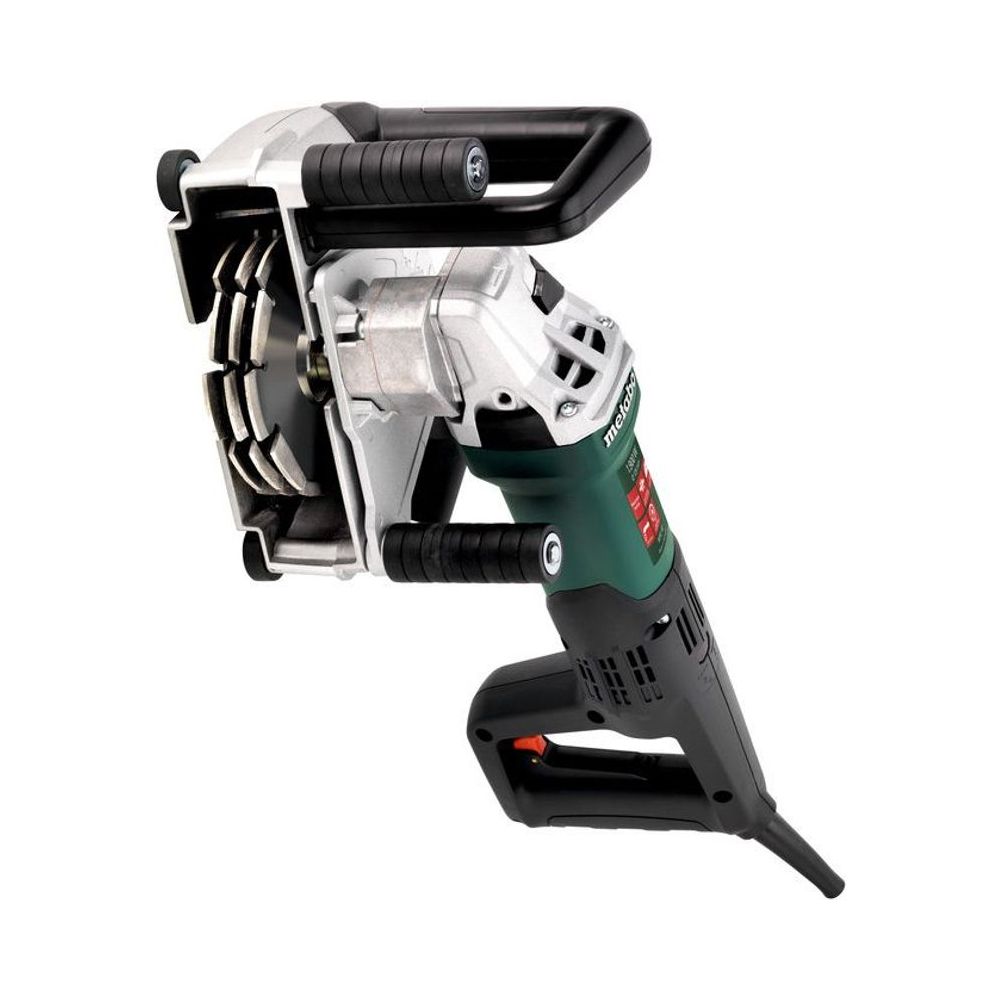

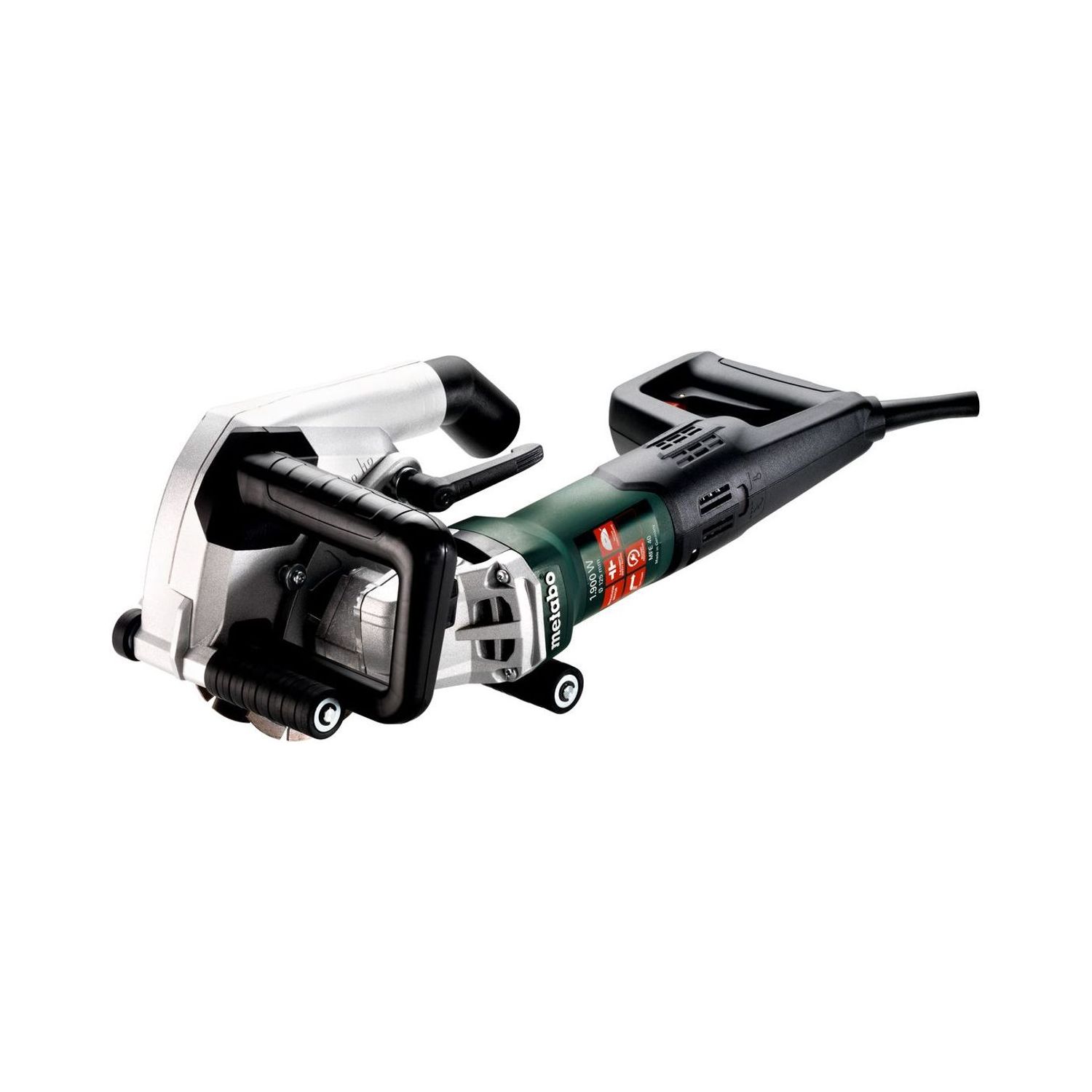

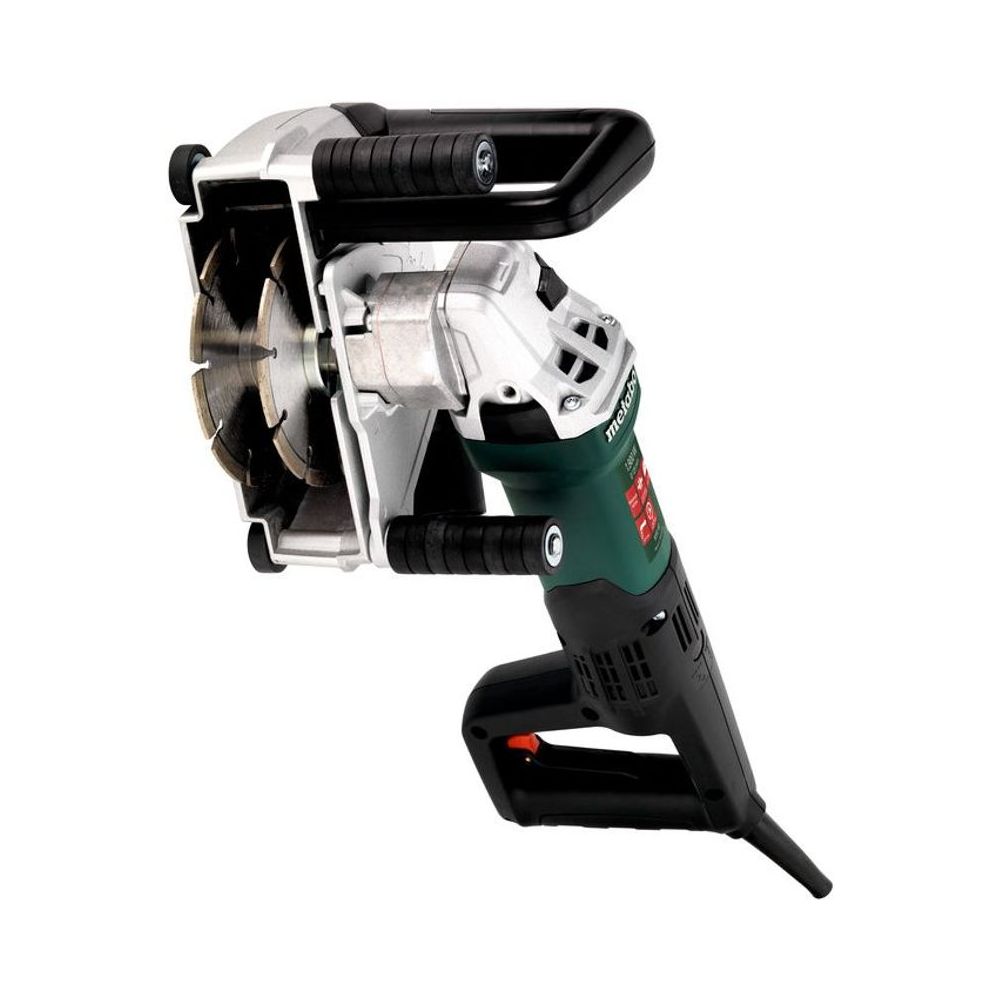

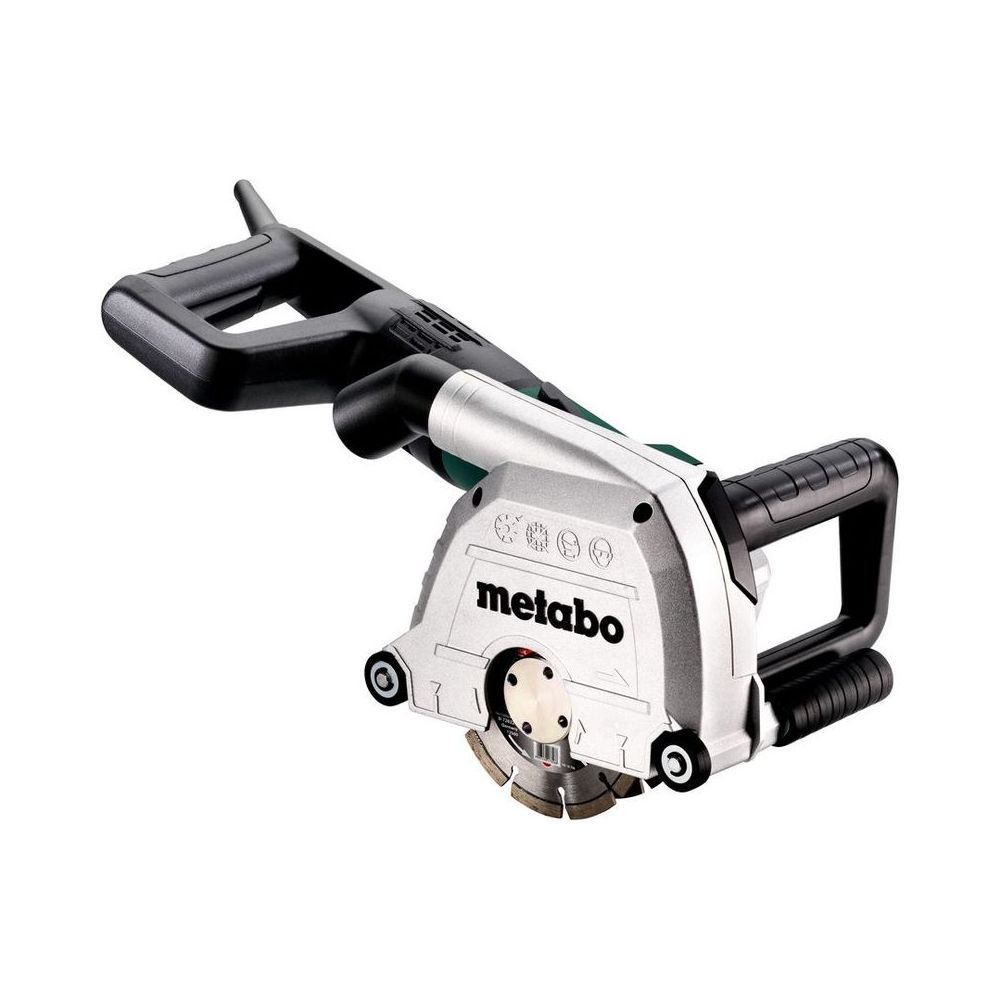

Metabo 604040620 MFE 40 110-120V 5 In. Wall Chaser (125 mm), 1700 W, Plastic Carry Case

Model #   604040620

?

Question about this product?

Speak to an expert

Learn how to use

Features

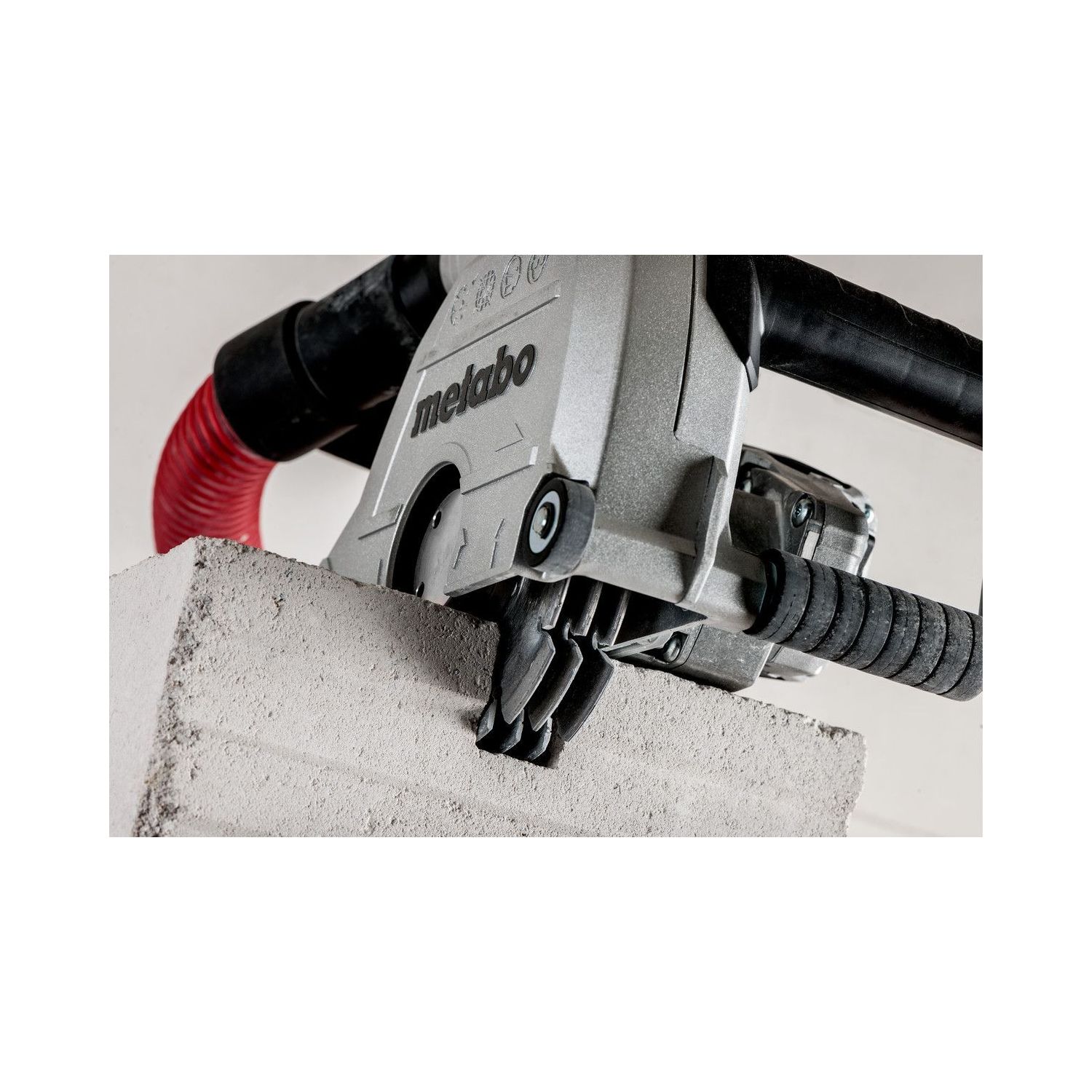

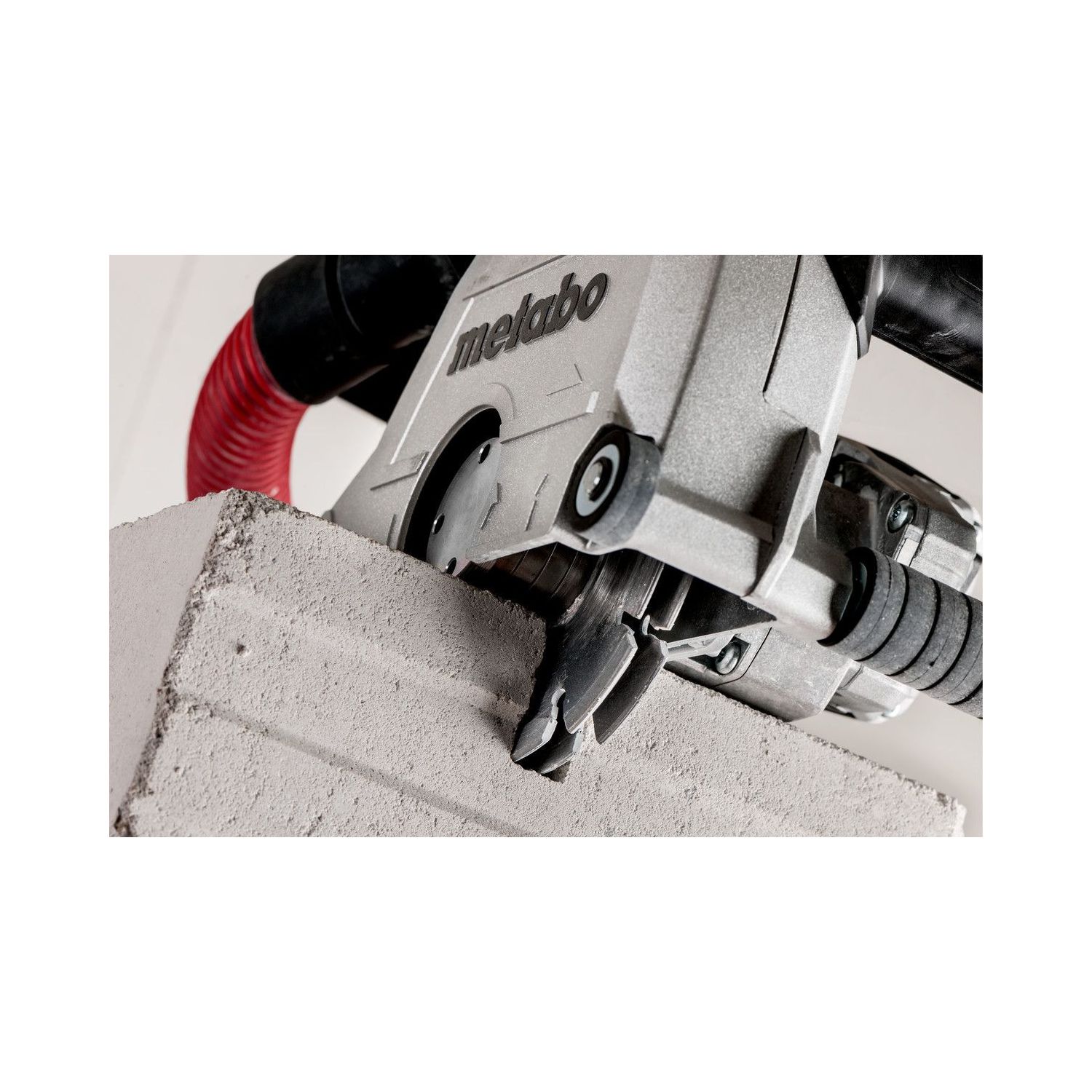

  • Ideal for electric installations to lay cables and pipework under plaster with cutting depths up to 40 mm
  • Maximum work progress by means of powerful motor, constant speed and two-speed high-performance gear
  • Robust aluminium die-cast hood with rubber rollers and optimal handle position for comfortable guidance of the machine
  • Push cut for optimal view of the marking line
  • Channel width and cutting depth can be set
  • Metabo Long-life motor with patented dust protection for long service life
  • Tacho-Constamatic (TC)-Full Wave Electronics: fast work progress by means of constant speed under load
  • Electronic soft start and restart protection for safe working
  • LED signal informs about overload or active restart protection
  • Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)

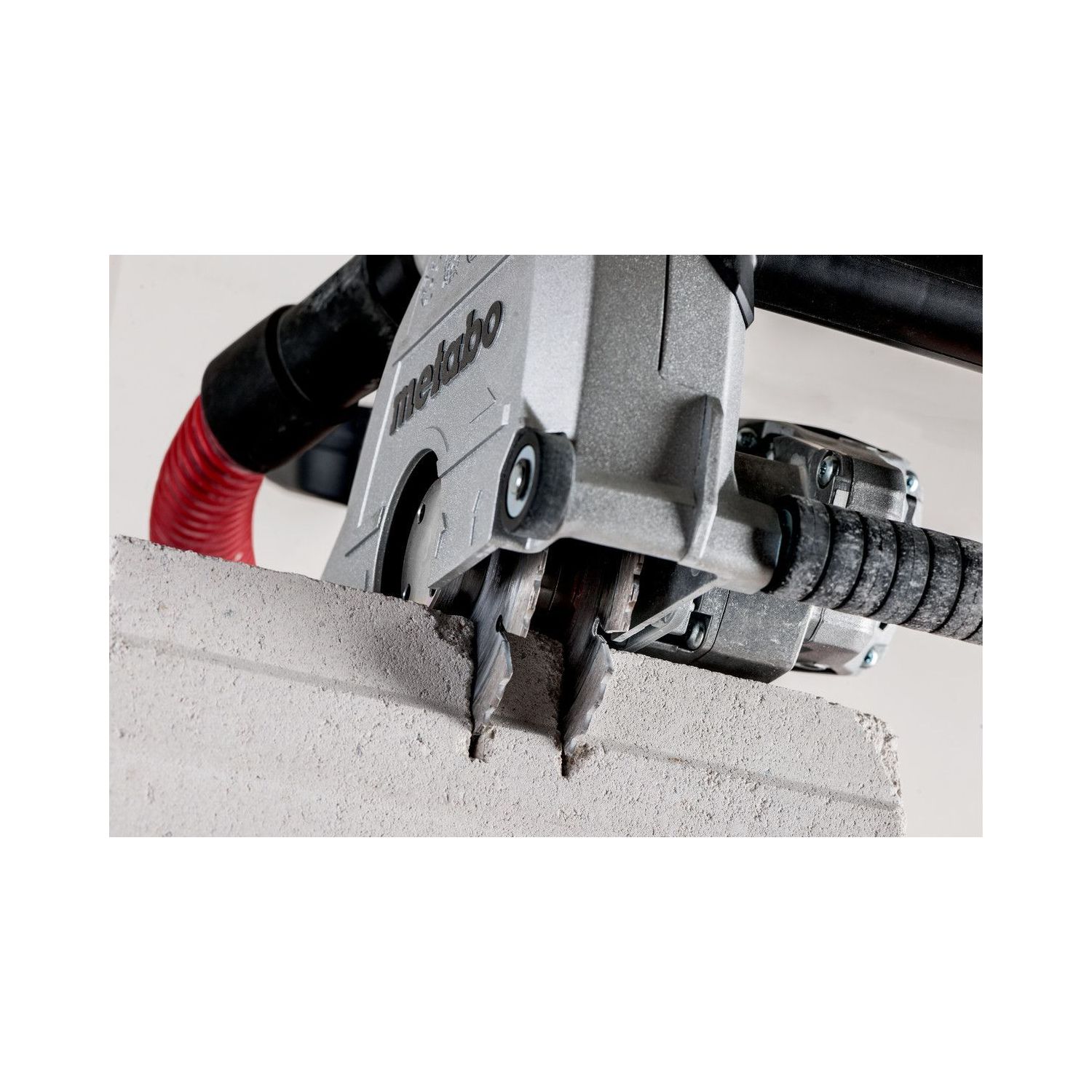

  • Suitable for slitting grooves up to a width of 30 mm without centre in one workstep (with special accessories)
  • Also suitable for cutting with only one diamond cutting disc
  • Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the disc stop unexpectedly

Technical Information

  • Adjustable cutting depth 10 - 40 mm / 3/8 - 1 9/16 "
  • Possible groove widths 9 / 15.5 / 22 / 28.5 / 35 mm / 3/8 / 5/8 / 7/8 / 1 1/8 / 1 3/8 "
  • Cutting disc Ø 125 mm / 5 "
  • Rated input power 1700 W
  • Output power 950 W
  • No-load speed 5000 rpm
  • Speed at rated load 4400 rpm
  • Torque 6 Nm / 53 in-lbs
  • Weight (without power cable) 4.6 kg / 10.1 lbs
  • Cable length 4 m / 13 ft

Items Included

  • Spacer Rings
  • Face pin wrench
  • Chase chisel
  • Plastic carry case
  • 2 Diamond cutting discs
  • Flange nut
