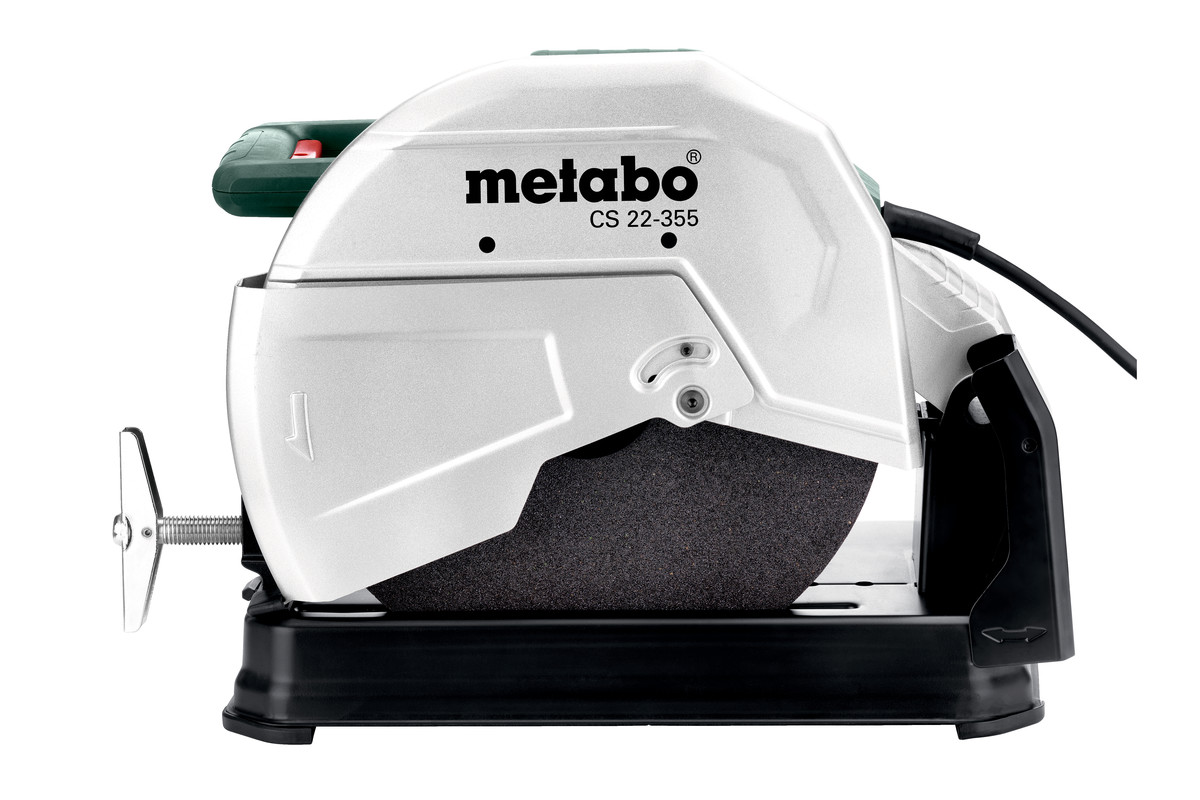

Metabo 601786390 CS 22-355 Chop Saw, 2300W, (355x25.4mm)

Features

• Powerful metal chop saw for cutting of profiles, pipes and rods made of steel, NF metals, iron and cast profiles
• Quick clamping device with variable mitre setting for angled cuts from -15° to 45°
• Large handle transversal to the cutting axis for optimum power transmission while cutting
• Adjustable cutting depth limiter for optimum use of the cutting disc
• Easy, fast disc change with spindle lock
• Maximum user safety: swivelling cutting guard, adjustable spark deflector sheet and rubberised base for safe cutting
• Safety switch for protection against accidental start up
• Robust, large machine table with practical storage for hexagol wrenches
• Easy to transport due to built-in handle and locking device

Technical Information

• Grinding wheels (Ø x bore) 355 x 25.4 mm // 13 31/32 x 1 "
• No-load speed 3700 rpm
• Rated input power 2300 W
• Max. cutting capacity round tube 132 mm / 5 3/16 "
• Max. cutting capacity square tube 120 x 120 mm // 4 23/32 x 4 23/32 "
• Max. cutting capacity rectangular tube 100 x 208 mm // 3 15/16 x 8 3/16 "
• Max. cutting capacity L-profile 150 x 150 mm // 5 29/32 x 5 29/32 "
• Dimensions of the base plate 456 x 256 mm // 17 15/16 x 10 1/16 "
• Transport height 394 mm / 15 1/2 "
• Weight 16.8 kg / 37 lbs
• Cable length 4 m / 13 ft

Items Included

• Hexagol wrench
• Cutting disc 355 mm
• Inner support flange
• Flange nut

Downloads

Datasheet
