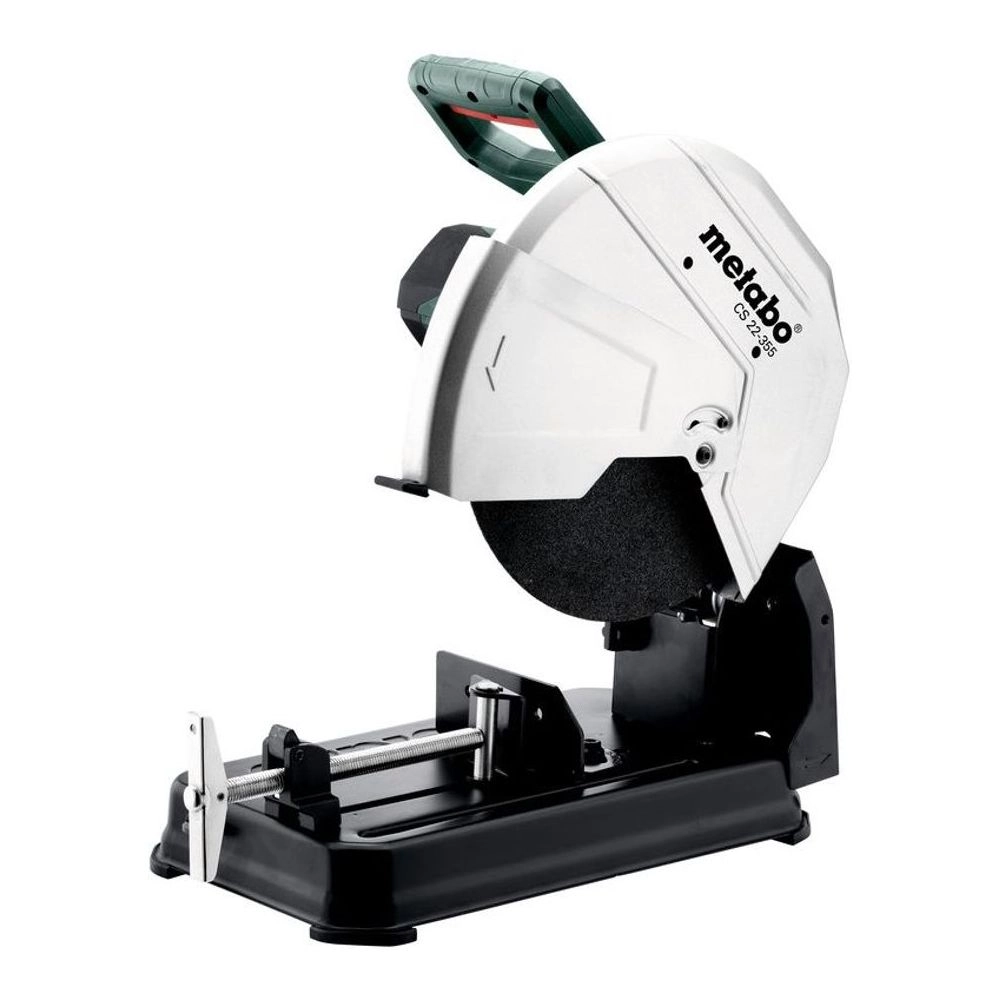

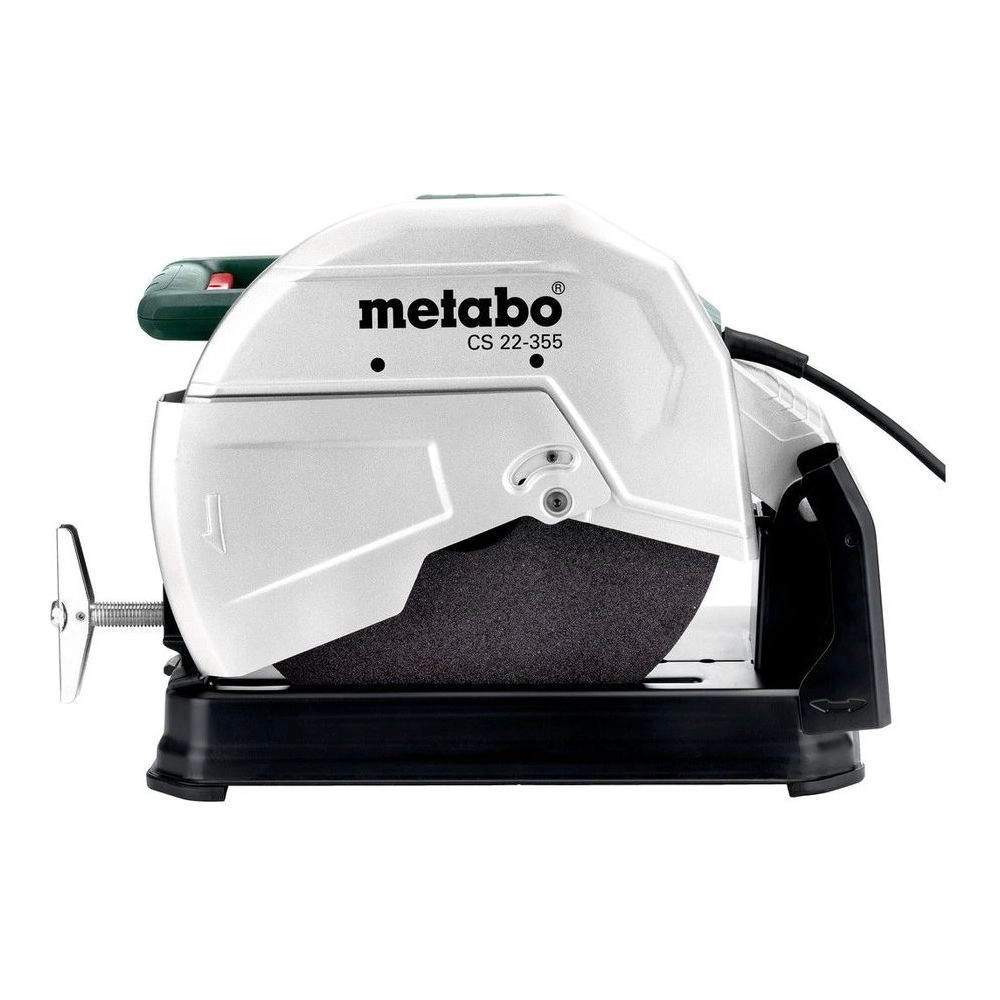

Metabo 601786000 CS 22-355 220V 13 In. Metal Chop Saw (355mm), 2300W

Features

• Powerful metal chop saw for cutting of profiles, pipes and rods made of steel, NF metals, iron and cast profiles
• Quick clamping device with variable mitre setting for angled cuts from -15° to 45°
• Large handle transversal to the cutting axis for optimum power transmission while cutting
• Adjustable cutting depth limiter for optimum use of the cutting disc
• Easy, fast disc change with spindle lock
• Maximum user safety: swivelling cutting guard, adjustable spark deflector sheet and rubberised base for safe cutting
• Safety switch for protection against accidental start up
• Robust, large machine table with practical storage for hexagonal wrenches
• Easy to transport due to built-in handle and locking device

Technical Information

• Power SourceCorded
• Voltage220V
• Power Input2300W
• No-load speed3700 rpm
• Max. cutting capacity round tube132 mm
• Transport height394 mm
• Weight16.8 kg
• Cable length4 m
• Max. cutting capacity square tube120 x 120 mm
• Max. cutting capacity rectangular tube100 x 208 mm
• Max. cutting capacity L-profile150 x 150 mm
• Grinding wheels (Ø x bore)355 x 25.4 mm (13 31/32 x 1")
• Dimensions of the base plate456 x 256 mm

Items Included

• Hexagonal wrench
• Cutting disc 355 mm
• Inner support flange
• Flange nut
