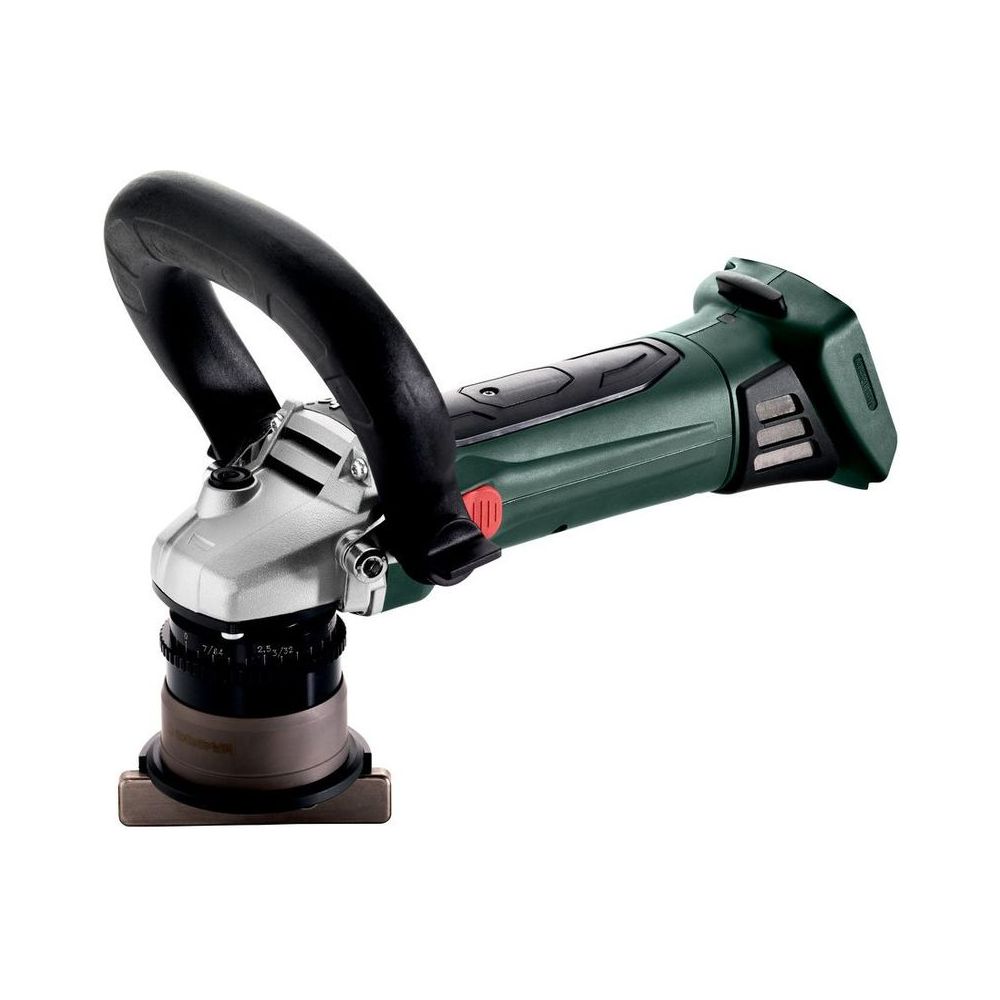

Metabo 601754840 KFM 18 LTX 3 RF 18V Cordless Bevelling Tool for Metal, Max. Chamfer Width 45° (6 mm), Ø 13 mm (Bare Tool)

Features

• The most powerful cordless metal bevelling tool for 45° chamfers up to 4 mm and radii of 2 and 3 mm
• Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion
• One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
• Slim milling head and ball bearing stationary seal ring for working in pipes and on curves
• Guide stop for a uniform finish and high quality of the surface when processing straight sheets
• Bail handle adjusts without tools for secure, even guiding
• Battery pack can be rotated in 90°steps for best ergonomics in any working position
• Overload protection: protects the motor from overheating
• Electronic soft start for smooth start-up
• Restart protection: prevents unintentional start-up after battery pack change
• Detachable dust protection filter protects motor from coarse particles
• With metaBOX, the intelligent solution for transport and storage
• Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com

Technical Information

• Type of battery pack LiPOWER
• Battery voltage 18 V
• No-load speed 7000 rpm
• Type of edges Chamfer and radius
• Max. chamfer width 45° 6 mm / 1/4 "
• Max. chamfer height at 45° 4 mm / 5/32 "
• Possible radii R2 / R3
• Grading of cutting depth setting 0.1 mm / 0.00394 "
• Curves smallest internal Ø 13 mm
• Weight without battery pack 2.4 kg / 5.3 lbs
• Weight with battery pack 3.1 kg / 6.8 lbs

Items Included

• 2 Carbide indexable inserts 45° chamfer
• Guide Stop
• Screwdriver for Torx screws 15
• Bow-type handle
• Dust Protection Filter
• MetaBOX 215
• Without battery pack, without charger
• 2 Carbide indexable inserts radius R2
• 2 Carbide indexable inserts radius R3

Downloads

Datasheet
