Metabo 601751750 KFM 9-3 RF 110-120V Bevelling Tool for Metal, Max. Chamfer Height 45° (4 mm), Ø 13 mm, 900 W

Features

• Compact metal bevelling tool for 45° chamfers and radii of 2 to 3 mm at visible edges
• Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion
• One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

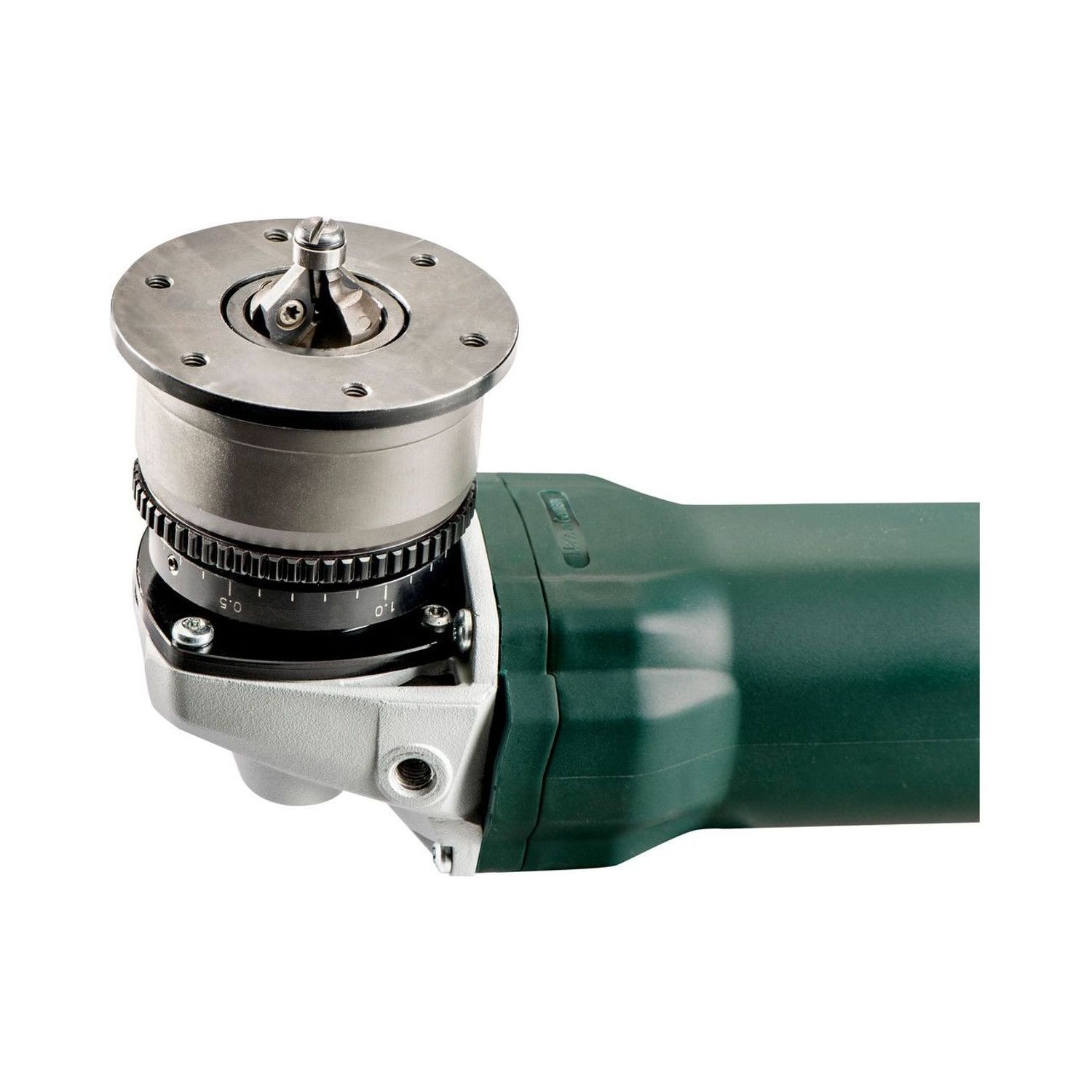

• Slim cutter head with standard carbide indexable inserts and ball-bearing stationary seal ring for working in tubes and in curves

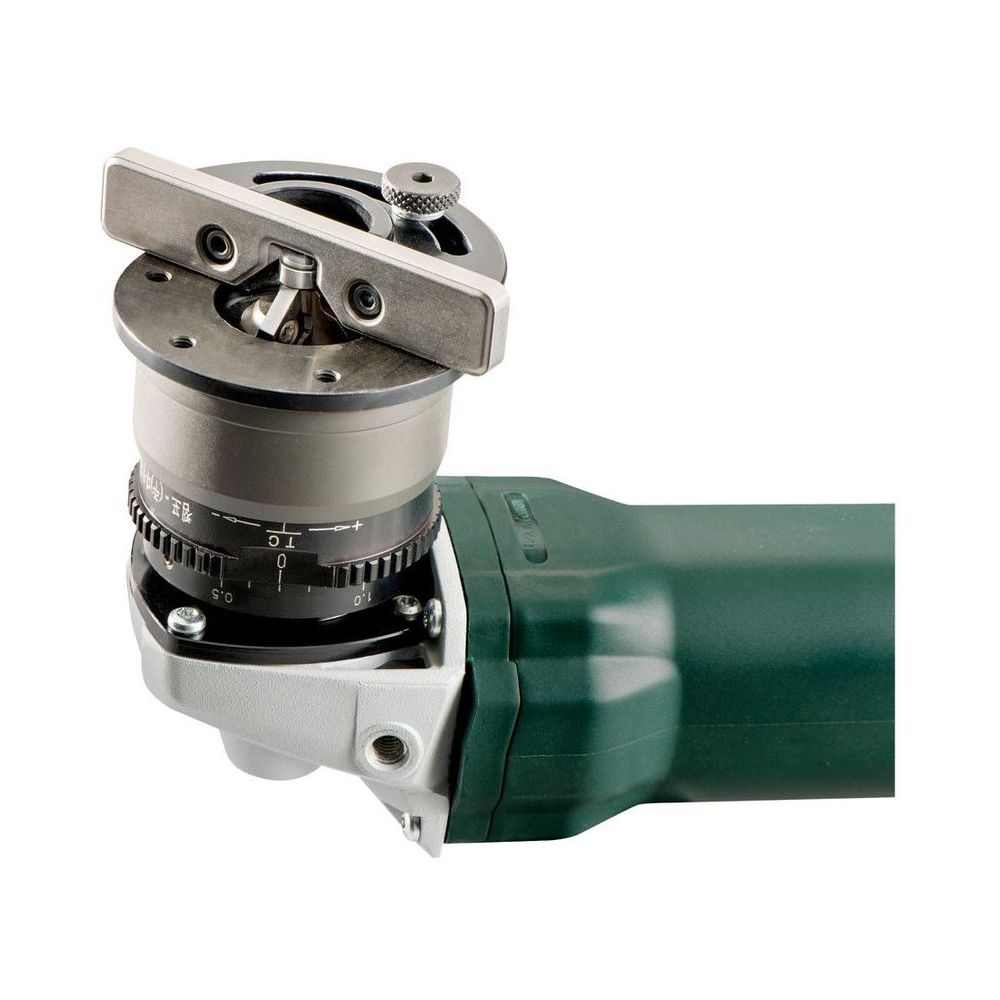

• Guide stop for a uniform finish and high quality surface finish when processing straight edges
• Bail handle adjusts without tools for secure, even guiding
• Metabo Long-life motor with patented dust protection for long service life
• Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load
• Electronic safety shutdown of the motor for safe working in case the tool stops unexpectedly
• Electronic overload protection, soft start and restart protection
• Slim design for ideal handling
• With metaBOX, the intelligent solution for transport and storage

Technical Information

• No-load speed 4500 - 11500 rpm
• Rated input power 900 W
• Output power 470 W
• Type of edges Chamfer and radius
• Chamfer angles 45 - 45 °
• Max. chamfer width 45° 6 mm / 1/4 "
• Max. chamfer height at 45° 4 mm / 5/32 "
• Possible radii R2 / R3
• Grading of cutting depth setting 0.1 mm / 0.004 "
• Curves smallest internal Ø 13 mm
• Weight (without power cable) 2.5 kg / 5.5 lbs
• Cable length 4 m / 13 ft

Items Included

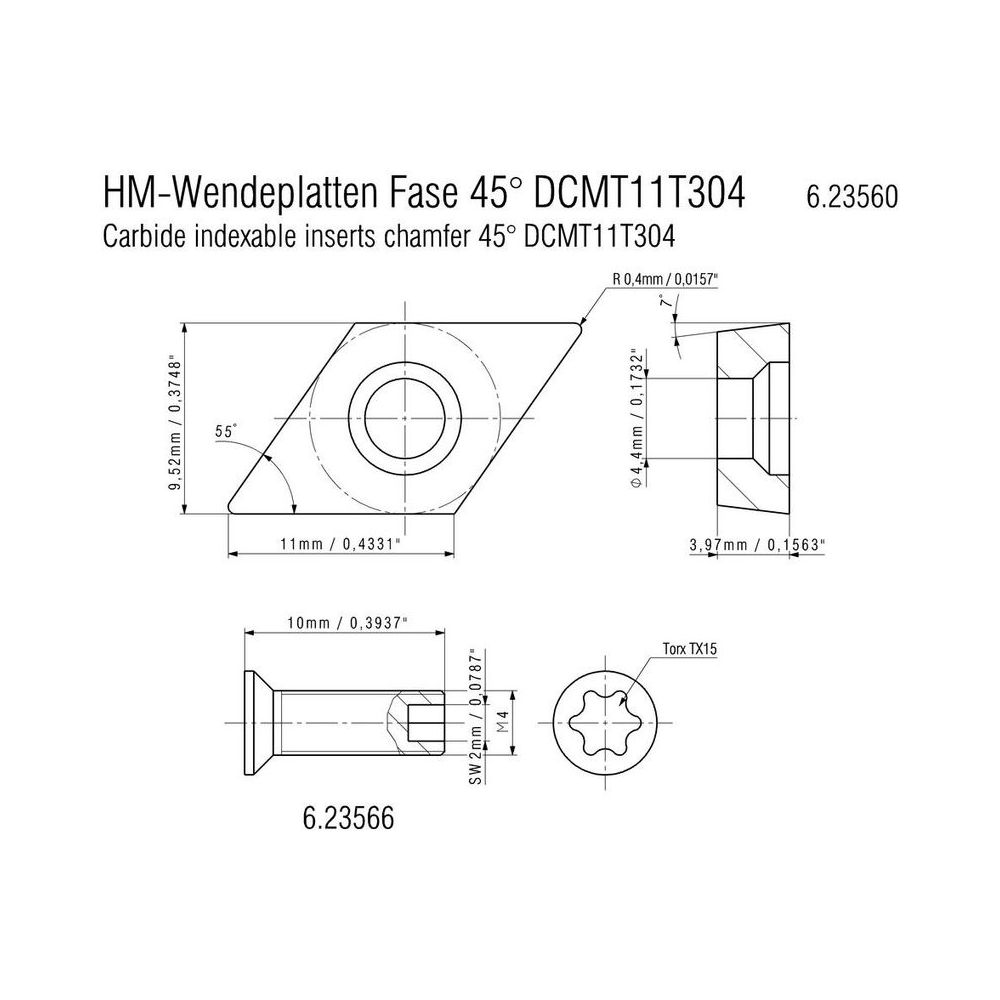

• 2 carbide indexable inserts 45° chamfer (ISO: DCMT 11 T 304)
• Guide Stop
• Screwdriver for Torx screws 15
• Bow-type handle
• metaBOX 215

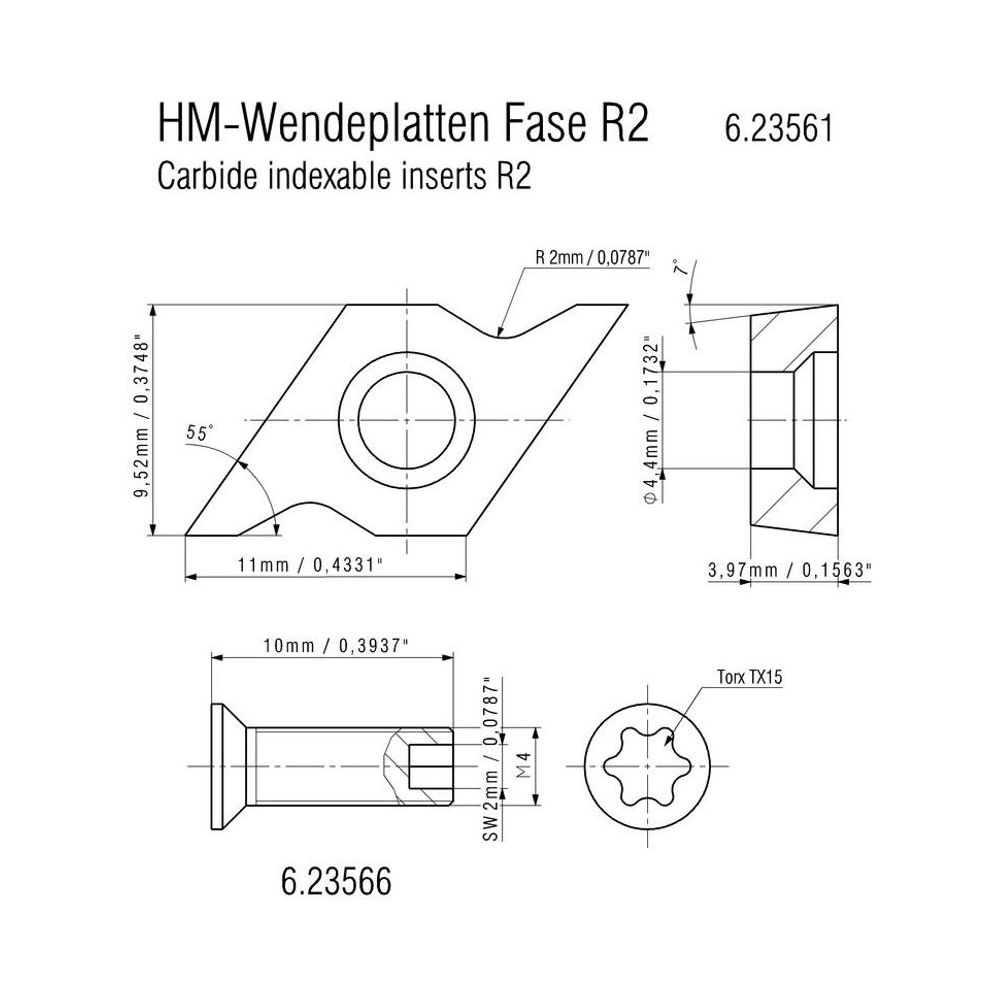

• 2 Carbide indexable inserts radius R2

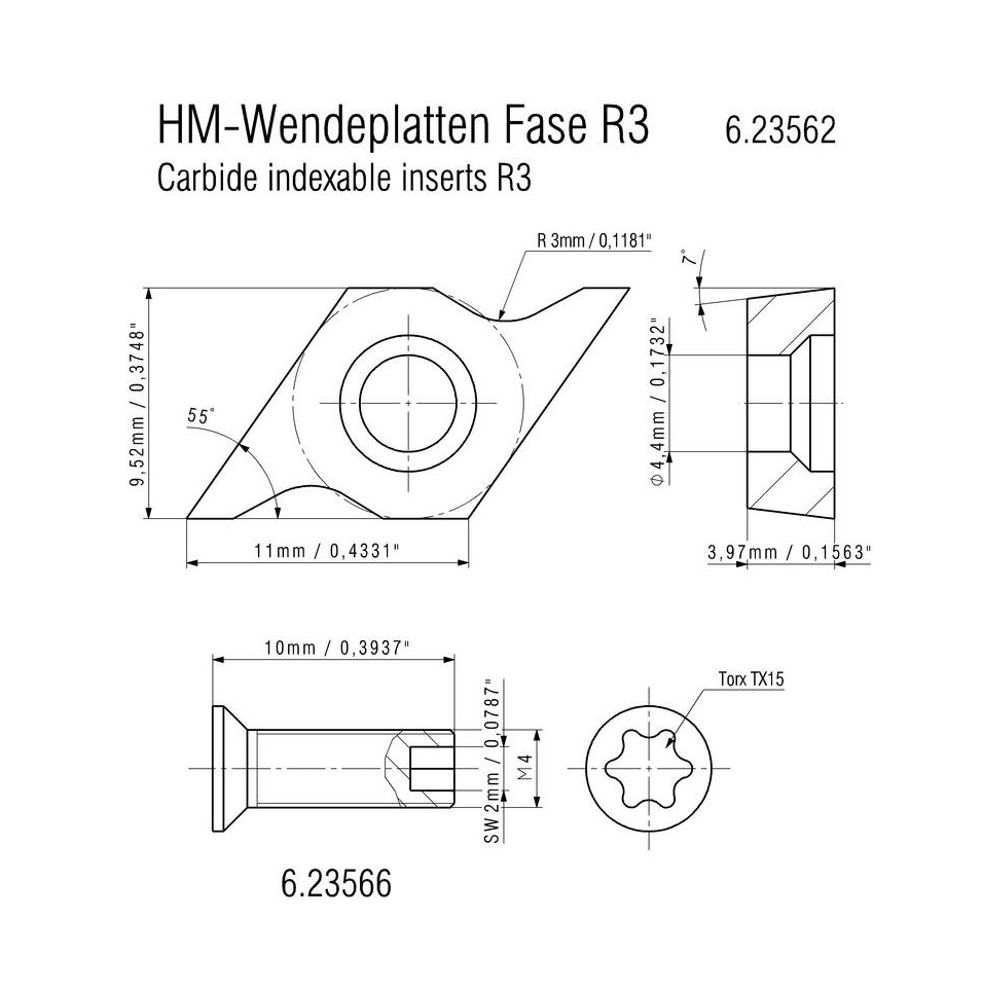

• 2 Carbide indexable inserts radius R3
