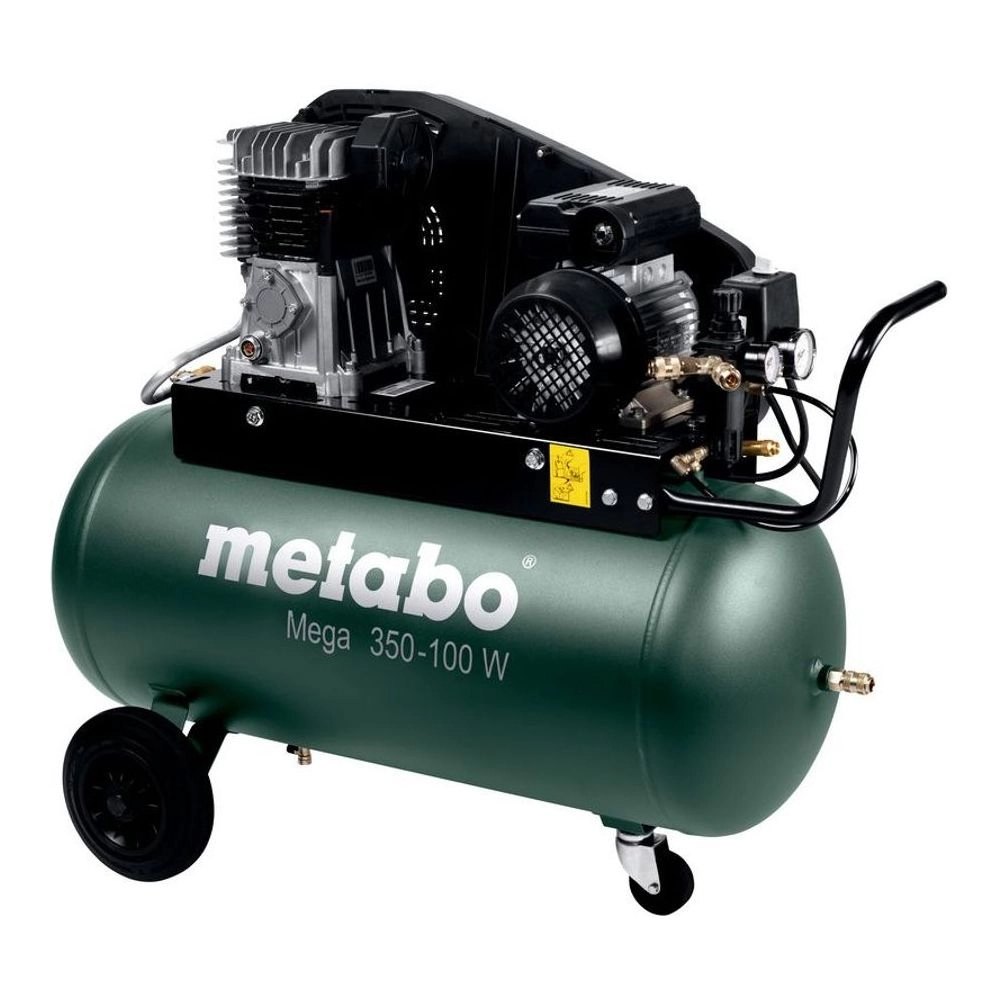

Metabo 601538000 350-100 W Air Compressor, 3HP, 100L, 220V

Features

• More powerful and robust V-belt compressor for demanding use
• Belt drive for low speeds and a particularly quiet operation
• Oil-lubricated Piston Condenser
• For single phase alternating current
• Working pressure can be regulated according to application by means of a filter pressure reducer with manometer
• Convenient pressure switch for good cold starting, complete with relief valve

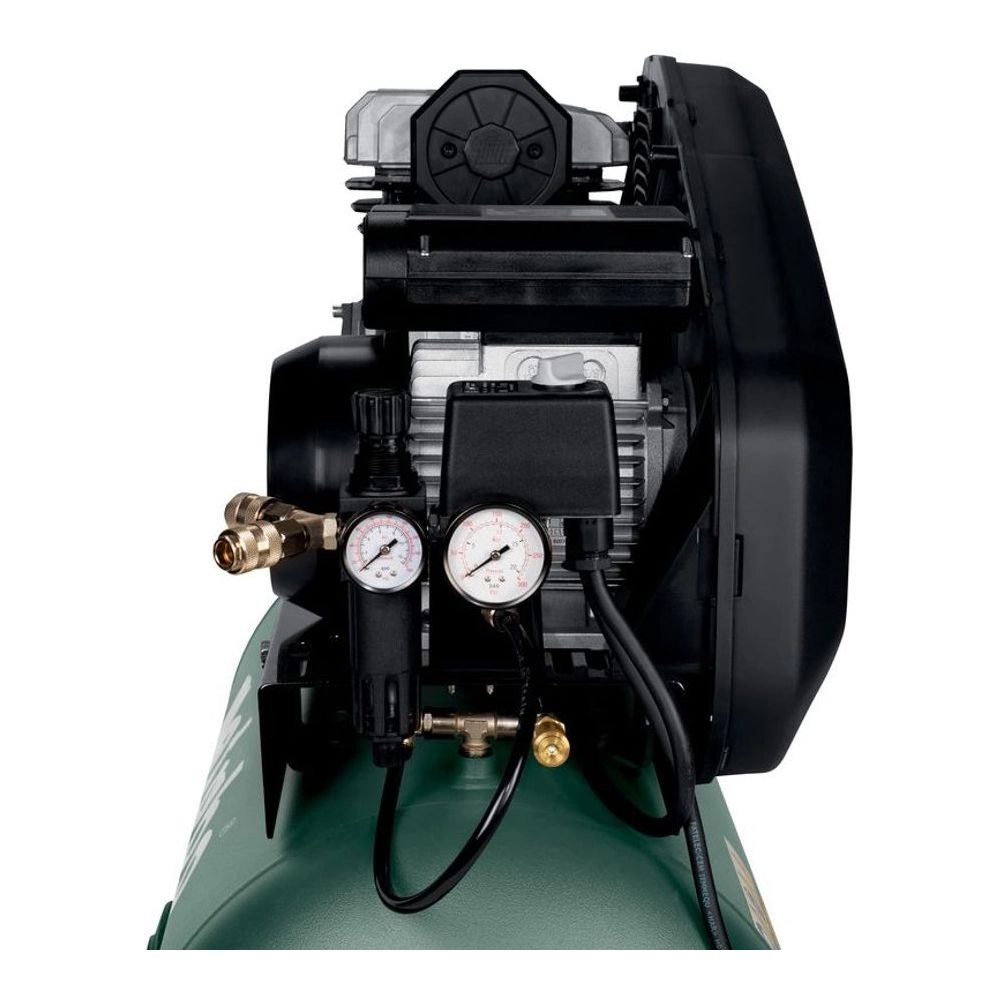

• Additional manometer for displaying the tank pressure
• Overload protection: protects the motor from overheating
• Rubberised, stable wheels and pull handle for mobile use

Technical Information

• Suction rate320 l/min / 85 gal/h
• Filling capacity250 l/min / 8.8 cfm
• Effective delivery volume (at 80% max. pressure)220 l/min / 7.8 cfm
• Maximum pressure10 bar / 145 psi
• Mains voltage220 - 240 V
• Rated input power2.2 kW / 3 HP
• Maximum speed1350 rpm
• Tank capacity90 l / 23.8 gal
• Sound pressure level (LPa)86 dB(A)
• Sound power level (LWA)93 dB(A)
• Dimensions1000 x 410 x 900 mm // 3.3 x 1.4 x 3 ft
• Weight69 kg / 152 lbs
• Cable length1.5 m / 5 ft
• Sound pressure level86 dB(A)
• Sound power level (LWA)93 dB(A)
