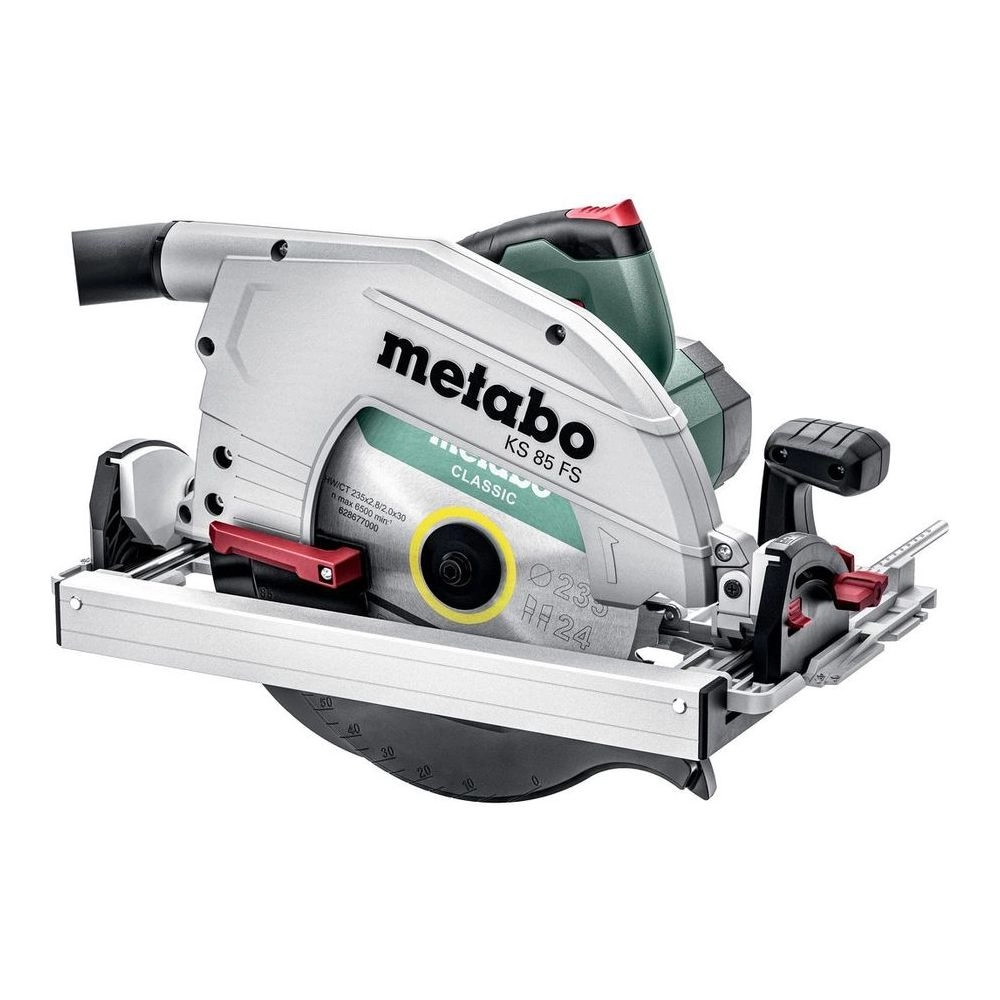

Metabo 601085000 KS 85 FS 220V 9.5 In. Circular Saw (235mm), 2000W

Model #   601085000

?

Question about this product?

Speak to an expert

Features

  • Robust circular saw, can be used directly on guide rails from Metabo and also Mafell, Bosch, Festool, Makita, HiKOKI, Hilti and other manufacturers
  • Fast, precise cross cuts thanks to easy coupling with a Metabo cross cutting rail
  • Light guide plate made from die cast aluminium
  • Grip area with non-slip soft-grip surface
  • Precise, double-track aluminium parallel guide makes cutting to size easier
  • Clearly visible cutting indicator for precise sawing after initial cut
  • 0° position re-adjustable for highest cutting precision
  • Extraction possibility by means of connecting an all-purpose vacuum cleaner
  • Sawdust ejection nozzle for any working position can be rotated and locked individually
  • Auto-stop carbon brushes to protect the motor
  • Precision guide rail available as accessory

Technical Information

  • Power SourceCorded
  • Voltage220V
  • Saw blade Ø x bore235 x 30 mm (9 1/4 x 1 3/16")
  • Rated input power2000W
  • Output power1100W
  • Maximum cutting depth at 90°85 mm
  • Maximum cutting depth at 45°65 mm
  • Max. cutting depth with guide rail80 mm
  • Swivel range from / to‌ 0 / +48 °
  • No-load speed4500 rpm
  • Speed at rated load3800 rpm
  • Max. cutting speed55 m/s
  • Weight (without power cable)8.4 kg
  • Cable length4 m
  • Sound pressure level95 dB(A)
  • Sound power level (LwA)106 dB(A)
  • Uncertainty of measurement K3 dB(A)

Items Included

  • Carbide circular saw blade (24 teeth)
  • Aluminium parallel guide
  • Hexagonal wrench
