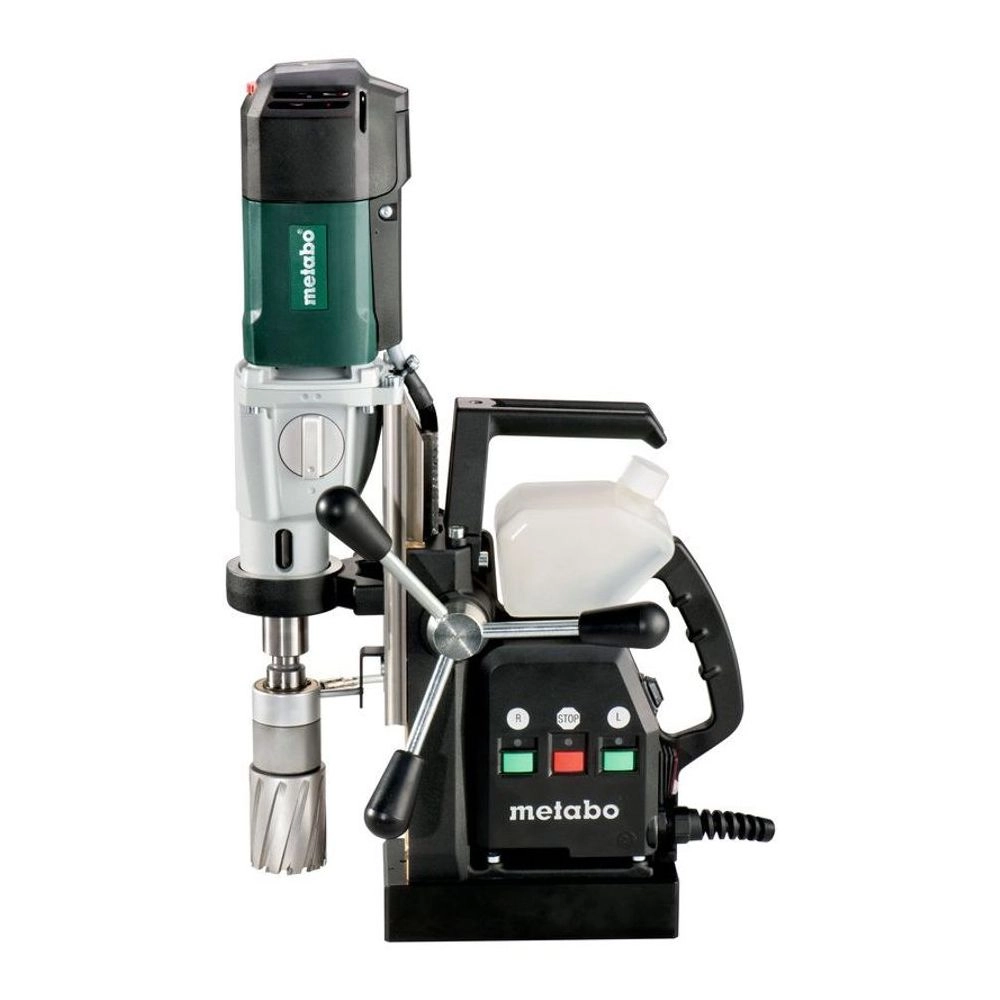

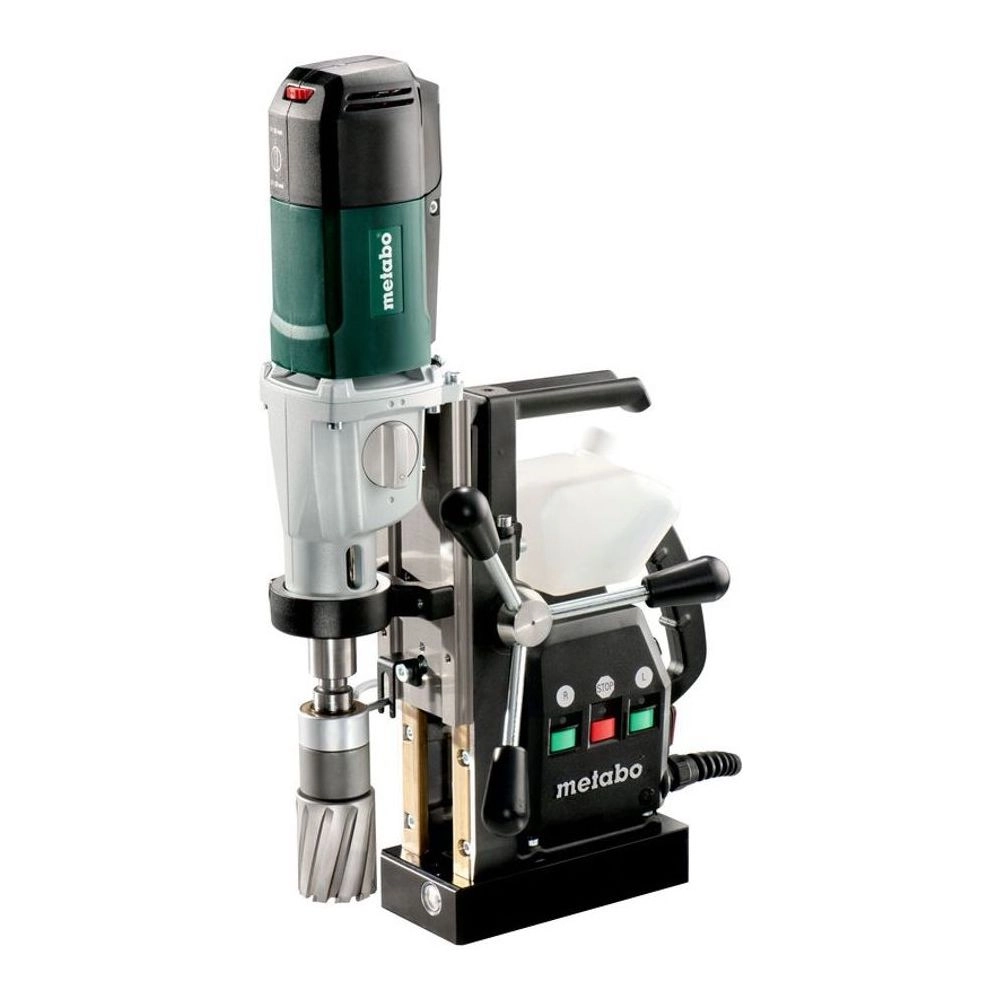

Metabo 600636500 MAG 50 220V Magnetic Core Drill Press, 19mm, 1200W

Model #   600636500

?

Question about this product?

Speak to an expert

Features

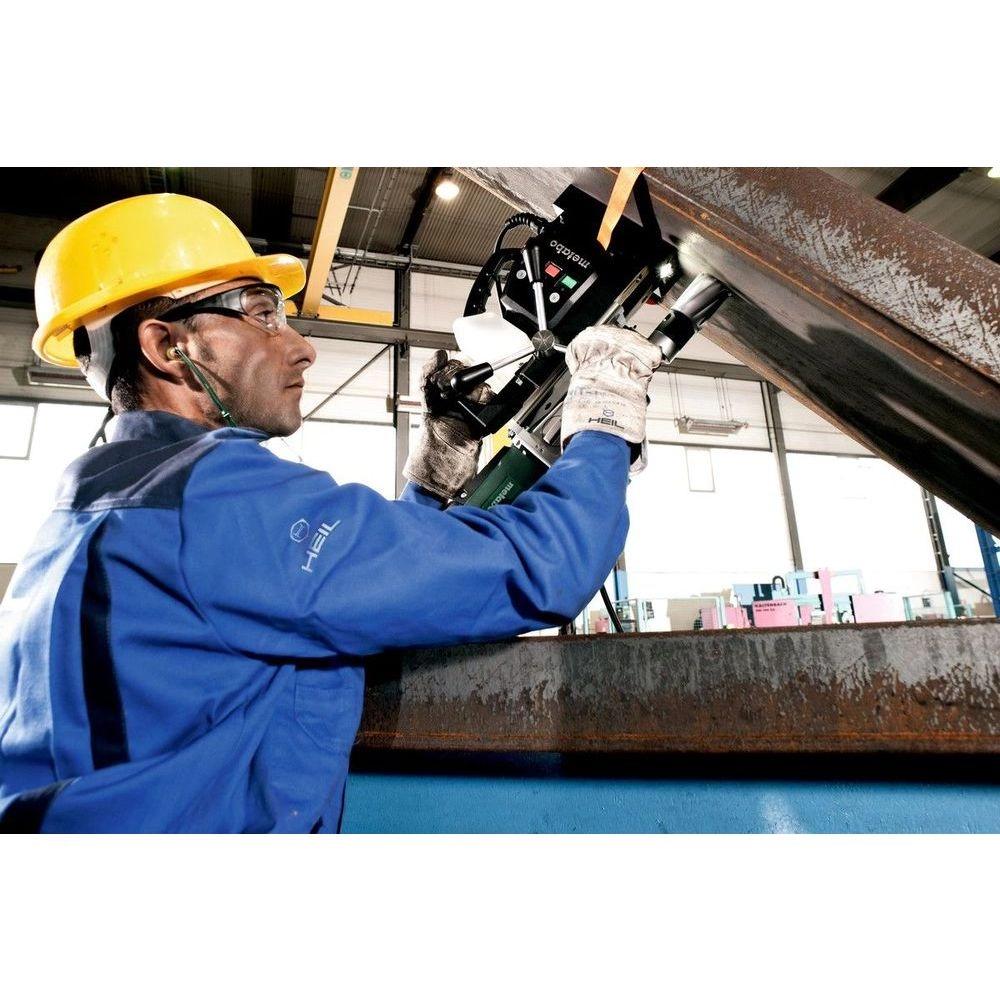

  • Magnetic base with high holding power permits working on vertical surfaces and overhead
  • Robust Metabo marathon motor with internal wiring for long service life
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
  • Clockwise/anti-clockwise rotation with thread cutter
  • Durable two-speed gearbox with oil bath lubrication for ideal speeds
  • Integrated coolant container for easy to dose internal cooling of the core drill
  • Bright LED light for easy alignment in poor light conditions
  • Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
  • Protective circuit starts motor only if the magnet is activated
  • Overload protection: protects the motor from overheating
  • Restart protection: prevents unintentional start-up after power supply interruption
  • Lockable slide for comfortable tool change
  • Handle for easy carrying and lifting
  • Resistant mains cable (5 m) with rubber shroud

Technical Information

  • Power SourceCorded
  • Voltage220V
  • Rated Input Power1200W
  • Output Power620W
  • Max. Drilling Diameter (Core Drill)50mm
  • Max. Drilling Diameter (Spiral Drill)20mm
  • Max. Drilling Depth50mm
  • Thread CuttingM16
  • No Load Speed100 - 250 / 200 - 450 RPM
  • Torque90 / 50 Nm
  • Weight (Bare Tool)12.7kg
  • Cable Length5m

Items Included

  • Industrial holder for Weldon shank 19 mm
  • Safety strap
  • Hexagon socket wrench SW 5
  • Swarf protection guard
  • Transport case
  • Ejector pins 75 and 100 mm
  • MK 2 drift key
