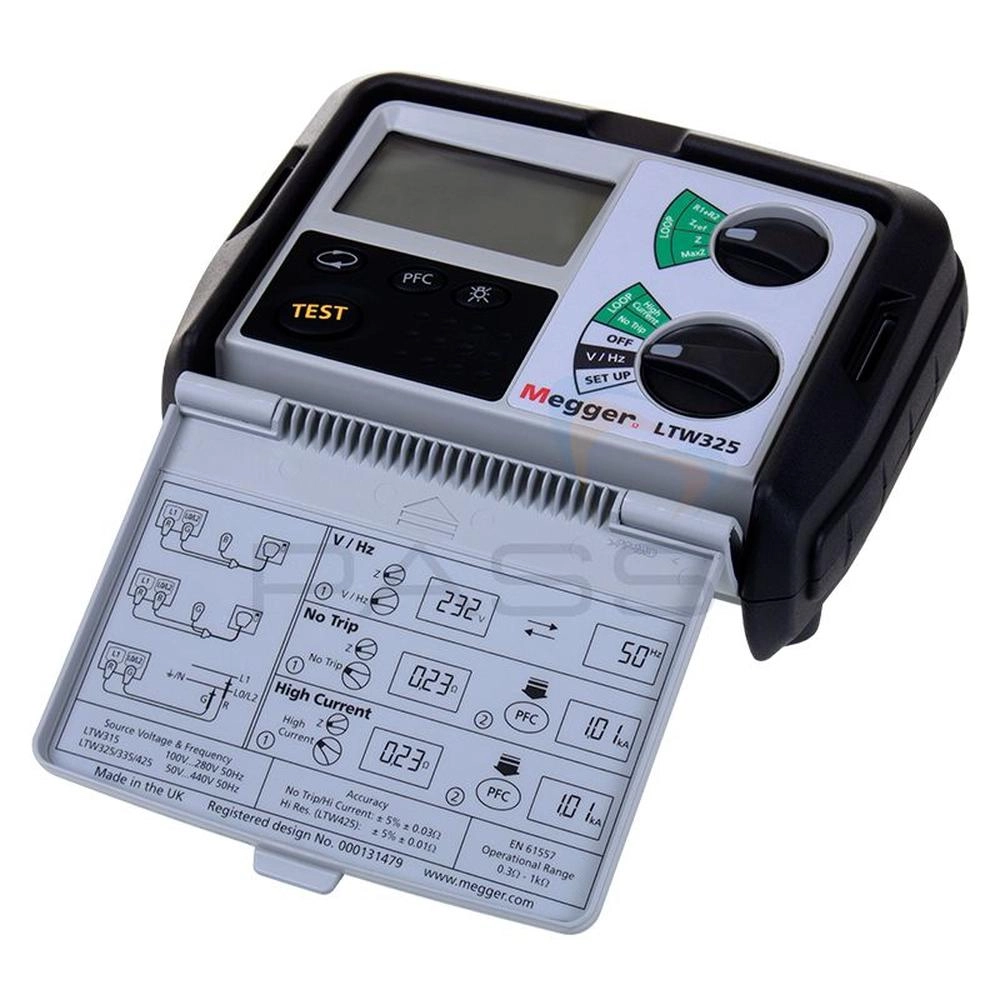

Megger LTW325-EU-BS LTW325-EU-BS Loop Impedance Tester - Two Wire Non Tripping with 50 to 440V testing; Max Z and R1+R2 - BS1363 Plug Test Lead

Model #   LTW325-EU-BS

?

Question about this product?

Speak to an expert

Features

  • 2-wire non trip loop testing
  • 2 wire fast testing (high current)
  • Suitable for use on 110V to 280V applications
  • Also suitable for use on 50V to 440V applications
  • Phase to phase testing
  • 20 KA PFC range
  • 0.01Ω resolution
  • Automatic noise detection and correction
  • Auto loop test initiation
  • Voltage and frequency measurements
  • Max Zs display
  • R1 + R2 display

Technical Information

  • AC Voltage Measurement50V to 440V
  • Frequency Measurement25Hz to 99.99Hz
  • No Trip Loop Test Nominal Current15ma (at nominal 230V a.c supply)
  • High Current Loop Test4A (at nominal 230V a.c supply)
  • Operational Range0.30 to 1000Ω
  • Safety300 volts to Earth Category IV
  • Battery8 x 1.5V Cells IEC LR6 Type (AA Alkaline)

Items Included

  • 2 Wire loop tester + maxZ and (R1+R2)
